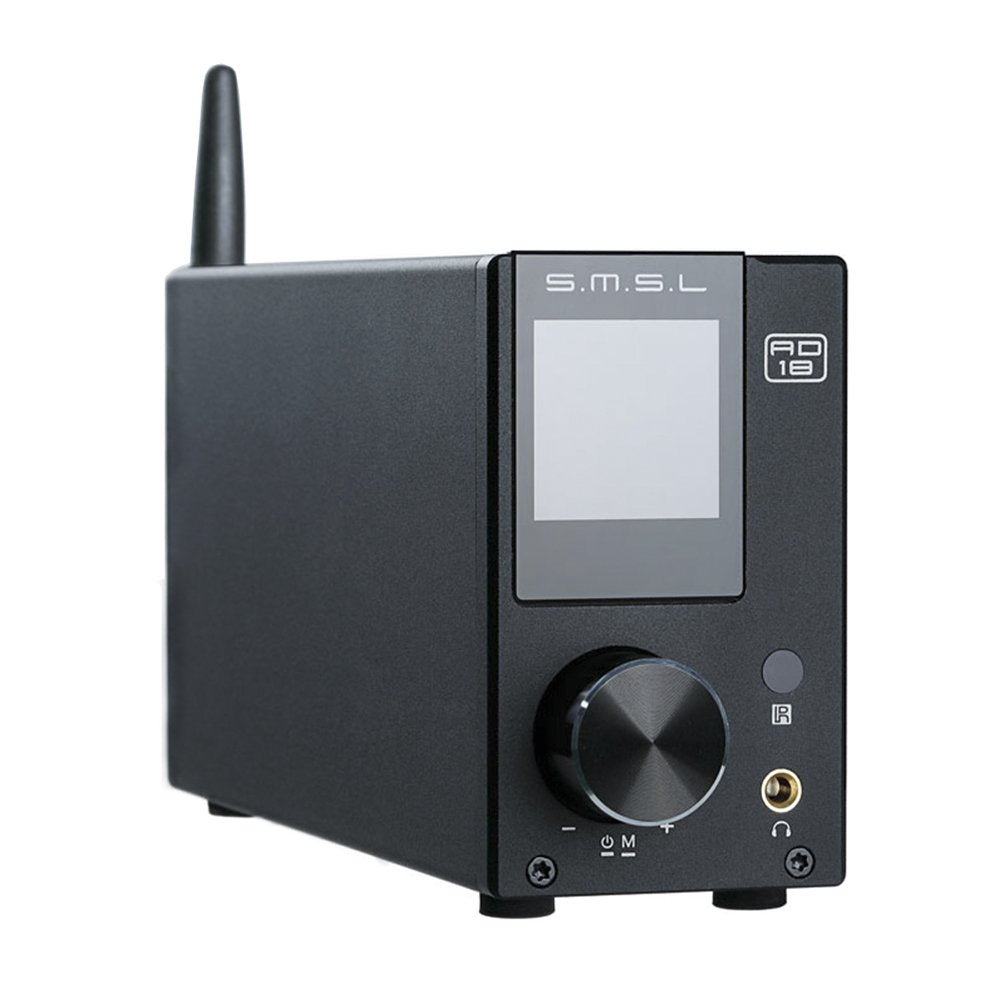

Ad 18 Is A Small Full Digital Class D Bluetooth Amplifier Built-In Headphone Amplifier Supports Subwoofer Output.Connect It To Your Computer And Use It To Drive Your Headphones With An Amplifier Or To Power Your Passive Speakers(4Ohm Speaker Produces 80Wx2 Output Power).Sophisticated Matting Aluminum Housing Reduces Interference. Patented Sdb Sound And +-8 Level Treble And Bass Adjustment. Independent Headphone Amplifier Design And Advanced Dsp Technology Makes The Unit More Desirable. Amplifier Chip: Using Tas5508C For Digital Signal Dsp Processing And Pre-Amp.Tas5342A For Digital Signal Rear-Amp. It Will Be Through Lc Filter And Then Send To Amplifier Output Jack. Digital Receiving Chip:Cs8422.It Receive Optical And Coaxial Signal And All Signal Transfer. Usb Chip:Tas1020B. Supports Stereo Sound 24Bit/96Khz.For Much Better Sound, We Use Sdpi Output Instead Of Internal Dac Output Design. Strong Anti-Interference Ability And More High-Fidelity. Hp Amplifier Chip:Max97220A. Dual-Op Amplifier:Ne5532 With High Efficiency Low Noise. Analog/Digital Converter Ic :Cs5341,Accurate To 24 Bit 48Khz.Convert Aux Signal To Digital Signal. Then Digital Signal Processing By Cs8422 Specification Type: Full Digital Decoding Amplifier Input Port: Usb/Aux/3.5Mm Coaxial And Optical 1/Bluetooth/Optical 2 Output Port: Amplifier Output Port/3.5Mm Headphone Port/Subwoofer Voltage: 24V Output Power:80W X 2 Snr(Signal To Noise): 90Db Thd+N: 0.04% Power Consumption: 50W Standby Power:0.8W Eq Adjustment: 7 Headphone Output(32Ohm): 53Mw@Thd=0.04% Usb Sampling Rate: 24Bit 96Khz Optical Sampling Rate:44.1Khz-192Khz Coaxial Sampling Rate:44.1Khz-192Khz Treble Adjustment Range: 8Db,Bass Adjustment Range:8Db Net Weight: 572G Gross Weight:1585G Machine Size: 172*51*85Mm
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the S.M.S.L AD18 amplifier?A: The dimensions are six point seven seven inches in length, two point zero one inches in width, and three point three five inches in height.
Q: What is the power output of the S.M.S.L AD18?A: The amplifier has an output power of eighty watts by two channels.

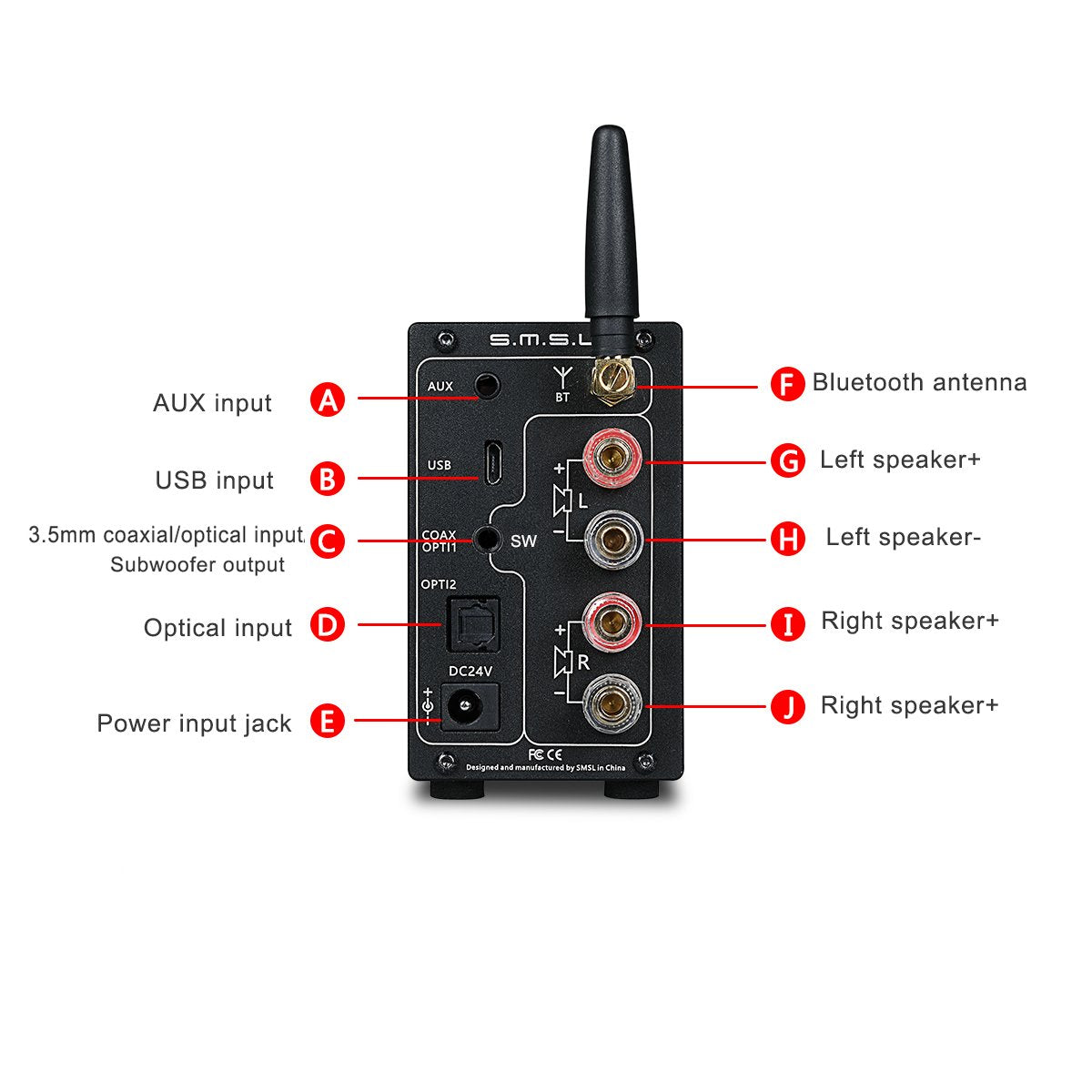

Q: What kind of audio connections does the amplifier support?A: The S.M.S.L AD18 supports multiple audio connections including USB, coaxial, analog, Bluetooth, and two optical inputs.
Q: What is the weight of the S.M.S.L AD18 amplifier?A: The net weight is five hundred seventy-two grams, while the gross weight is one thousand five hundred eighty-five grams.
Q: What type of amplifier is the S.M.S.L AD18?A: It is a full digital Class D amplifier.
Q: How do I connect my devices to the S.M.S.L AD18?A: You can connect devices via USB, coaxial, analog, or Bluetooth inputs, and use the appropriate cables or wireless connections.
Q: Can I use the S.M.S.L AD18 with Bluetooth devices?A: Yes, it supports Bluetooth version four point two with apt-X for higher quality audio.
Q: Is the S.M.S.L AD18 suitable for headphones?A: Yes, it features a dedicated headphone output for connecting headphones.
Q: How do I adjust the sound settings on the S.M.S.L AD18?A: You can adjust the treble and bass levels, each having a range of plus or minus eight decibels.
Q: What is the standby power consumption of the S.M.S.L AD18?A: The standby power consumption is zero point eight watts.
Q: What is the warranty policy for the S.M.S.L AD18?A: The warranty policy typically covers defects in materials and workmanship for a specified period; please check with the retailer for exact details.
Q: What if my S.M.S.L AD18 arrives damaged?A: If it arrives damaged, you should contact customer support for assistance with returns or exchanges.
Q: Can I use the S.M.S.L AD18 with a subwoofer?A: Yes, it has a dedicated subwoofer output for connecting an active subwoofer.
Q: What is the signal-to-noise ratio of the S.M.S.L AD18?A: The signal-to-noise ratio is ninety decibels.
Q: How should I clean the S.M.S.L AD18 amplifier?A: To clean it, use a soft, dry cloth to wipe the exterior, avoiding any liquid cleaners.
Q: Is the S.M.S.L AD18 compatible with high-resolution audio?A: Yes, it supports audio resolutions up to twenty-four bit and ninety-six kilohertz via USB.
