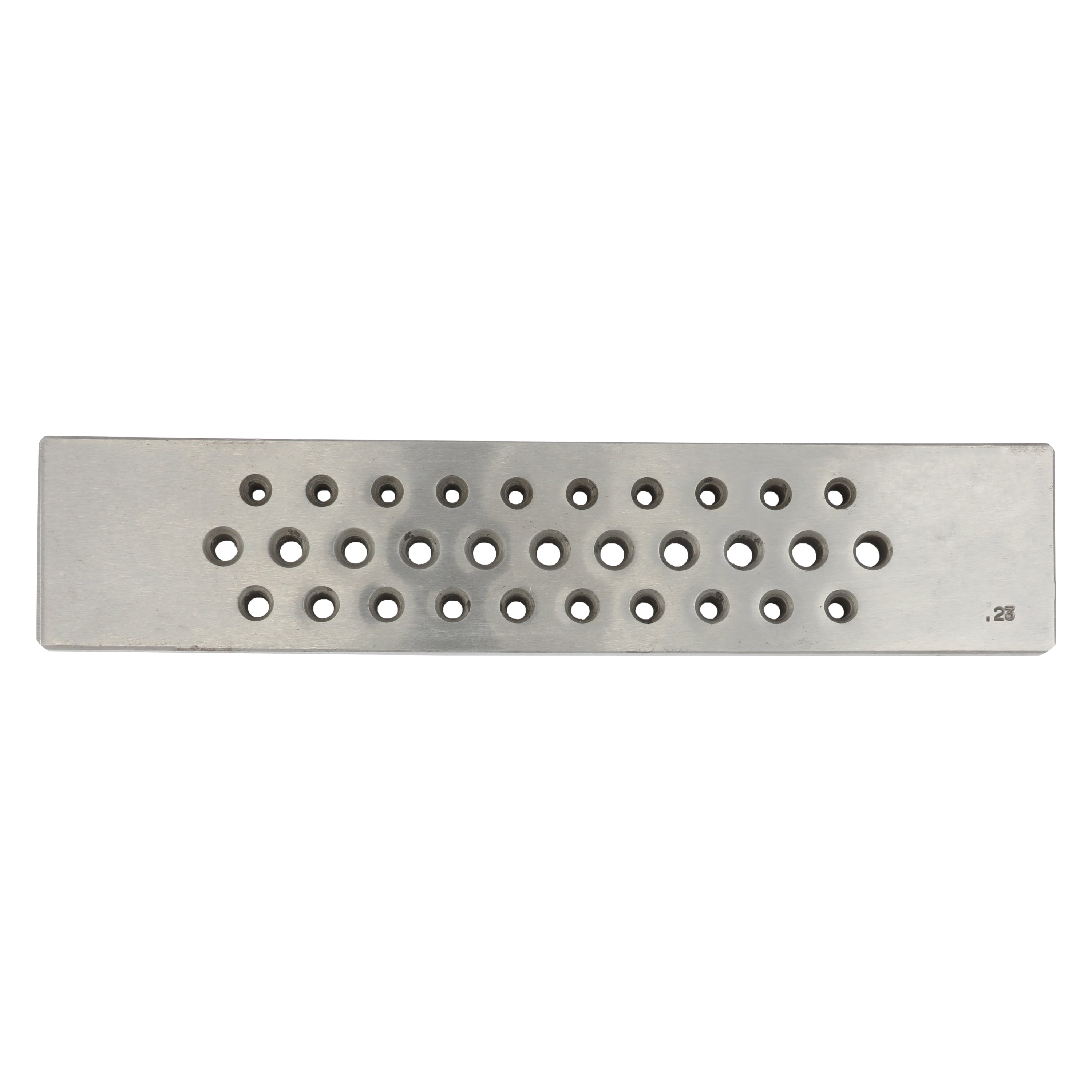

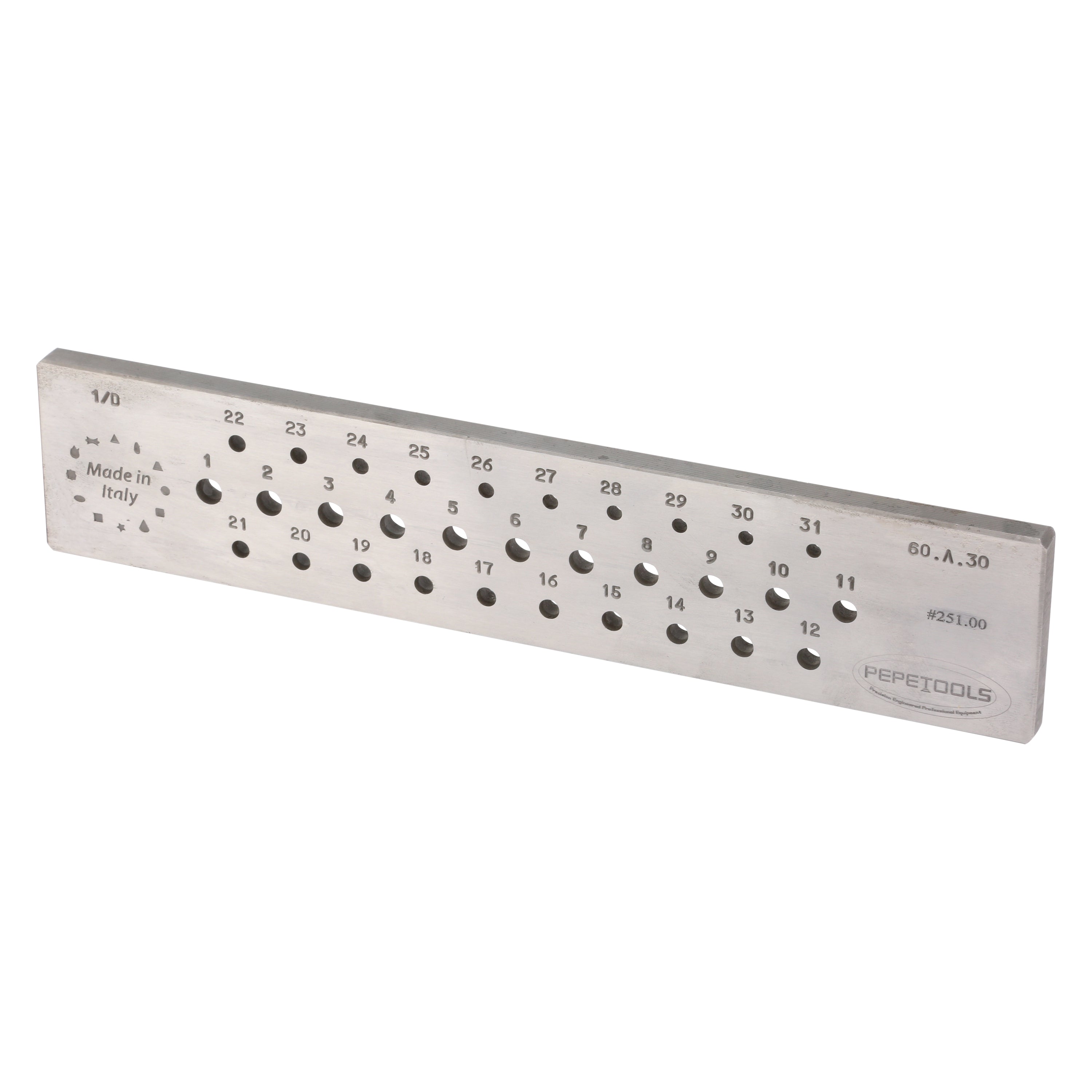

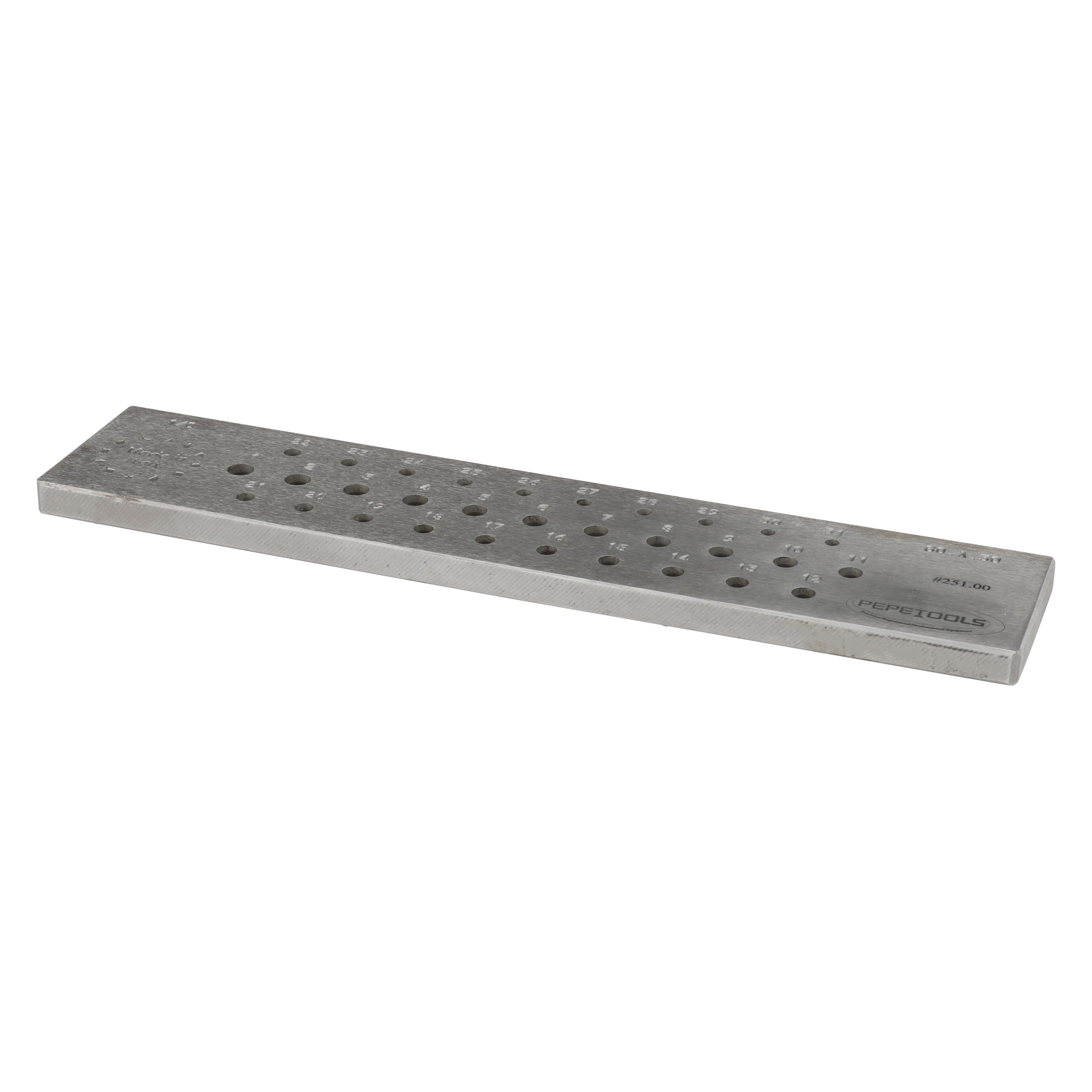

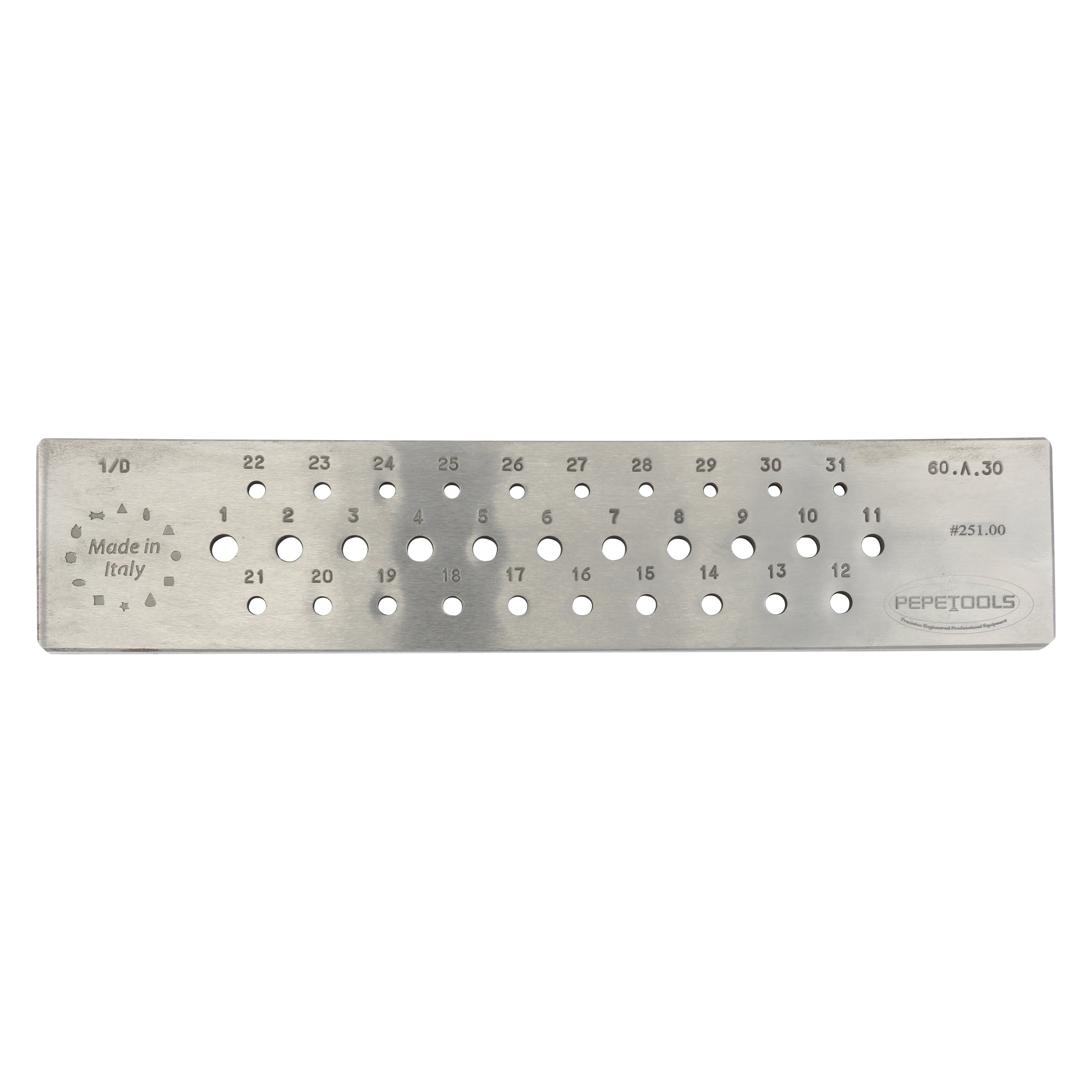

Round Wire Draw Plate, 6mm - 3mm, 31 Holes, Hardened Steel
$79.00
Add to Cart
Achieve precise wire drawing results with this high-quality Round Wire Draw Plate. Manufactured in Italy to Pepetools specifications, this draw plate is precise and powerful. Made from hardened steel and accurately machined with smoothly beveled holes, this plate has 31 holes ranging from .236 (6mm) to .118" (3mm) in diameter (2 ga. - 8ga.). Get the results you need with the robust and reliable Round Wire Draw Plate.
With 31 holes, there is a .1mm step down from 6mm down to 3mm, this consistent sizing allows for perfectly round wire out of gold, copper, silver, platinum, and more. Use with our without a draw bench - always anneal between pulls. It is also advised to use a lubricant such as Blade Butter to help the decrease friction during the process
Specs:
31 Holes
6MM to 3MM with .1MM step down per hole
50MM tall by 220MM wide by 9mm thick
Made in Italy, Designed by Pepetools
Ground surface finish, wire EDM holes for precision
Hardened tool steel
Hole Number
Hole Diameter (mm)
1
6.000
2
5.900
3
5.800
4
5.700
5
5.600
6
5.500
7
5.400
8
5.300
9
5.200
10
5.100
11
5.000
12
4.900
13
4.800
14
4.700
15
4.600
16
4.500
17
4.400
18
4.300
19
4.200
20
4.100
21
4.000
22
3.900
23
3.800
24
3.700
25
3.600
26
3.500
27
3.400
28
3.300
29
3.200
30
3.100
31
3.000
