Button functions I, II, III, IV, V and VI button: These six buttons are used to set the fan speed as follows: I = minimum speed II = low speed III = medium low speed IV = medium speed V = medium high speed VI = high speed B. button: This button turns the fan off. C. Reverse button: This button is to control fan direction D. Light button This button is to control light. Switch the "D" and "ON" dip switch on the back of transmitter to decide the light in "ON/OFF" or "Dimmable" condition. E. SET code setting button:

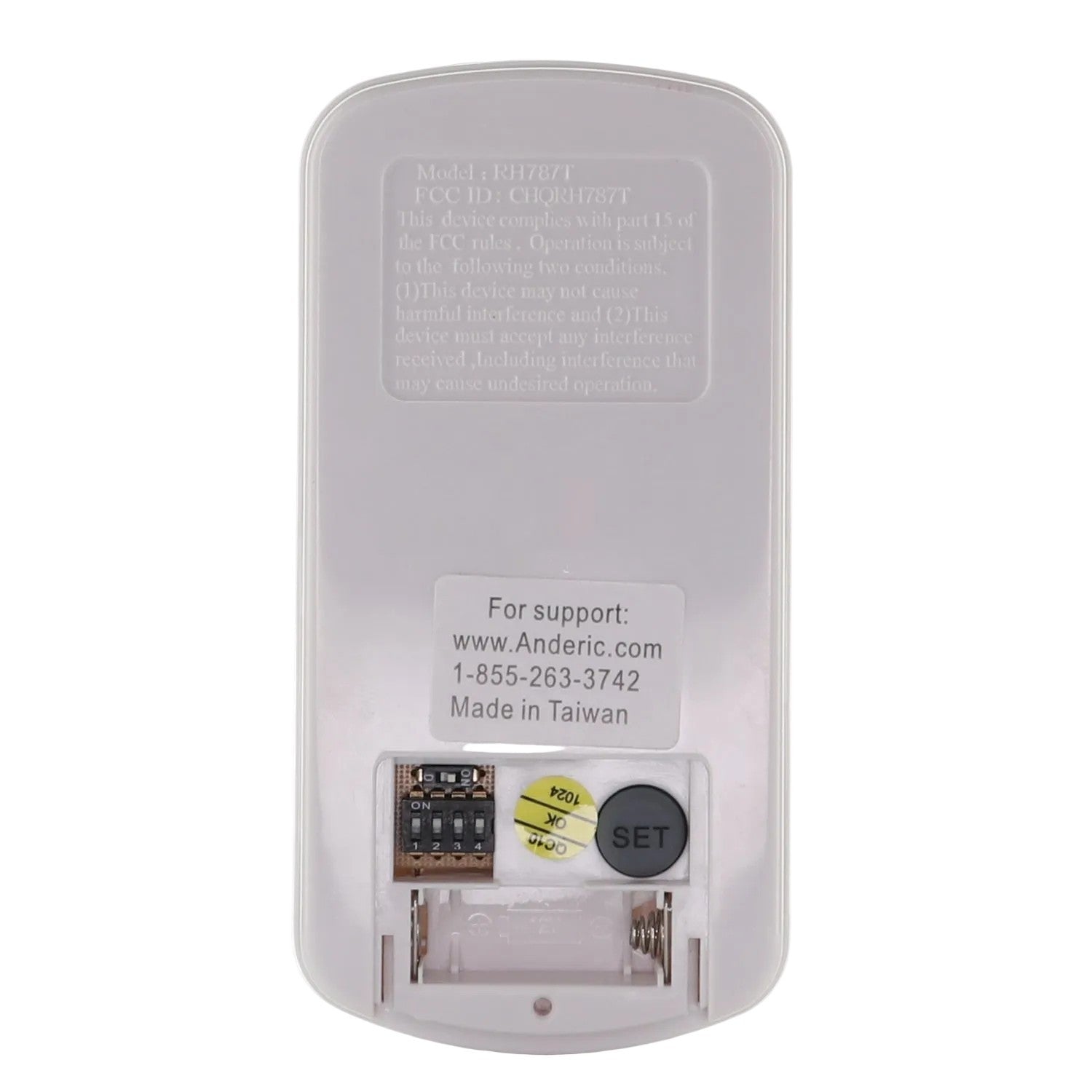

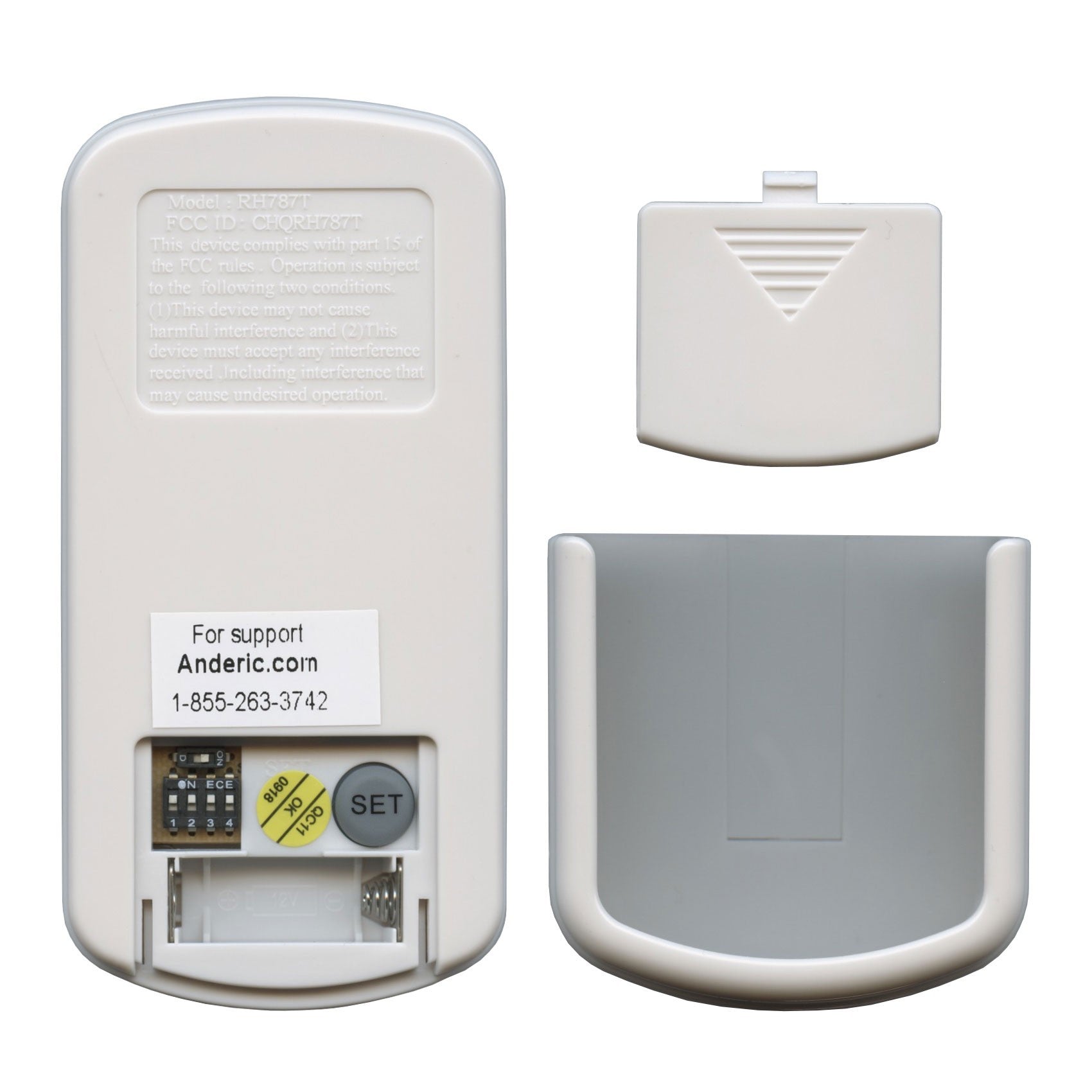

Follow the below steps to use the SET button: a) With the fan's power off, arrange code switches to desired code setting. b ) After installing the unit and restoring power to the fan, press and hold the "SET" button 1 - 5 seconds. You must press the "SET" button within 60 seconds of restoring power to the fan. c) The fan will start to run and begin the control setting process. The fan will run in both directions for a total of approximately 5 minutes. d) When the fan stops after approximately 5 minutes, the control and speed setting process is complete and the fan is ready for use. F. "D" and "ON" dip switch: The "ON" selection is the light dimmable selection and is to be used with all bulbs except for CFL bulbs. The "D" selection is the light on only (no dimming function) and is to be used with CFL bulbs as CFL bulbs cannot be dimmed properly.
The receiver provides the following protective function: 1. Lock position: The DC motor has a built-in safety against obstruction during operation. If there is an obstruction, the motor will stop and then the power will automatically go off in 30 seconds. Remove the obstruction and reset. 2. Over 80W protection: When the receiver detects motor power consumption which is greater than 80W, the receiver power will be stopped and operation will immediately discontinue. Wait for 5 seconds and then turn the receiver power back on. Originally supplied with models: GLADIATOR GL3 Ceiling Fan
