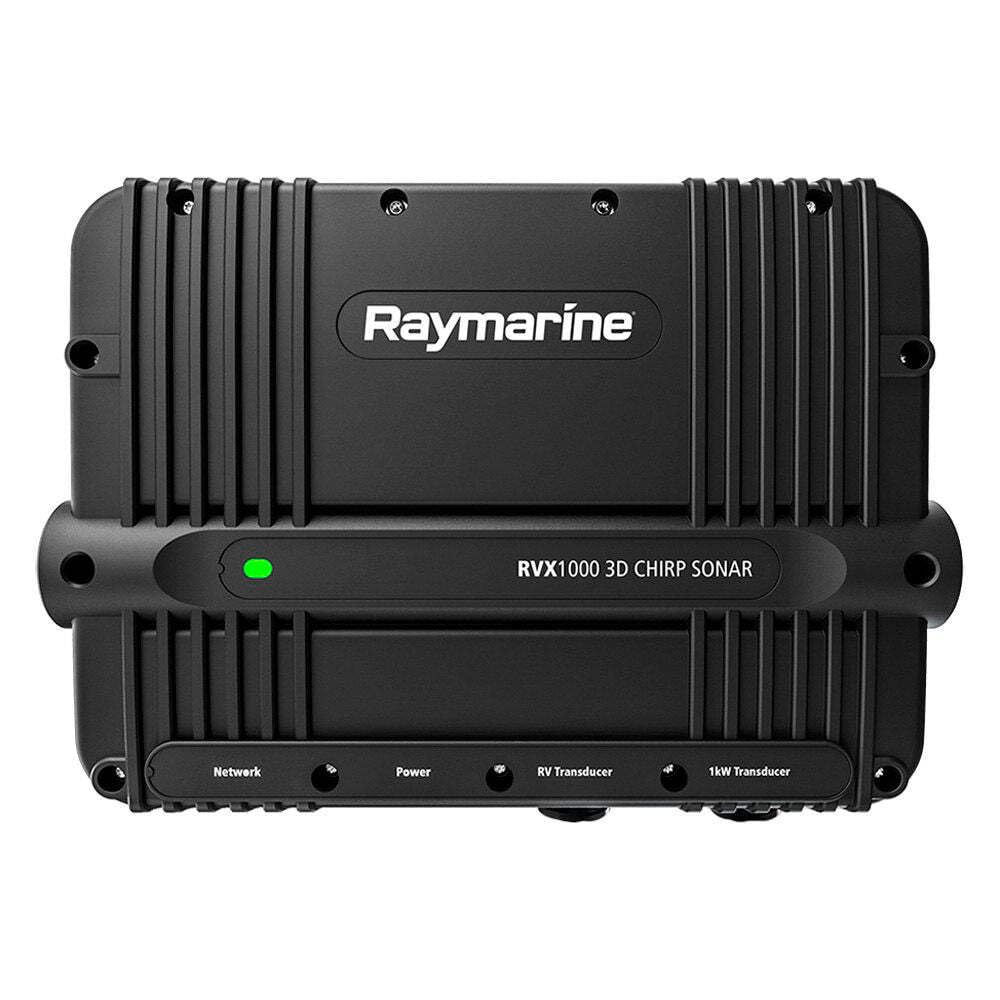

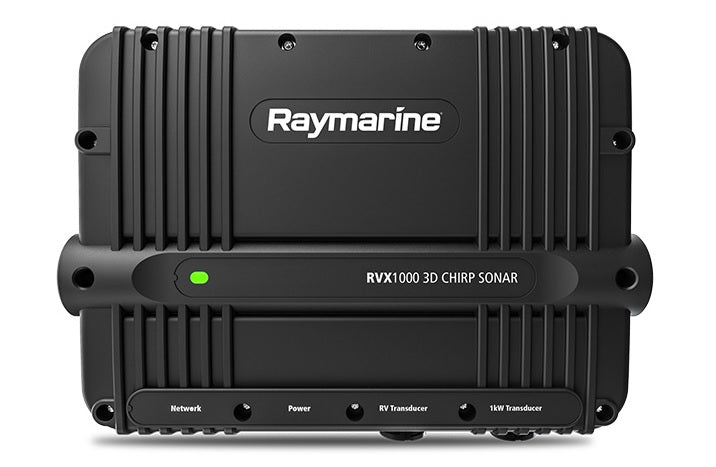

Raymarine Rvx1000 3D Chirp Sonar Module,WBHDWB07DHWG2Z8

Raymarine Rvx1000 High Performance 3D Chirp Sonar Modulemodel: E70511Realvision 3Dchirp Sidevisionchirp Downvisionlow-Power, High-Frequency Chirp1Kw High-Powered Chirp Sonar (Low, Medium, High Chirp, 50/80/100/160/200Khz)The Rvx1000 Offers All Of The Sonar Performance And Features Of Raymarine Axiom Pro In A Remotely Mounted Black Box Sonar Module. With Raymarine’S Award Winning Realvision 3D Sonar Technology, Chirp Side And Downvision, Plus A High Powered 1Kw Dual Channel Chirp Sonar, The Rvx1000 Is A Versatile Sonar Solution For Both Inshore And Offshore Fishing.Easily Identify Structure And Locate Fish With The Life-Like Clarity Of Realvision 3D Sonar. Sonar Scroll Back - Rewind, Pause And Playback Up To 10 Minutes Recorded Sonar History To Take A Closer Look At Fish And Structure, And Easily Plot Waypoints. Truzoom™ Magnification Reveals Extra Target Detail Without Loss Of Resolution.Realvision 3D™ Sonar With Gps Track Feature Uses Precision Gps To Construct The Most Accurate 3D Model Of The Underwater World, In Real-Time.Powerful 3D Sonar Upgrade Solution For Raymarine Es And Gs Series Line Of Multifunction Displays.The Rvx1000’S Dedicated Quad Core Processor Allows Previous Generation Mfd’S To Run Multiple Sonar Channels Simultaneously Without Any Compromise In Performance.Specificationssonarrealvision 3D (Chirp Side And Downvision, High Frequency Chirp, 3D Sonar) + 1Kw High Power Chirpsonar Depthhigh Frequency Chirp = 900 Feet, Downvision = 600 Feet, Sidevision = 300 Feet Port And Starboard, 1Kw = 5,000 Feetconnections1X Rvx Port = 25 Pin Realvision Connector, 1X 1Kw Port = 11 Pin 1Kw Connector, 1X Power Connection, 1X Raynet Connectionwaterproof Ratingipx6/Ipx7Operating Temperature-25 C (-13 F) To +55 C (+131 F)Storage Temperature-30 C (-22 F) To +70 C (+158 F)Display Compatibilityaxiom / Axiom Pro (Lh3.4.Xx Or Later)Compatible With Full Feature Setes Series / Gs Series (Lh3.4.Xx Or Later)Compatible With Full Feature Settransducer Compatabilityrealvision 25-Pin Transducer Optionsrealvision™ Transducersdirect Connect To 25-Pin Portcpt-S Transducersadapter A80490 To Connect To 25-Pin Portdownvision™ Transducersadapter A80490 To Connect To 25-Pin Port1Kw 11-Pin Transducer Optionsairmar Chirpdirect Connect To 11-Pin Port. When Using Only One Half Of An Airmar Transducer Pair (E.G. B175) Use The A80328 Adapter.Airmar 50/200Khz Cp370 Connectoradapter A80496 To Connect To 11-Pin Portairmar 50/200Khz Embedded Connectornot Supported On Rvx1000. Airmar Transducers With The Embedded Connector Are Non-Differential And Therefore, Do Not Align With The Pin Configuration Of The Rvx1000 1Kw Port.Note: Axiom Y-Cables Are Not Supported On The Rvx1000Input Voltage10.8 V To 31.2 V Dcinput Draw10.4 W (Maximum)What'S In The Box:Rvx1000 Sonar Modulepower Cable, 1.5Mfixing Screws, #8 (4)Documentation Pack (1)Raynet Network Cable, 2M (1)
