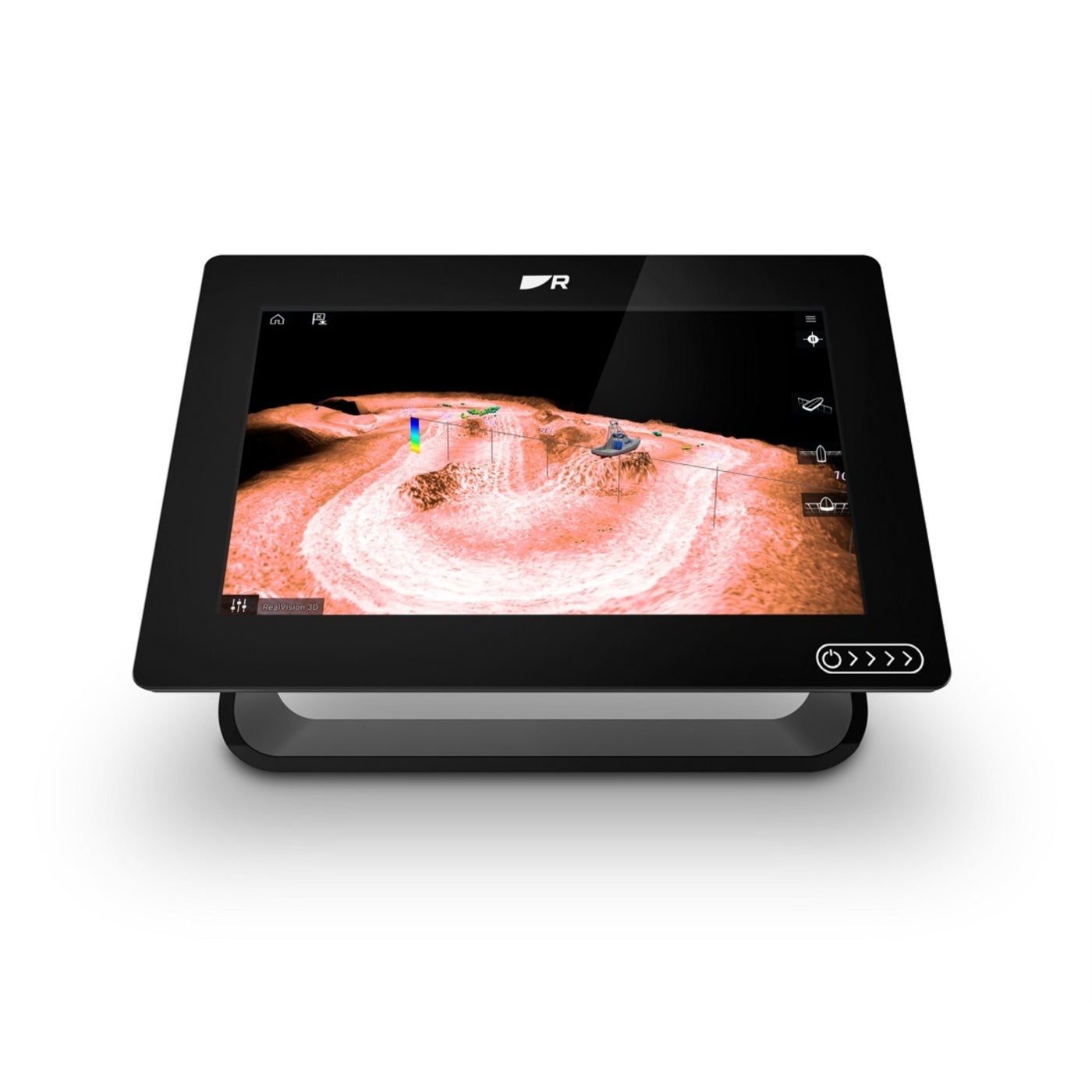

Raymarine Axiom+ 9Rv 9'' Muilti-Function Display With Realvision Sonar - With Rv100 Transducer And Lighthouse North America Chartsmodel: E70637-03-102Fluid And Fast Chart Redraw Of Lighthouse, Navionics, And C-Map Electronic Charts.Powerful Quad-Core Processor, Plus Increased Onboard Storage For Personal Data And Apps.Smart And Intuitive Lighthouse 3 Os Makes Navigating Easy.Clearcruise™ Augmented Reality-Capable For Smarter Navigation Decisions.Nano-Coated, Impact-Resistant Glass Screen Repels Water, Oil, And Smudges For Better Viewing And Accurate Touch Controls.Ips Display Technology Delivers Wider Viewing Angles And Sharp Contrast At Twice The Resolution Of Traditional Displays.Network With Multiple Axiom Displays, Radars, Sonar, And More.Next-Generation, High-Performance 10 Hz Gps/Gnss Receiver With 4X Increased Sensitivity For Accurate Positioning.The Performance-Tuned Axiom Plus Is A New Generation Of Award-Winning Raymarine Multifunction Displays. Optimized For Speed, Axiom Plus Is Equipped With A Powerful Quad-Core Processor For Industry-Leading Responsiveness And Speed, Giving You The Power To Seamlessly Redraw Charts, Navigate With Augmented Reality, And Experience Realvision™ 3D Sonar.New, Higher Resolution Ips Displays Deliver 25 Percent More Brightness And New Day/Night Color Palettes Offer Enhanced Visibility In Any Lighting Condition. Axiom Plus Features The Renowned Lighthouse 3 Os, The Most Powerful And Easy-To-Use Raymarine Mfd Operating System To Date.Specificationsgeneraldisplay Size9.0 Inch High Density Ipsdisplay Resolution1280 X 720 (Wxga)Display Typemultitouch With Hydrotough™ Rugged Hydrophobic Coatingbrightness1,500 Nitsviewing Angle85° Top, Bottom, Left, Rightdimensions W X H X D (Excluding Trunnion And Cables)9.65 X 6.22 X 3.0Inmounting Optionssurface, Flush, Trunnion, (Front Installation Bracket )Waterproof Ratingipx6 / Ipx7Operating Temperature Range-25°C To +55°C (-13°F To +131°F)Storage Temperature Range-30°C To +70°C (-22°F To +158°F)Powervoltage12V Dc (8V To 16V Dc)Power Consumption (Full Brightness)11.98 Wattssensorsgnss / Gpsbuilt-In Gnss Receiver: Gps/Glonass/Galileo/Beidou* - 10Hz 28 Channel *Future Software Update Requiredsonar Type (Built-In)Rv Version Equipped With High Chirp, Downvision, Sidevision And Realvision 3Dsonar Connections25Pin Realvision™ Type Connectorsonar Depthhigh Chirp Sonar = 900 Feet (274M)Downvision™ = 600 Feet (183M)Sidevision™ = 300 Feet (91M)Realvision™ 3D = 300 Feet (91M)External Sonar Optionyes - Cp100, Cp200, Cp370, Cp470, Cp570, Rvx1000 Via Raynetradaryes - Quantum, Digital, Hd Colour / Super Hd Colour And Magnum Radarsaisyes - Nmea2000 Compatibleautopilot Controlyes - Evolution Autopilotthermal Night Visionyes Flir Ax8, M232, M300 Series, M400, M500Video / Cameracompatible With Cam210Ip, Cam220Ip (Up To 10 Ip Network Cameras)Weathergrib View - Free Grib Viewer And Theyr Ltd Subscriptionsiriusxm - N. America Onlyaudionmea2000 / Bluetooth Speaker Controls / Optional Siriusxm Audiodigital Switchingyes - Empirbus & C-Zone Compatibleremote Controlyes Optional Rmk-10 (A80438)Networkingethernet1 X 10/100 Mbit/S Network (Raynet)Nmea0183Nonmea2000Nmea2000 Via Devicenet Port. Seatalkng Compatible Using An Optional Adapterseatalkngrequires Devicenet Female (F) Adaptor Cable (A06079 120Mm Adaptor Included In Box)Usb1 X Usb Microabwi-Fiwifi - 802.11 A/B/G/Nbluetoothbluetooth V4.0Navigationcartographylighthouse Charts, Navionics, And C-Map Compatiblewaypoint/Routes/Tracks (Wpts/Rts/Trk)10,000 Wpts / 200 Wpt Groups / 150 Rts - 250 Wpt Max / 16 Tracks - 10,000 Max Trk Ptsmemoryinternal Memory16 Gb Solid Stateexternal Memory1X Microsd Card Slotlanguages24Conformancesnmea 2000 Certificationeurope: 1999/5/Ecaustralia And New Zealand: C-Tick, Compliance Level 2Fcc 47Cfr Part 15Industry Canada Rss210What'S In The Box:Multifunction Displaytrunnion Brackettrunnion Knobs X 2Suncover — Trunnion Mountpanel Mount Gasket For Surface/Flush Mountingm5X58 Threaded Studs X 4M5 Thumb Nuts X 4Documentation Packdevicenet To Seatalkng ® Adaptor Cable 120 Mm (4.7 In)Power/Nmea 2000 Cable (With 1.5 M (4.92 Ft) Power Lead And 0.5 M (1.64 Ft) Nmea 2000 Lead)Rear Mounting Brackets:Lighthouse North America Charts Msdrv100 Transducer
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Raymarine Axiom+ 9 RV?A: The dimensions are three inches in length, nine point six five inches in width, and six point two two inches in height.
Q: What type of display does the Raymarine Axiom+ 9 RV have?A: It features an IPS display technology that provides wider viewing angles and sharper contrast.
Q: What are the key features of the Raymarine Axiom+ 9 RV?A: It includes a powerful quad-core processor, integrated RealVision 3D sonar, and increased onboard storage for apps and personal data.
Q: How does the RealVision 3D sonar work?A: The RealVision 3D sonar provides down, side, three-dimensional, and high frequency CHIRP imaging for enhanced underwater visibility.
Q: What is included with the Raymarine Axiom+ 9 RV?A: It comes with the RV-100 transom mount transducer and LightHouse Charts for coastal and inland waters in the United States and Canada.
Q: How do I install the Raymarine Axiom+ 9 RV?A: Installation involves mounting the display unit and connecting the RV-100 transducer according to the included user manual.
Q: Can beginners use the Raymarine Axiom+ 9 RV?A: Yes, it is designed for both beginners and experienced users with its intuitive interface and versatile features.
Q: What type of data can I store on the Raymarine Axiom+ 9 RV?A: You can store personal data and apps, thanks to the increased onboard storage capacity.
Q: How do I care for the Raymarine Axiom+ 9 RV?A: To keep it in good condition, regularly clean the screen with a soft cloth and ensure that the connections are secure.
Q: Is the Raymarine Axiom+ 9 RV waterproof?A: Yes, it is designed to withstand marine environments, making it suitable for use on boats and other watercraft.
Q: What should I do if the Raymarine Axiom+ 9 RV arrives damaged?A: Contact customer service immediately to report the issue and initiate a return or replacement process.
Q: Does the Raymarine Axiom+ 9 RV come with a warranty?A: Yes, it typically includes a manufacturer's warranty, which covers defects and issues under normal use.
Q: What if I have trouble setting up the Raymarine Axiom+ 9 RV?A: Refer to the detailed user manual or contact customer support for assistance with installation or troubleshooting.
Q: Can I use the Raymarine Axiom+ 9 RV for inland fishing?A: Yes, it is equipped with LightHouse Charts that cover both coastal and inland waters, making it suitable for various fishing environments.
Q: Is the Raymarine Axiom+ 9 RV compatible with other Raymarine products?A: Yes, it is designed to integrate seamlessly with other Raymarine devices and systems for enhanced functionality.
Q: How do I update the software on the Raymarine Axiom+ 9 RV?A: Software updates can typically be downloaded from the Raymarine website and installed via a USB drive.
