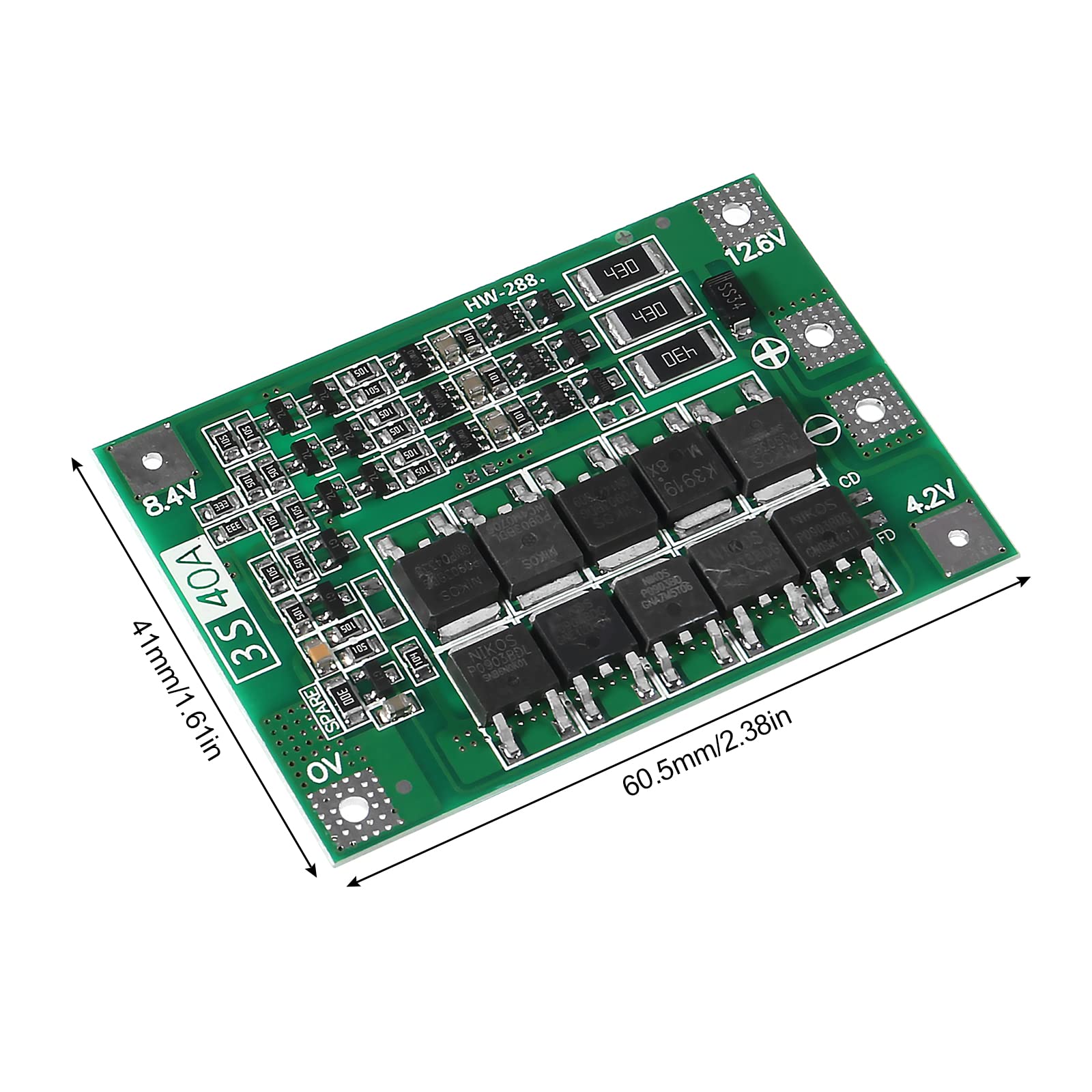

Qccan 3S 40A 12.6V Li Ion Lithium Battery Protection Board Pcb Bms Charger Protection Circuit For Drill Motor (3S 40A)
$14.80
Regular price
$21.14
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

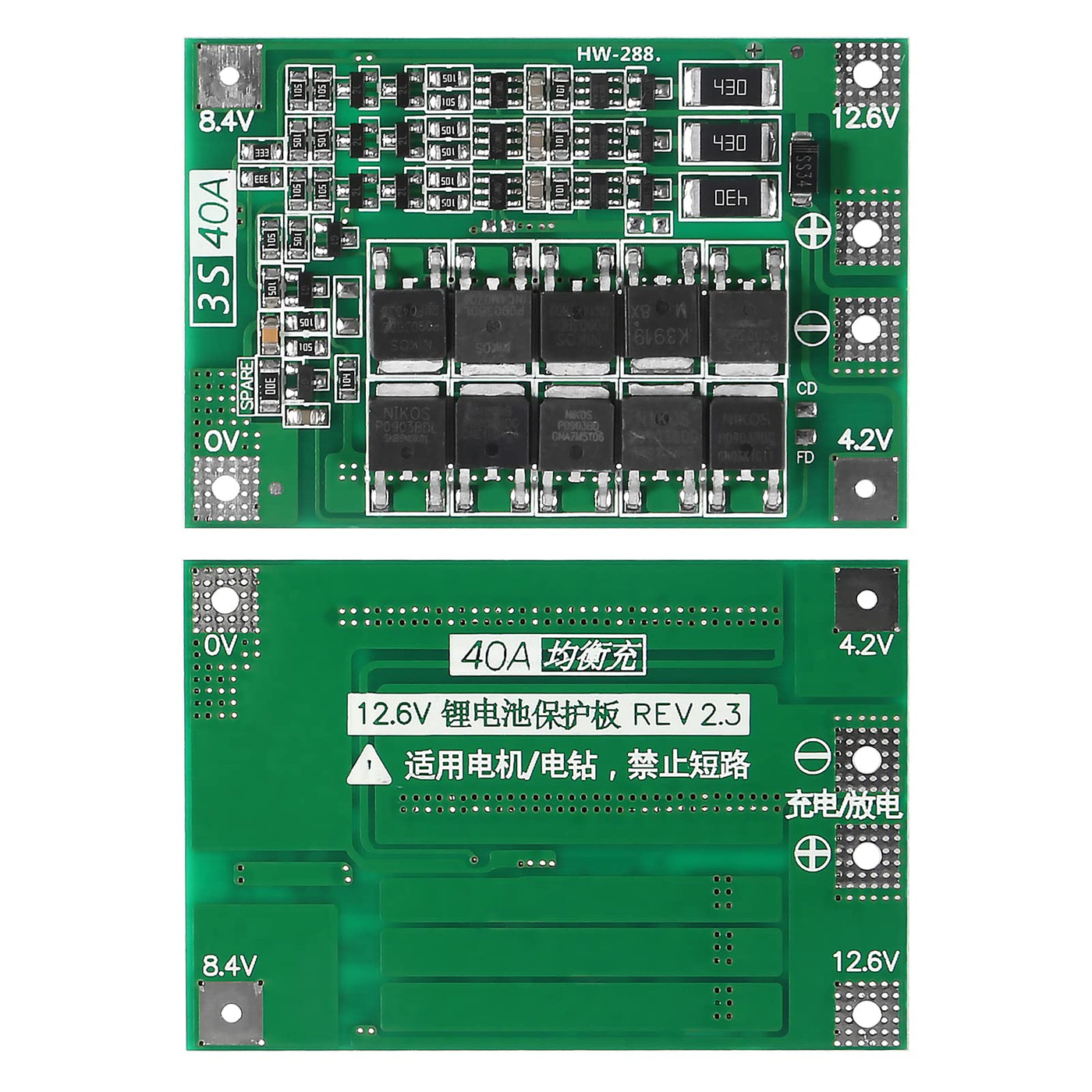

Product Name: 3 String 12.6V 40A Lithium Battery Protection Board&Nbsp;Charging Voltage: Dc 12.6V~13.6Vcontinuous Discharge Current: 40A Maximum (If The Heat Dissipation Environment Is Not Good, Please Reduce The Load Current)Continuous Charging Current: Up To 20Aapplicable Choice: Applicable To The Nominal Voltage Of 3.7V, Fully Charged 4.2V Lithium Battery (Including 18650, 26650, Polymer Lithium Battery), Can Be Drilled Below 170W&Nbsp;Note 1: Successfully Start The Drill Requires 3 10C-20C Power Batteries, Or 6 5C-10C Power Batteries (Recommended Power Battery Models: Compatible&Nbsp;For Sony Vtc4, Vtc4A, Vtc5A, Vtc6) Ov And 12.6V Cable, Use Copper Wire Of 3 Square Millimeters Or More (Nickel Sheets Cannot Be Used)Note 2: Strictly Connect 0V, 4.2V, 8.4V, 12.6V According To The Diagram. Do Not Touch Any Components On The Board When Soldering The Wire. Do Not Intentionally Short Circuit.Note 3: When Soldering The Battery For The First Time Or When Charging Is In Progress, As Long As The Single Battery Exceeds 4.2V, The ''430'' Resistor Will Heat Up And Discharge (Discharge To About 4.19V To Stop Heating). If The ''430'' Resistor Is Severely Hot, Check If The Wrong Line Is Connected.&Nbsp;Hardware Preparation:Prepare 3S 12.6V 40A Lithium Battery Protection Module, Battery, Power Supply, High Power Load Resistor.The Figure 5 Shows The Module Diagram. The Battery Is 3 Strings. The Connected Battery Needs To Meet The 40A Discharge Current. It Can Be Realized By Paralleling The Battery Or Purchasing A Battery With A Large Discharge Current. For Example, If The Battery Is 2000Mah And The Discharge Multiple Is 10C, Then Only 3 Strings Of 2 Are Needed And The Discharge Current Is 40A.The Charging Voltage Is Dc12.6V~13.6V. The Charging Current Depends On The Battery Connected, And The Maximum Is No More Than 20A. The Module Has A Balanced Charging Path, And The Equalization Function Works Only When The Battery Performance Is Not Much Different.Package Included:4Pcs 3 String 12.6V 40A Lithium Battery Protection Board
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Related products
Frequently Asked Questions
Q: What is the maximum continuous discharge current of the QCCAN 3S 40A battery protection board?A: The QCCAN 3S 40A lithium battery protection board allows a maximum continuous discharge current of 40A. It is important to note that if the heat dissipation environment is not optimal, it is advisable to reduce the load current to prevent overheating.
Q: Can I use this protection board with 18650 lithium batteries?A: Yes, the QCCAN 3S 40A battery protection board is compatible with 3.7V lithium batteries, including 18650, 26650, and polymer lithium batteries. Ensure that the batteries are fully charged to 4.2V for optimal performance.
Q: What safety features does the QCCAN 3S 40A protection board provide?A: This protection board includes several safety features such as over-discharge protection, overcurrent protection, and overcharge protection. These features help to ensure the safe operation of your lithium battery system.

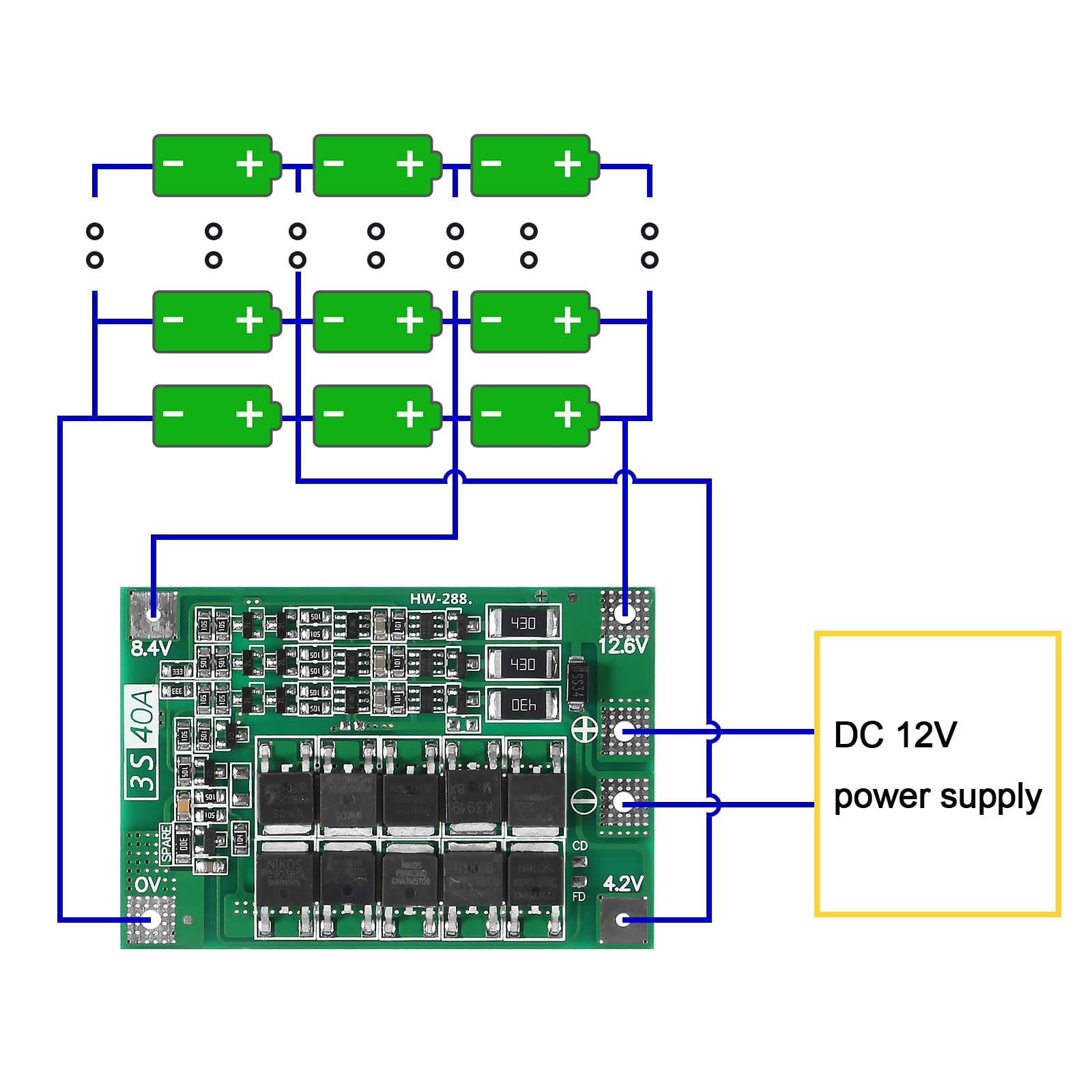

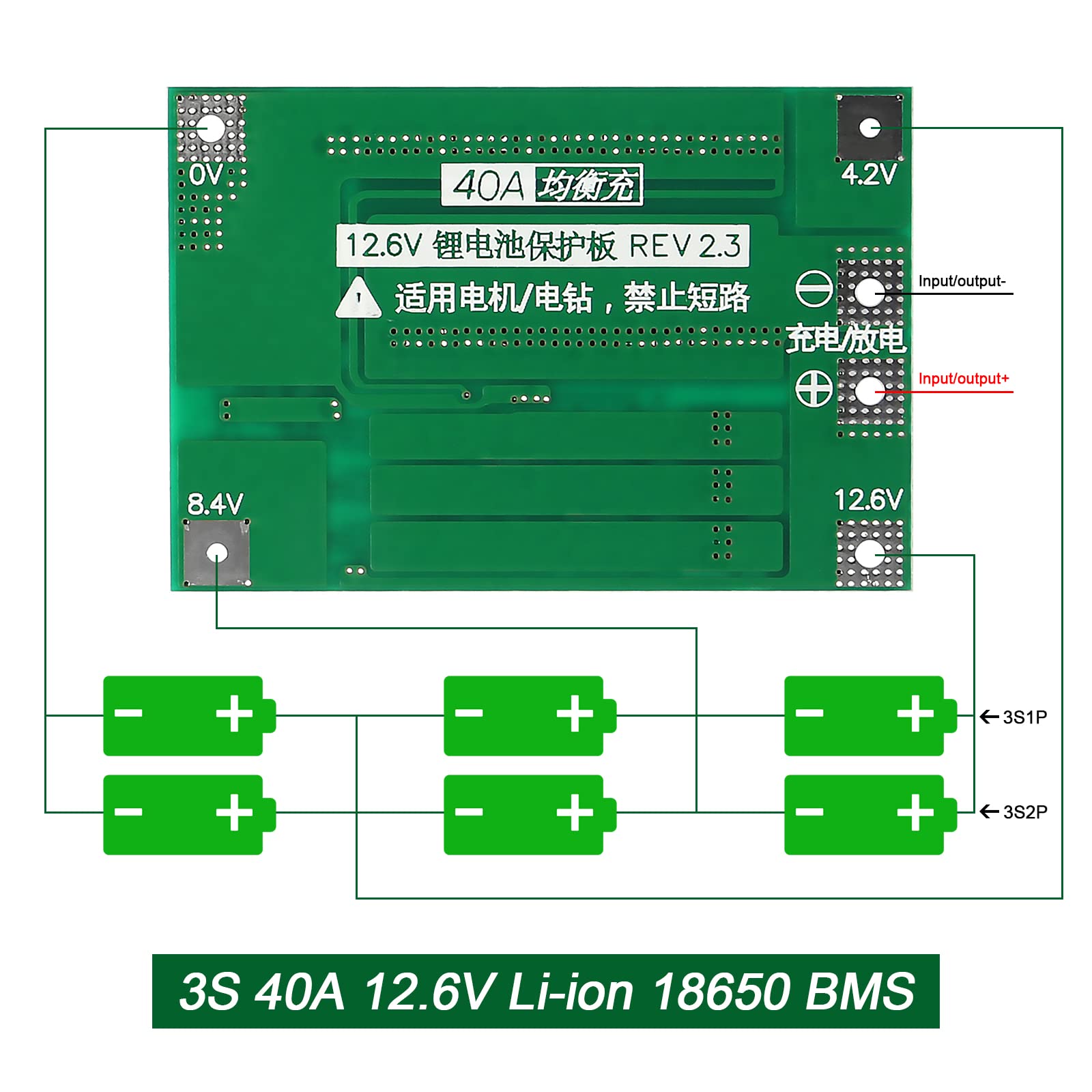

Q: How should I connect the battery to the QCCAN 3S 40A board?A: When connecting the battery, strictly follow the wiring diagram provided, ensuring connections are made to the correct terminals (0V, 4.2V, 8.4V, 12.6V). Avoid touching any components on the board during soldering to prevent damage.

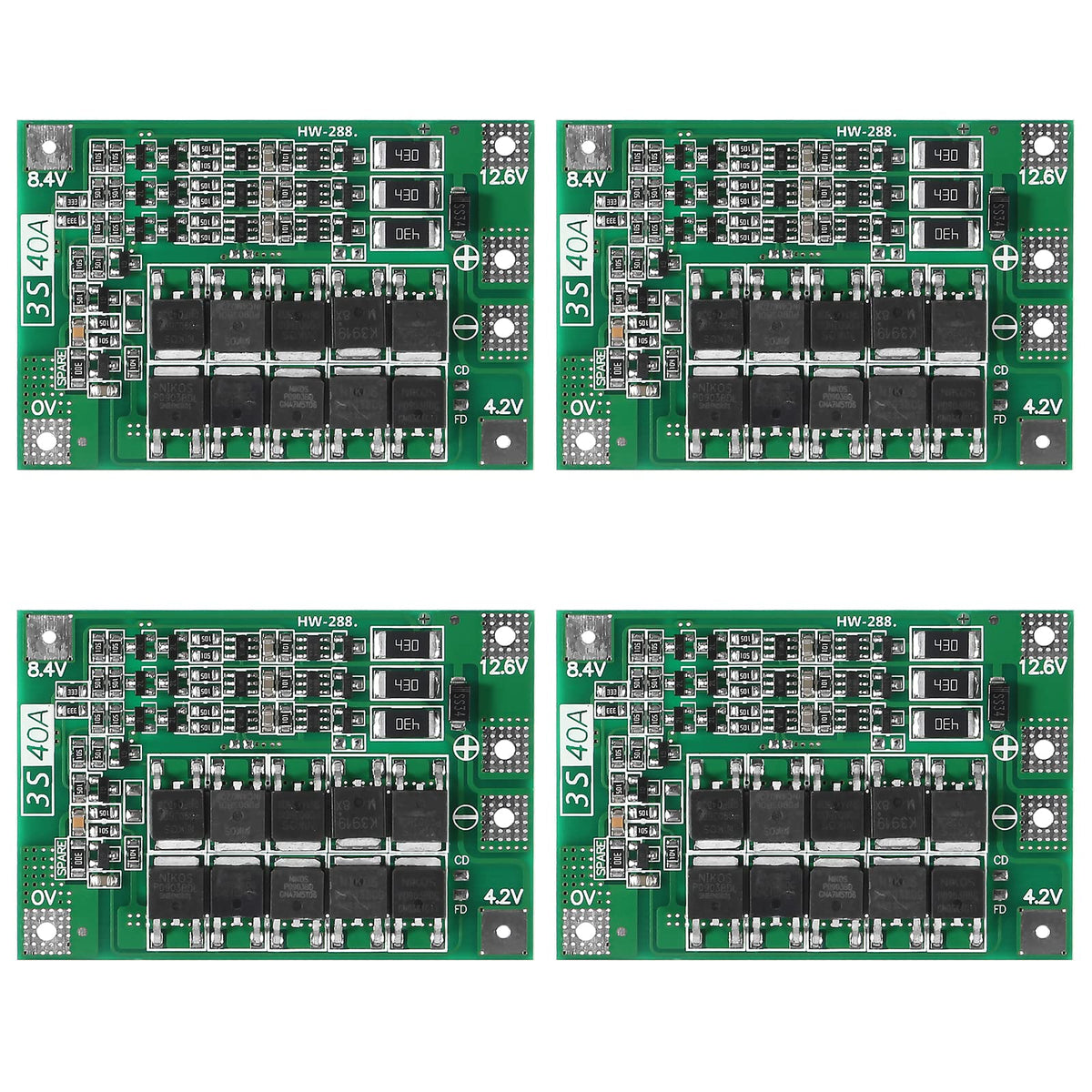

Q: What is included in the package when purchasing the QCCAN 3S 40A protection board?A: The package includes 4 pieces of the QCCAN 3S 40A lithium battery protection board, which allows for multiple applications and setups in your battery management system.
