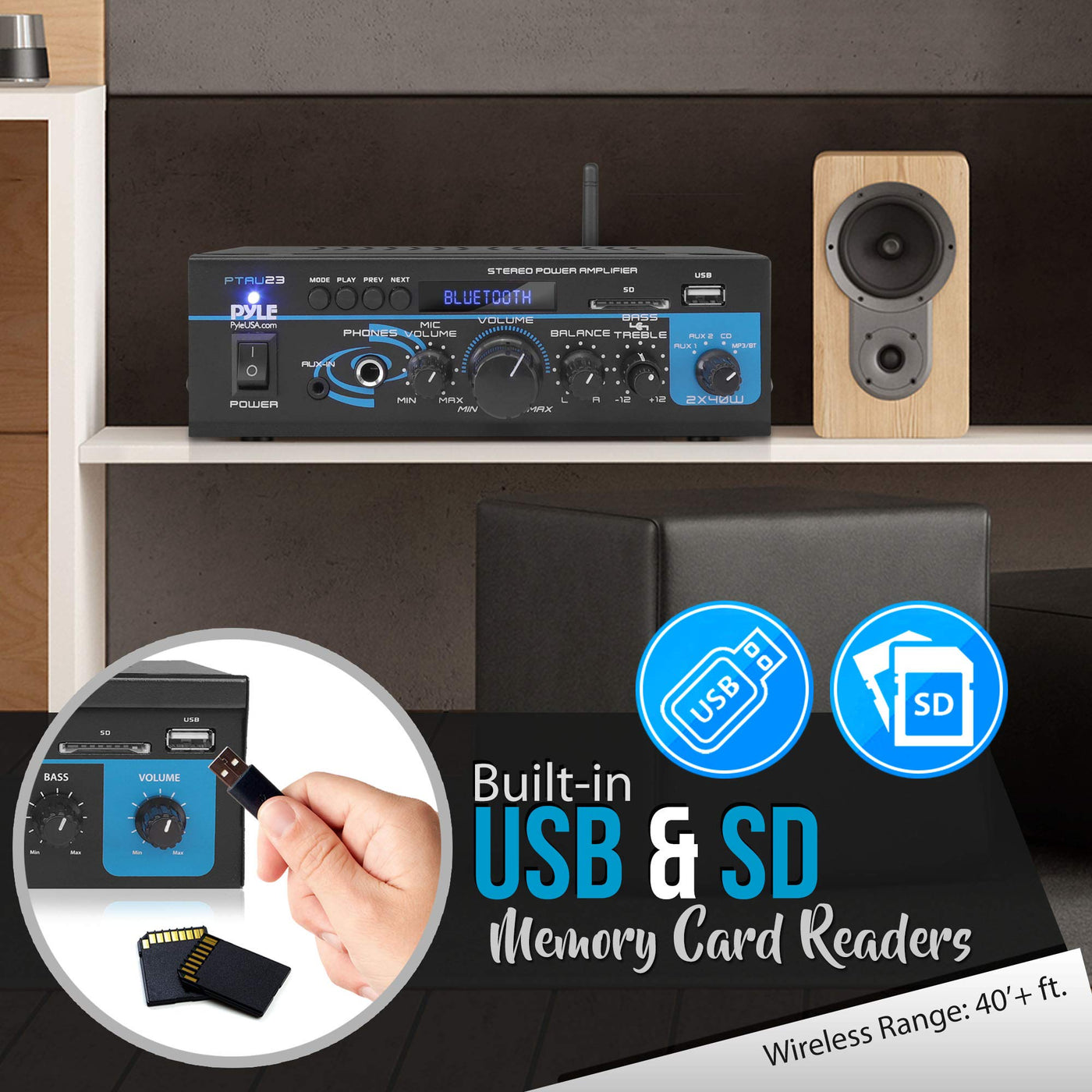

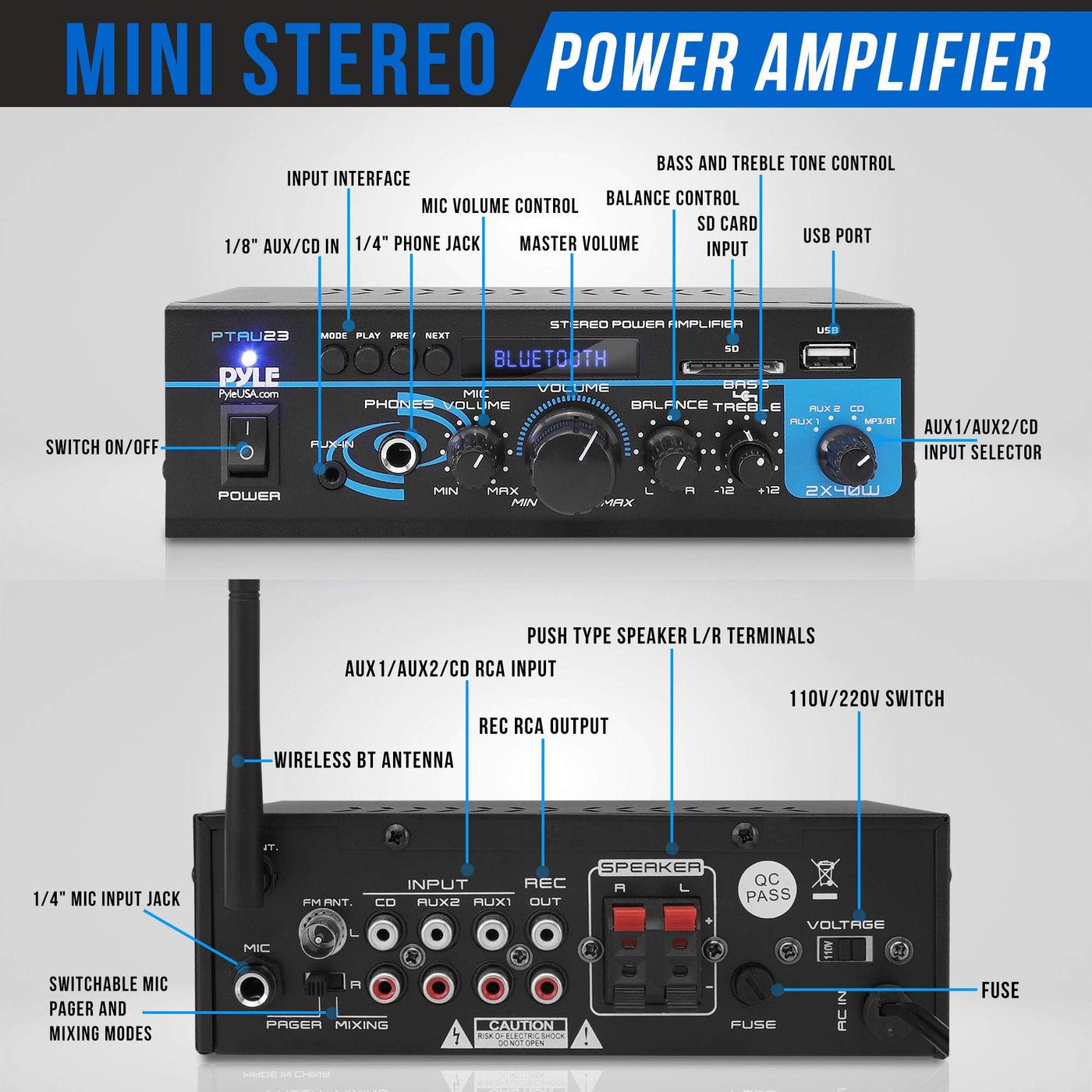

From The Manufacturerfront Viewclick Here For A Larger Image Connection Diagramclick Here For A Larger Image Back Viewclick Here For A Larger Image Stereo Power Amplifierclick Here For A Larger Image The Ultimate Stereo Power Amplifierthis Amplifier Gives You The Power And Versatility You Need To Create A Professional Sound System. Its Wide Frequency Response Makes It Suitable For Amplifying Any Type Of Audio Including Music Or Vocals. It Can Be Used In Meeting Halls, Restaurants, Schools, Stores And, At Home --The Perfect Solution For Paging Systems Anywhere. Get The Power You Need With 2 X 40 Watt To Handle All Your Audio Needs. Switchable Mixing (Karaoke) Modewhen Set To 'Mixing' The Signals From Aux1, Aux2, Cd, & Mic Will Exist At The Same Time And Works Great For Creating A Karaoke Event. Your Music Will Play From Your Selected Audio Source And You Will Be Able To Sing Through A Connected Microphone. (Microphone Not Included) Switchable Mic Pager Modewhen Set To 'Pager' The Signal From Aux1, Aux2, & Cd Will Be Attenuated By -10Db And The Signal From Mic Will Override To Page (Auto Talkover) And Makes For An Exceptional Paging System. Usb 2.0 Input Interface With Led Indicatoryou'Ll Be In Control With Playback Options When You Insert A Usb Flash Drive --Or Similar Usb Device. Play Your Favorite Audio Files From Your Computer'S Media Library When You Connect It Directly Into The Amplifier. .14-Inch Aux-In Jackthe .14-Inch Jack, Located Conveniently In The Front, Allows You To Connect The Input Of Many Devices Including Ipods, Mp3 Players, Smartphones, Cd Players, Etc. Push Type Speaker Terminalslets You Easily Connect Speaker Wires Directly To The Amplifier. The Speaker Impedance Can Be Ranged From Four To Eight Ohms For The General Stereo Output. The Total Speaker Impedance Must Be At Least Four Ohm Per Channel At Stereo Mode. 110/220 Voltage Selectorthis Amplifier Has Selectable Input Voltage From 110 V/60 Hz (The Standard In Usa And Canada) To 220 V/50 Hz (For European Operation). Please Make Sure The Switch Is In The Proper Position Before Operating. .25-Inch Phone Jackaccepts Headphones With .25-Inch Plugs. .25-Inch Microphone Input Jackaccepts Microphones With .25-Inch Plugs. Rec Rca Outputlets You Connect The Amplifier To A Tape Deck For Recording. Take Controluse The Control Center Panel Located On The Face Of The Unit To Make Adjustments To Microphone Volume, Master Volume, Balance, Bass, And Treble Replaceable Power Fusethe Amplifier Uses A Fuse For Protection Against Surges And Short Circuit. If The Amplifier Suddenly Turns Off And Will Not Turn On, Check The Fuse And Replace It If Necessary. (Replacement Fuse To Use: 1.5-Amp, 250-Volt, Fast-Acting .2 X .8 Inches Fuse -Not Included) Additional Features Harmonic Distortion: 0.3% 2 X 40 Watt Rms At Four Ohms Blue Led Output Level Display Frequency Response: 20 Hz-20 Khz Power Fuse: 1.5 A, 250 V Fast-Acting (.2 X .8 Inches) Power Requirement: 120 V Ac 60 Hz/230 V Ac 50 Hz Tone Controls: Bass & Treble: +/-10 Db (100 Hz/10 Khz) Dimensions: 8.27 X 2.72 X 5.39 Inchesproduct Descriptionpylehome Model : Ptau23 Mini Stereo Power Amplifier, 2 X 40 Watt Mini Stereo Power Amplifier - 2 X 40 Watt With Usb, Aux, Cd & Mic Inputs Rca Rec Output 1/4'' Phone Jack 1/4'' Mic Input Jack Usb Reader Function Power On Led Indicator 110/220 Voltage Selector Aux1, Aux2, Cd & Rca Inputs 2 X 40 Watt Peak At 4-Ohm Four Push Type Speaker L/R Terminals Switchable Mic Pager And Mixing Modes Switchable Aux1, Aux2, Cd, Usb Inputs Bass, Treble, Balance, Master & Mic Volume Controls Dimensions:7.48''W X 2.72''H X 5.39''D Pyle Ptaau23 Home Amplifier Is Perfect For Powering Any Stereo System. Complete With Usb And Aux Inputs, And 2 X 40 Watts Of Power - This Simple To Use And Durable Amp Has Bass And Treble Controls, A Slick Blue Led Output Level Display, L/R Rca Inputs, And 4 Speaker Outputs. Using Sophisticated Circuitry And Premium Components For Uncompromising Musicality - This Pr
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Pyle Home Audio Bluetooth Power Amplifier?A: The dimensions are seven point four eight inches wide, two point seven two inches high, and five point three nine inches deep. This compact size makes it suitable for various spaces.
Q: What type of inputs does the amplifier support?A: The amplifier supports six inputs, including three pairs of RCA audio inputs, one quarter inch microphone input, one quarter inch headphone jack, AUX input, and USB. This versatility allows you to connect multiple audio sources.
Q: How much power does the amplifier provide?A: The amplifier delivers two times forty watts of power at four ohms. This output is ideal for driving multiple speakers in a home or PA system.
Q: How do I connect my devices to the Pyle amplifier?A: To connect your devices, use the RCA inputs for audio sources like CD players or tape decks, or plug directly into the AUX or USB ports. The amplifier also has a microphone input for vocal use.
Q: Can I use this amplifier for karaoke?A: Yes, this amplifier is suitable for karaoke as it features a mixing mode for fun singing sessions. You can connect a microphone and enjoy a karaoke experience at home.
Q: Is the amplifier easy to set up?A: Yes, the setup is straightforward. Simply connect your audio sources to the appropriate inputs and plug in the power supply to start using the amplifier.
Q: What is the best way to maintain this amplifier?A: To maintain the amplifier, keep it clean and dust-free, and avoid using harsh chemicals for cleaning. Ensure proper ventilation during use to prevent overheating.
Q: Is there a warranty for the Pyle amplifier?A: Yes, the amplifier typically comes with a warranty that covers manufacturing defects. Check the packaging or manufacturer's website for specific warranty details.
Q: Can I use this amplifier with different speaker types?A: Yes, you can use this amplifier with various speaker types, as it supports speakers with four ohm impedance. Make sure the speakers are compatible with the amplifier’s output.
Q: How do I troubleshoot if there is no sound?A: If there is no sound, first check that all connections are secure and audio sources are powered on. Ensure the amplifier is set to the correct input and volume levels.
Q: What if the amplifier arrives damaged?A: If the amplifier arrives damaged, contact the seller or manufacturer immediately to report the issue. They will guide you through the return or replacement process.
Q: Does the amplifier have any audio controls?A: Yes, the amplifier features bass, treble, balance, and master volume controls. These allow you to customize the audio output to your preference.
Q: Can I use this for home theater systems?A: Yes, this amplifier is suitable for home theater systems. Its power output and multiple inputs make it ideal for enhancing your audio experience.
Q: What voltage options does this amplifier support?A: The amplifier supports both one hundred ten and two hundred twenty voltage settings. This makes it versatile for use in different regions with varying power standards.
Q: Is this amplifier portable?A: Yes, the compact size of the amplifier makes it portable. You can easily move it between different rooms or take it to events.
Q: Does the amplifier have a power indicator?A: Yes, the amplifier features a power on LED indicator. This lets you know when the amplifier is powered and operational.
