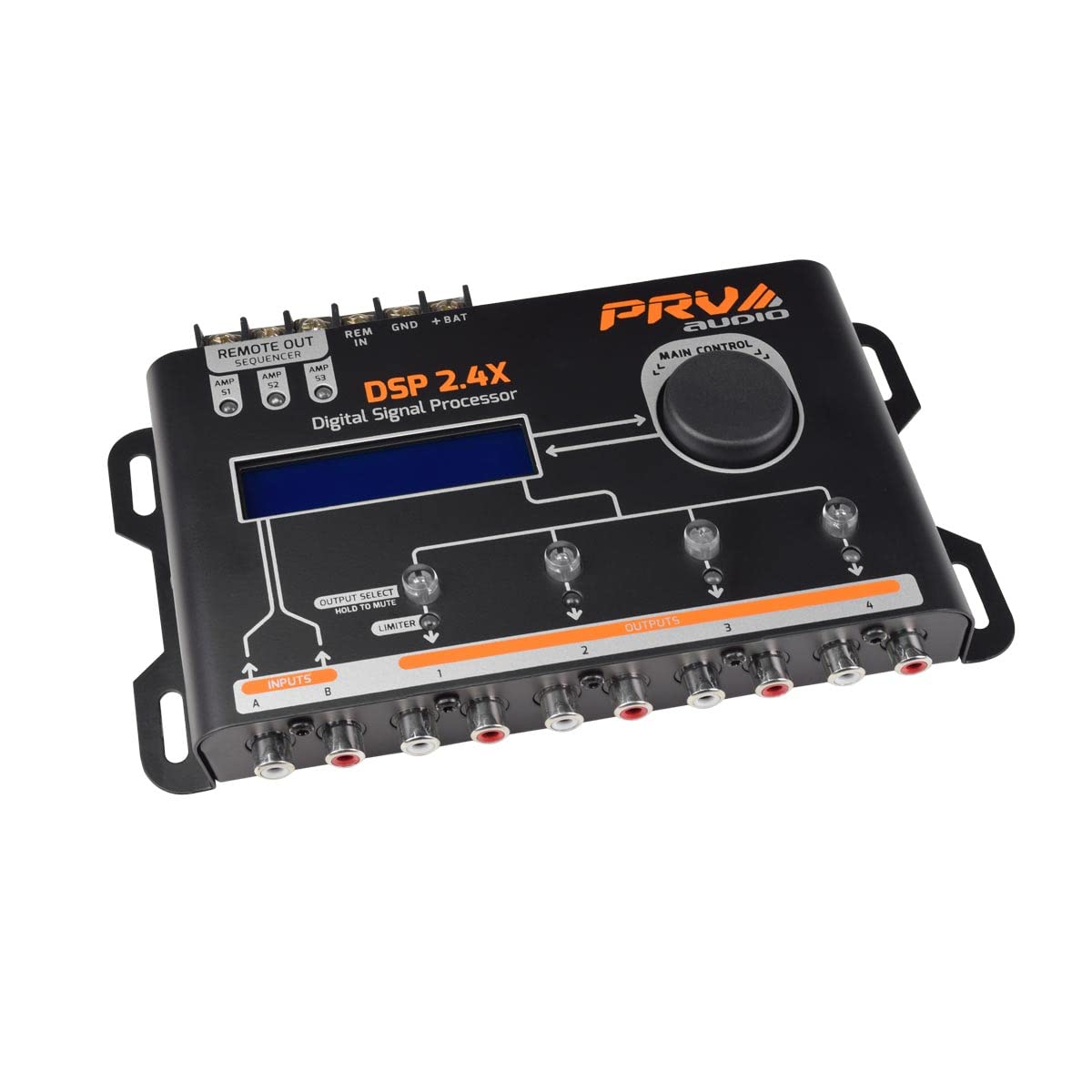

The Crossover function allows you to precisely define the cut frequencies, attenuation rates, and topology of the LowPass and HighPass filters with Butterworth and Linkwitz-Riley filters (12/18/24/36/48 dB / 8ª). In the audio treatment, it also has Alignment capabilities through High Accuracy Delay, Phase Inversion, Independent Gain by Output and Master Level. For accurate measurements and adjustments, features an integrated Audio Generator with tone generation and frequency sweep, and Pink Noise. Allows sequential triggering of other products through the remote trigger connection (REM). Use a cable of at least 20 AWG. The triggering interval between each output can be set from 0s to 4s. When the set time is 0s, all three outputs will be enabled and disabled at the same time after 3s of the input remote (REM IN) signal change. Input Channels: 2 Output Channels: 4 Output Gain: Yes Master Level: 0 ~ 100% Graphic Equalizer: 15 Band Graphic Equalizer Presets: 12 Parametric Equalizer Input: 1 Parametric Equalizer Output: 4 / 1 per Channel Routing: A,B / A+B Crossover Butterworth (dB/8ª): 12/18/24/36/48 Crossover Linkwitz-Riley (dB/8ª): 12/18/24/36/48 Limiter: Yes Automatic Attack/Release: Yes Delay: 0 to 8 ms (275 cm) Frequency Generator: 10Hz – 22kHz, Level -60 at 0dB Frequency Scan: 10Hz – 22kHz / Level -60 at 0dB / Control of speed Display: LCD16x2 Characters Screen Saver: Text Security Password: Yes Frequency Response(+/-3dB): 10Hz @ 22.5kHz @ -1dB Latency: 1.08ms Signal to Noise >90dB THD <0,01% Channel Separation > 80 dB Maximum Input Voltage: 5,6 Vpp (+8,2 dBu) Maximum Output Voltage: 5,6 Vpp (+8,2 dBu) Supply Voltage: 9V to 16V DC Dimensions (HxWxL): 1.45″ x 7.87″ x 3.97″ Weight: 1 Lbs
