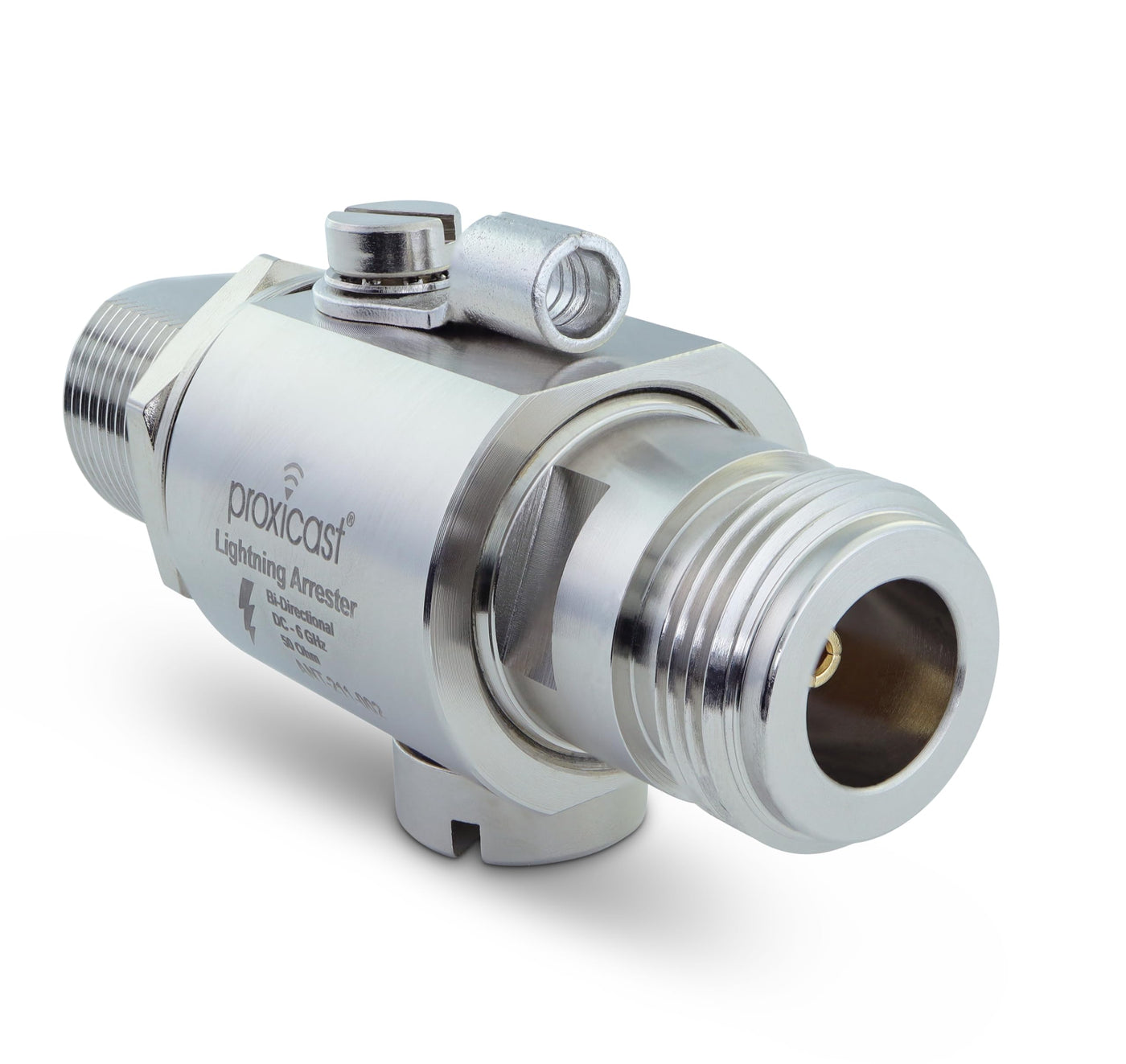

Proxicast Coaxial Lightning Arrester For 0 To 6 Ghz (N Female/N Female) Pro Grade 230V Antenna Lightning Protector For 4G, Lte, 5G, Wi Fi, 900Mhz, Helium, Lora & Other Outdoor Antennas (Ant 211 002)

Frequently Asked Questions

• Q: What is the frequency range of the Proxicast Coaxial Lightning Arrester? A: The frequency range is zero to six gigahertz. This wide-band performance makes it suitable for various high-frequency applications.

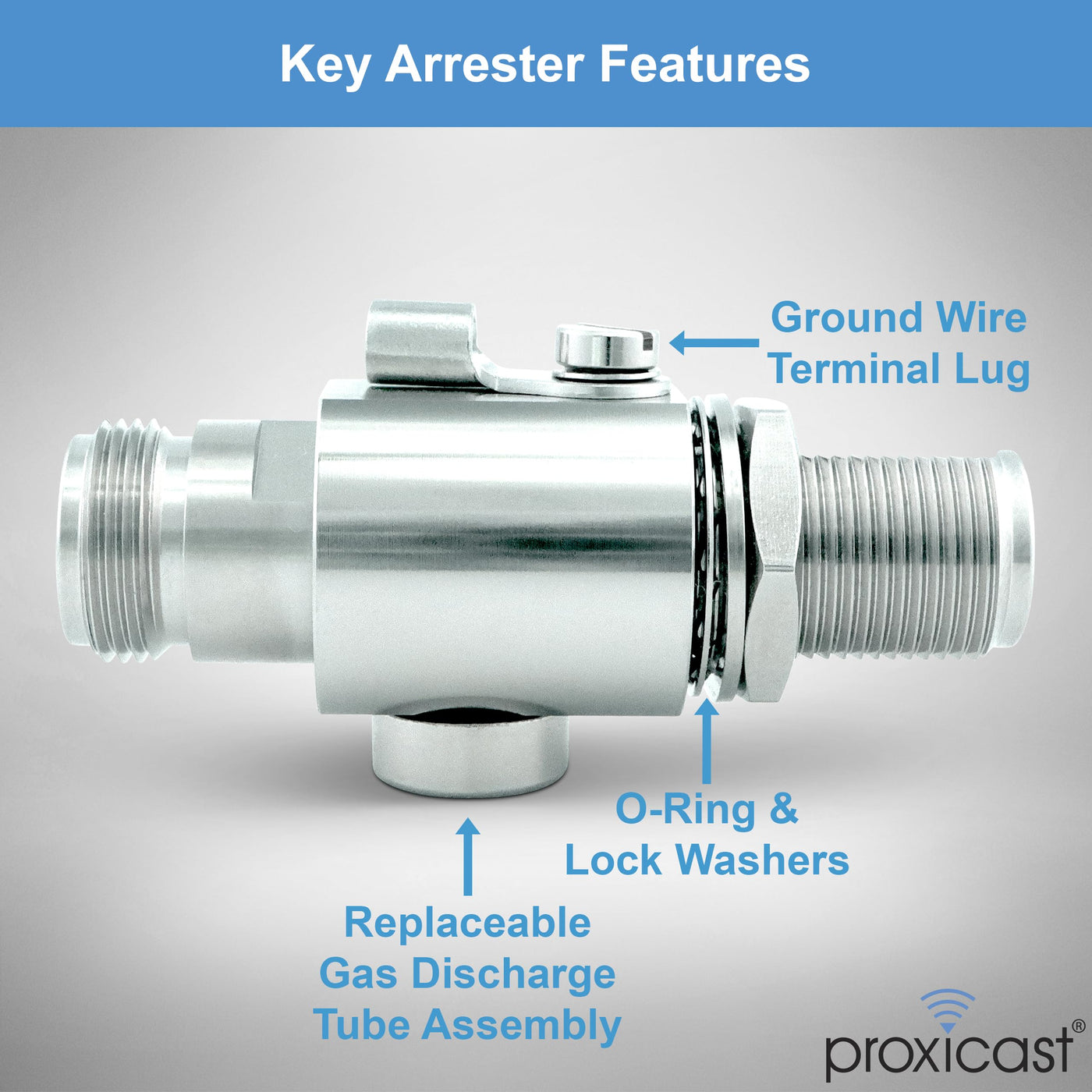

• Q: What materials are used in the Proxicast Lightning Arrester? A: The connector body is made of nickel-plated brass, and the pins are gold-plated brass. The O-ring is made of rubber, ensuring durability and effective sealing.
• Q: What are the dimensions of the Proxicast Lightning Arrester? A: The dimensions are two point four inches in length, one point twenty-two inches in width, and one point twenty-two inches in height. It is compact and easy to install.

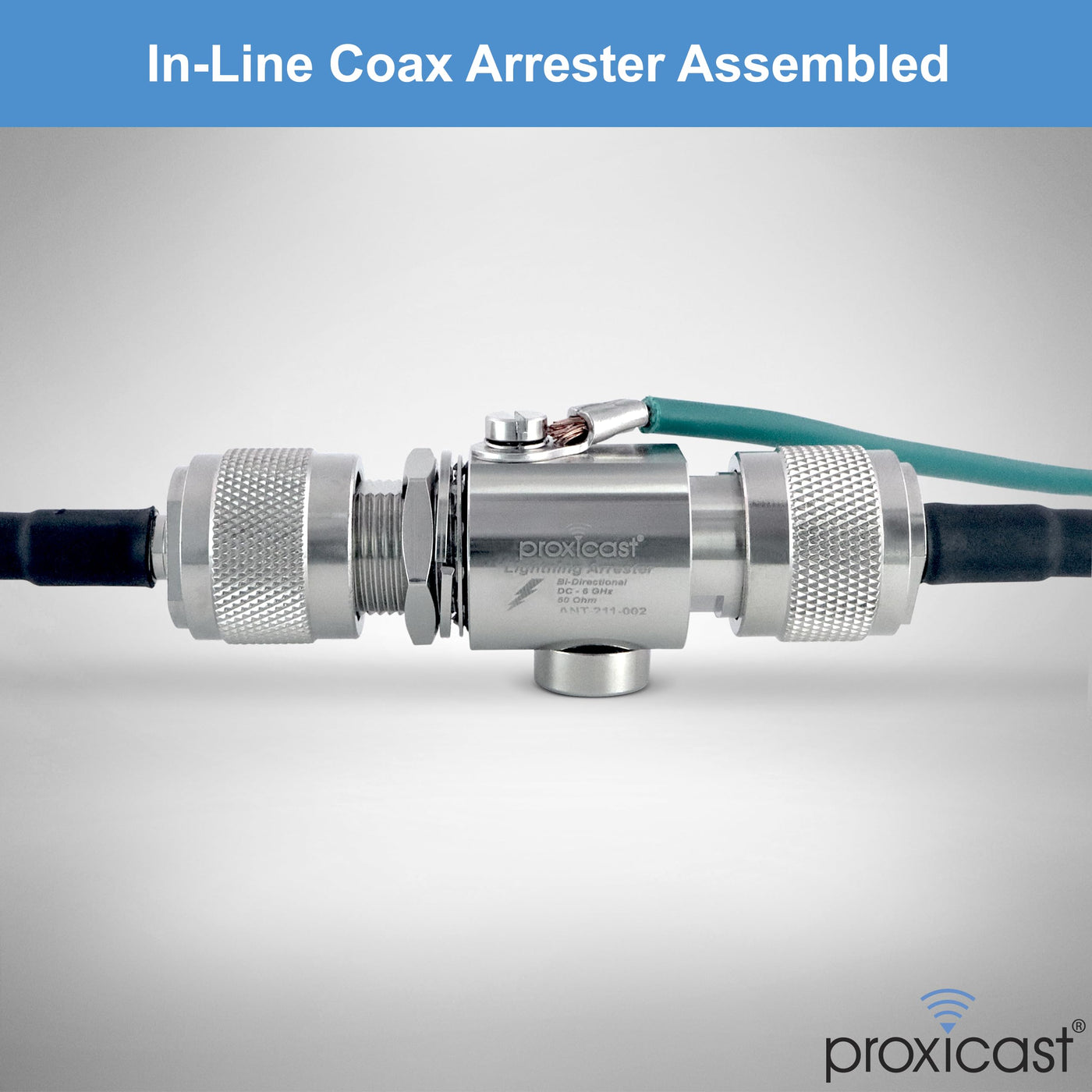

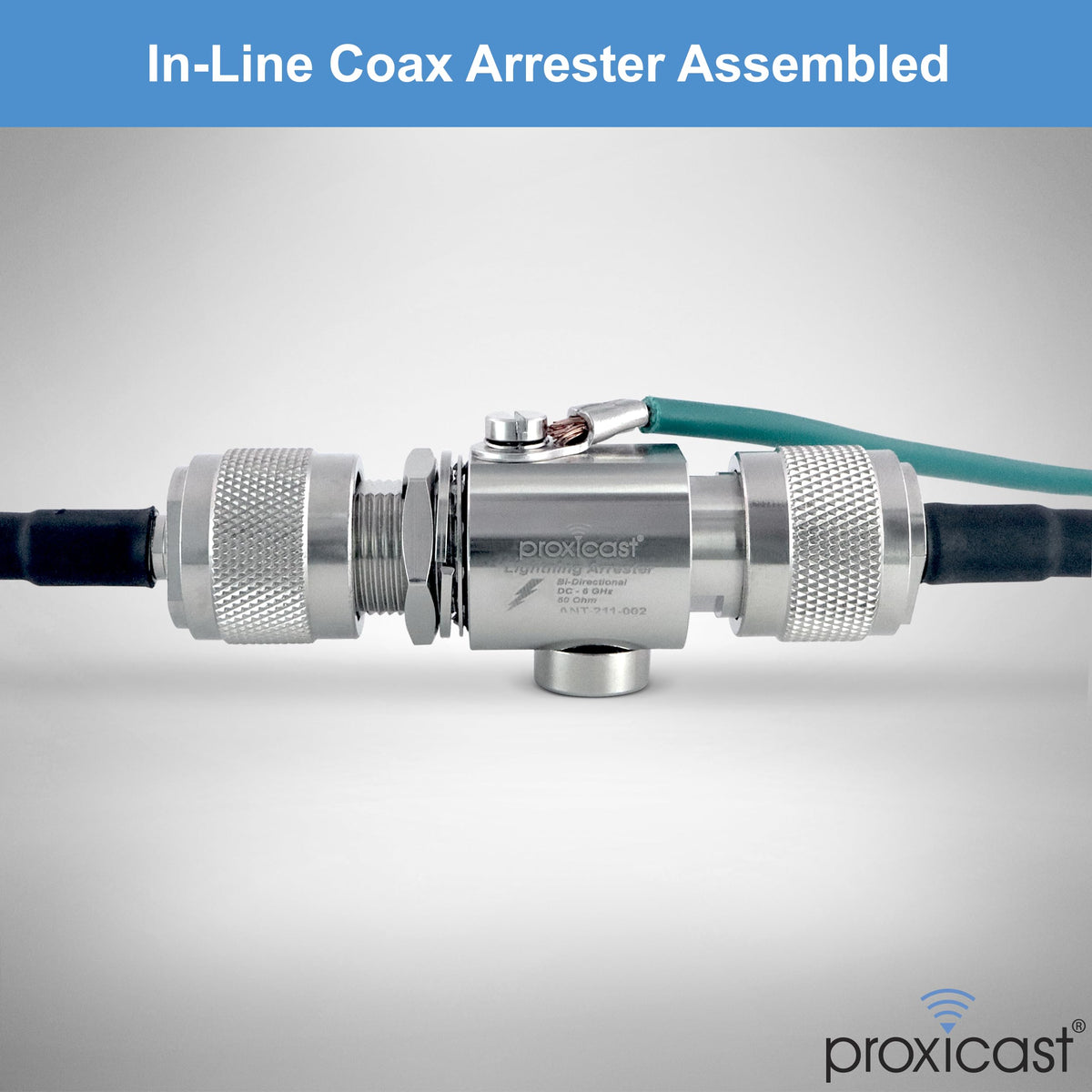

• Q: How do I install the Proxicast Coaxial Lightning Arrester? A: You can install it inline or mount it through an enclosure wall. Ensure it is as close as possible to the equipment to be protected.
• Q: Is the Proxicast Lightning Arrester suitable for outdoor use? A: Yes, it is designed for outdoor use. It protects antennas from lightning strikes and electrical surges, making it ideal for outdoor antenna setups.
• Q: Can the Proxicast Lightning Arrester pass DC voltage? A: Yes, it can pass DC voltage. This feature is useful for applications that require DC to be carried through the coax cable.
• Q: How should I clean the Proxicast Coaxial Lightning Arrester? A: Use a damp cloth to wipe down the exterior. Avoid using harsh chemicals that could damage the connectors or the housing.
• Q: What is the maximum power rating for the Proxicast Lightning Arrester? A: The maximum power rating is two hundred watts. This ensures it can handle high power applications without compromising safety.
• Q: How do I store the Proxicast Lightning Arrester? A: Store it in a dry place away from direct sunlight. Ensure the connectors are not exposed to moisture to maintain their integrity.
• Q: Is the Proxicast Lightning Arrester RoHS compliant? A: Yes, it is RoHS compliant. This means it meets environmental standards regarding hazardous materials.
• Q: What is the VSWR rating for the Proxicast Lightning Arrester? A: The VSWR rating is less than one point two. This low rating indicates minimal signal reflection and high efficiency.
• Q: Can this Lightning Arrester protect against multiple strikes? A: Yes, it has multi-strike capability. This feature allows it to shunt damaging surges and transients effectively.
• Q: Does the Proxicast Lightning Arrester have a warranty? A: Yes, it typically comes with a manufacturer warranty. Check with the retailer for specific warranty details.

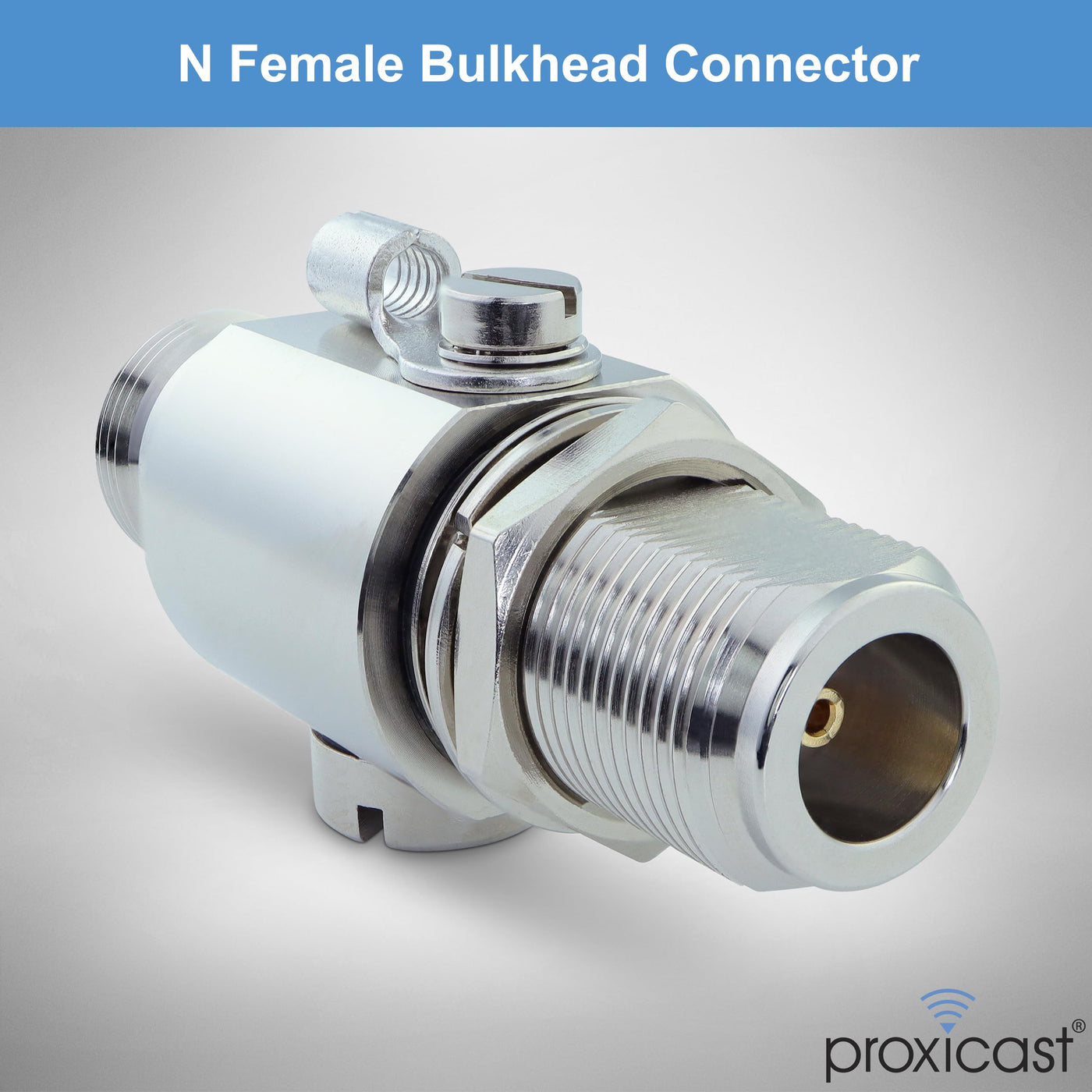

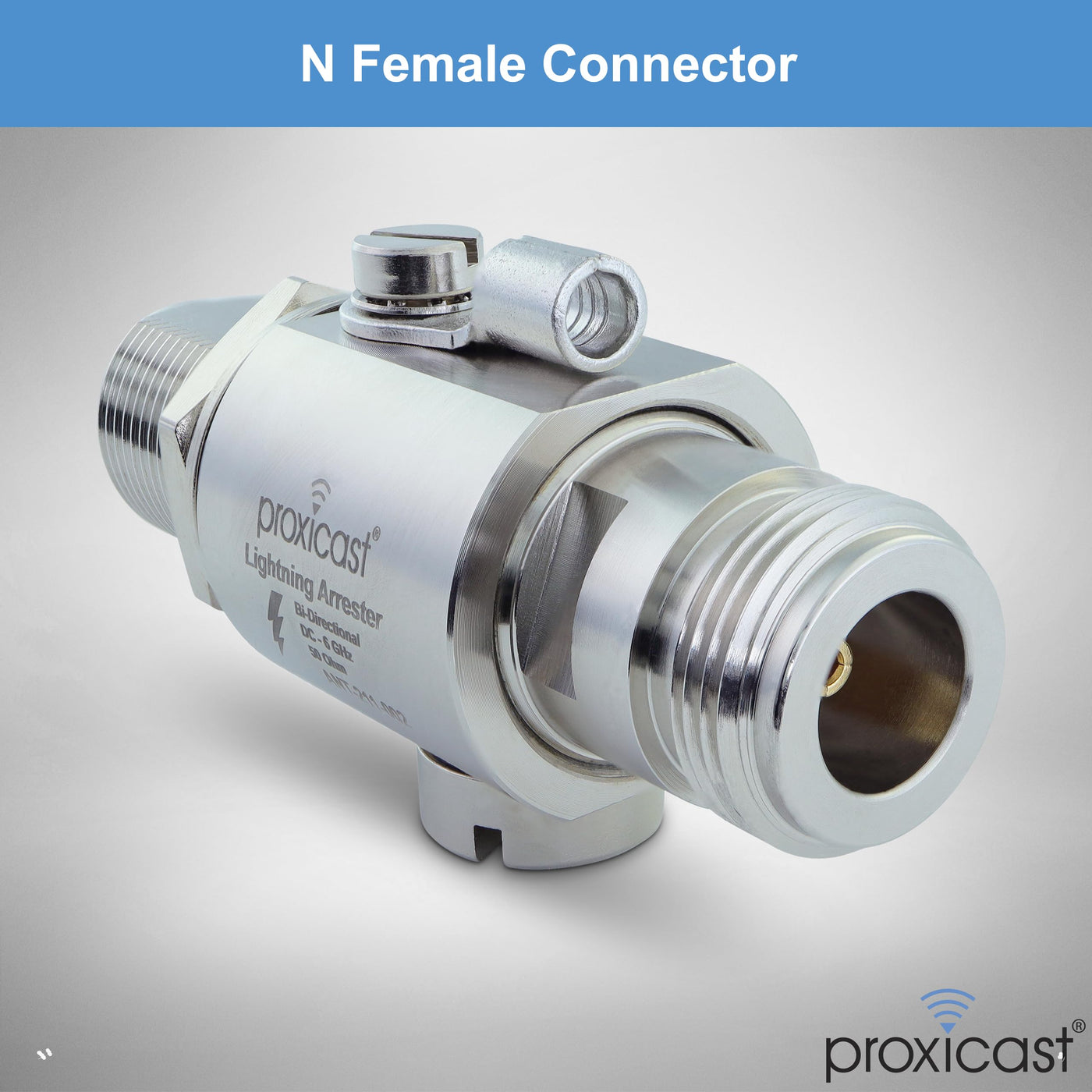

• Q: What kind of connectors does the Proxicast Lightning Arrester use? A: It uses N-Female and N-Female bulkhead connectors. This configuration allows for flexible installation options.
• Q: What should I do if my Proxicast Lightning Arrester arrives damaged? A: Contact the retailer immediately for assistance. They can guide you through the return process for a damaged product.
