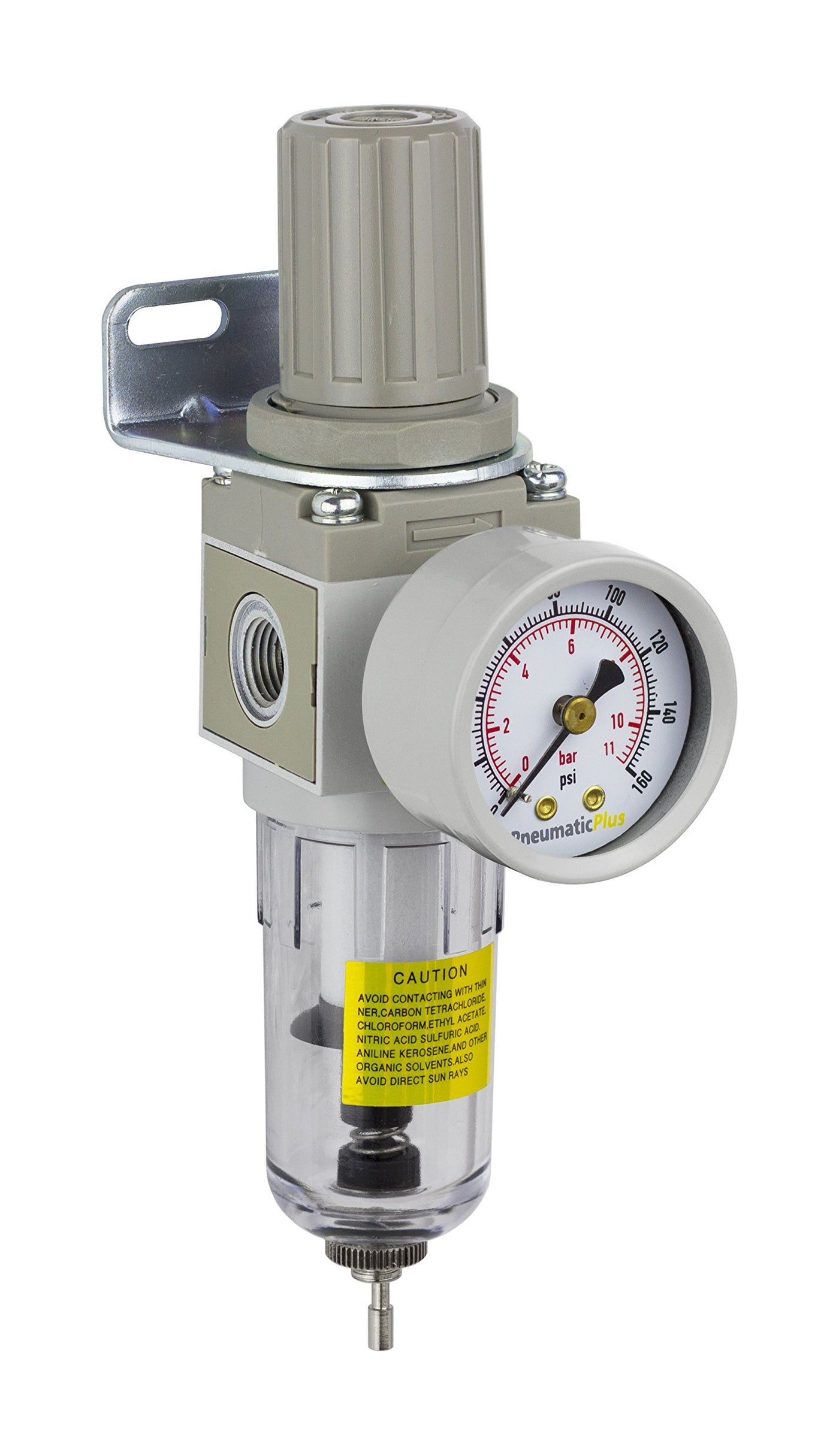

Pneumatic Plus Saw Series Filter-Regulators, Or ''Piggybacks'' Combine The Functions Of Both Filter And Regulator. Piggybacks Are Compact And Most Effective When Space Is Constrained. Filter: Filtering Out Of Dirt And Foreign Particles, And The Separation Of Moisture Is Automatic With Air Flow. There Are No Moving Parts And No Adjustments Are Necessary. Accumulated Sludge And Moisture Should Be Drained Off. Sediment Should Not Be Permitted To Fill Above The Lower Baffle. Wash Filter Element At Intervals With Methylene Chloride Or Similar Cleansing Fluid To Maintain Filtering Efficiency. To Clean Element, Depressurize System, Pull Down The Lock And Twist Off The Metal Guard And Polycarbonate Bowl And Unscrew Element From Head. Dry Filter Element Thoroughly Before Reassembling. Clean Filter Bowl(S) Only With Soapy Water. Inspect O-Ring, Replacing If Damaged Or Distorted. Reassemble With Care To Avoid Stripping Threads On Bowl. After A Metal Bowl With Sight Is Tightened, It May Be Rotated Up To 180 (For Proper Viewing.) Regulator: Before Supplying The Air, Turn The Adjusting Knob Counter-Clockwise Until Compression Is Released From The Control Spring. Turn On The Air Supply And Adjust The Knob To Set The Desired Secondary Pressure By Turning The Knob Clockwise. Note: Adjustment Knob Must Be Pulled Away From The Body Of The Regulator To Operate. After Desired Secondary Pressure Is Set, Pushing The Knob Back Towards The Body Will Lock The Control Knob. Important: Use Care To Avoid Screwing Fittings Too Far Into Body Of Units As It May Close Internal Ports. Normally Finger Tight Plus One Turn Will Seal. Bowl (Metal Or Polycarbonate) And Drain (Auto Or Manual) Options Available.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the PneumaticPlus SAW2000M-N02BG?A: The dimensions are nine point four inches in length, two point four inches in width, and two point three inches in height.
Q: What material is the PneumaticPlus SAW2000M-N02BG made of?A: It is made of aluminum die cast, ensuring durability and corrosion resistance.
Q: What is the maximum supply pressure for this filter regulator?A: The maximum supply pressure is two hundred fifty PSI, making it suitable for high-pressure applications.
Q: How do I adjust the pressure on the PneumaticPlus SAW2000M-N02BG?A: To adjust the pressure, turn the knob clockwise to increase pressure after releasing compression.
Q: What is the flow rate of the PneumaticPlus SAW2000M-N02BG?A: The flow rate is twenty-eight SCFM, which supports various air tool operations.
Q: Is the PneumaticPlus SAW2000M-N02BG suitable for compact spaces?A: Yes, it is designed as a miniature filter regulator combo, ideal for constrained spaces.
Q: How do I clean the filter element of the PneumaticPlus SAW2000M-N02BG?A: To clean, depressurize the system, remove the metal guard and polycarbonate bowl, and wash the filter element with a cleansing fluid.
Q: Can I use this filter regulator with any air compressor?A: Yes, it is compatible with most air compressors that provide up to two hundred fifty PSI supply pressure.
Q: What type of gauge is included with the PneumaticPlus SAW2000M-N02BG?A: It includes a zero to one hundred fifty PSI pressure gauge for easy monitoring.
Q: Is there a warranty for the PneumaticPlus SAW2000M-N02BG?A: Yes, it comes with a one-year limited warranty covering manufacturing defects.
Q: What should I do if I need to drain moisture from the filter?A: Manually drain accumulated moisture from the bowl as needed to maintain filtering efficiency.
Q: Can this filter regulator be mounted on a wall?A: Yes, it includes a bracket for easy wall mounting and installation.
Q: Is the bowl on the PneumaticPlus SAW2000M-N02BG made of glass?A: No, the bowl is made of polycarbonate, providing visibility and durability.
Q: How often should I clean the filter element?A: It is recommended to clean the filter element at regular intervals to maintain optimal performance.
Q: What happens if the PneumaticPlus SAW2000M-N02BG arrives damaged?A: Contact customer support for assistance with returns or replacements if it arrives damaged.
