Pcb005 1X Power Distribution Board 3 Inputs 2 X 10 Outputs For Dc Ac Voltage

Frequently Asked Questions

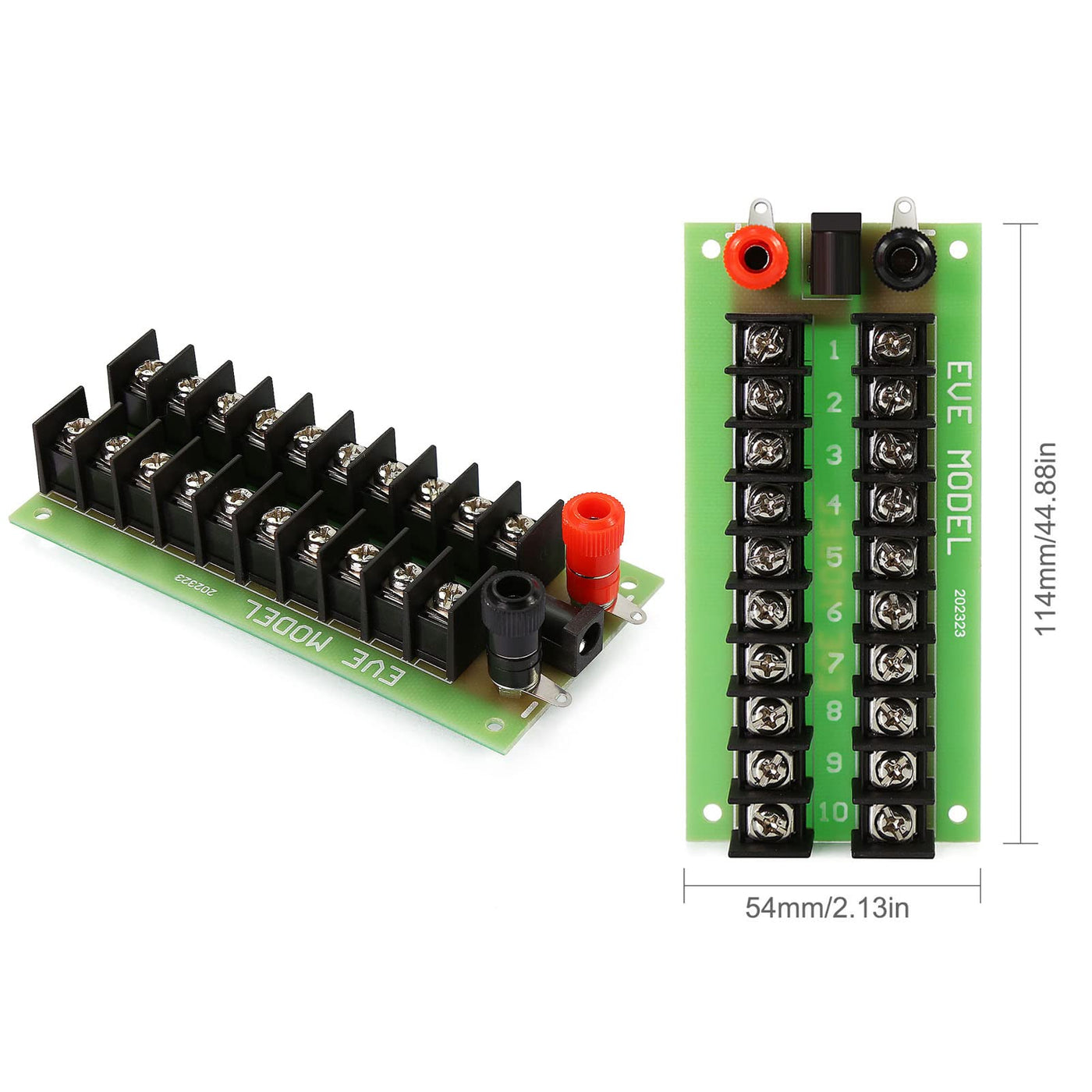

• Q: What are the dimensions of the PCB005 power distribution board? A: The PCB005 measures approximately one hundred fifteen millimeters in length, fifty-five millimeters in width, and nineteen millimeters in height. This compact size makes it suitable for various applications.

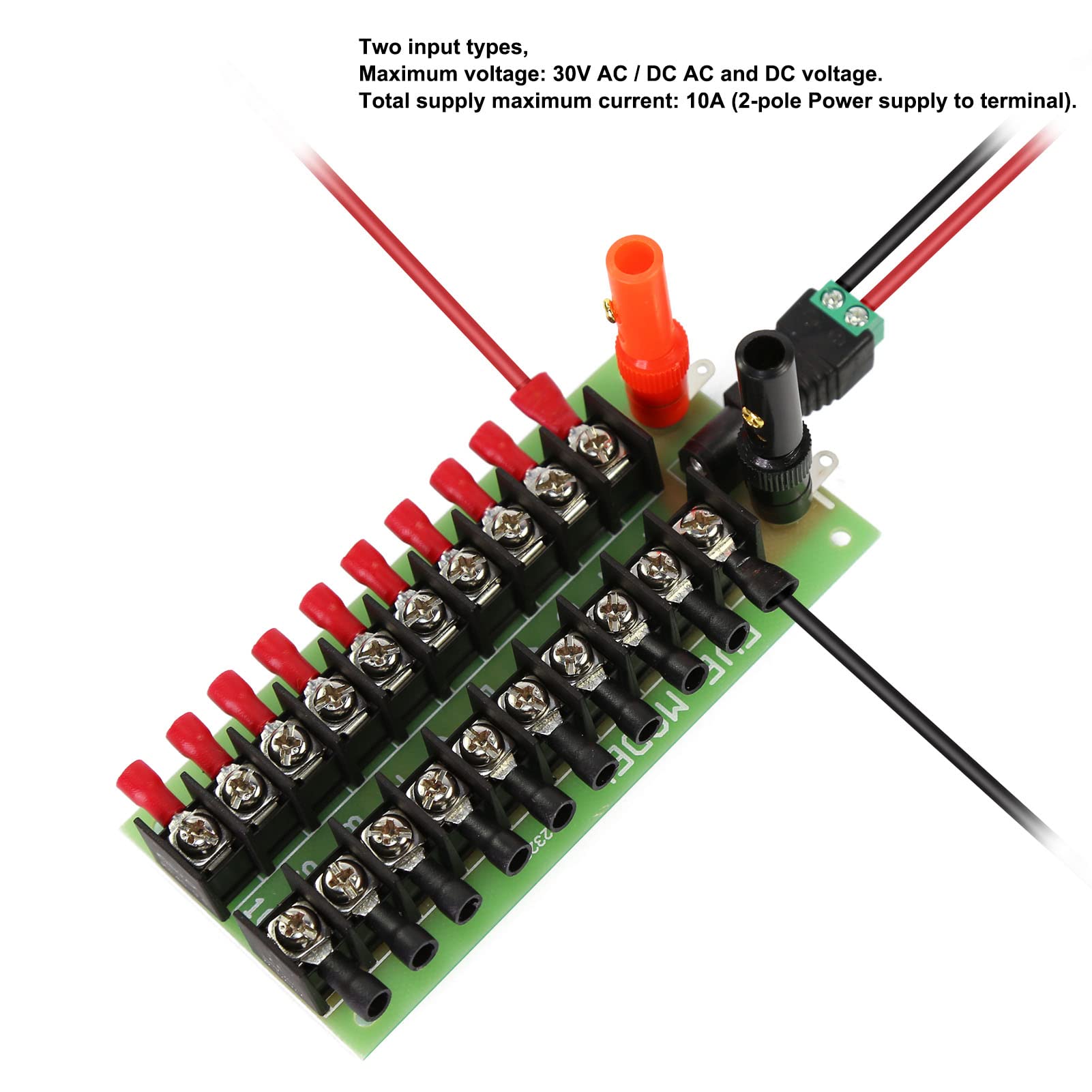

• Q: What is the maximum voltage supported by this power distribution board? A: The PCB005 supports a maximum voltage of thirty volts for both AC and DC. This versatility allows it to be used in different electrical setups.
• Q: How many connectors does the PCB005 have for inputs and outputs? A: The PCB005 features three connectors for input voltage and twenty connectors for output, arranged as two sets of ten. This configuration is ideal for distributing power effectively.
• Q: What is the total supply maximum current for the PCB005? A: The total supply maximum current for the PCB005 is eight amperes. This rating ensures reliable power distribution for your electrical needs.
• Q: What is the current carrying capacity per connection on the PCB005? A: Each connection on the PCB005 has a maximum current carrying capacity of six amperes. This ensures safe and efficient operation.
• Q: How do I install the PCB005 power distribution board? A: To install the PCB005, use the four mounting holes provided. Ensure it is securely attached with the included spacers and metal screws for stability.

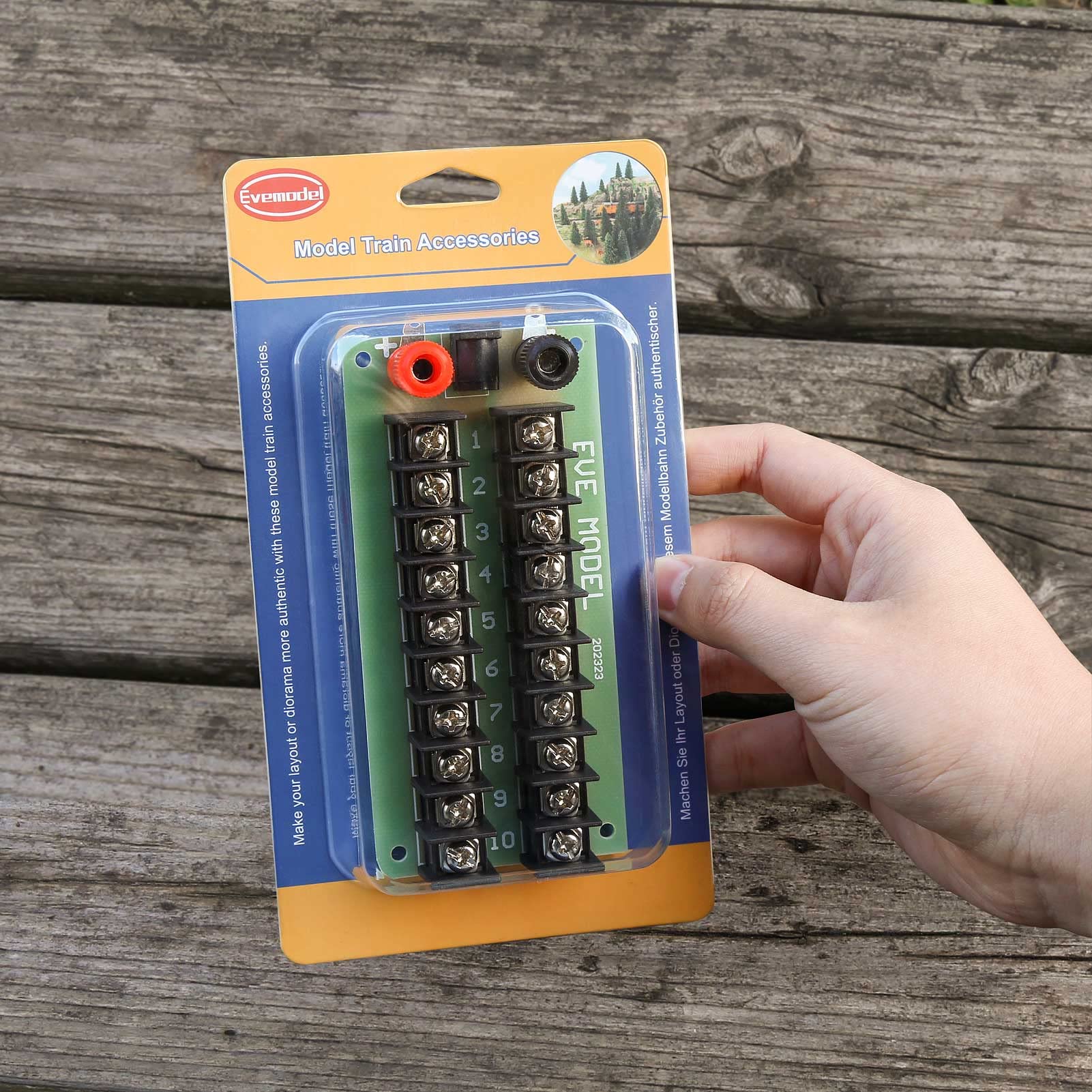

• Q: Can I use the PCB005 for model trains? A: Yes, the PCB005 is ideal for model trains to supply power for lighting and other accessories. Its multiple outputs make it perfect for such applications.
• Q: Is the PCB005 easy to mount? A: Yes, the PCB005 is designed with four mounting holes and wide spacers for easy and secure installation. This ensures it remains stable during use.
• Q: How do I keep the PCB005 in good condition? A: To maintain the PCB005, keep it in a dry environment and avoid exposure to moisture. Regularly check the connections to ensure they are secure and free from corrosion.
• Q: Are there any safety warnings associated with the PCB005? A: Yes, the PCB005 carries a California Prop 65 warning, indicating it contains chemicals known to cause cancer or reproductive harm. Always wash hands after handling.
• Q: What should I do if the PCB005 arrives damaged? A: If the PCB005 arrives damaged, contact the seller or manufacturer immediately to initiate a return or exchange process. Ensure to keep all packaging for reference.
• Q: Is the PCB005 suitable for beginners? A: Yes, the PCB005 is suitable for beginners and experienced users alike. Its straightforward design and clear specifications make it easy to use for various projects.
• Q: What materials are used in the PCB005? A: The PCB005 is made from high-quality electronic components compliant with ROHS standards. This ensures safety and environmental responsibility in its manufacturing.

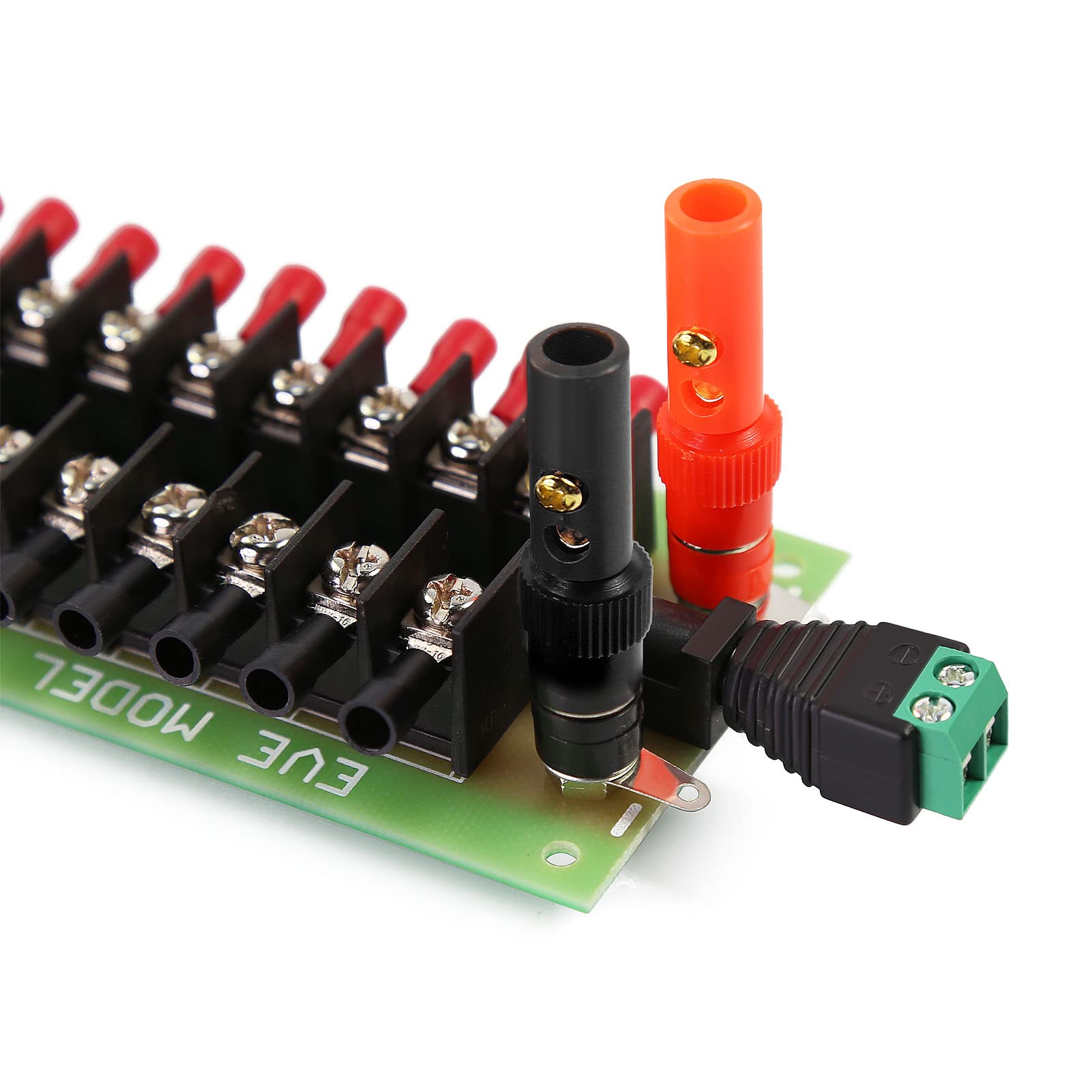

• Q: How can I connect wires to the PCB005? A: You can connect wires to the PCB005 using the included spade terminal connectors. These connectors support wire sizes from AWG twenty-two to sixteen for secure connections.

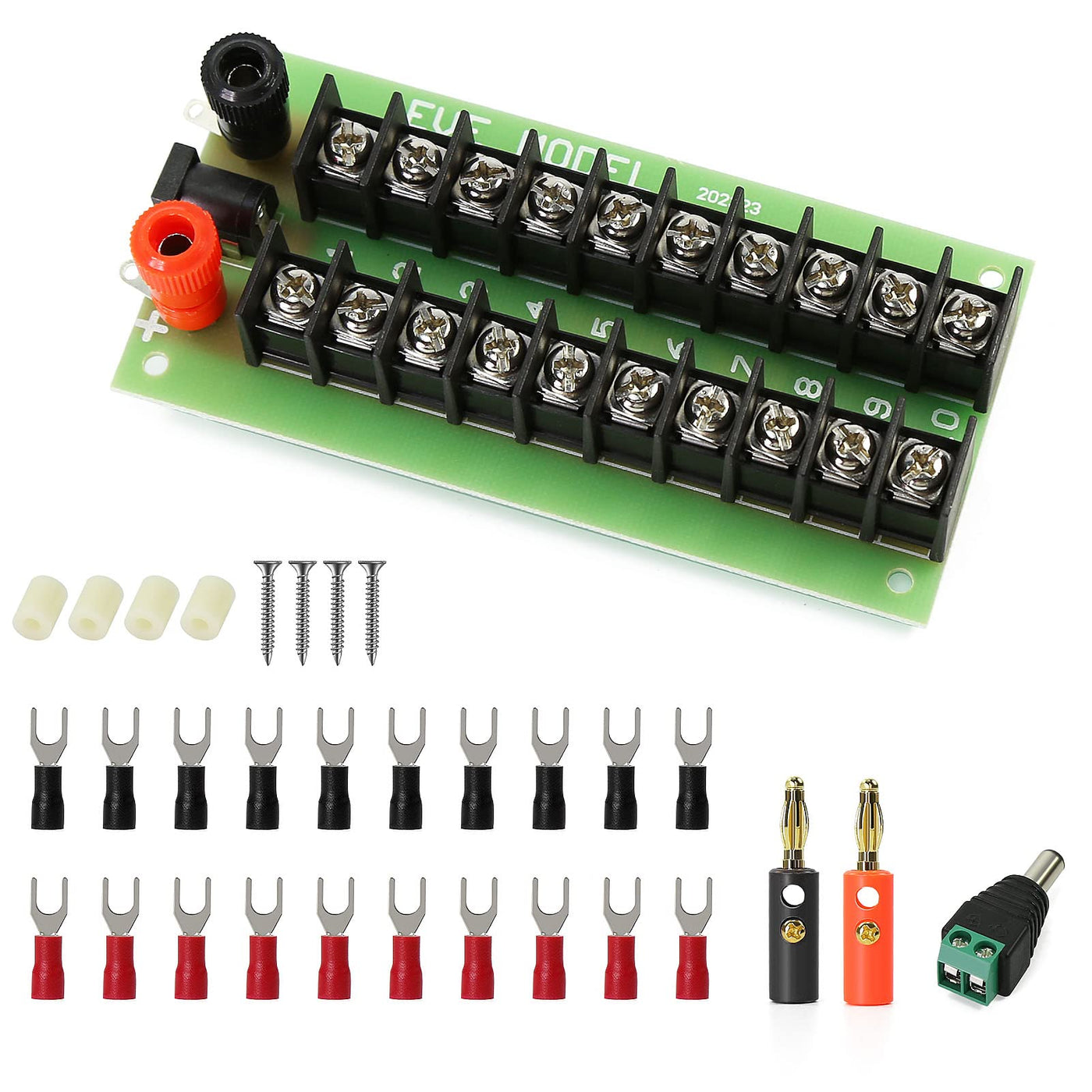

• Q: What accessories come with the PCB005 power distribution board? A: The PCB005 package includes one power distribution board, one red banana plug, one black banana plug, one DC plug, ten red spade terminal connectors, ten black spade terminal connectors, four spacers, and four metal screws.
• Q: Is this product hazardous? A: The PCB005 is not classified as hazardous material but does come with a safety warning. Handle it with care and follow safety guidelines during installation and use.
