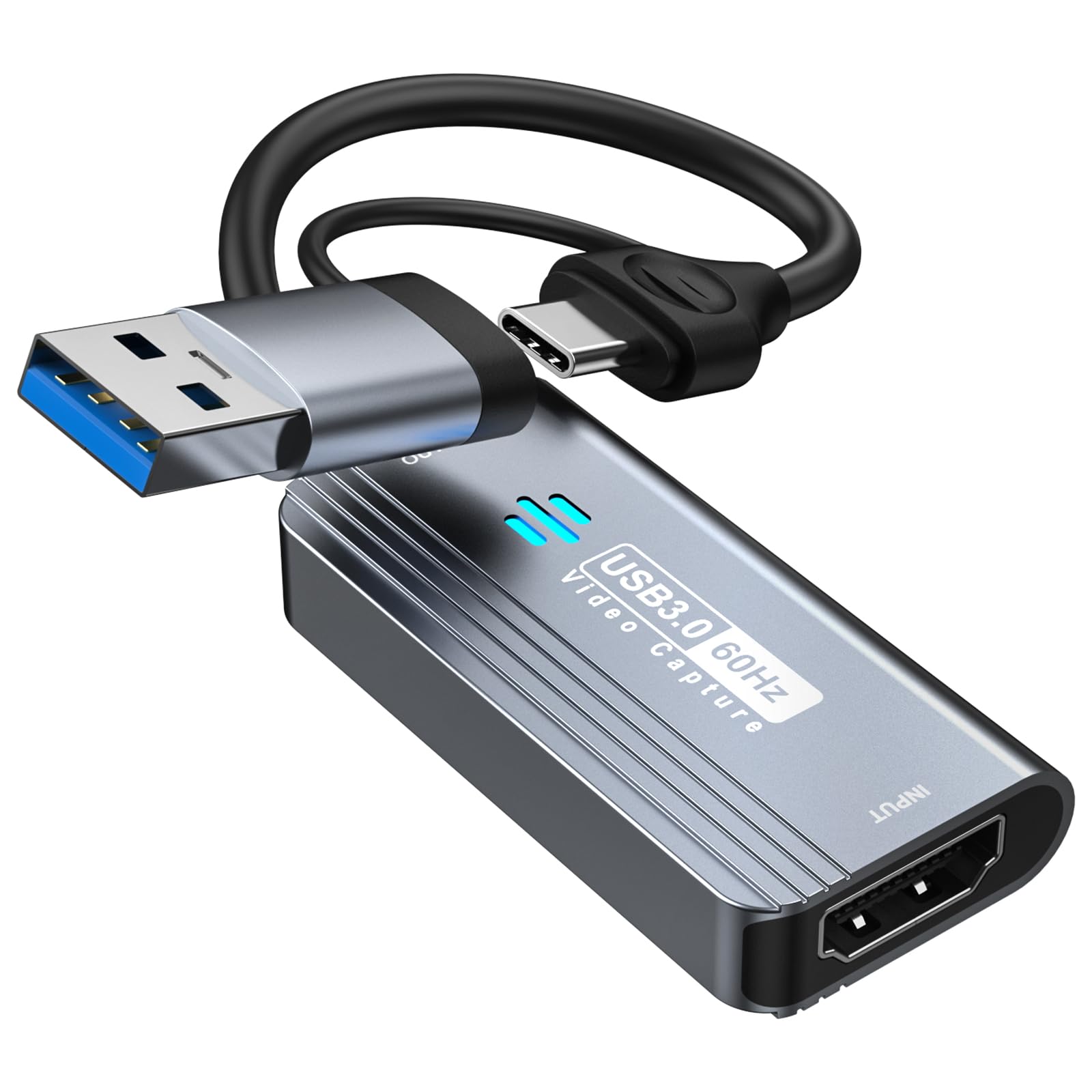

Papeaso new 3.0 video capture card [Note]: -- For MacOS, do not need to download other software. just get audio and video by using the QuickTime software provided by MacBook, do not need to install additional drivers. -- For Windows, we recommend using OBS software, then download the User Manual (PDF) on the current product description page or ask the seller for it. -- Please insert the video capture card into the USB3.0 jack of the computer. Only in this way can you capture YUY2 uncompressed video. -- If the edge of the captured image is jagged, adjust the image resolution of the captured device to 1080P/4K 16:9. -- Try not to use hub, because some cheap hubs have poor compatibility. Features: Interface: USB 3.0 HDMI Input resolution:4K 30FPS USB/Type-C output resolution:1080P 60FPS Video output format: YUV/JPEG Support video format: 24/30/36bit Deep color; audio format: L-PCM Support most acquisition software: such as VLC / OBS / Amcap, etc Support system: Windows / Android / MacOS / Linux Conform to USB Video and UVC standard; USB Audio UAC standard Max working current: 0.2A/5V DC Operating Temperature Range: -10 to +55? Dimension (L * W * H): 53x25x9 (mm) Line length 160(mm) Without external power supply No need to install additional drivers. Connection and Operation: 1: Connect the UHD signal source to the HDMI input of the video capture with one HDMI cable. 2: Connect the computer to the usb port of the video capture with usb cable. 3: Operation steps for USB video capture(OBS): Open OBS, click +->Video Capture Device, select USB3.0 UHD in Device; click +->Audio Input Capture, select Microphone in Device; click Start Recording . Package including:
