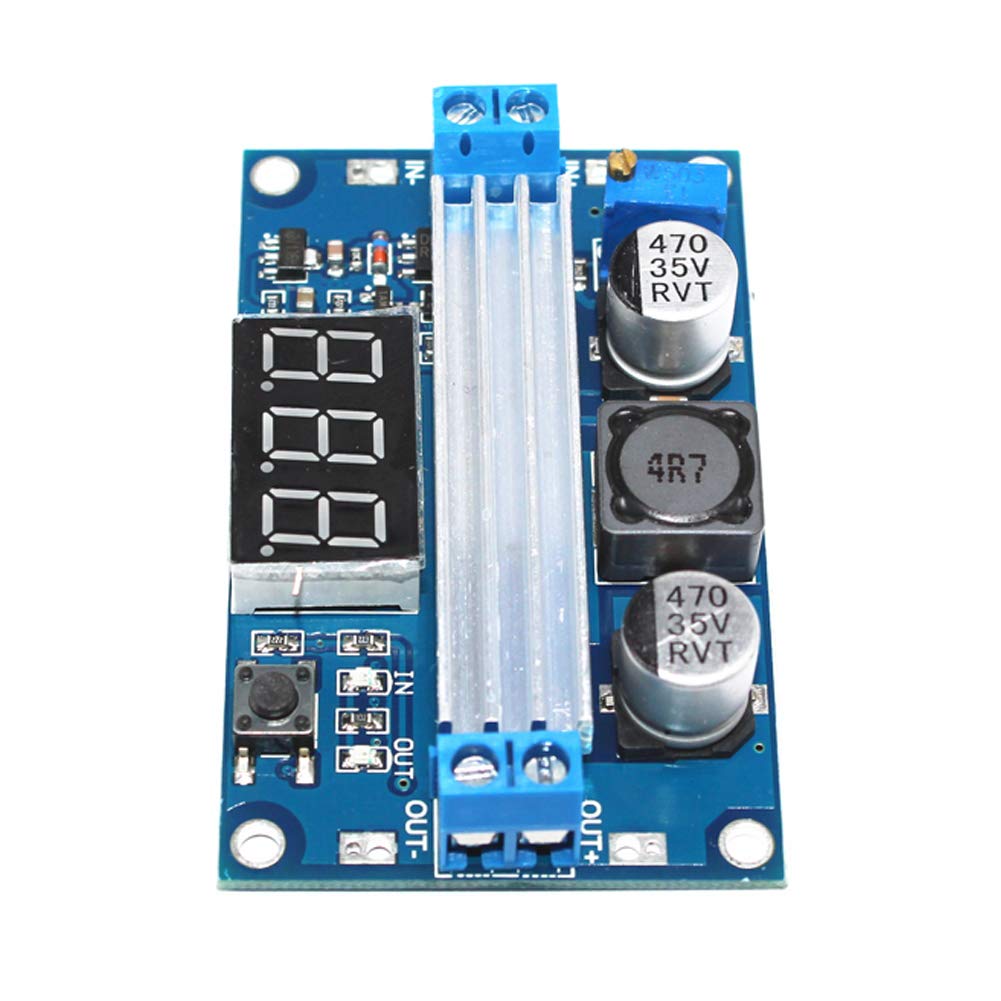

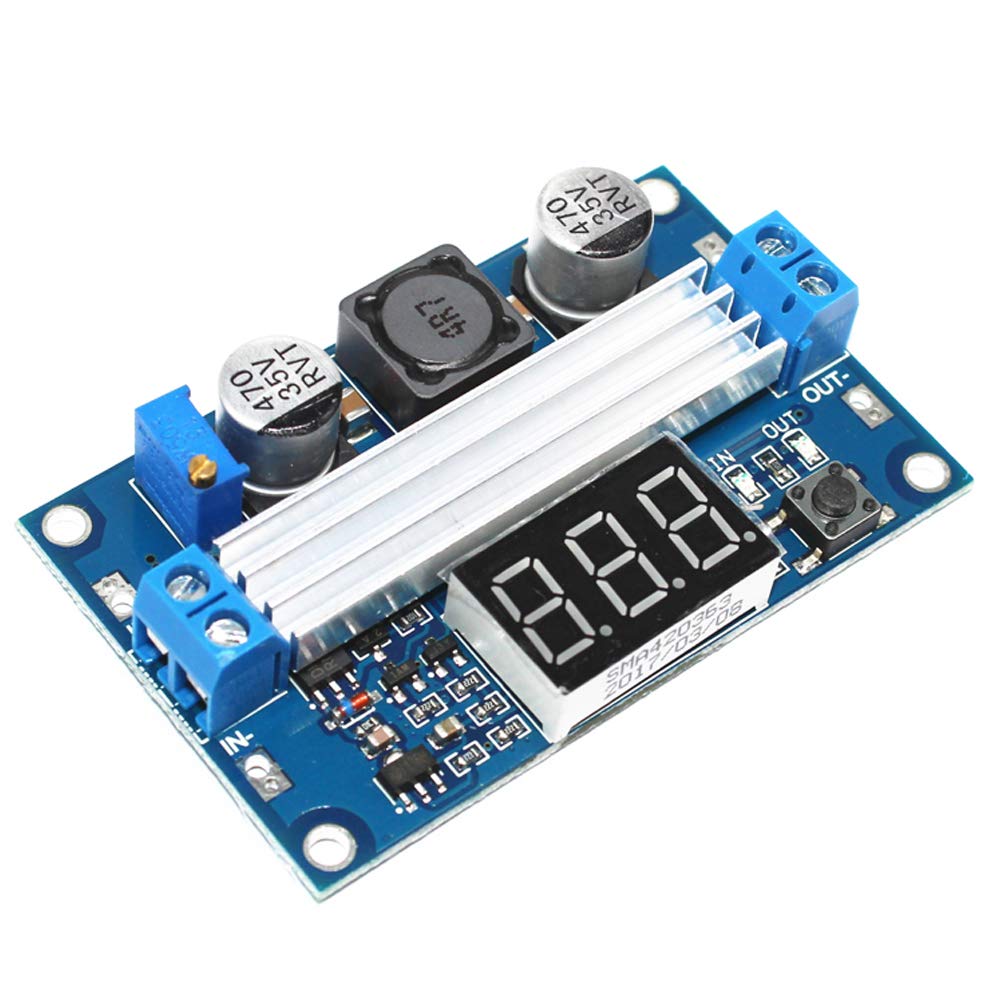

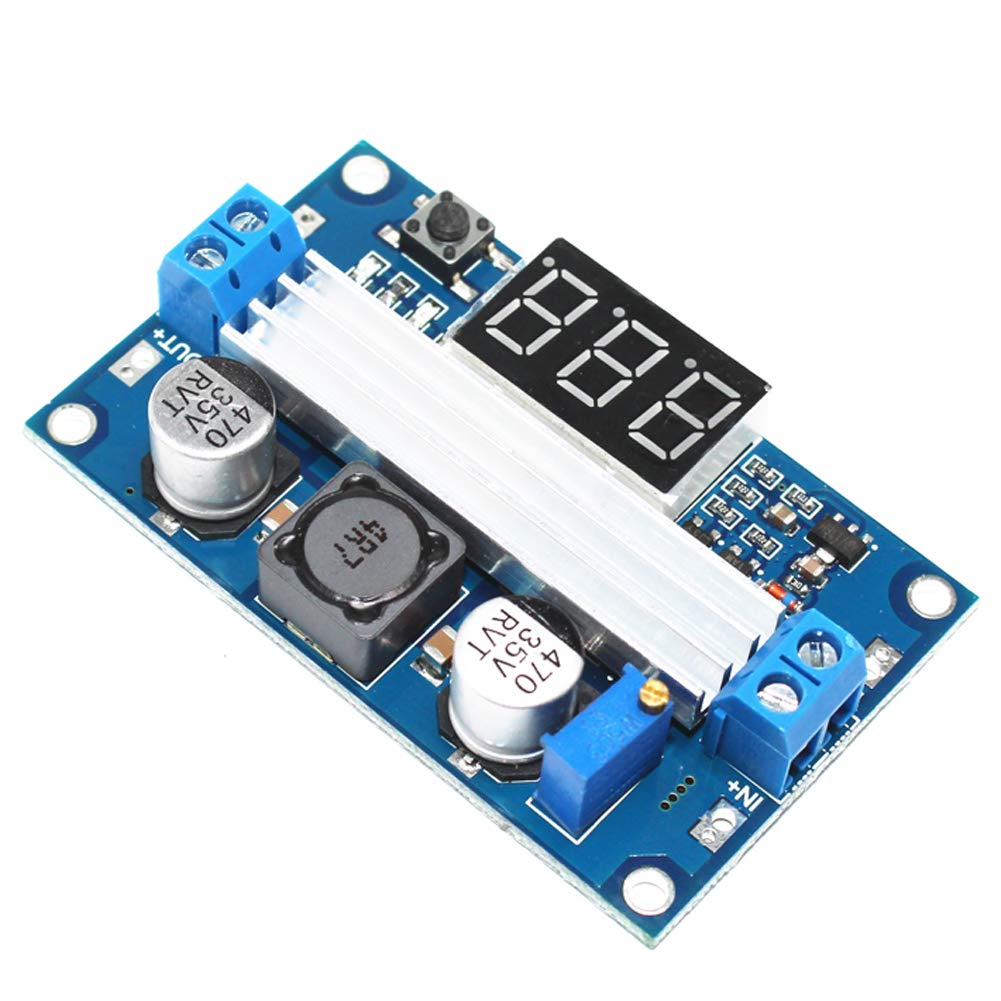

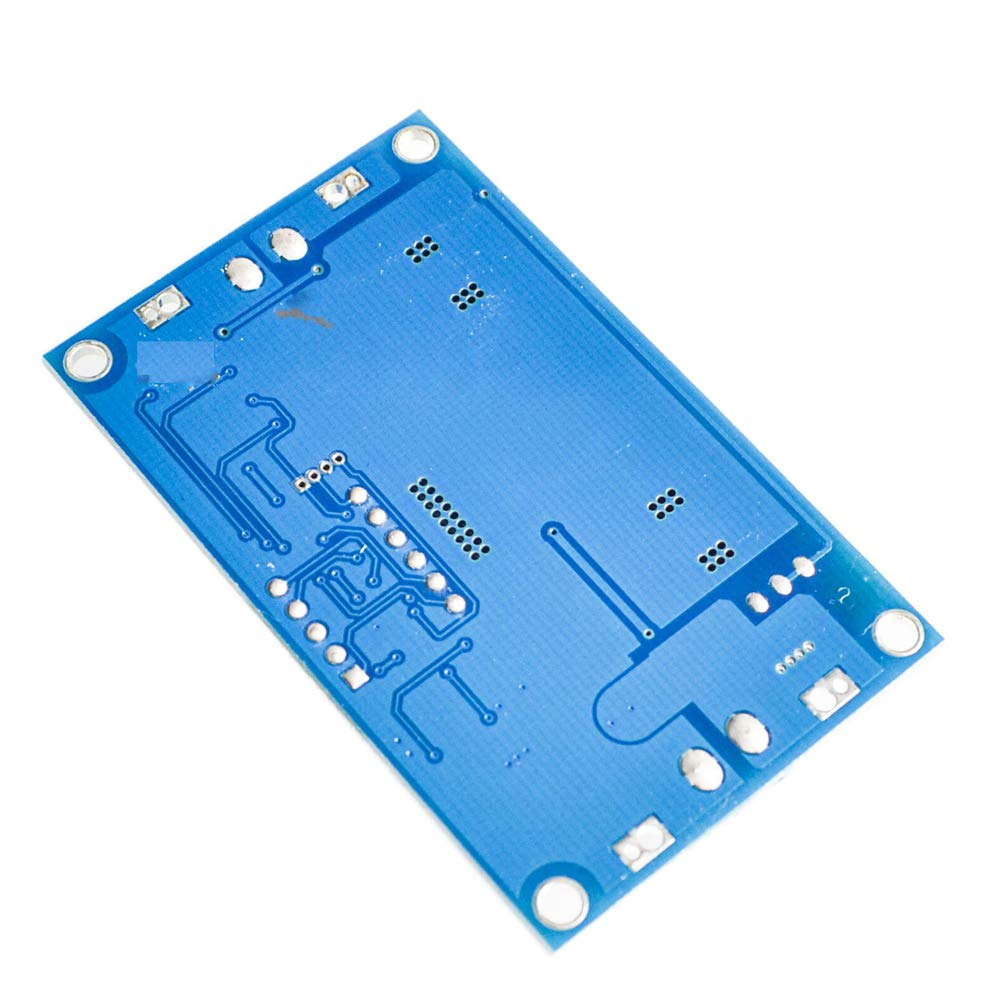

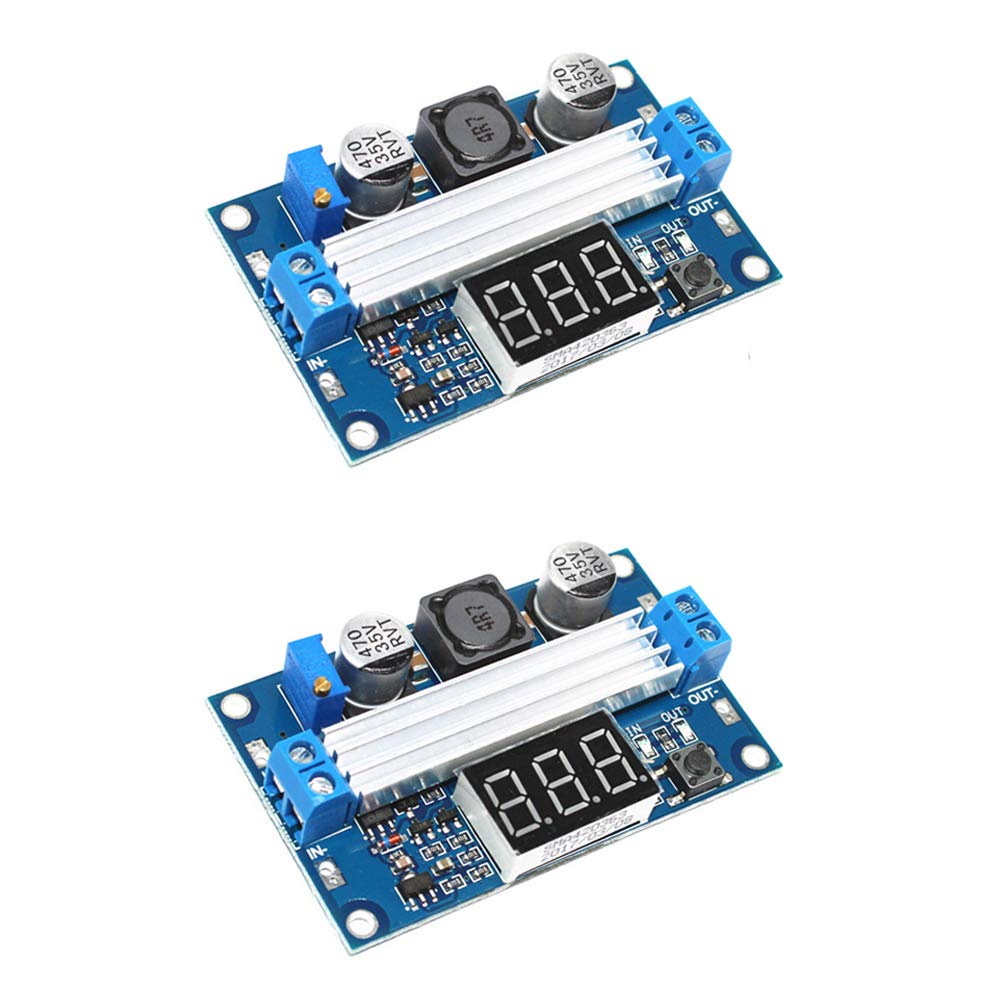

Product Description: The Boost Module Uses Advanced Microcontroller And U.S. Imports Boost Controller, It Eliminates The Need For A Current Sense Resistor By Utilizing The Power Mosfet 'S On-Resistance, Thereby Maximizing Efficiency, Up To 96.4%. Imported High-Power Low-Resistance Mos Transistor, Heavy Current And High Efficiency Schottky, Wider And Thicker Pcb Traces, Is A Guarantee Of High-Power And Low Temperature Rise. When The Input And Output Voltage Is Greater Than 20V, The Module Up To 128W Output Power. Performance Parameters: Input Voltage Range:3~35Vdc(Note: The Input Voltage Is Less Than 4V, Voltmeter Failure) Input Current:9A (Max) Output Voltage Range:3.5~35Vdc(Please To Ensure That Output Voltage Above On Input Voltage) Output Current: 6A (Max) Output Power: 75W (When The Input And Output Voltages Greater Than 20V Up To 128W) Conversion Efficiency: 96.4% (Max) Voltmeter Range: 4 To 40V, Error 0.1V Short Circuit Protection: Yes(Limit Current 14A). (Note: Connected To High-Power Load, Just Switched On The Impact Of Current Very General Meeting Current Limiting Self-Locking Protection, It Is Recommended To Be Switched On Firstly, And Then Access The Load). Input Reverse Polarity Protection: None (If Required, High Current Diode In Series With The Input). Size: 67 * 43 * 12Mm (L X W X H) Application: Diy A Regulated Power Supply, 5V Input Can Be Output 5-35V Adjustable. The Power Supply For Your Electronic Equipment. For Example, 3.7V Lithium Boost To 5V For Mobile Power; 7.4V Or 12V Boost To The Laptop Power Supply To 19V. As The Vehicle Power Supply For Your Laptop, Pda Or A Variety Of Digital Products Supply.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Onyehn DC-DC Boost Voltage Converter Module?A: The dimensions are six point six inches by four point three inches by zero point five inches.
Q: What is the input voltage range for this power converter?A: The input voltage range is three to thirty-five volts DC.
Q: What is the maximum output current of this module?A: The maximum output current is six amps.
Q: What is the conversion efficiency of this boost converter?A: The conversion efficiency can reach up to ninety-six point four percent.
Q: What voltage can this converter output?A: The output voltage can be adjusted from three point five to thirty-five volts DC.
Q: How can I use the Onyehn DC-DC Boost Voltage Converter Module?A: You can use this module to DIY a regulated power supply for various electronic projects.
Q: Is this module suitable for powering USB devices?A: Yes, it is suitable for powering five-volt USB devices from a three point seven-volt lithium cell.
Q: Can I use this converter with a twelve-volt battery?A: Yes, it can boost voltage from a twelve-volt battery for higher powered electronics.
Q: How do I ensure proper functioning of the converter?A: Ensure that the output voltage is always greater than the input voltage.
Q: What safety precautions should I take when using this module?A: Avoid reverse polarity voltage and ensure input voltage is at least four volts for the voltmeter to work.
Q: How do I protect the converter from short circuits?A: The module has built-in short circuit protection to limit current to fourteen amps.
Q: What should I do if the voltage meter fails?A: If the input voltage is less than four volts, the voltmeter may not function properly.
Q: Can I use this converter for high-power applications?A: Yes, it can handle up to one hundred twenty-eight watts output when input and output voltages exceed twenty volts.
Q: What happens if I connect a high-power load?A: Connecting a high-power load may trigger current limiting self-locking protection; switch on the module before connecting the load.
Q: Is there a warranty for the Onyehn DC-DC Boost Voltage Converter Module?A: Warranty information may vary; check with the manufacturer for specific details.
