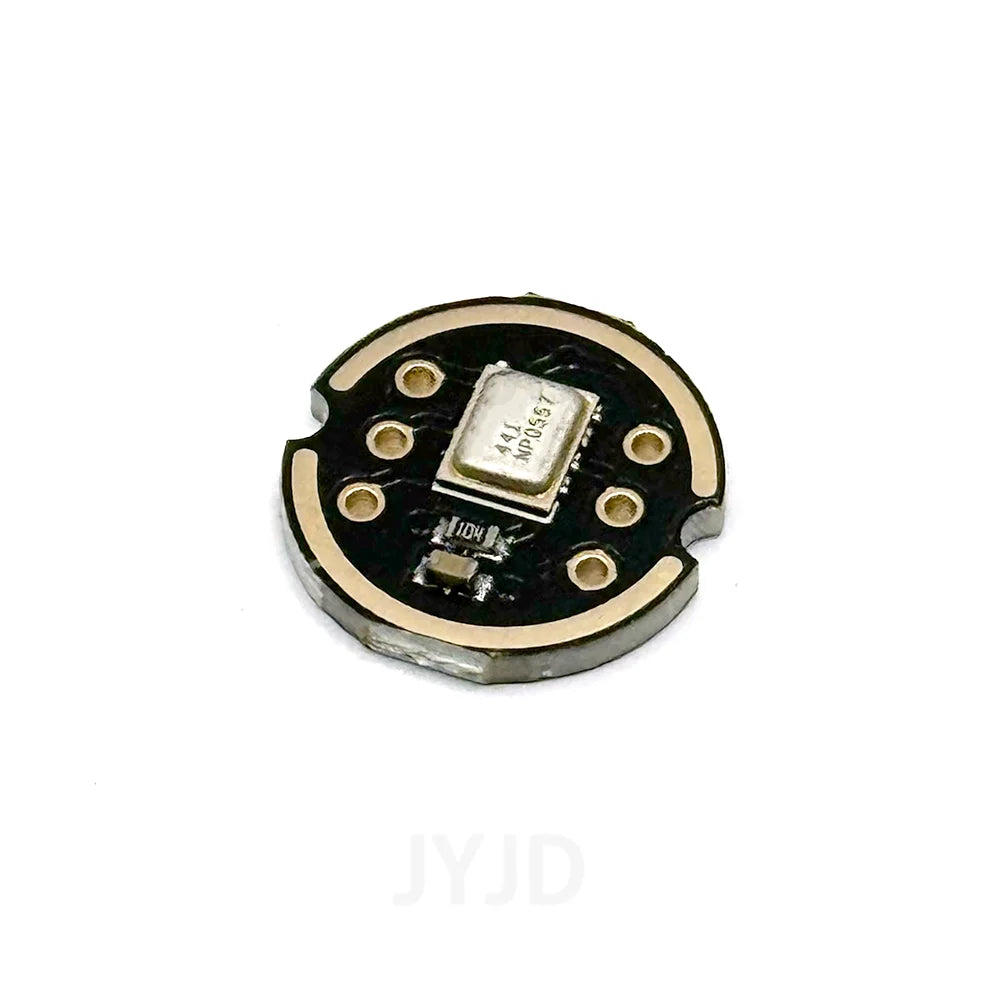

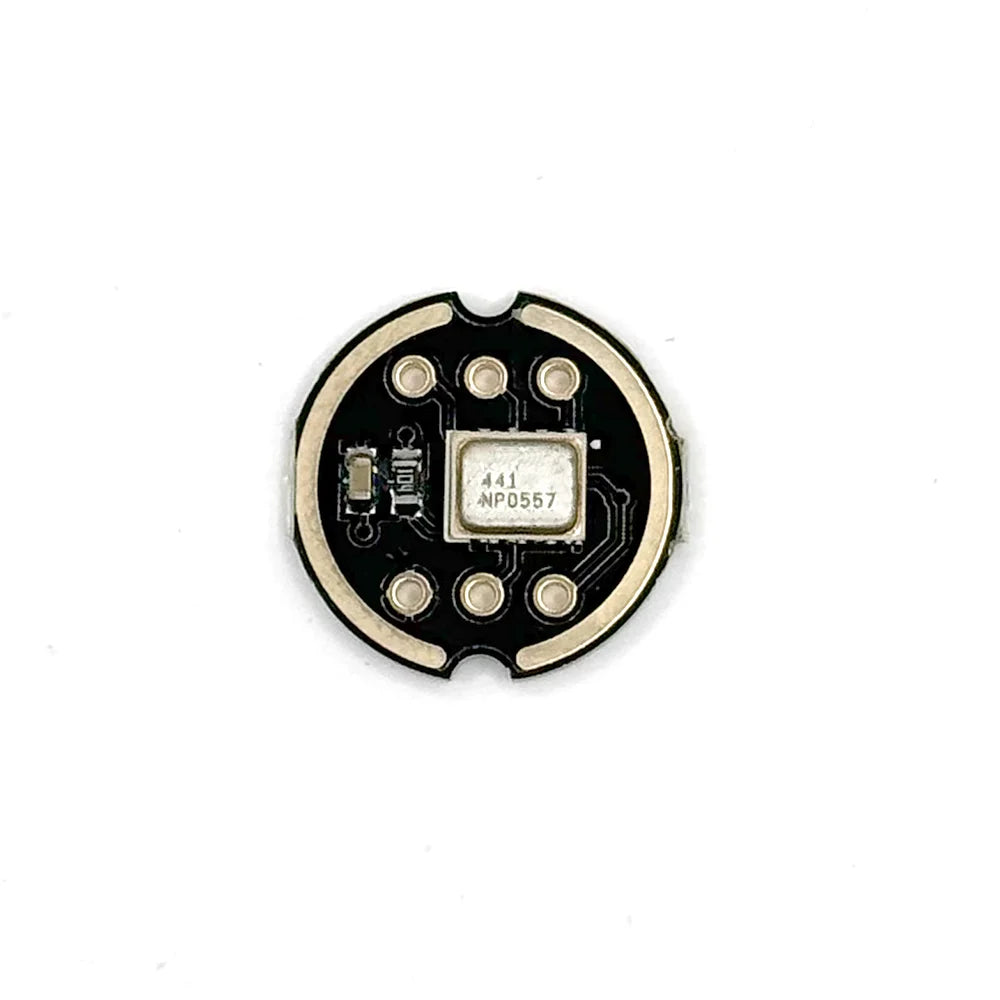

Omnidirectional Microphone Module I2S Interface INMP441 MEMS High Precision Low Power Ultra small volume for ESP32

Omnidirectional Microphone Module I2S Interface INMP441 MEMS High Precision Low Power Ultra small volume for ESP32

Regular price $4.39
6 available

Free Standard Shipping Across USA

Vendor: Electroeshop

Type:

Availability: In Stock

Default Title :

Default Title

Wishlist

Guarantee safe checkout

Sold by Electroeshop, an authorized reseller.

Returns accepted within 30 days | support@electroeshop.com

Verified

Shipping Information

Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched

Returns & Refund

Returns accepted within 30 days of delivery.

Damaged or Defective Item

Free return shipping + replacement or full refund

Wrong Item Received

Free return shipping + replacement or full refund

Change of Mind

Return shipping at customer's expense · 25% restocking fee applies

All returns require a Return Authorization (RA) number before sending.

To initiate a return, contact us:

support@electroeshop.com +1 (281) 738-1060

View Full Return & Refund Policy

Omnidirectional Microphone Module I2S Interface INMP441 MEMS High Precision Low Power Ultra small volume for ESP32 - Default Title

Default Title

$4.39

Description Safety & Compliance

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Product Features:

1. Digital I2S interface with high precision 24-bit data

2. High signal to noise ratio is 61 dBA

3. High sensitivity - 26 dBFS

4. Stable frequency response from 60 Hz to 15 kHz

5. Low power consumption: low current consumption 1.4 mA

6. High PSR: -75 dBFS

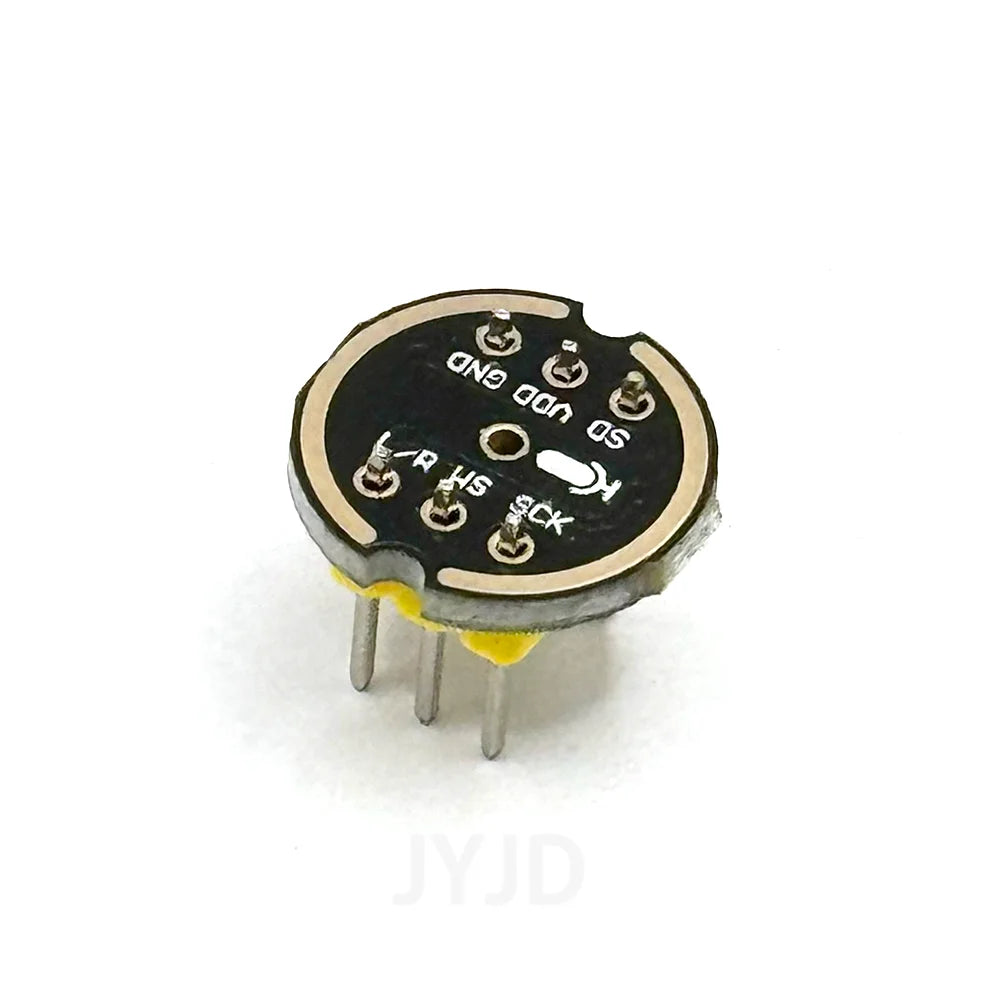

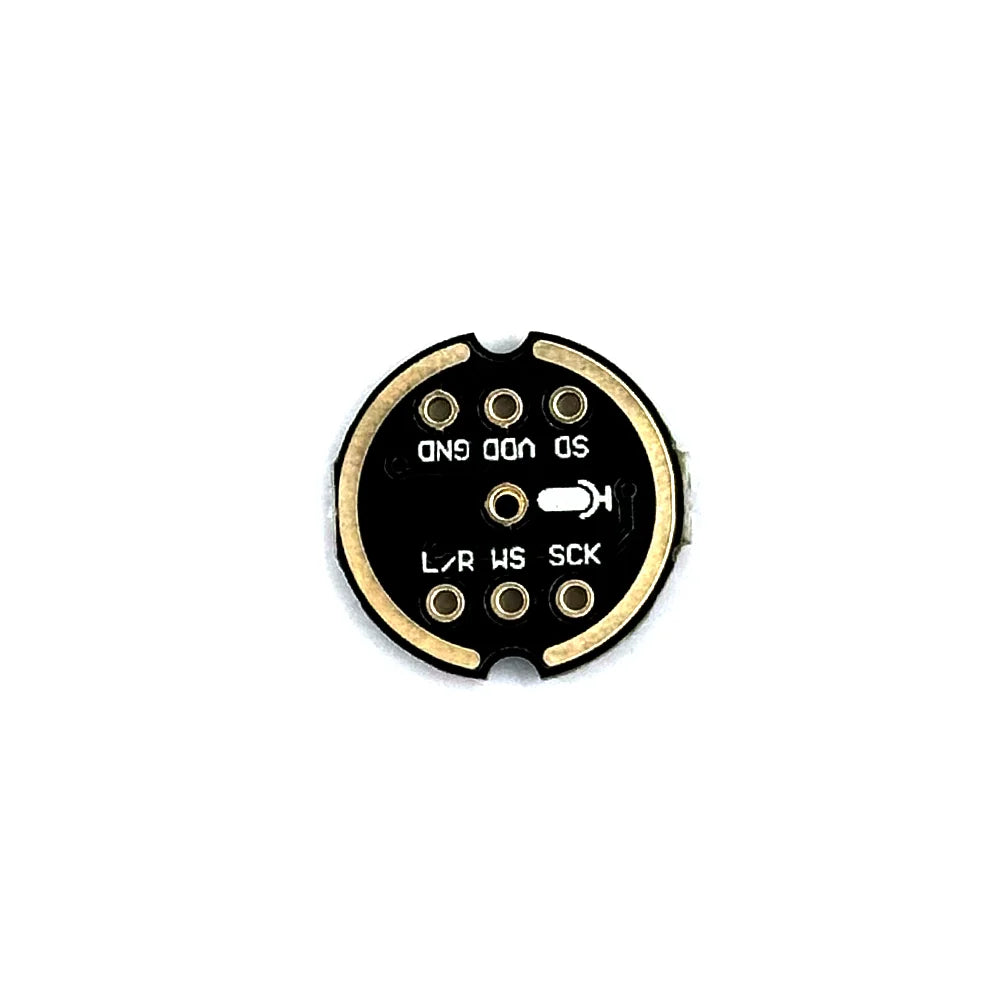

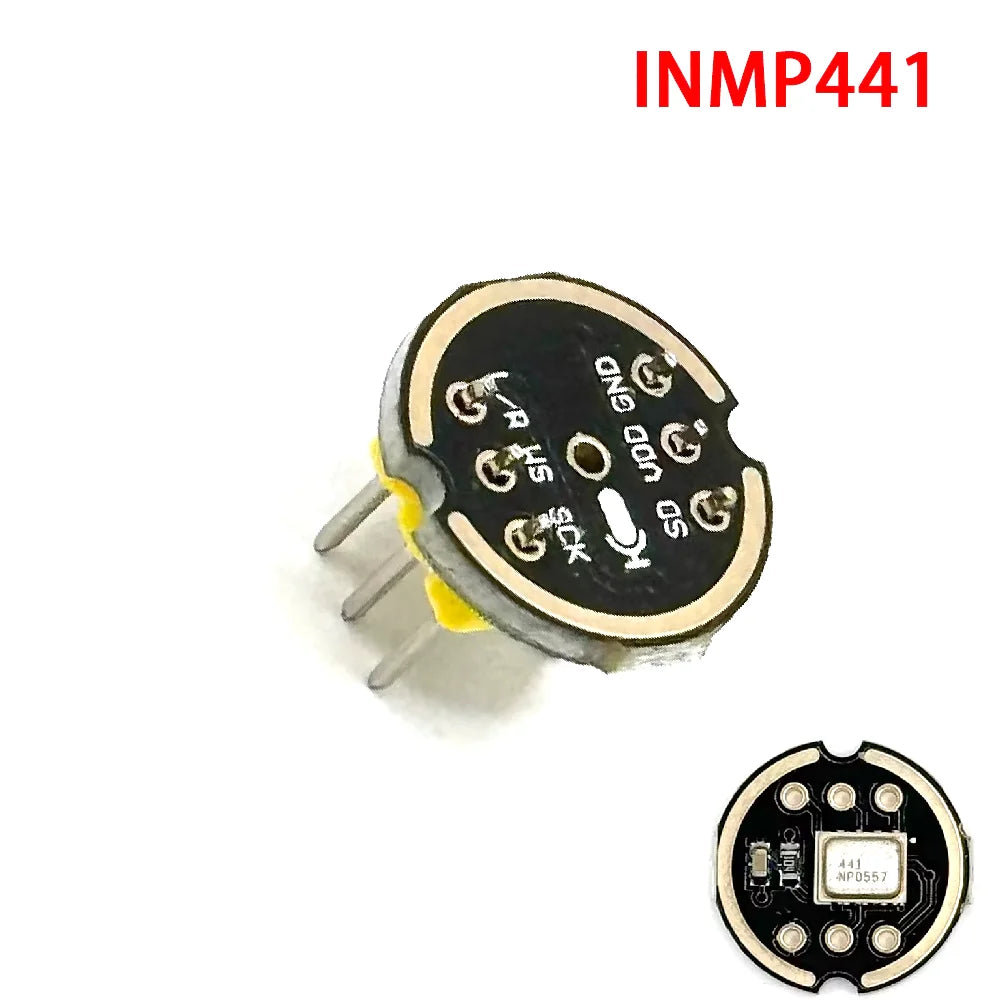

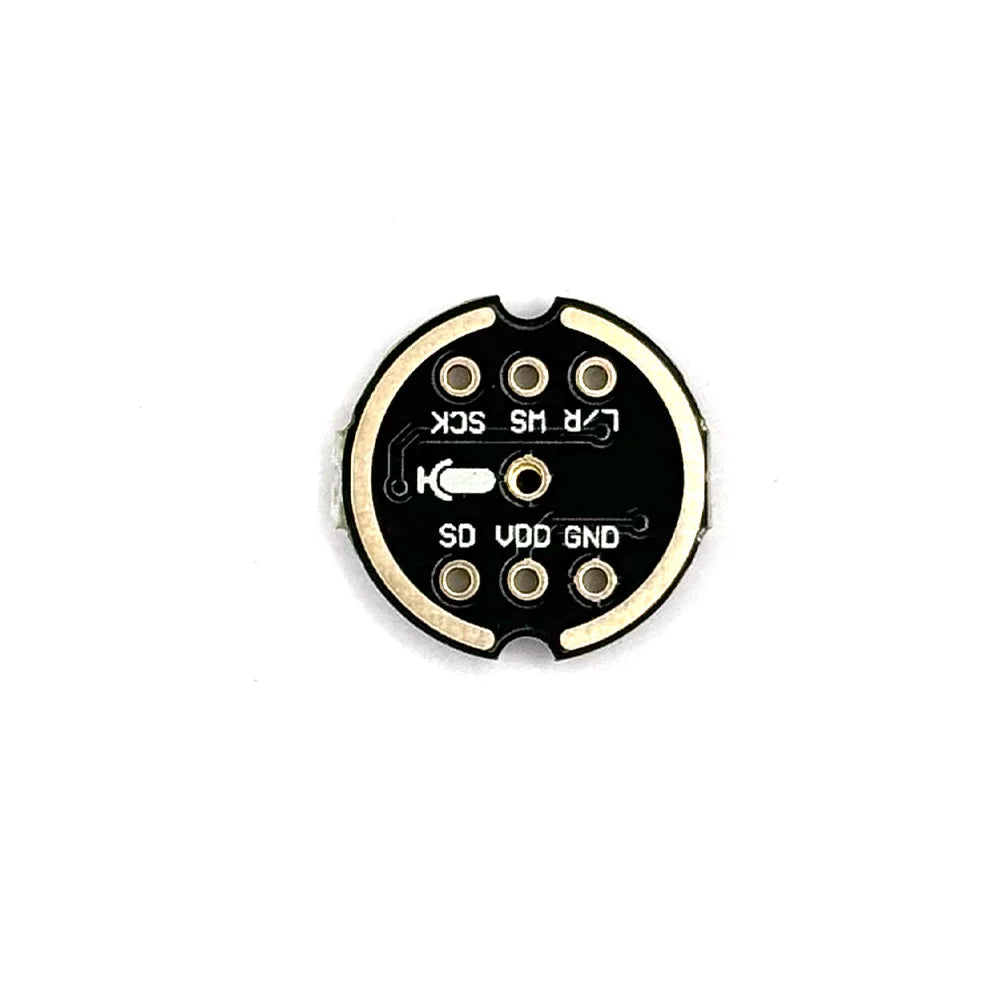

Interface definition:

SCK: Serial data clock for I2S interface

WS: Serial data word selection for I2S interface

L/R: Left/Right channel selection.

When set to low, the microphone outputs a signal on the left channel of the I2S frame.

When set to high level, the microphone outputs signals on the right channel

SD: Serial data output of the I2S interface.

VCC: Input power, 1.8V to 3.3V.

GND: power ground

This product provides tutorials for using ESP32 modules with I2S functionality.

Connect to ESP32:

INMP441 ESP32

SCK >> GPIO14

SD >> GPIO32

WS >> GPIO15

L/R >> GND

GND >> GND

VDD >> VDD3.3

What is the difference between an omnidirectional microphone and a unidirectional microphone:

First of all, I understand that the sound divergence is all-round. One person speaks and diverge in the air.

As for how far it can pass, it depends on many factors.

1.directional microphone, the general pickup radius is very small, 30 cm is a big one, single use, put it on the mouth, the sound quality is very good, because it is not picked up again.

The shape is generally goose neck wheat, a rod, a curved rod, to your mouth, directivity, just listen to your voice.

With a single-point microphone, the sensitivity is limited to a certain range. Sensitivity is too high, causing sharp whistling, etc., involving many other devices

As for why not make a big pickup radius, there is a reason. Later

2.omnidirectional microphone, the general pickup radius is very large, one meter two meters three meters five meters have, compared with ten centimeters, this level is very different, it is not just picking a person's voice, but Multiple people, five six, seven eight or even ten.

Omnidirectional microphones are highly sensitive,

The omnidirectional microphone pickup radius is too large, and it will also pick up more ambient noise, so the sound quality is not as good as the single-point microphone, unless you do a good noise reduction. There is definitely a difference between collective use and single-person service.

But omnidirectional wheat has a benefit, the wiring is simple, not one by one. Suitable for small meetings, ad hoc meetings, some remote discussions, remote operations.

3.single-point wheat generally supports local amplification,

Omnidirectional microphones generally do not support local amplification. It should be noted that because of such high sensitivity, the local amplification whistling is very scary, and the current technology is difficult to deal with.
