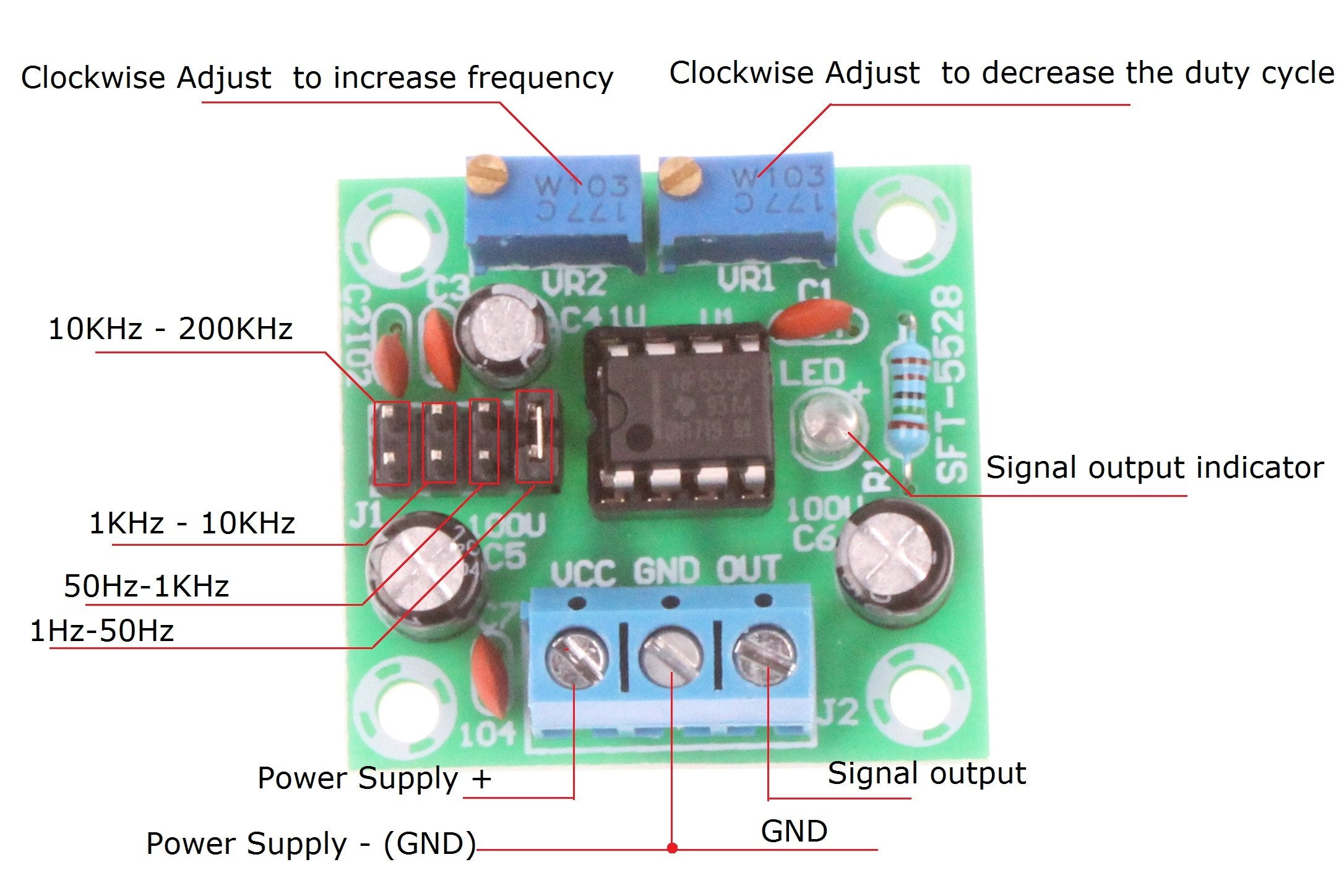

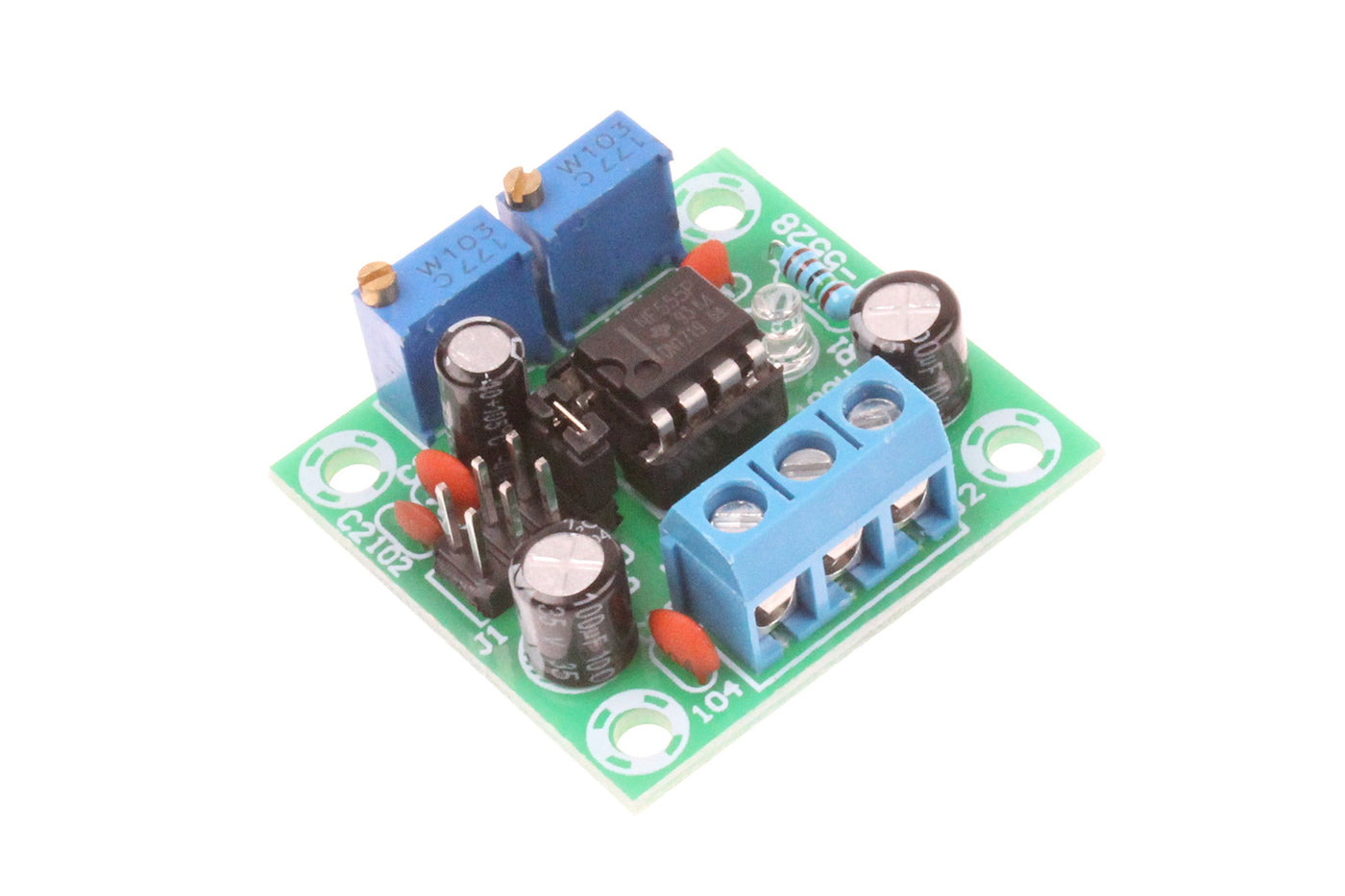

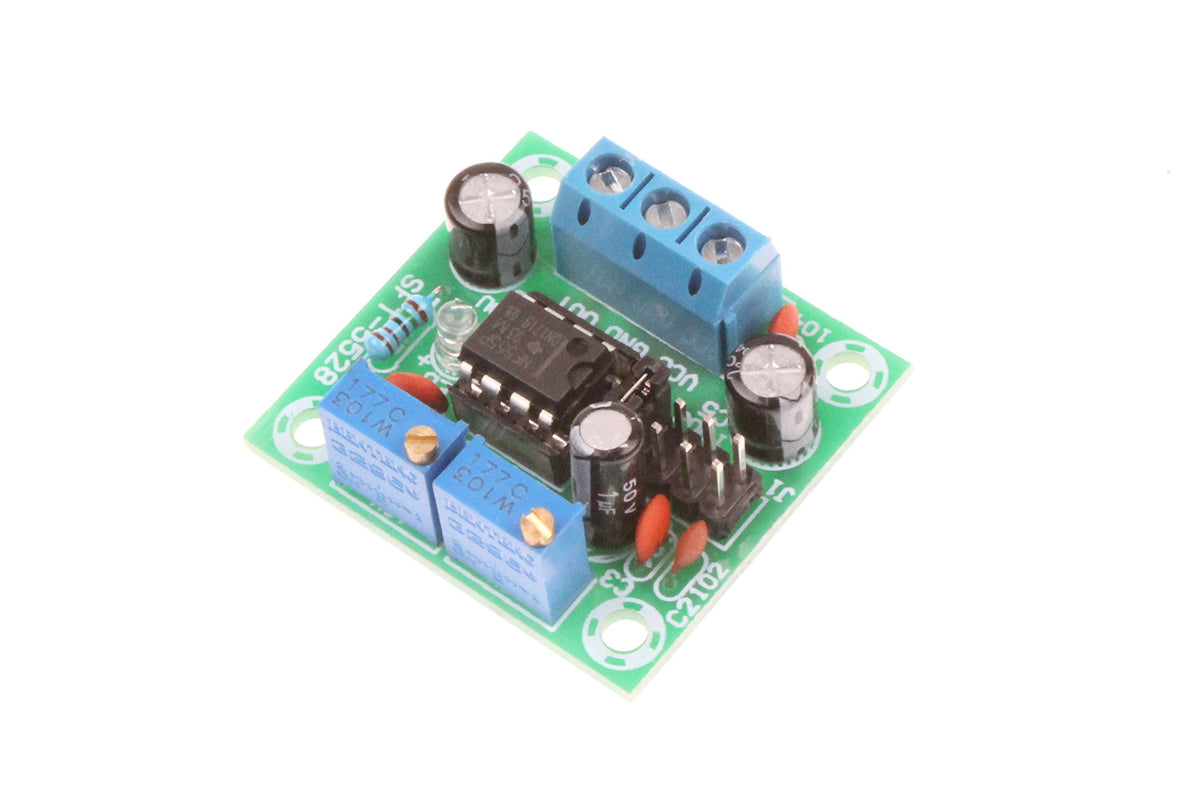

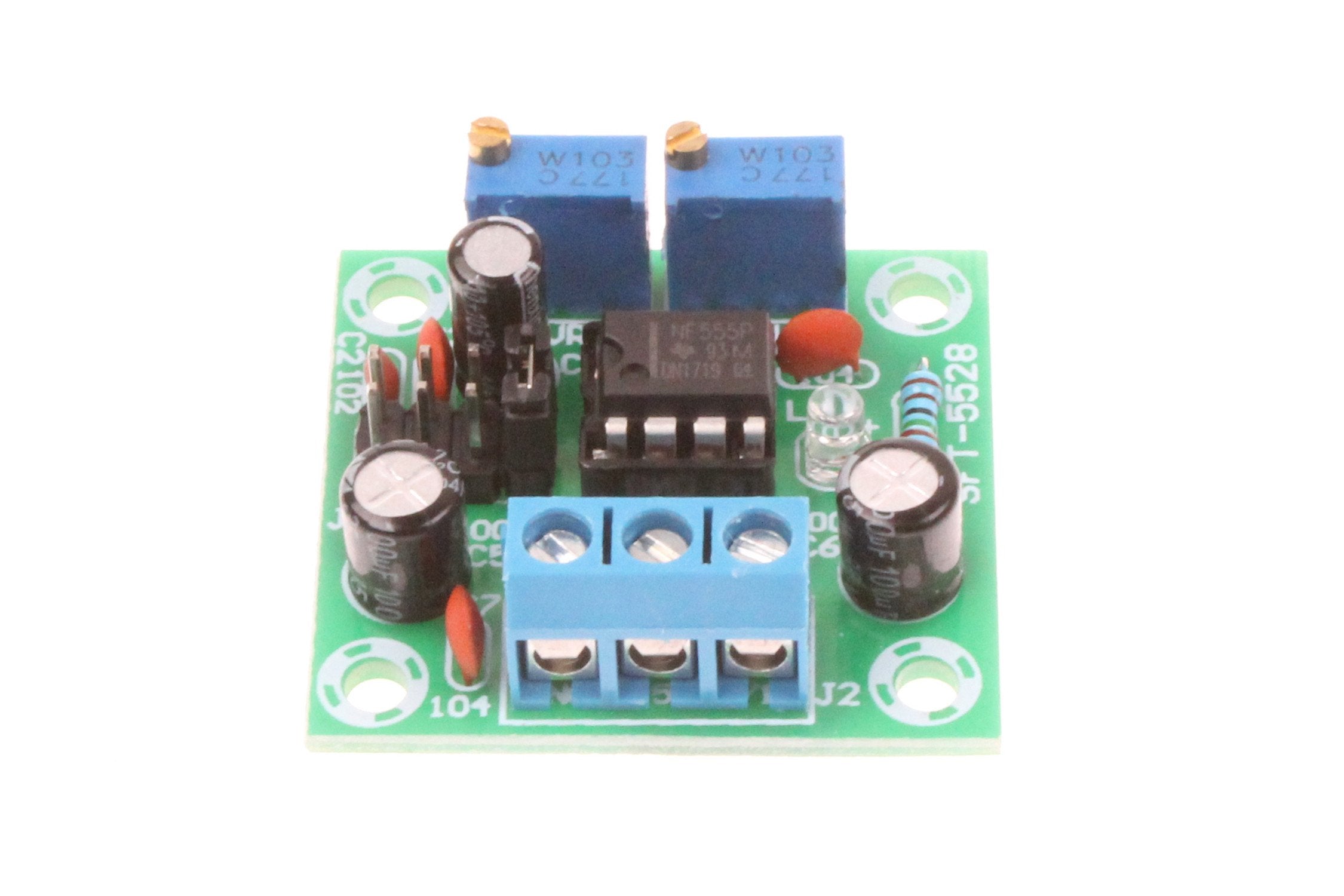

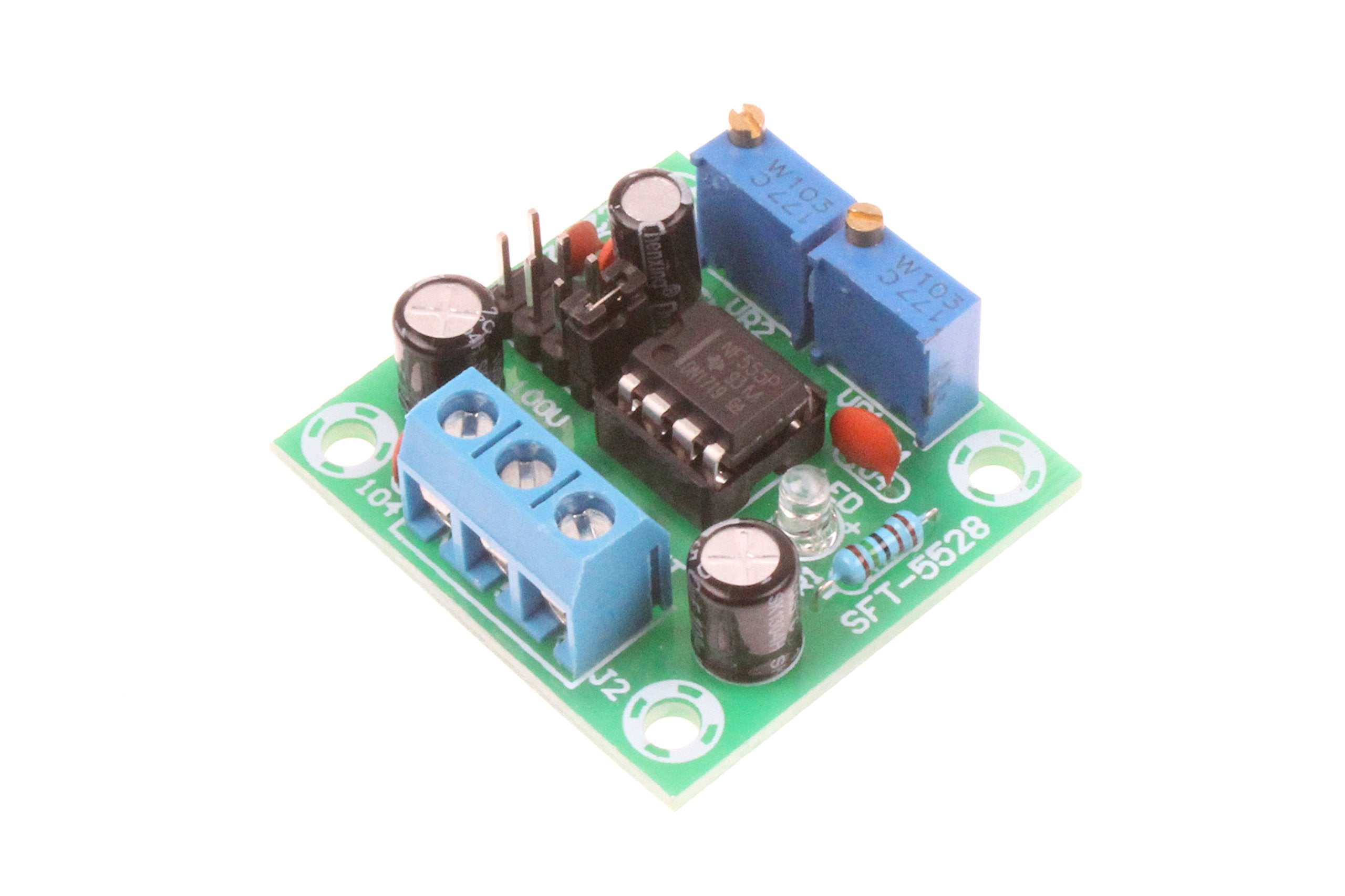

The Scope Of Application Of This Module: 1.As A Square Wave Signal Generator, Generate Square Wave Signals For Experimental Development And Use. 2.Used To Generate A Square Wave Signal That Drives A Stepper Motor Driver. 3.The Adjustable Pulse Is Used By The Mcu. 4.Generate Adjustable Pulses To Control The Associated Circuitry. Parameter Size: 35X33Mm; The Main Chip: Ne555; Input Voltage: 5V-15Vdc. 5V Power Supply, The Output Current Can Be Around 15Ma; 12V Power Supply, The Output Current Can Be Around 35Ma; Input Current: =100Ma; Output Amplitude: 4.2V V-Pp To 11.4V V-Pp. (Depending On The Input Voltage, The Output Amplitude Will Be Different); The Maximum Output Current: =15Ma (5V Power Supply, V-Pp Greater Than 50%), = 35Ma ( 12V Power Supply, When V-Pp Is Greater Than 50%) Features 1.Output With Led Indication, There Is No Output, Visually Visible (Low Led When The High; When The High Level Led Off; When The Frequency Is Relatively Low, The Led Flashes); 2.The Output Frequency Range Grade Is Optional, Making The Output Frequency More Continuously Adjustable; Low Frequency Range: 1Hz-50Hz, Medium Frequency Range: 50Hz-1Khz, Medium-High Frequency Range: 1Khz-10Khz, High Frequency Range: 10Khz-200Khz. 3.The Output Frequency Is Adjustable; Cycle T=0.7(Ra+2Rb)C Vr1, Vr2 Are 0-10K Adjustable; Low Frequency, C=0.001Uf; Medium Frequency, C=0.1Uf; Medium-High Frequency , C=1Uf; High Frequency, C=100Uf, So The User Can Calculate The Frequency Of The Waveform. Package Included: 1Pcs Ne555 Pulse Module
