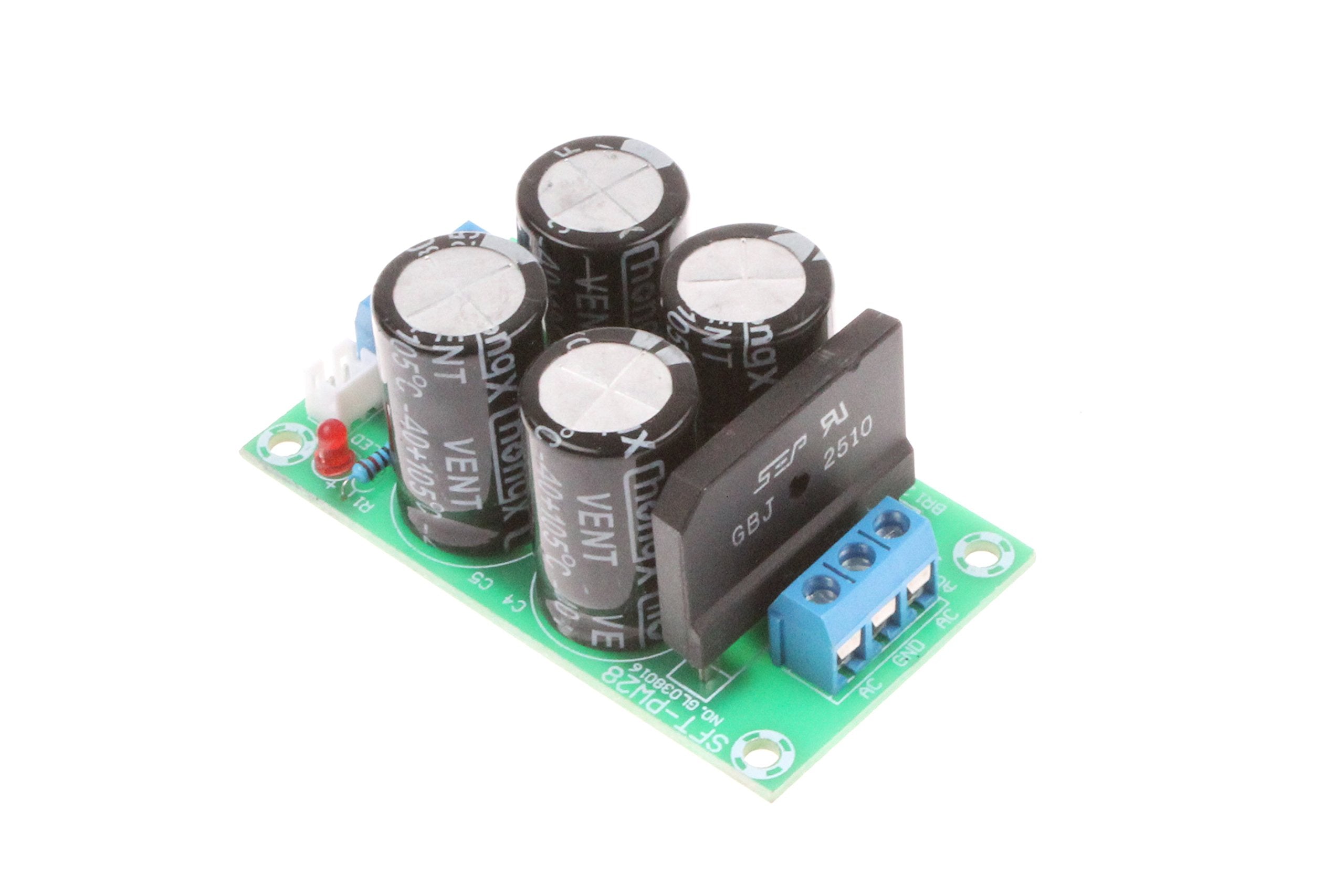

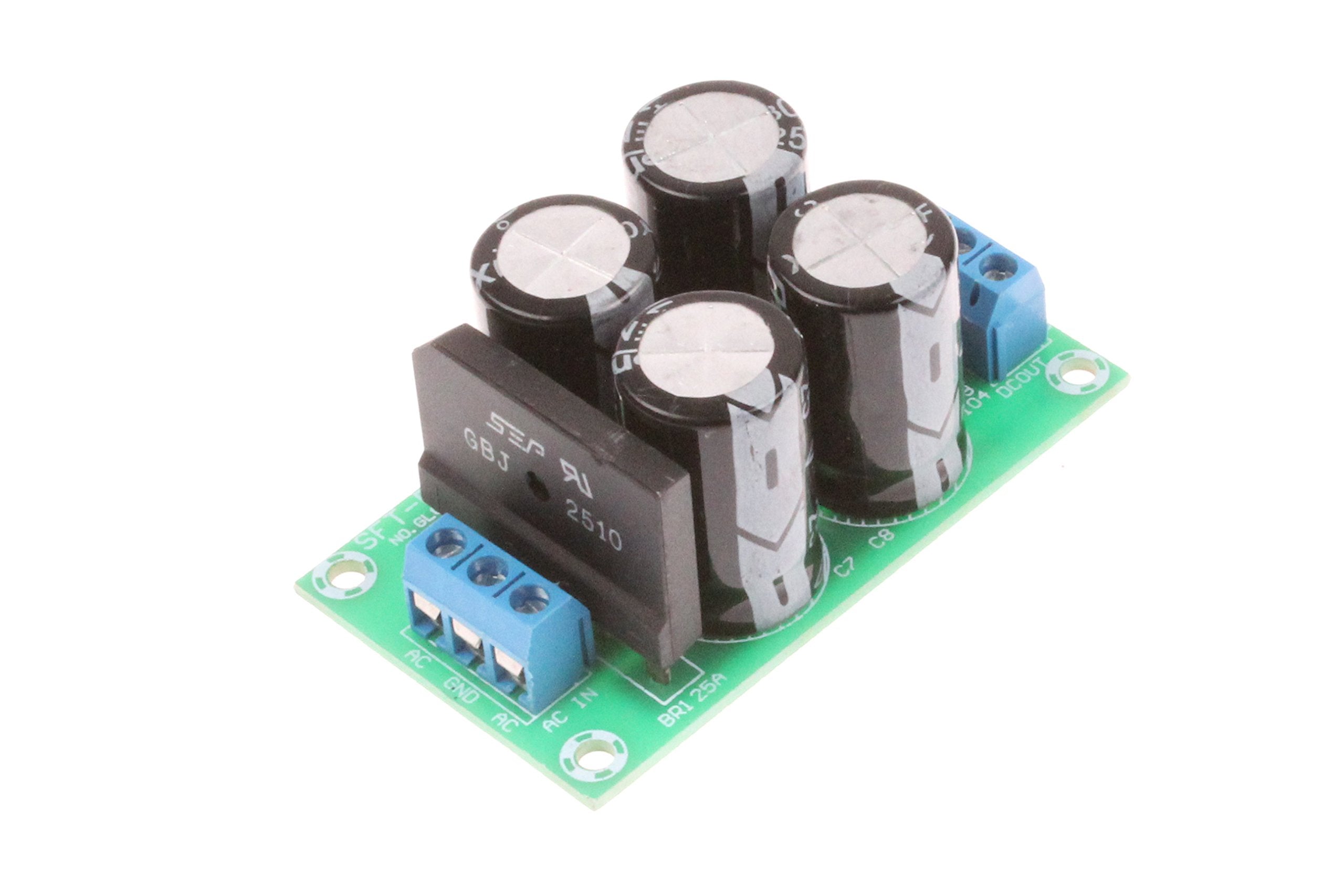

Noyito 25A Dual Power Rectifier Filter Board Ac 9-17V Dc 12-24V Power Amplifier Power Supply Rectifier Board Suitable For Lm187
No reviews
$9.86
Regular price
$14.09
-30%
Vendor: NOYITO
Type: Receivers & Amplifiers
Sku: WBEEAB07BJHNLGF
Availability: In Stock
Couldn't load pickup availability
Guarantee safe checkout
Processing time : 1-3 days
US Orders Ships in : 3-5 days
International Orders Ships in : 8-12 days
15-days return on defective items
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

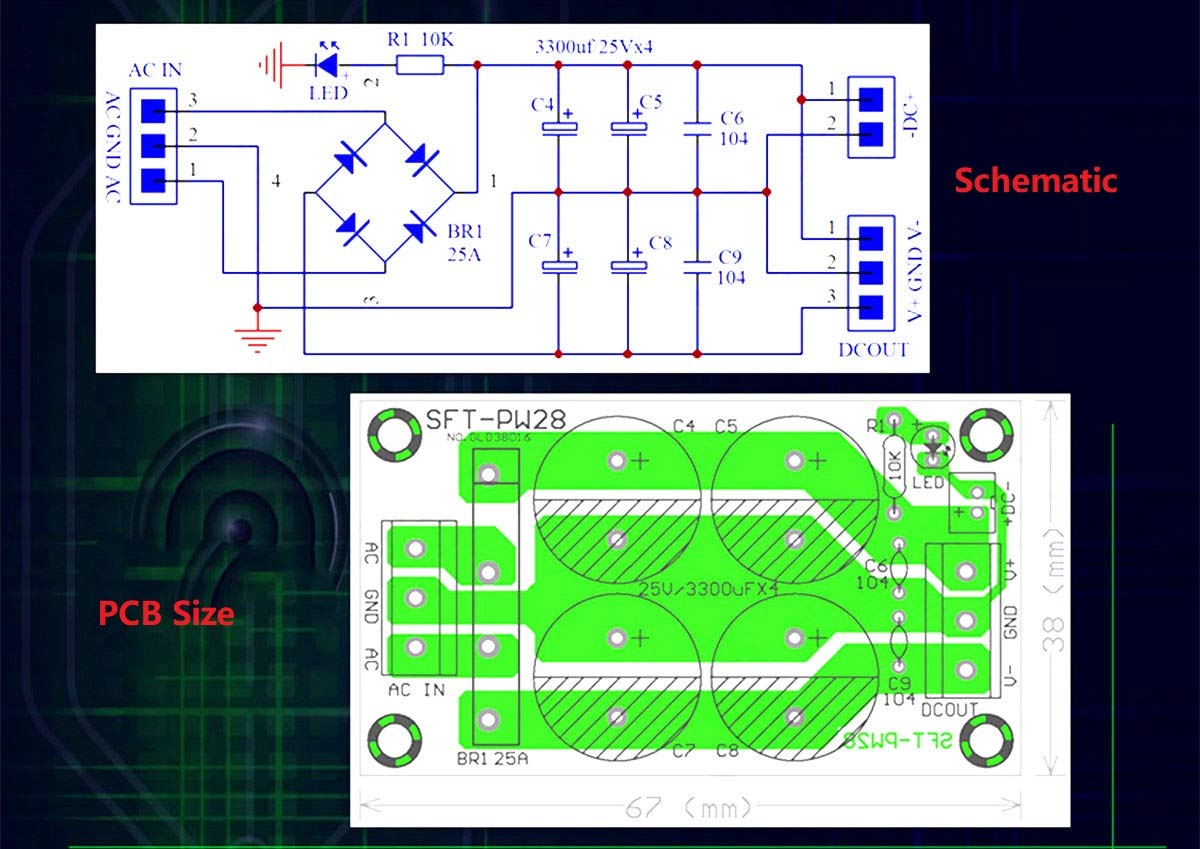

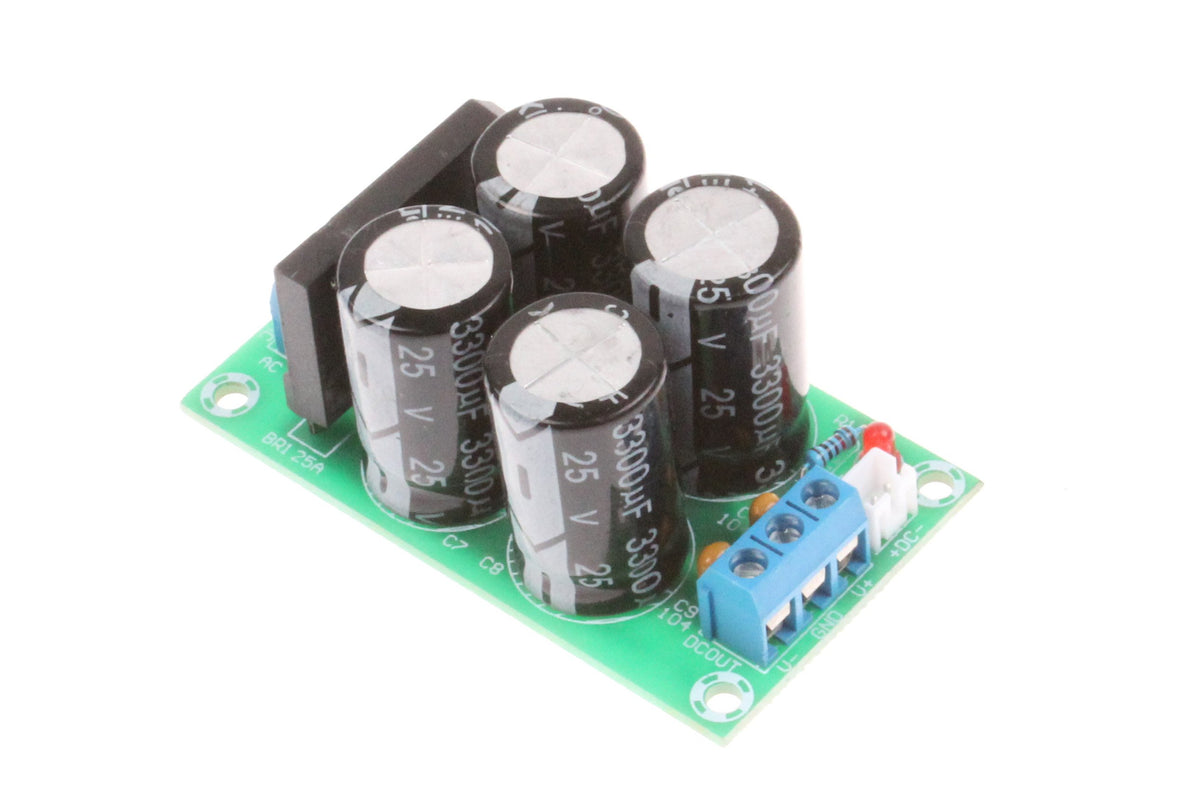

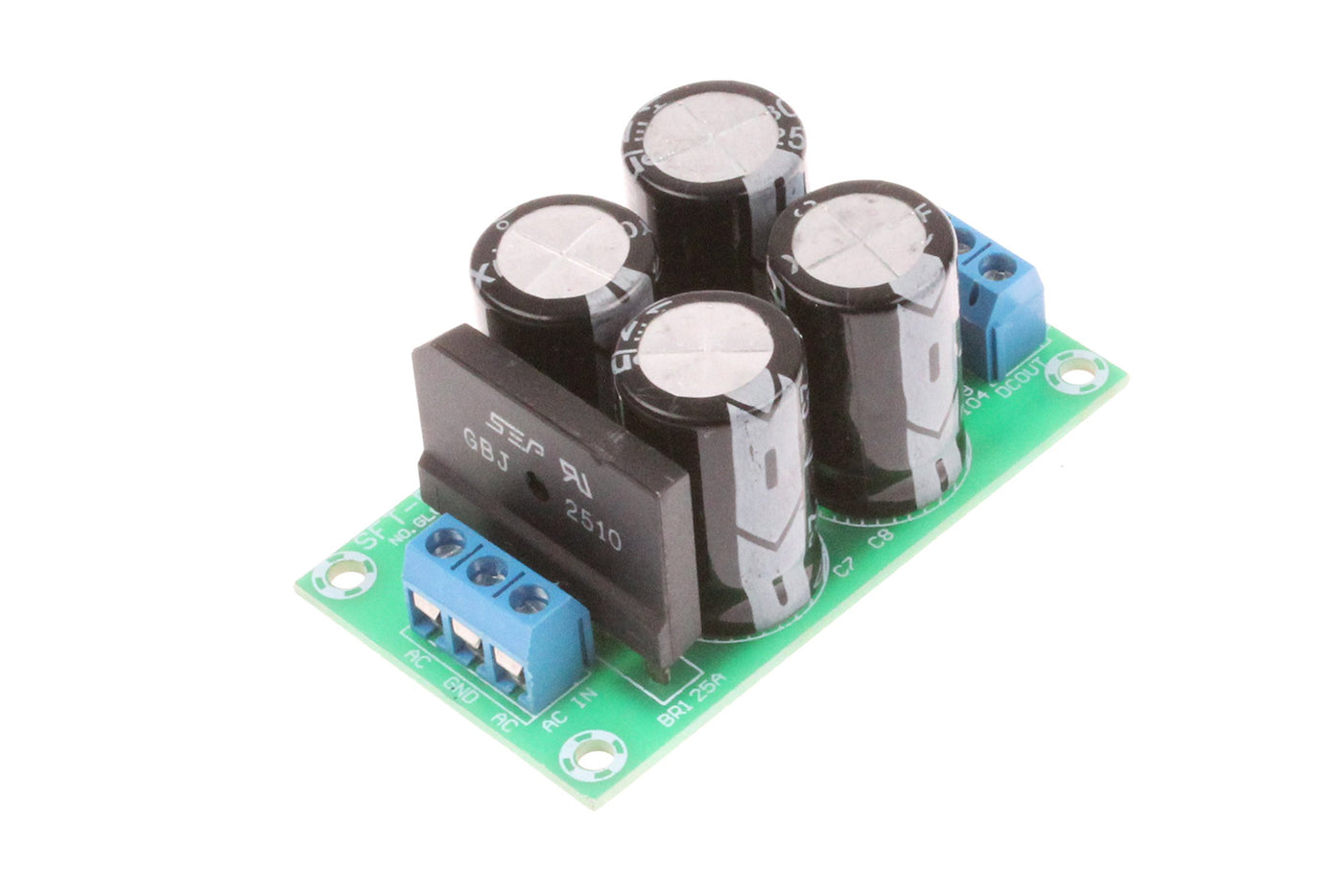

Description The Rectifier Filter Board Uses A Large Current 25A Rectifier Bridge, Full-Wave Rectification Of The Dual Ac Into Dual Dc, Using Four Large Capacitors Of 3300Uf/25V As Filtering, 104 Monolithic Capacitors As Decoupling, Effectively Suppressing Ac Clutter, Making The Output The Dc Power Is Purer. As A Power Amplifier Dual Power Supply, It Can Be Used In Medium-Low Power Amplifiers Such As Lm1875, Tda2030, Tda7294, And Lm3886. Parameter Product Name: Dual Power Rectifier Filter Board; Input Voltage: Dual Ac 9-17V; Output Voltage: Dual Dc Dc 12-24V; Flat Bridge Power Supply: 25A; Pcb Size: 67X38Mm; Pcb Material: Fr-4 Full Glass Fiber Board 1.6Mm Thick; Size: 67X38X28Mm (Lwh); Installation Hole Distance: 60X31Mm, Hole Distance: 3.2Mm; Note: This Board Is Equipped With An Electrolytic Capacitor With A Withstand Voltage Of 25V. The Maximum Output Dc Voltage Cannot Exceed 25V. After The Full-Bridge Rectifier Filter Has About 1.4 Times The Boost, So The Input Ac Voltage Can Not Exceed 17V. If You Need A Higher Voltage, You Must Replace The Filter Capacitor With A Higher Voltage. For Example, When Replacing An Electrolytic Capacitor With A Withstand Voltage Of 50V, The Maximum Output Dc Voltage Can Reach 50V, And The Maximum Input Ac Voltage Can Reach 35V. Overvoltage Operation Will Cause The Electrolytic Capacitor To Bulge Or Burst. Weight: 45G. Package Included: 1Pcs 25A Dual Power Rectifier Filter Board
