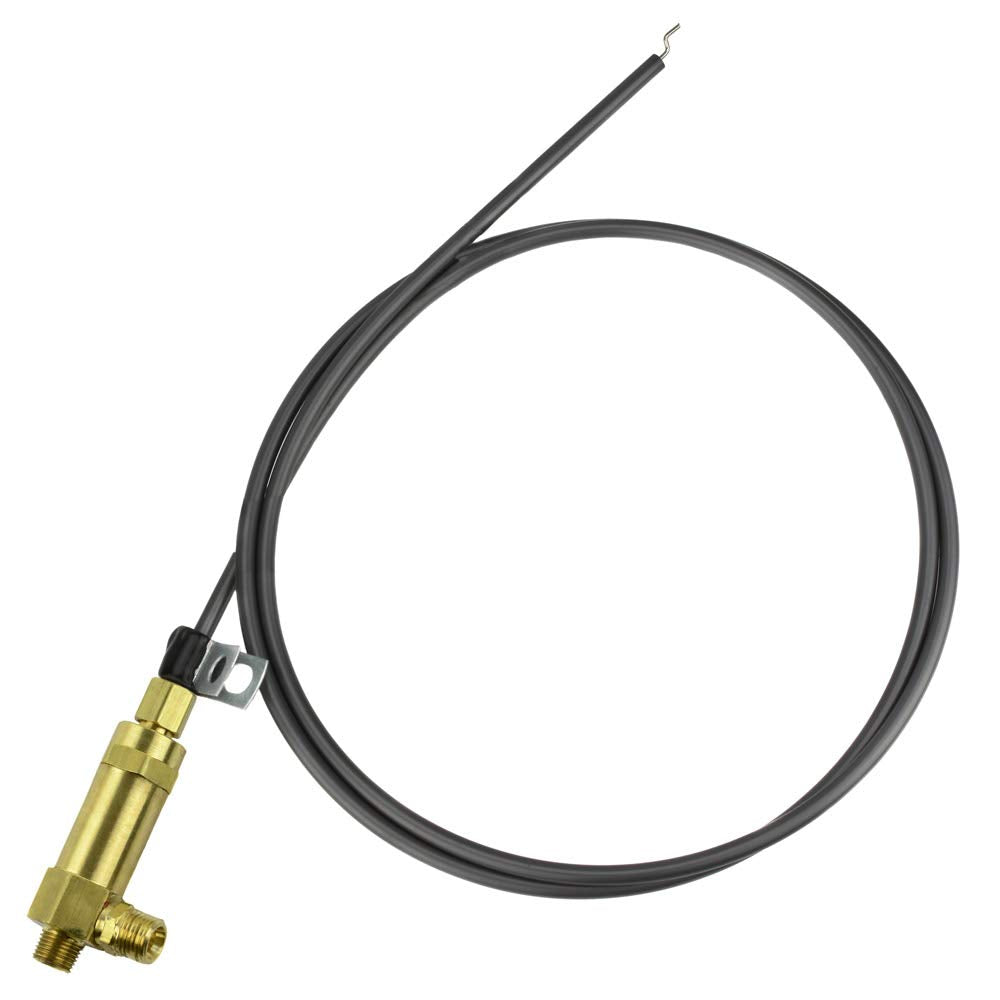

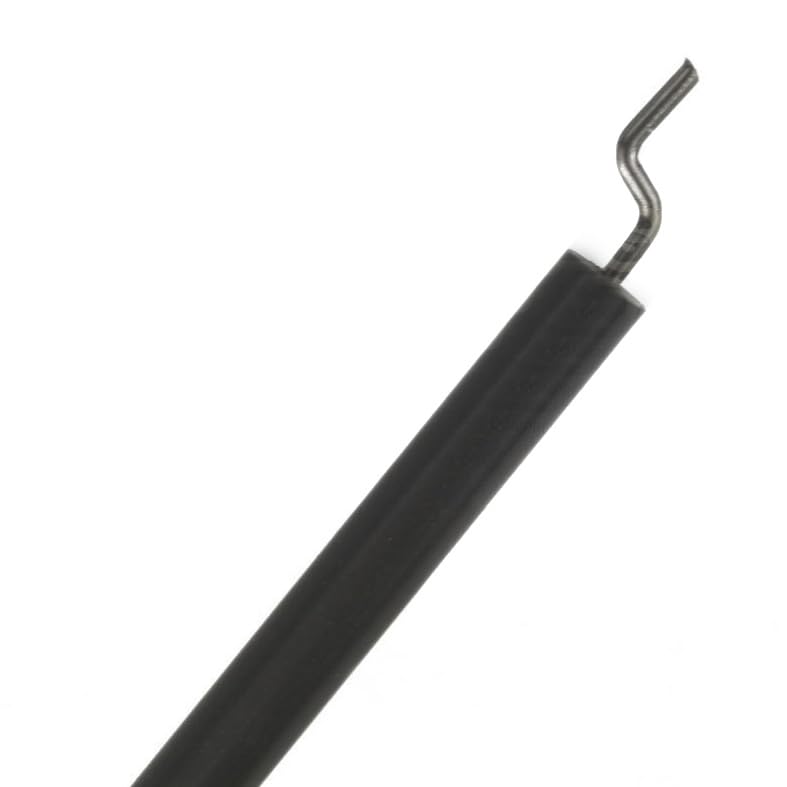

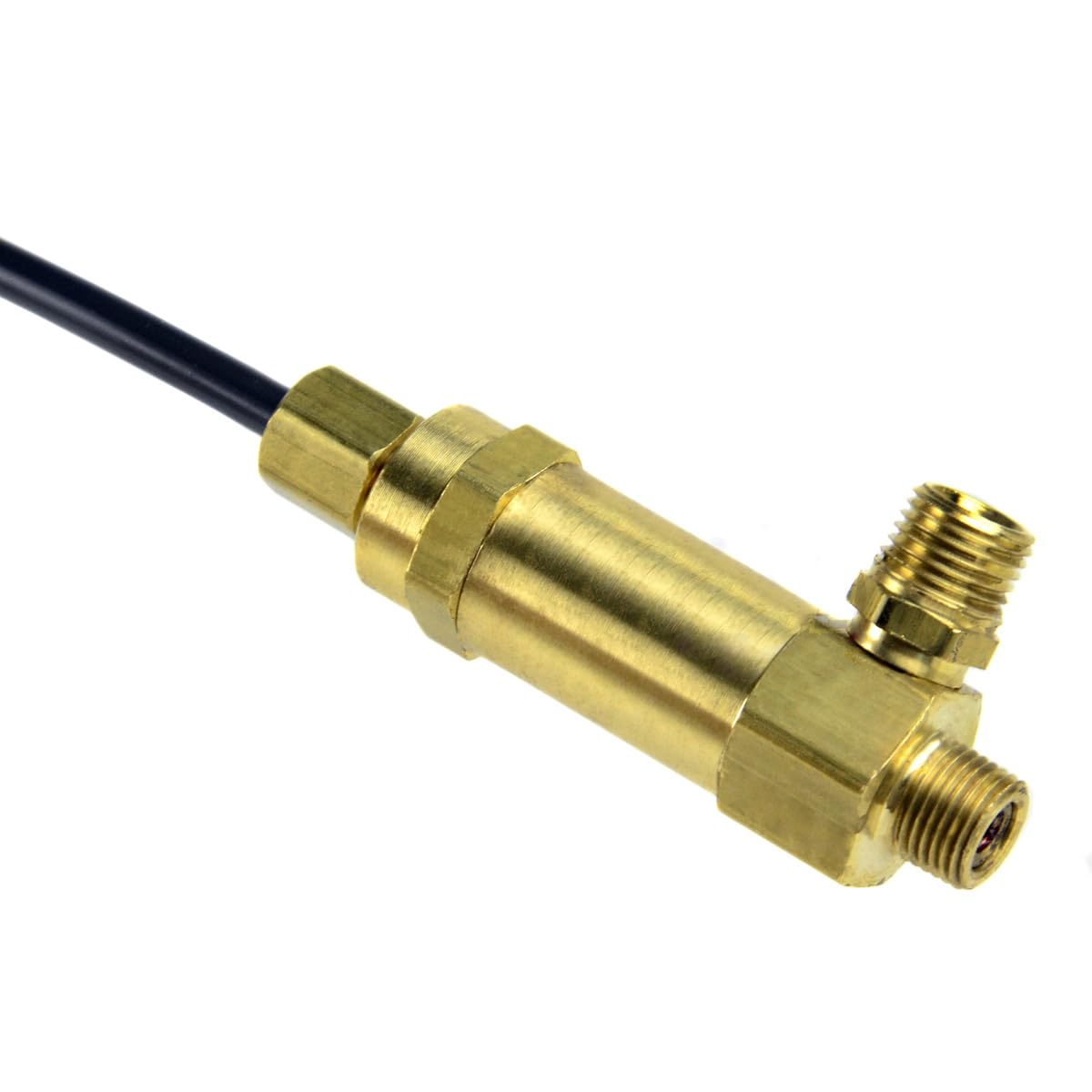

Brand New 36'' Long Tci Series Throttle Control Cable With Side Optional Unloader Connection Port. This Is Commonly Known As A ''Bullwhip'' And Is Produced By Conrader Valves And Is Made In The U.S.A. This Valve Controls The Engine Throttle Speed On Gas Powered Air Compressors When Used In Conjunction With A Pilot / Unloader Valve. This Series Of Throttle Cable Is Also Equipped With A Extra Side Port As Shown For A 1/4'' Compression Fitting Connection, This Usually Goes To Head Unloaders On Pumps That Are Equipped With That Option. This Is The Standard Size Valve That Controls Engines 8 Hp Or Smaller. This Valve Has 1/8'' Npt Male Pipe Threads That Go Into The Unloader / Pilot Valve On The Compressor. Specifications: Cable Length: 36'' For Use With Compressors Up To 8 Horsepower Min. Actuation Pressure: 80 Psi Max Operating Pressure: 500 Psi Operating Temperature Range: -15 To 400F Stroke Length: 0.65 Inch Retracted Spring Force: 6.7 Lbf Inlet Connection Type: Male Npt Inlet Connection Size: 1/8 Outlet Connection Type: Compression Tube Outlet Connection Size: 1/4''''
