【New】10KΩ Digital Display Potentiometer 0.4in 4 Digit DC Programmable Potentiometer for Speed Controller Inverter - Default Title
$8.82
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Condition: New
High-concerned chemical: none
Max. Operating Voltage: 10KΩ
Origin: Mainland China
Resistance Tolerance: NONE
Type: Trimming Potentiometer

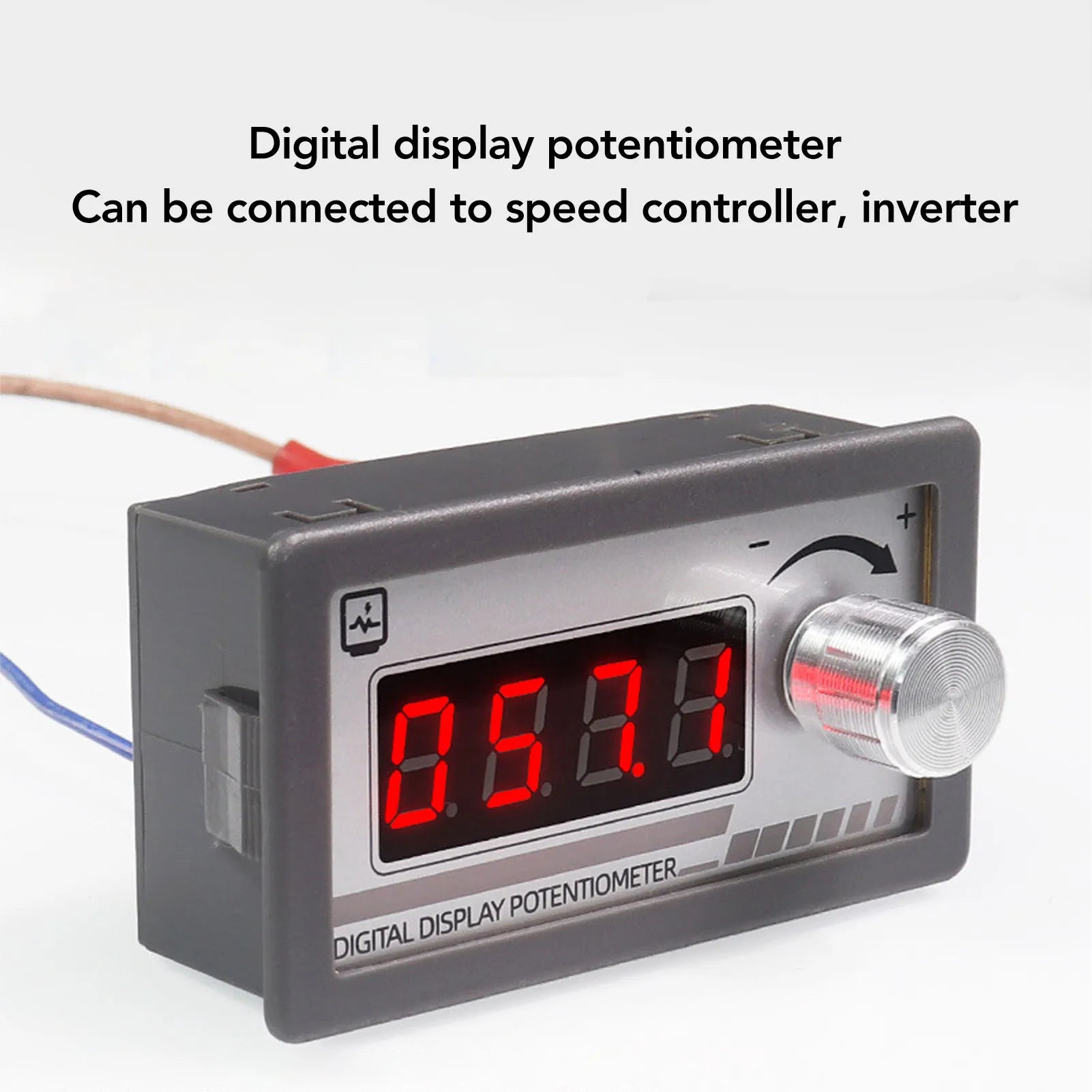

10KΩ Digital Display Potentiometer 0.4in 4 Digit DC Programmable Potentiometer for Speed Controller Inverter
Feature:
1. Main Features: This potentiometer has a resistor value of 10KΩ. It can adjust the potentiometer resistor output, suitable for most of the needs of speed regulation, voltage regulation, PWM regulation and other occasions.
2. Accurate Measurement: Equipped with a 4 digit, 0.4 inch digital tube display, this potentiometer offeres accuracy comparable to standard single channel 10KΩ potentiometers.
3. Programming Functionality: Users can set a range (-1000 to +1000), adjust the multiplier (0.1 to 5.0), set the magnification (x1 x2 x10), and specify the decimal point position.
4. Storage Security: Designed with an industrial grade circuit and a current loop dedicated chip, this device retains settings such as startup values and other parameters at power off.
5. Application Range: With smooth variable output, this digital potentiometer serves as a dependable replacement for most commonly used single channel potentiometers with the same resistor value.
2. Accurate Measurement: Equipped with a 4 digit, 0.4 inch digital tube display, this potentiometer offeres accuracy comparable to standard single channel 10KΩ potentiometers.
3. Programming Functionality: Users can set a range (-1000 to +1000), adjust the multiplier (0.1 to 5.0), set the magnification (x1 x2 x10), and specify the decimal point position.
4. Storage Security: Designed with an industrial grade circuit and a current loop dedicated chip, this device retains settings such as startup values and other parameters at power off.
5. Application Range: With smooth variable output, this digital potentiometer serves as a dependable replacement for most commonly used single channel potentiometers with the same resistor value.
Specification:
Item Type: Digital Display Potentiometer
Material: Fire Proof ABS
Resistor Value: 10KΩ
A Parameter Minimum Value Range: -1000~1000
1. Press And Hold The A Key, When The First Digit Is Flashing.
2. Press B To Adjust The Value
3. Press A Again To Switch The Second, Third And Fourth Digits.
4. Press A Again To Store And Exit
B Parameter Setting Multiplier: 0.1-5.0
1. Press And Hold B, The Four Digits Will Flash.
2. Press A To Increase The Value By 1 Each Time, And Adjust To The Appropriate Value.
3. Press B Again To Store And Exit.
C Magnification Setting: x1, x2, x10
1. Press B Briefly To Switch The Magnification, 1x or 2x or 10x
2. 2 Seconds Later, It Will Be Stored Automatically.
D Decimal Point Setting:
X.XXX, XX.XX: 1. Press A Briefly To Switch The Decimal Point.
XXX.X, XXXX: 2. Automatic Storage After 2 Seconds
Parameter Setting Reference Table:
1. 0000 (Display Minimum Number), 1000 (Display Maximum Number), 0000 (Set Minimum Value A), 1.0 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
2. 0000 (Display Minimum Number), 640.0 (Display Maximum Number), 0000 (Set Minimum Value A), 3.2 (Set the Magnification B Max 5.0), XXX.X (Set the Decimal Point D), C02 (C10 C02 Or C01 Set C)
3. 030.0 (Display Minimum Number), 080.0 (Display Maximum Number), 0300 (Set Minimum Value A), 0.5 (Set the Magnification B Max 5.0), XXX.X (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
4. -50.0 (Display Minimum Number), 50.00 (Display Maximum Number), -500 (Set Minimum Value A), 1.0 (Set the Magnification B Max 5.0), XXX.X (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
5. 04.00 (Display Minimum Number), 20.00 (Display Maximum Number), 0400 (Set Minimum Value A), 1.6 (Set the Magnification B Max 5.0), XX.XX (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
6. 0000 (Display Minimum Number), 8000 (Display Maximum Number), 0000 (Set Minimum Value A), 4.0 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C02 (C10 C02 Or C01 Set C)
7. -1000 (Display Minimum Number), 1000 (Display Maximum Number), -1000 (Set Minimum Value A), 2.0 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
8. 00.00 (Display Minimum Number), 10.00 (Display Maximum Number), 0000 (Set Minimum Value A), 1.0 (Set the Magnification B Max 5.0), XX.XX (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
9. 3000 (Display Minimum Number), 5000 (Display Maximum Number), 0300 (Set Minimum Value A), 0.2 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C10 (C10 C02 Or C01 Set C)
10. 00.00 (Display Minimum Number), 24.00 (Display Maximum Number), 0000 (Set Minimum Value A), 2.4 (Set the Magnification B Max 5.0), XX.XX (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
11. -1500 (Display Minimum Number), 1500 (Display Maximum Number), -150 (Set Minimum Value A), 0.3 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C10 (C10 C02 Or C01 Set C)
12. -1999 (Display Minimum Number), 2000 (Display Maximum Number), -1000 (Set Minimum Value A), 2.0 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C02 (C10 C02 Or C01 Set C)
Caution:
1. Standard Potentiometer Linearity Error Of 5% Or More
2. The Display Range Is From -1999 To 9999.
3. When The Minimum Display Value Is Less Than -1000 Or More Than 1000, Consider CO2 Or C10 First.
Material: Fire Proof ABS
Resistor Value: 10KΩ
A Parameter Minimum Value Range: -1000~1000
1. Press And Hold The A Key, When The First Digit Is Flashing.
2. Press B To Adjust The Value
3. Press A Again To Switch The Second, Third And Fourth Digits.
4. Press A Again To Store And Exit
B Parameter Setting Multiplier: 0.1-5.0
1. Press And Hold B, The Four Digits Will Flash.
2. Press A To Increase The Value By 1 Each Time, And Adjust To The Appropriate Value.
3. Press B Again To Store And Exit.
C Magnification Setting: x1, x2, x10
1. Press B Briefly To Switch The Magnification, 1x or 2x or 10x
2. 2 Seconds Later, It Will Be Stored Automatically.
D Decimal Point Setting:
X.XXX, XX.XX: 1. Press A Briefly To Switch The Decimal Point.
XXX.X, XXXX: 2. Automatic Storage After 2 Seconds
Parameter Setting Reference Table:
1. 0000 (Display Minimum Number), 1000 (Display Maximum Number), 0000 (Set Minimum Value A), 1.0 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
2. 0000 (Display Minimum Number), 640.0 (Display Maximum Number), 0000 (Set Minimum Value A), 3.2 (Set the Magnification B Max 5.0), XXX.X (Set the Decimal Point D), C02 (C10 C02 Or C01 Set C)
3. 030.0 (Display Minimum Number), 080.0 (Display Maximum Number), 0300 (Set Minimum Value A), 0.5 (Set the Magnification B Max 5.0), XXX.X (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
4. -50.0 (Display Minimum Number), 50.00 (Display Maximum Number), -500 (Set Minimum Value A), 1.0 (Set the Magnification B Max 5.0), XXX.X (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
5. 04.00 (Display Minimum Number), 20.00 (Display Maximum Number), 0400 (Set Minimum Value A), 1.6 (Set the Magnification B Max 5.0), XX.XX (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
6. 0000 (Display Minimum Number), 8000 (Display Maximum Number), 0000 (Set Minimum Value A), 4.0 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C02 (C10 C02 Or C01 Set C)
7. -1000 (Display Minimum Number), 1000 (Display Maximum Number), -1000 (Set Minimum Value A), 2.0 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
8. 00.00 (Display Minimum Number), 10.00 (Display Maximum Number), 0000 (Set Minimum Value A), 1.0 (Set the Magnification B Max 5.0), XX.XX (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
9. 3000 (Display Minimum Number), 5000 (Display Maximum Number), 0300 (Set Minimum Value A), 0.2 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C10 (C10 C02 Or C01 Set C)
10. 00.00 (Display Minimum Number), 24.00 (Display Maximum Number), 0000 (Set Minimum Value A), 2.4 (Set the Magnification B Max 5.0), XX.XX (Set the Decimal Point D), C01 (C10 C02 Or C01 Set C)
11. -1500 (Display Minimum Number), 1500 (Display Maximum Number), -150 (Set Minimum Value A), 0.3 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C10 (C10 C02 Or C01 Set C)
12. -1999 (Display Minimum Number), 2000 (Display Maximum Number), -1000 (Set Minimum Value A), 2.0 (Set the Magnification B Max 5.0), XXXX (Set the Decimal Point D), C02 (C10 C02 Or C01 Set C)
Caution:
1. Standard Potentiometer Linearity Error Of 5% Or More
2. The Display Range Is From -1999 To 9999.
3. When The Minimum Display Value Is Less Than -1000 Or More Than 1000, Consider CO2 Or C10 First.
How to Use:
Remove the product, install it and use it.
Package List:
1 x Digital Display Potentiometer
Note:
This module is a potentiometer module and cannot be used to regulate power loads directly. It can only be used as a replacement for potentiometers on controllers and devices.
