Nevermore StealthMax S V1 Hardware Kit - Smart
$76.99
Add to Cart
Why choose C3DP kits? They are USA assembled, the buck converter and PI come with headers pre-soldered, the PI comes with firmware installed and the kit comes with a 6 month DOA warranty!

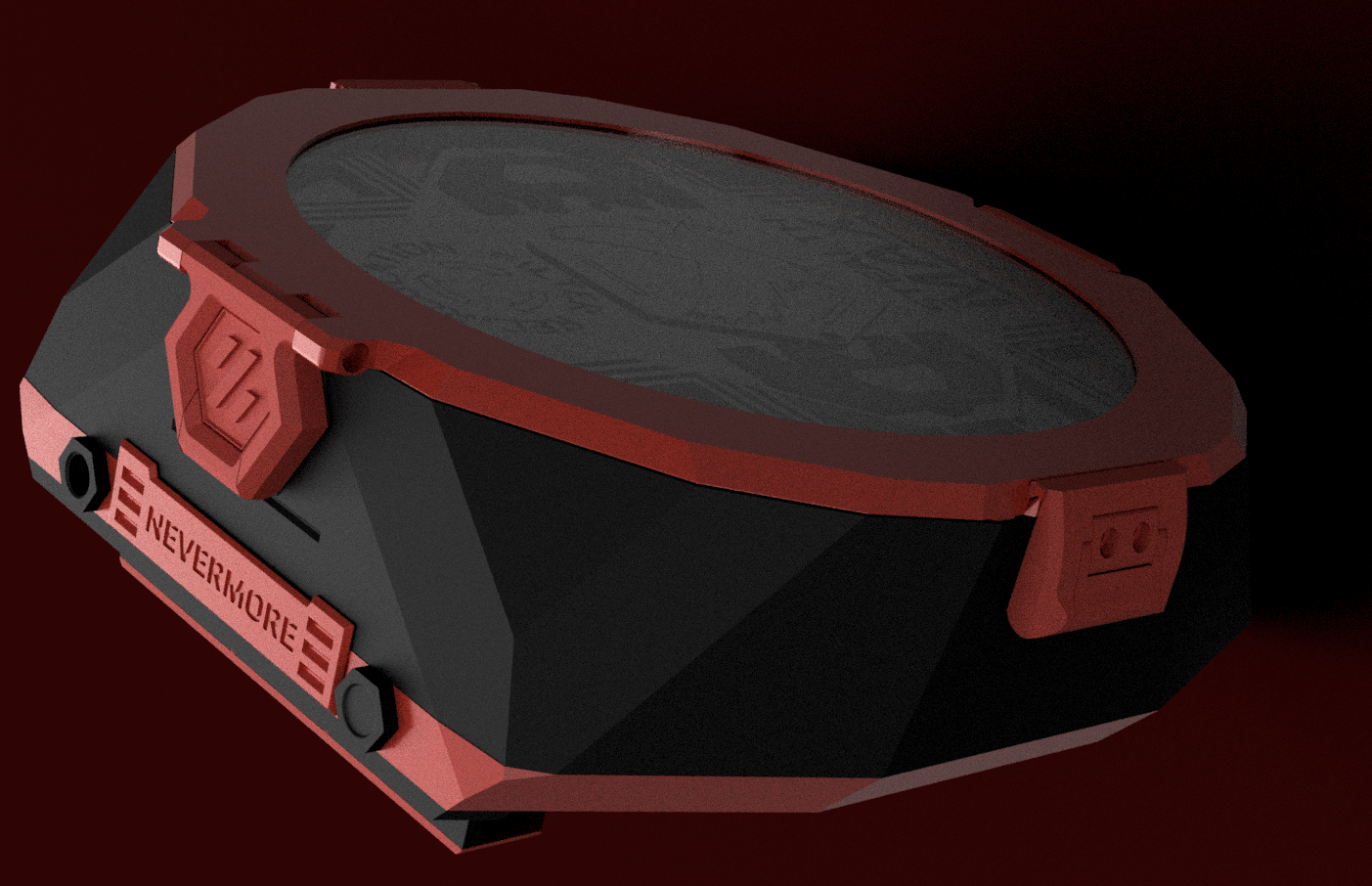

This is the SMALL version of the StealthMax, the normal version is available here .
Now comes with CPAP Tubing!
Does NOT include printed parts.
Does NOT come with carbon, choose from one of the addons.
Contact us if you would like us to print the parts for you.
Not in stock? Check MandalaRoseworks here .
Updated to work with the latest StealthMax S release. (As of June 15, 2024)

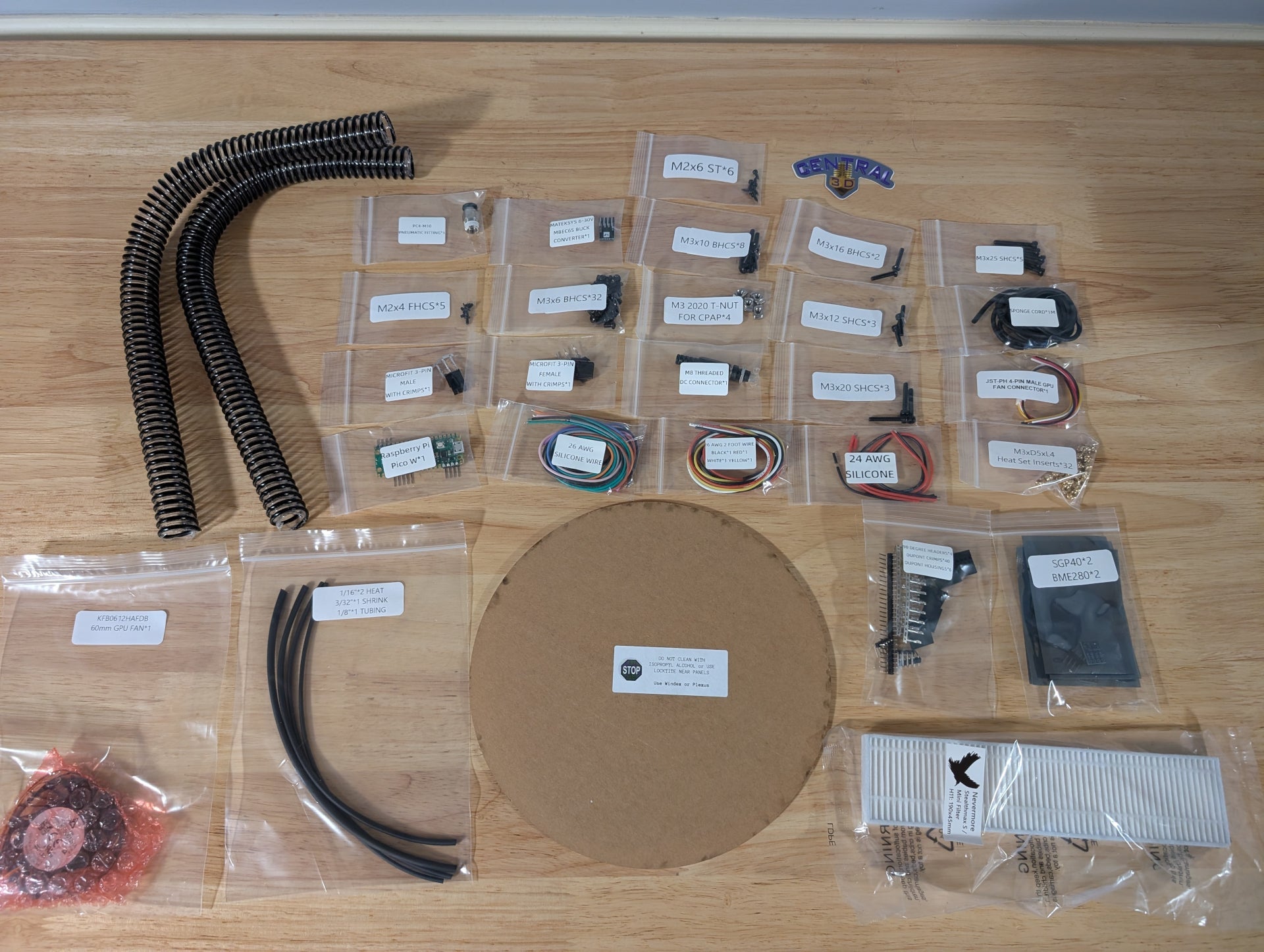

Smart BOM:
Description Quantity
DELTA KFB0612HAFDB 60mm GPU fan
1
BME280
2
SGP40
2
Mateksys 6-30V MBEC6S Buck Converter
1
Raspberry Pi Pico W
1
M2x4 FHCS
5
M2x6 Self Tapping
6
M3x6 BHCS
32
M3x10 BHCS
8
M3x12 SHCS
3
M3x16 BHCS
2
M3x20 SHCS
3
M3x25 SHCS
5
M3xD5.0xL4.0 Heat Set Inserts
32
Nevermore Mini / StealthMax S HEPA Filter
1
PC4-M10 Pneumatic Fitting
1
200x3mm round acrylic panel
1
3mm sponge cord
1M
M8 threaded DC connector
1
JST-PH 4-pin male GPU fan connector
1
2 foot 26 awg wire
4
1/16" Heat Shrink Tubing
2
3/32" Heat Shrink Tubing
1
1/8" Heat Shrink Tubing
1
4-pin 90 Degree Header
3
5-pin 90 Degree Header
1
DuPont Crimps
40
4-Pin DuPont Housing
5
5-Pin DuPont Housing
1
Micro-Fit 3-Pin Male Connector With Crimps
1
Micro-Fit 3-Pin Female Connector With Crimps
1
CPAP Tubing
2
2020 M3 T-Nut
4

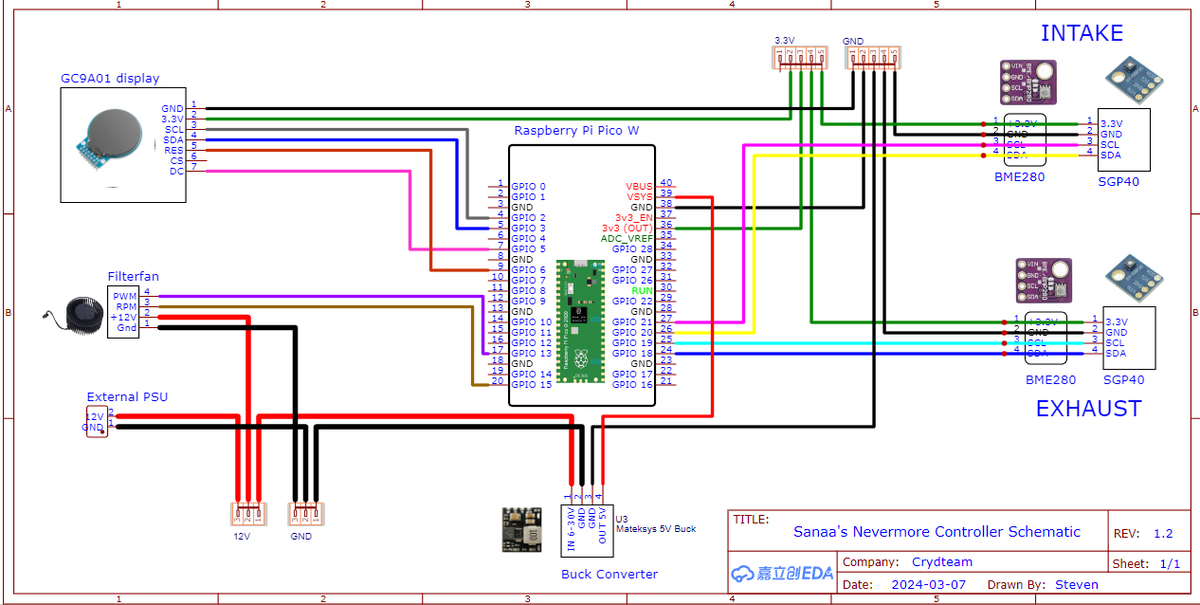

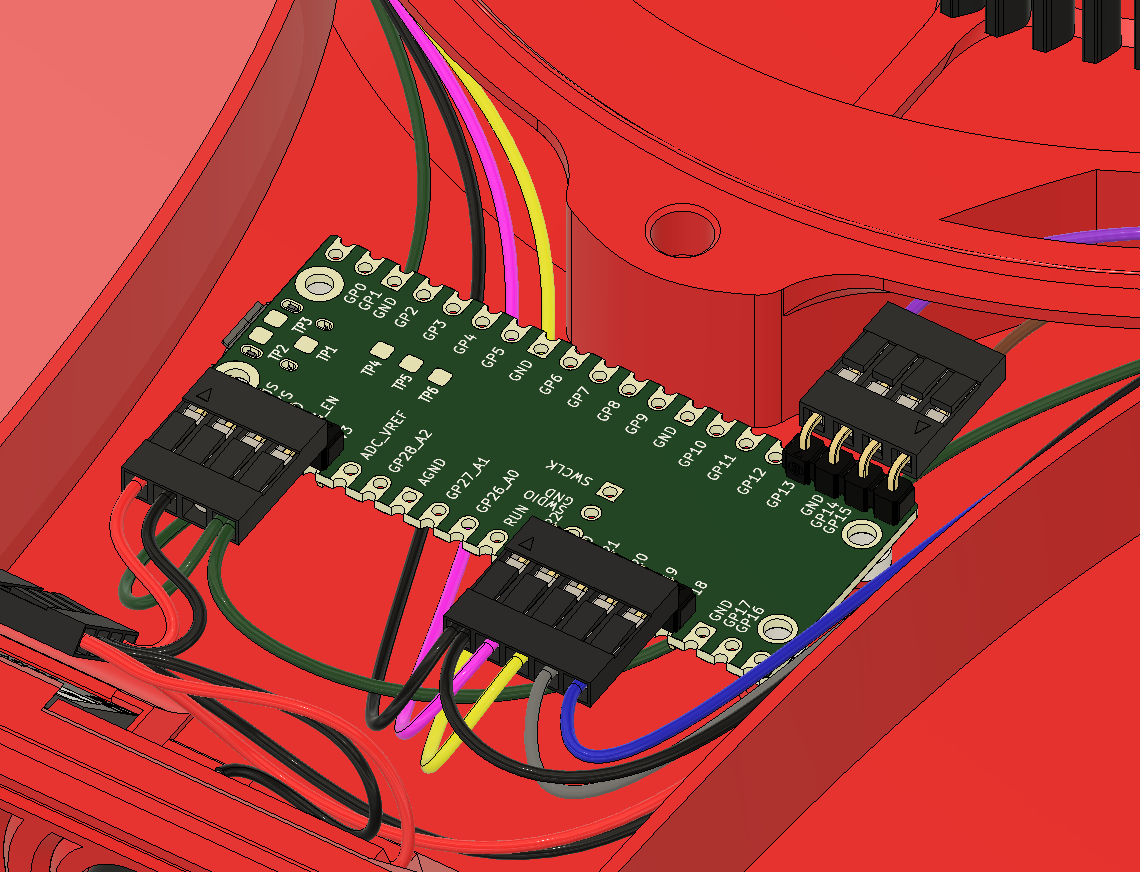

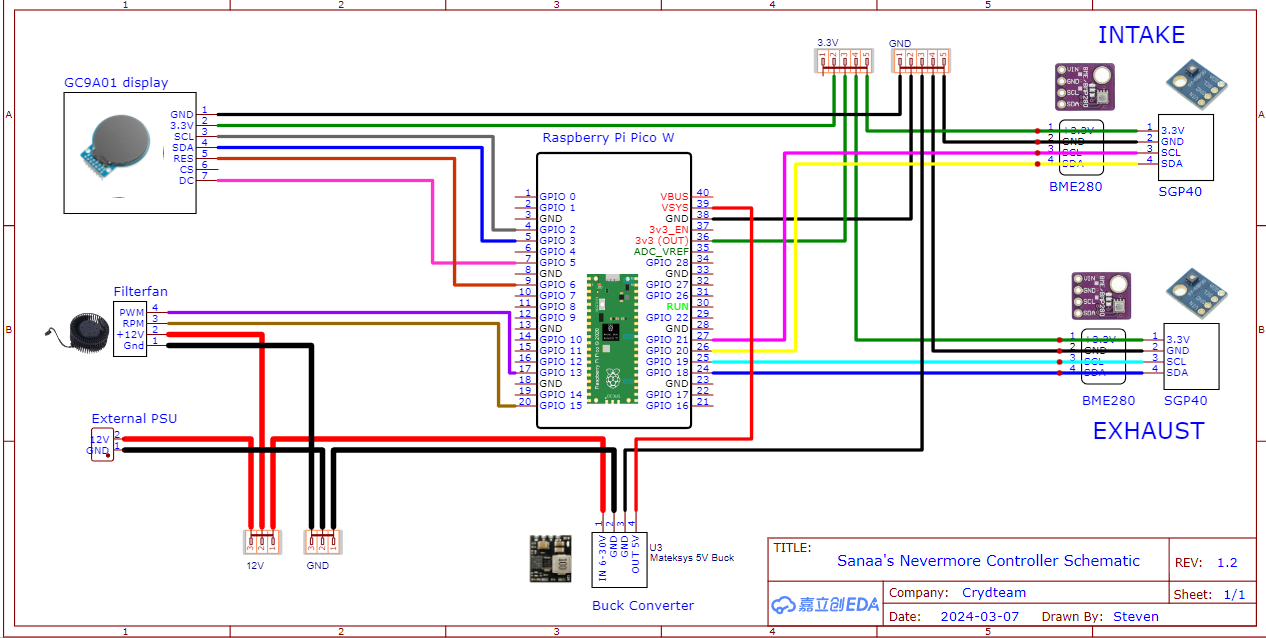

Cross Section
Length (mm)
Color
From
To
Comment
AWG24 /
75
BK
DC_Connector
BEC
GND
75
RD
DC_Connector
BEC
12V
200
BK
BEC
Fan_4p
GND
200
RD
BEC
Fan_4p
12V
50
BK
BEC
Pico
GND
50
RD
BEC
Pico
5V
AWG26 /
200
BN
Fan_4p
Pico
RPM
200
VT
Fan_4p
Pico
PWM
325
YE
Sensor_IN
Pico
I²C SDA
325
PK
Sensor_IN
Pico
I²C SCL
325
BK
Sensor_IN
Pico
GND
325
GN
Sensor_IN
Pico
3V3
300
BU
Sensor_OUT
Pico
I²C SDA
300
GY
Sensor_OUT
Pico
I²C SCL
300
BK
Sensor_OUT
Pico
GND
300
GN
Sensor_OUT
Pico
3V3

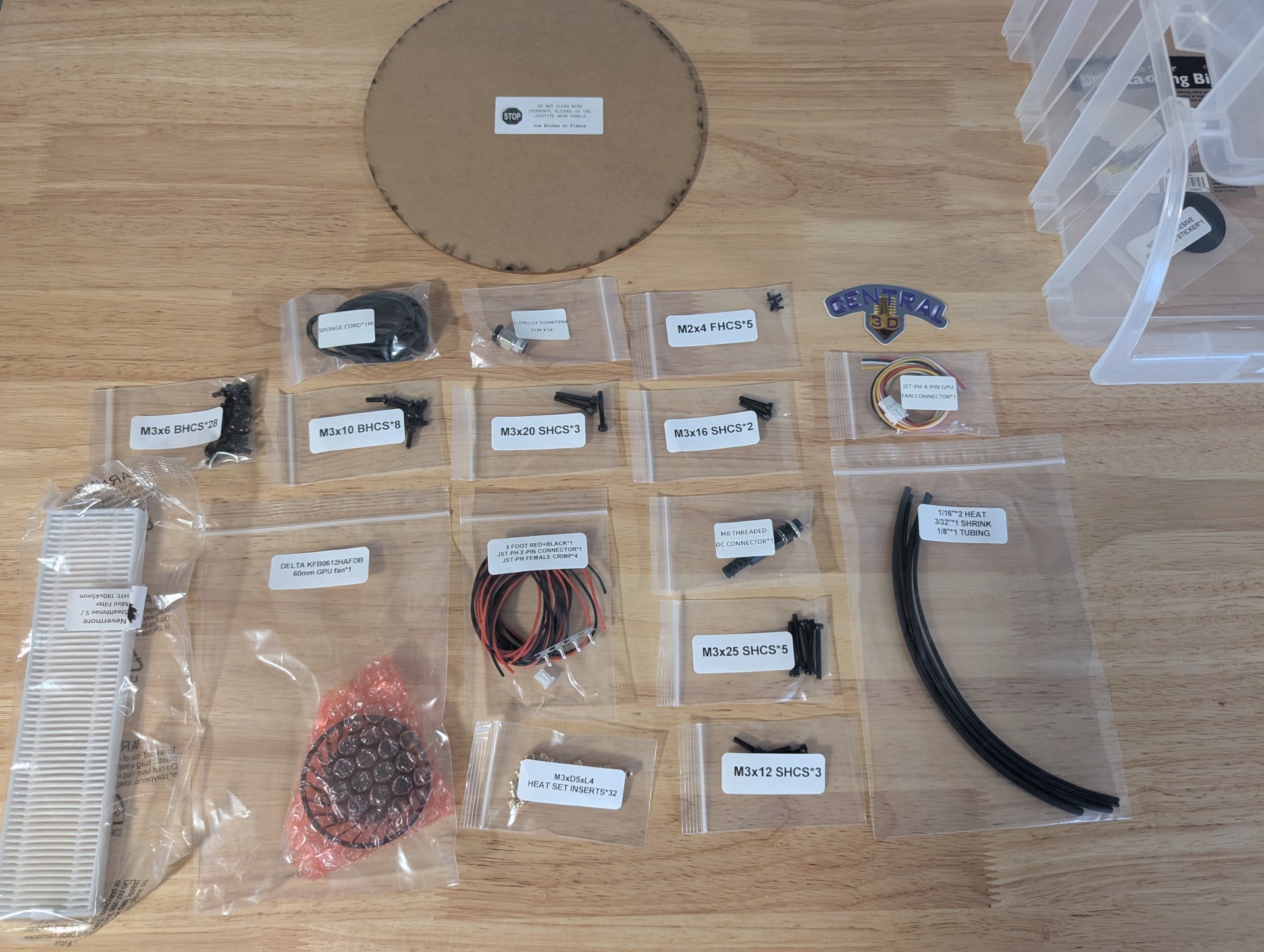

Basic BOM:
Description Quantity
DELTA KFB0612HAFDB 60mm GPU fan
1
M2x4 FHCS
5
M3x6 BHCS
28
M3x10 BHCS
8
M3x12 SHCS
3
M3x16 SHCS
2
M3x20 SHCS
3
M3x25 SHCS
5
M3xD5.0xL4.0 Heat Set Inserts
32
Nevermore Mini / StealthMax S HEPA Filter
1
PC4-M10 Pneumatic Fitting
1
200x3mm round acrylic panel
1
3mm sponge cord
1M
M8 threaded DC connector
1
JST-PH 4-pin male GPU fan connector
1
1/16" Heat Shrink Tubing
2
3/32" Heat Shrink Tubing
1
1/8" Heat Shrink Tubing
1
5 Foot 26 AWG Red+Black Silicone Wire
1
JST-PH 2-Pin Connector
1
JSP-PH Female Crimps
4
https://github.com/nevermore3d/StealthMax/tree/main/assets/_unsorted/Stealthmax_S
