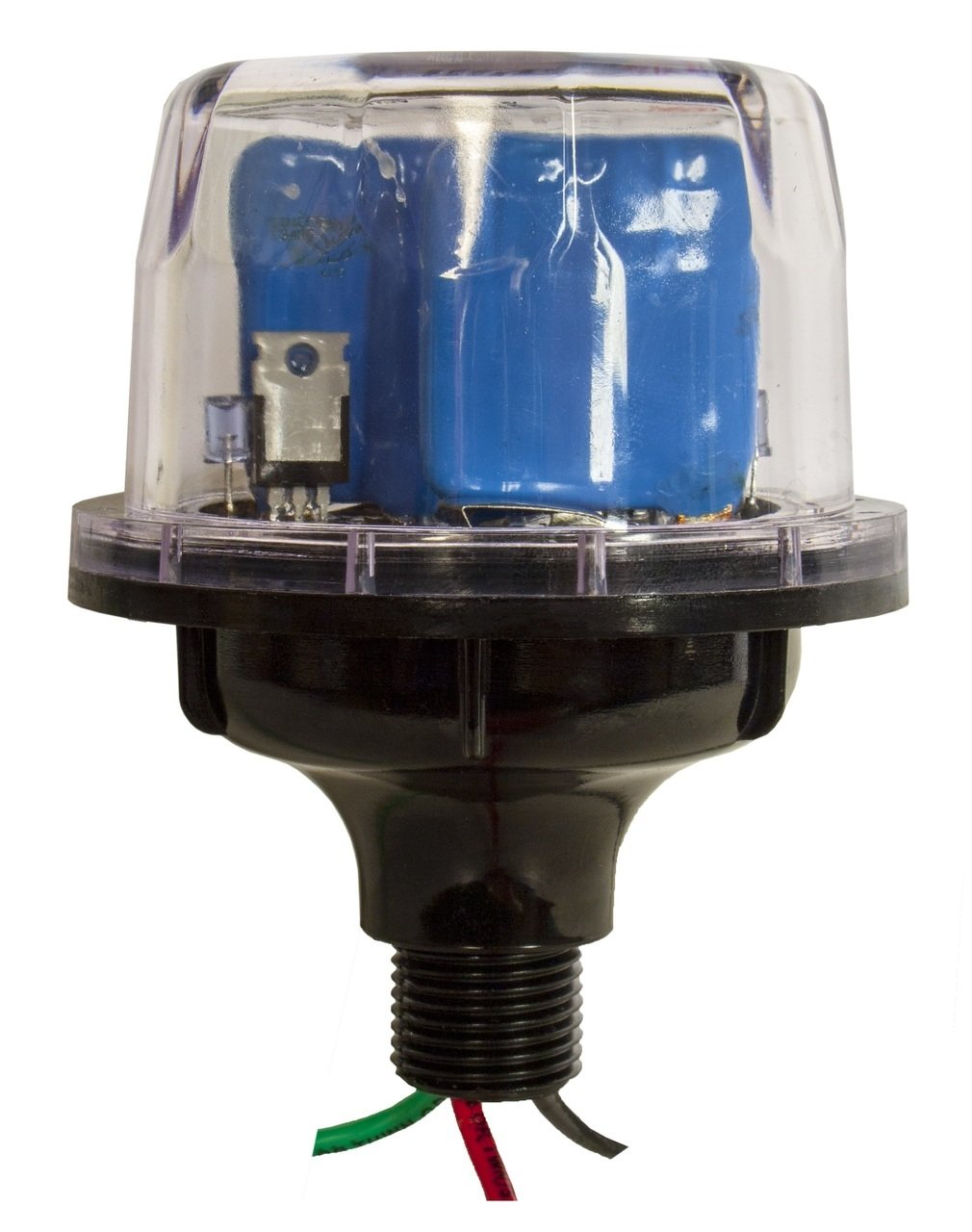

Midnite Solar Surge Protection Device Mnspd-300-Dc The Midnite Solar Surge Protector Device (Mnspd) Is A Type 1 Device Per Ul1449 Rev3. It Is Designed For Both Ac And Dc Systems And Provides Protection To Service Panels, Load Centers Or Where The Spd Is Directly Connected To The Electronic Device Requiring Protection. Protection For Classic And Other Charge Controllers, Off Grid Pv Combiners And 120/240 Vac Circuits. The Dc Spd Will Work Well On All Dc Circuits Up To 300 Volts As Well As Any 120/240 Vac Circuits. The Difference Between The Ac And Dc Spd Is The Way The Led'S Are Powered. The Protection Side Of Things Is Identical. Faq I Ordered The Mnspd-300-Dc. Why Does My Unit Say Mnspd-300-Ac? All Units Are Labeled ''Mnspd-300-Ac,'' However, The Marking On The Box Indicates Whether The Unit Is Ac Or Dc. All Units Are Compatible With Both Ac And Dc Systems Regardless Of The Box Markings, The Only Difference Is How The Indicator Lights Work. Each Unit Has Several Lights And A Dc Unit Hooked Up To A Dc System Will Power All Of The Indicator Lights And Vice Versa; An Ac Unit Hooked Up To An Ac System Will Power All Of The Indicator Lights. If You Hook A Dc Unit To An Ac System, However, Only 1 Of The Indicator Lights Will Work And Vice Versa, But The Unit Will Still Be Safe And Function Properly. Why Aren'T All My Lights On The Mnspd-300 Working? When You Try And Connect The Msndp-300-Ac On A Dc Circuit Or Vice Versa, Only 1 Led Will Illuminate, However, The Mnspd-300 Is Still Fully Functional. In Order That All Of The Lights Work, You Would Need To Connect An Ac Unit On An Ac Circuit And A Dc Unit On A Dc Circuit.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the MidNite Solar MNSPD-300-DC?A: The dimensions are four point four inches long, three point eight inches wide, and three point five inches deep.
Q: What is the weight of the MNSPD-300-DC?A: The weight is one pound.
Q: What is the environmental rating of this surge protection device?A: The environmental rating is Type four X, suitable for outdoor use.
Q: How do I install the MNSPD-300-DC?A: To install the MNSPD-300-DC, connect it directly to the service panel or load center as per the installation instructions.
Q: Is the MNSPD-300-DC suitable for both AC and DC systems?A: Yes, the MNSPD-300-DC is compatible with both AC and DC systems.
Q: Can I use the MNSPD-300-DC with off-grid solar systems?A: Yes, it provides protection for off-grid photovoltaic combiners and charge controllers.
Q: How do I keep the MNSPD-300-DC in good condition?A: Keep the device clean and free from debris and regularly check connections for wear or corrosion.
Q: Does the MNSPD-300-DC have a warranty?A: Yes, it comes with a five-year warranty.
Q: What should I do if the MNSPD-300-DC arrives damaged?A: Contact customer support immediately to initiate a return or exchange process.
Q: How can I tell if the MNSPD-300-DC is working properly?A: Check the LED indicators; if they illuminate according to the connection type, the device is functioning correctly.
Q: What is the maximum voltage the MNSPD-300-DC can handle?A: The device can handle a maximum voltage of three hundred volts DC.
Q: Is the MNSPD-300-DC made in the USA?A: Yes, this product is made in the USA.
Q: What features does the MNSPD-300-DC offer?A: It features outdoor environmental rating, a five-year warranty, and is lightweight at one pound.
Q: Can I use the MNSPD-300-DC on a circuit that is not its intended type?A: Yes, it will still function properly, but only one LED will illuminate if connected incorrectly.
Q: What is the model number for the MidNite Solar surge protector?A: The model number is MNSPD-300.
Q: Do I need to do any maintenance on the MNSPD-300-DC?A: No regular maintenance is required, but periodic inspections are recommended to ensure optimal performance.
