Mean Well (Drc 40A) Din Rail Single Output Switching Power Supplies With Battery Charger (Ups Function), Output: 40.02W 13.8V 1.

Frequently Asked Questions

• Q: What are the dimensions of the Mean Well DRC-40A power supply? A: The dimensions are one point five seven inches in length, three point five four inches in width, and three point nine four inches in height.
• Q: What is the input voltage range for the DRC-40A? A: The input voltage range is ninety to two hundred sixty-four volts alternating current or one hundred twenty-seven to three hundred seventy volts direct current.

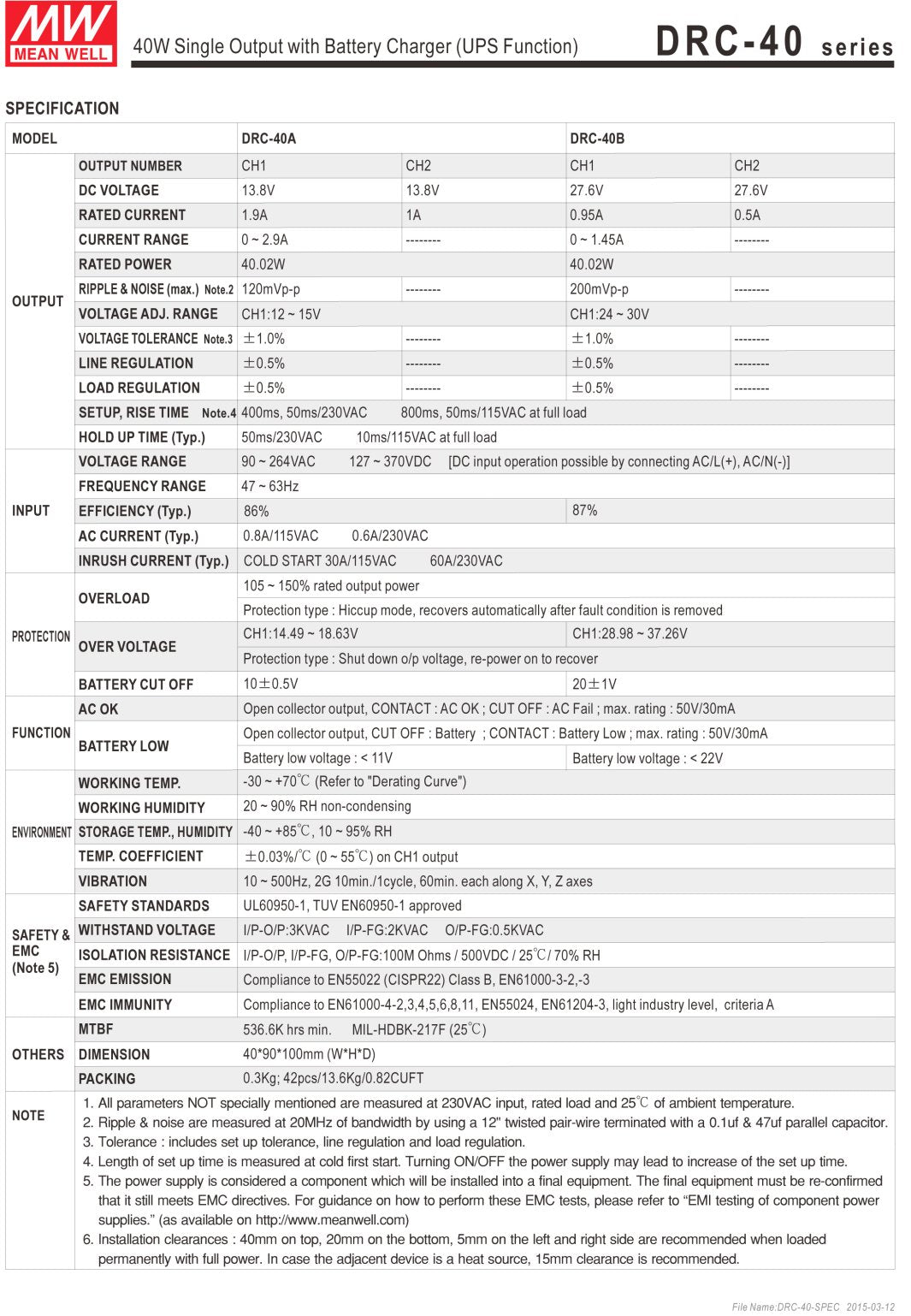

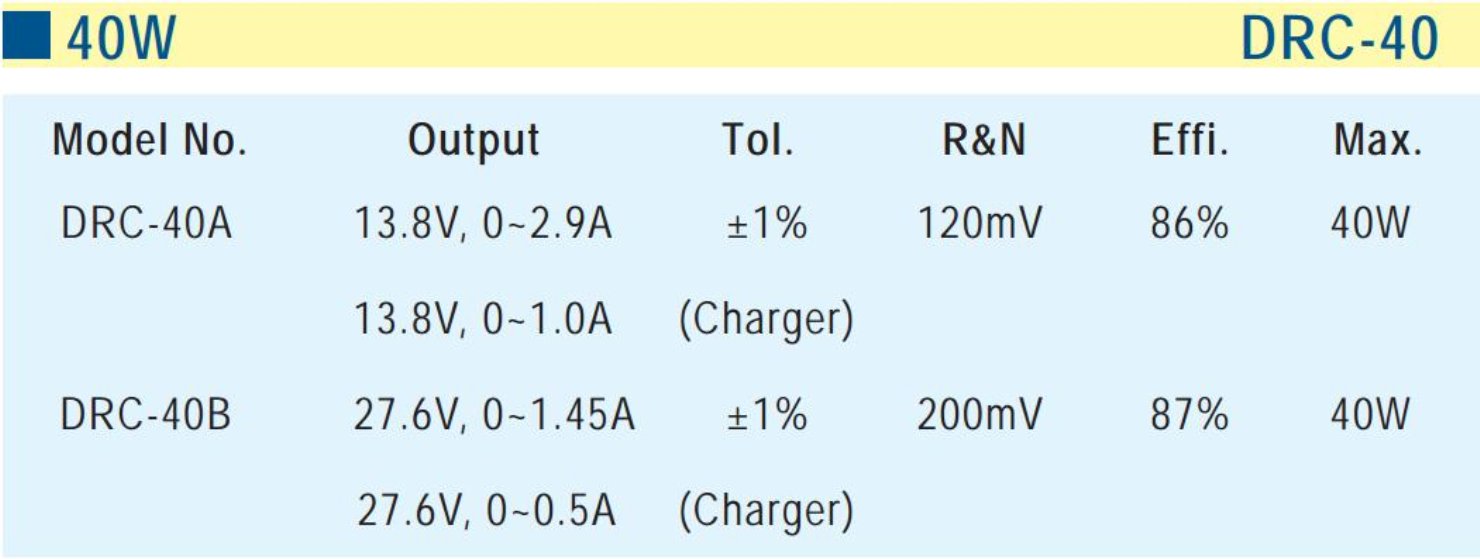

• Q: What is the output power and specifications of the DRC-40A? A: The output power is forty point zero two watts with a voltage of thirteen point eight volts and current ratings of one point nine amps and one amp.
• Q: Is the DRC-40A suitable for DIN rail installation? A: Yes, the DRC-40A can be installed on DIN rail TS-35/7.5 or fifteen.

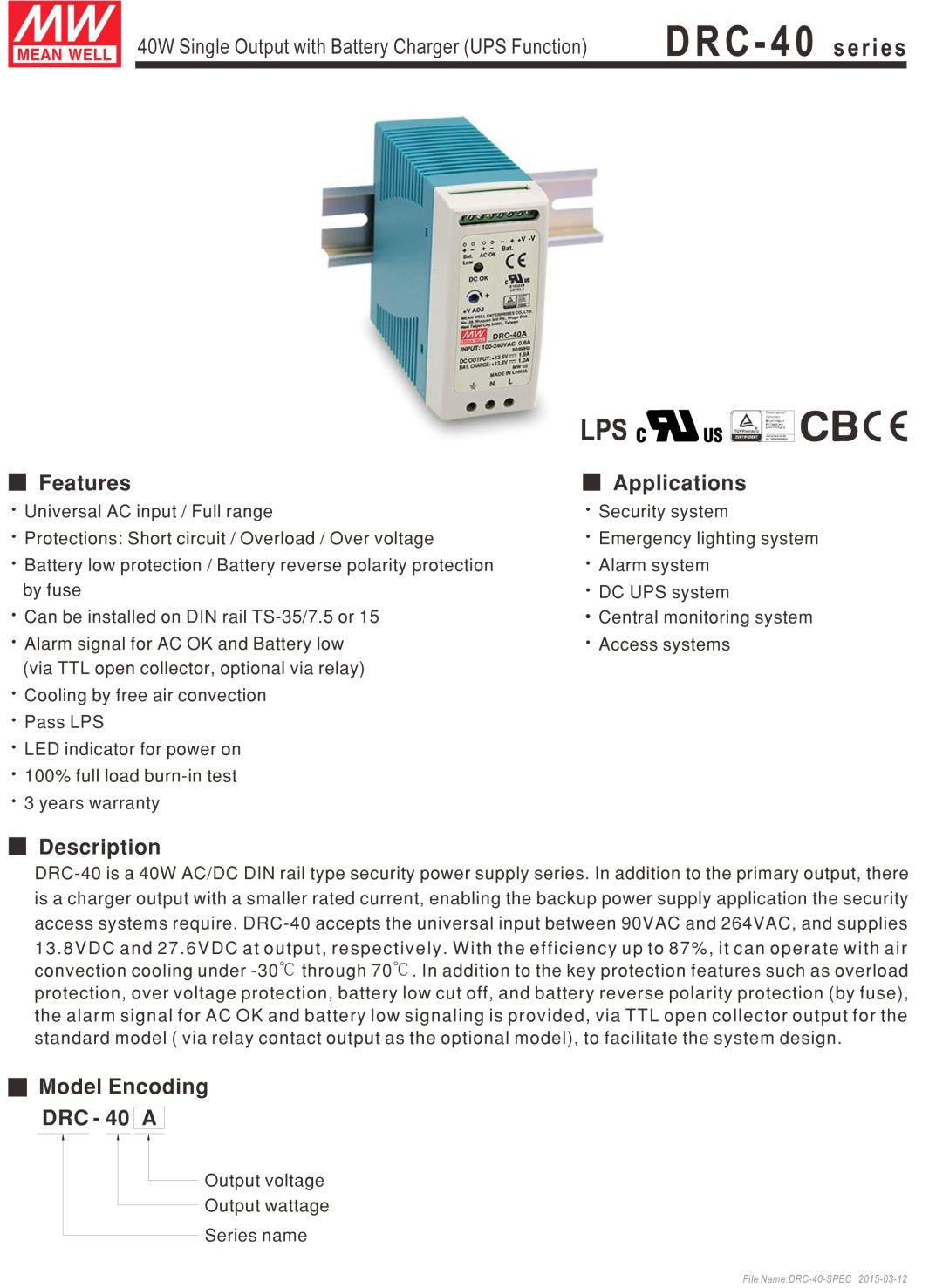

• Q: Does the DRC-40A come with a battery charger? A: Yes, it features a single output with a built-in battery charger for UPS function.
• Q: How do I install the DRC-40A power supply? A: To install, simply mount it on a compatible DIN rail and connect the input and output terminals as needed.
• Q: Can the DRC-40A be used with different voltage systems? A: Yes, it has a universal AC input that accommodates a full range of voltage systems.
• Q: What protections does the DRC-40A offer? A: It has protections against short circuit, overload, over voltage, battery low, and battery reverse polarity by fuse.
• Q: How do I check the battery status on the DRC-40A? A: You can check the battery status via the alarm signal for AC OK and battery low indicators.
• Q: What is the warranty period for the DRC-40A? A: The warranty period for the DRC-40A is three years.
• Q: How should I care for the DRC-40A power supply? A: To care for it, ensure it is mounted securely and avoid exposing it to moisture or extreme temperatures.
• Q: Is the DRC-40A safe to operate continuously? A: Yes, it has passed LPS (Limited Power Source) testing and has a full load burn-in test.
• Q: What should I do if the DRC-40A arrives damaged? A: If it arrives damaged, contact the seller immediately to initiate a return or exchange process.
• Q: Does the DRC-40A require any special installation tools? A: No, standard tools for mounting on a DIN rail are sufficient; no special tools are required.
• Q: Can I use the DRC-40A for outdoor applications? A: No, the DRC-40A is designed for indoor use only, due to its cooling method and enclosure.
