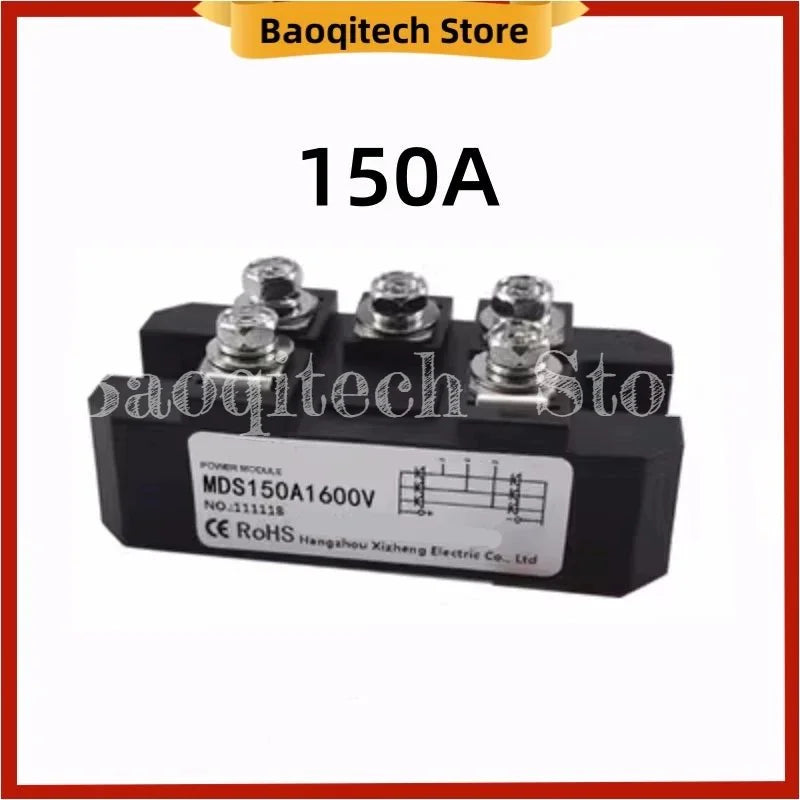

MDS 150Amp 1600V Three phase rectifier bridge MDS150A1600V 12V 24V 36V 48V 220V 480V 600V AC-DC high-power module - MDS150A1600V
Color
MDS150A1600V

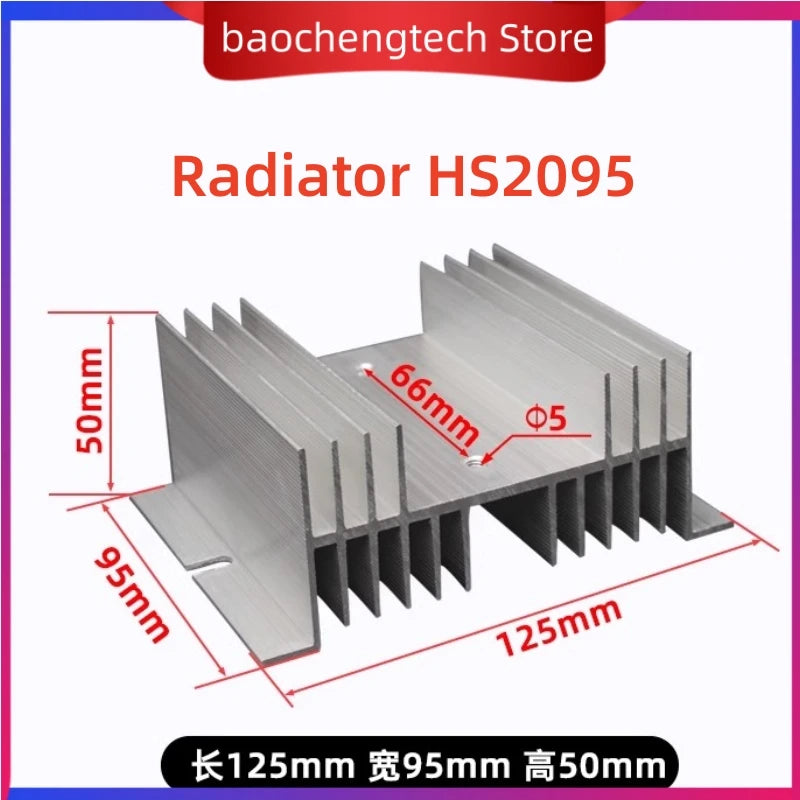

Radiator HS2095

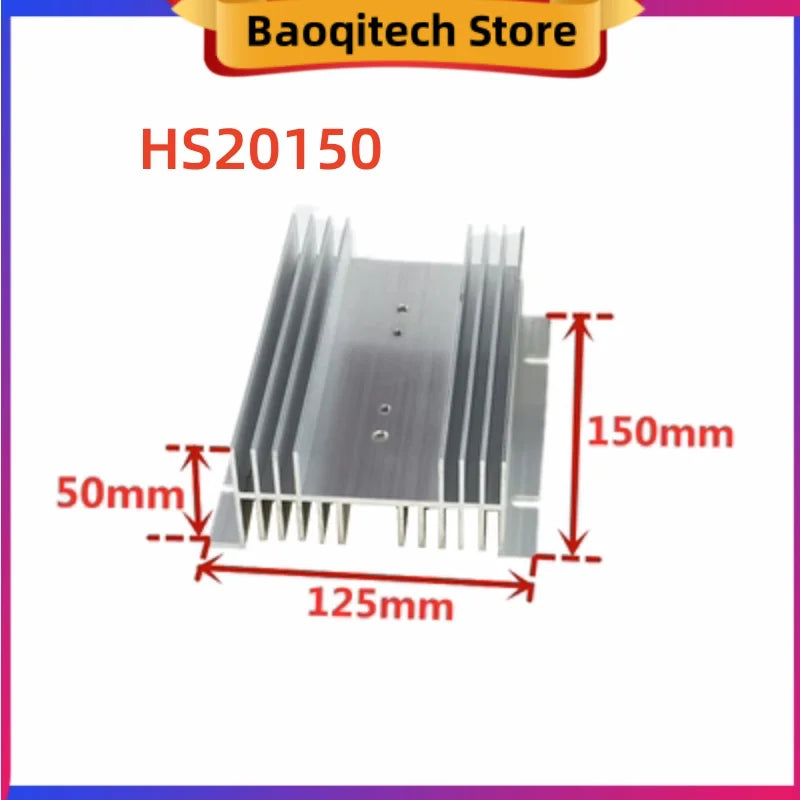

Radiator HS20150
$12.80
Add to Cart
SPECIFICATIONS Brand Name : NONE
Choice : yes
High-concerned chemical : none
Origin : Mainland China
semi_Choice : yes
MD150A1600V Three phase rectifier bridge 12V 24V 36V 48V 220V 480V 600V AC-DC high-power module 150Amp 1600V reminder
1. About product selection
The marked current of the power module is the average value of the on state, not the actual effective value of long-term operation. When selecting, sufficient margin should be left based on the actual working environment and conditions.
(1) Pure resistive load 2-2.5 times margin: actual current (A) × 2 (~2.5)=Module nominal current (A) (2) Inductive load 6-7 Signal margin: Actual current (A) × 6 (~7)=Module nominal current (A)
2. Radiator configuration
When the actual working current of the device is greater than 5A, please be sure to configure a suitable heat sink for use
3. Regarding the source of goods
Regular models are available in stock and can be sold directly. For bulk orders, please inform customer service of the quantity ordered and confirm the delivery time with them.
