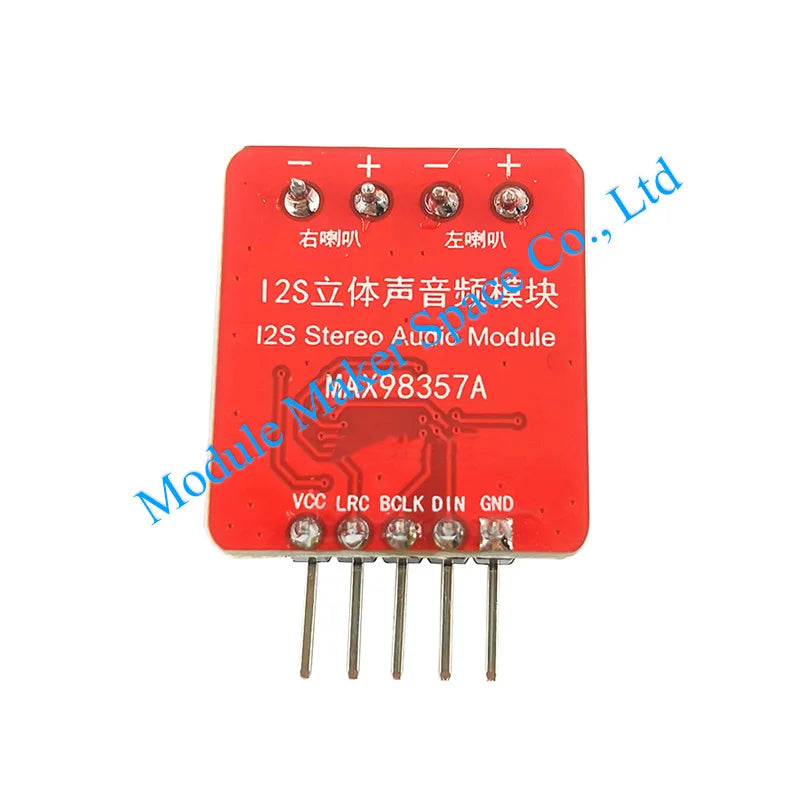

MAX98357A I2S Stereo Audio Amplifier Module 2.5V - 5.5V D-Class Amplifier Board with 8-Channel TDM Support
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
MAX98357A I2S Stereo Audio Amplifier Module 2.5V - 5.5V D-Class Amplifier Board with 8-Channel TDM Support - No Terminal
Color
No Terminal
Welding
No Welding
$3.36
Add to Cart
SPECIFICATIONS Brand Name : NONE
Condition : New
Dissipation Power : -
High-concerned chemical : none
Operating Temperature : -
Origin : Mainland China
Quantity : 1
Supply Voltage : -
Type : Module
is_customized : Yes
AX98357A I2S Stereo Audio Amplifier Module D-Class Amp with 8-Channel TDM Support
Product Overview
The MAX98357 module integrates two MAX98357BGA chips to provide a complete I2S digital audio interface solution. It decodes digital audio signals directly into amplified analog output, enabling single-chip stereo speaker drive. This module supports both standard I2S and 8-channel TDM audio formats, delivering the audio quality of Class-AB amplifiers with the efficiency of Class-D technology.
Designed for flexibility, the onboard gain can be easily configured (default stereo mode), making it an ideal choice for digital stereo players, multimedia systems, embedded audio projects, and multi-channel audio applications.
Feature:
Dual MAX98357BGA chips for enhanced stereo performance
I2S and 8-channel TDM audio input support
Onboard configurable gain (default: stereo output)
Class-D efficiency with Class-AB sound quality
Suitable for left, right, and stereo audio channels
Plug-and-play design for easy integration
Technical Specifications:
Supply Voltage: 2.5V to 5.5V
Quiescent Current: 5mA
Output Power: Up to 3.2W per channel into 4Ω at 5V
Audio Channels: Supports left, right, and stereo output (default)
Sampling Rate: 8kHz to 96kHz
Dimensions: 23.5mm × 20.5mm × 1.2mm (excluding terminal height)
Typical Applications
Digital stereo audio players
Embedded audio systems
IoT devices with audio output
Multi-channel audio processing
Portable speakers and multimedia projects
Package Includes
