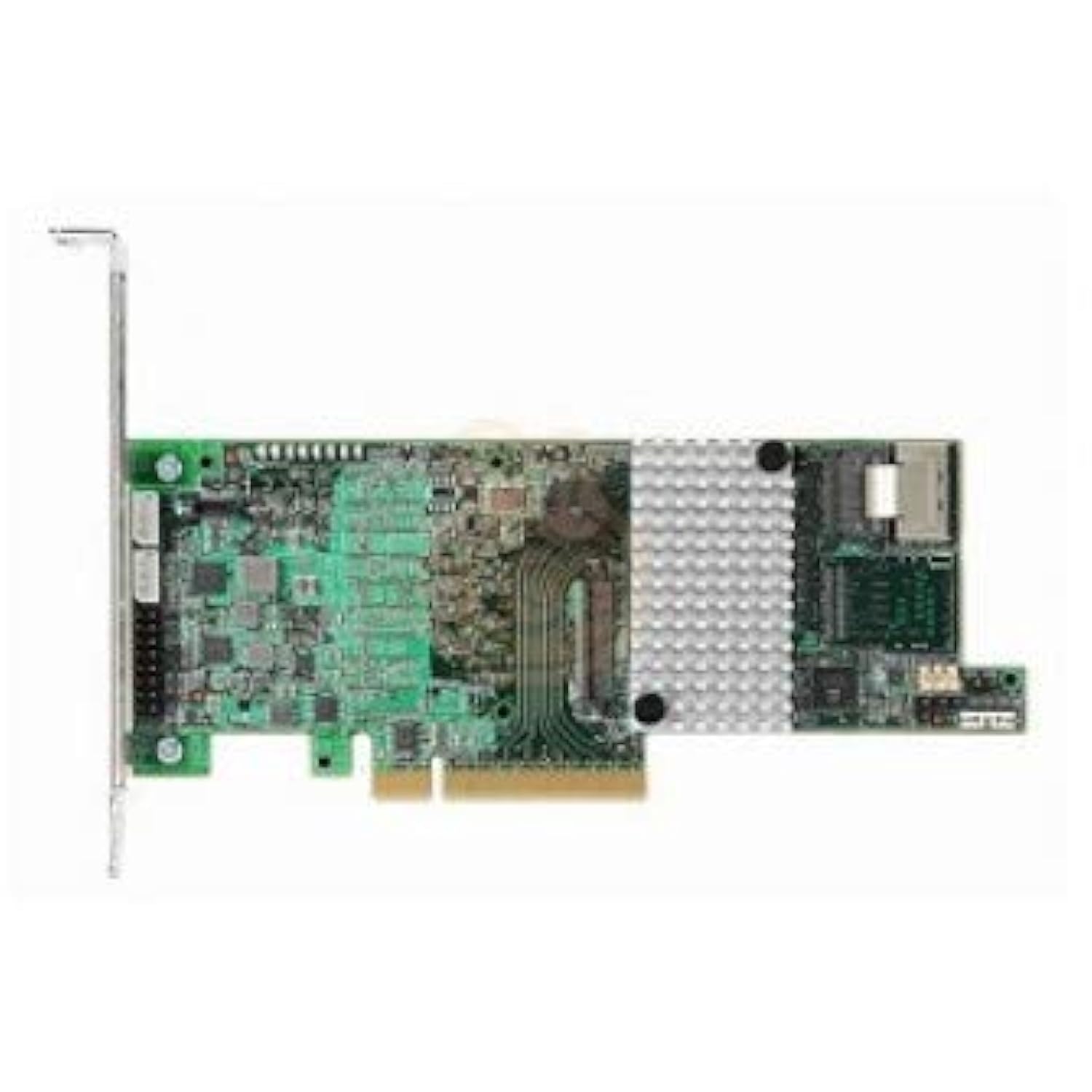

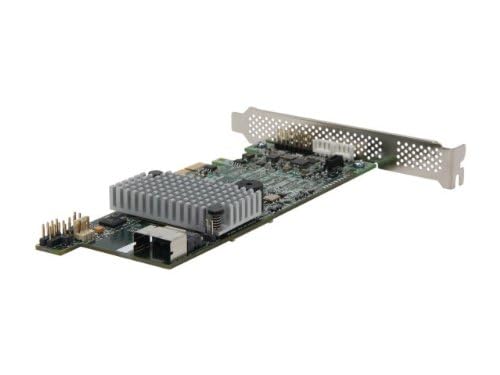

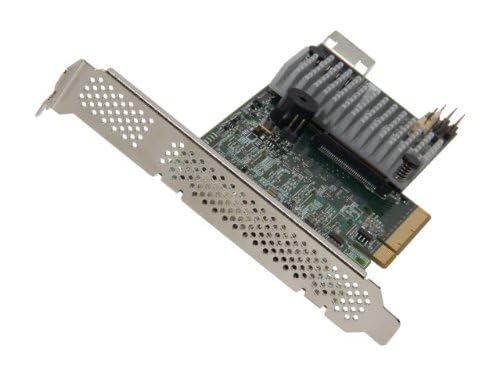

Lsi Megaraid Sas 9266-4I 4-Port, 6 Gb/S, Pci Express 2.0, Sata/Sas, Low-Profile Raid Controller

Frequently Asked Questions

• Q: What are the dimensions of the LSI MegaRAID SAS 9266-4i? A: The dimensions are six point six inches by two point five three six inches. This low-profile design ensures compatibility with various server chassis.
• Q: What is the memory capacity of the LSI MegaRAID SAS 9266-4i? A: The memory capacity is one gigabyte of DDR3 cache. This enhances data processing speed and overall performance.
• Q: What is the maximum data transfer rate of this RAID controller? A: The maximum data transfer rate is six gigabits per second per port. This allows for efficient handling of high-volume data.
• Q: How do I install the LSI MegaRAID SAS 9266-4i? A: To install, insert the card into a compatible PCI Express two point zero x8 slot on your motherboard. Ensure the system is powered off during installation.
• Q: Is the LSI MegaRAID SAS 9266-4i suitable for SSDs? A: Yes, it supports solid-state drives. This controller optimizes performance for SSD deployments with advanced caching options.
• Q: Can I connect multiple devices to the LSI MegaRAID SAS 9266-4i? A: Yes, you can connect up to one hundred twenty-eight SATA and/or SAS devices. This flexibility allows for extensive storage configurations.
• Q: How can I ensure the LSI MegaRAID SAS 9266-4i remains functional? A: Keep it cool and dust-free. Regularly check for firmware updates to ensure optimal performance and compatibility.
• Q: What is the warranty period for the LSI MegaRAID SAS 9266-4i? A: The warranty period typically lasts for three years. Be sure to register your product with LSI for warranty support.
• Q: What RAID levels are supported by the LSI MegaRAID SAS 9266-4i? A: It supports RAID levels zero, one, five, and six, as well as RAID spans ten, fifty, and sixty. This versatility helps meet different data redundancy needs.
• Q: What happens if I experience data loss with the LSI MegaRAID SAS 9266-4i? A: You can utilize the RAID levels for data recovery. Features like Online Capacity Expansion and Online RAID Level Migration aid in data management.
• Q: Does the LSI MegaRAID SAS 9266-4i support CacheVault technology? A: Yes, it supports the optional CacheVault module. This technology offers enhanced cache protection and energy efficiency.
• Q: Is the LSI MegaRAID SAS 9266-4i easy to set up? A: Yes, it features fast initialization for quick array setup. This simplifies the installation process for users.
• Q: What connectors does the LSI MegaRAID SAS 9266-4i have? A: It has four internal SAS SFF-8087 connectors. These connectors are designed for secure and efficient data transfer.
• Q: Can the LSI MegaRAID SAS 9266-4i handle high I/O transactions? A: Yes, it meets the high I/O transaction demands of database and datacenter applications. This makes it suitable for performance-intensive environments.
• Q: What is the processor type in the LSI MegaRAID SAS 9266-4i? A: It features the LSISAS2208 dual-core RAID on Chip processor. This ensures fast and efficient data processing capabilities.
