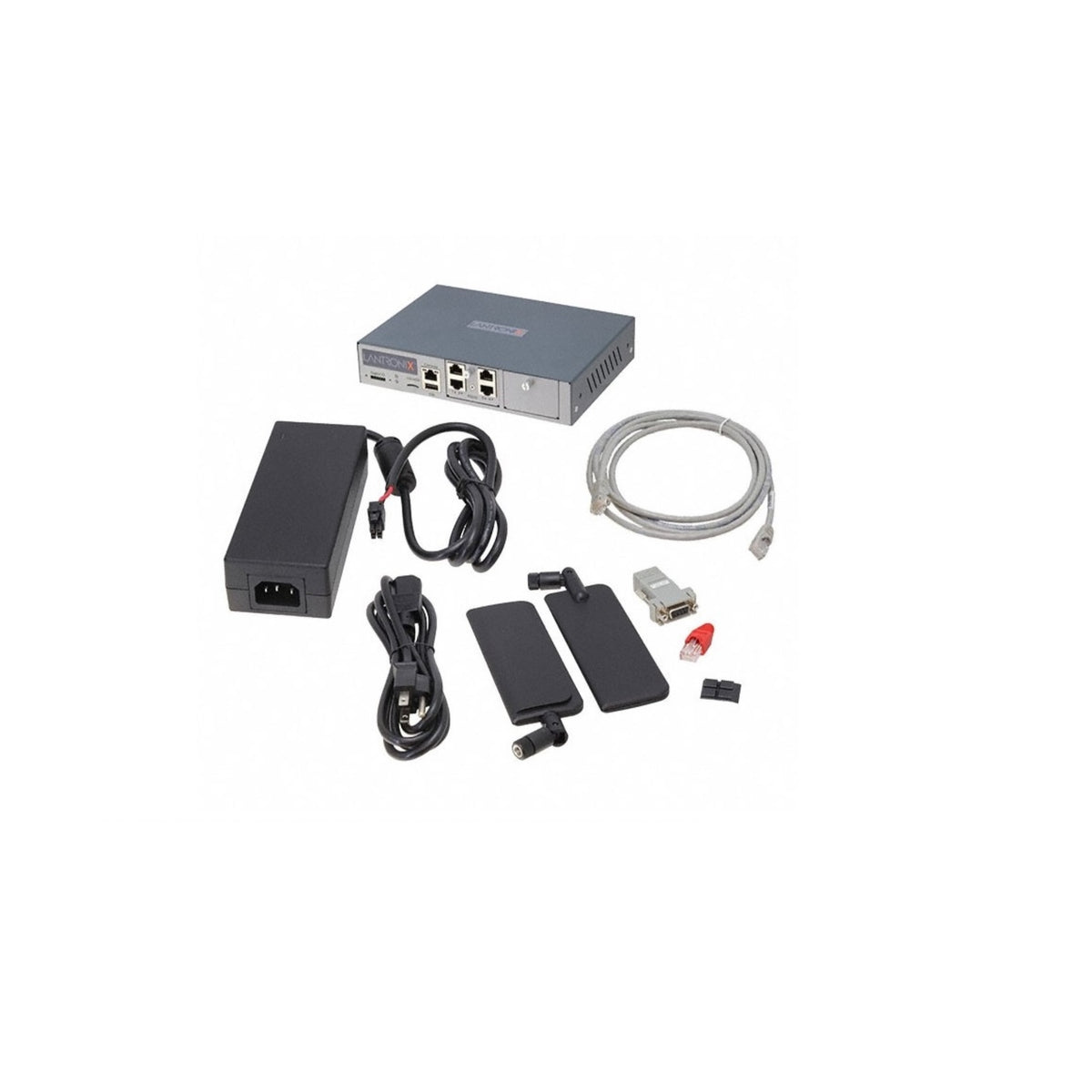

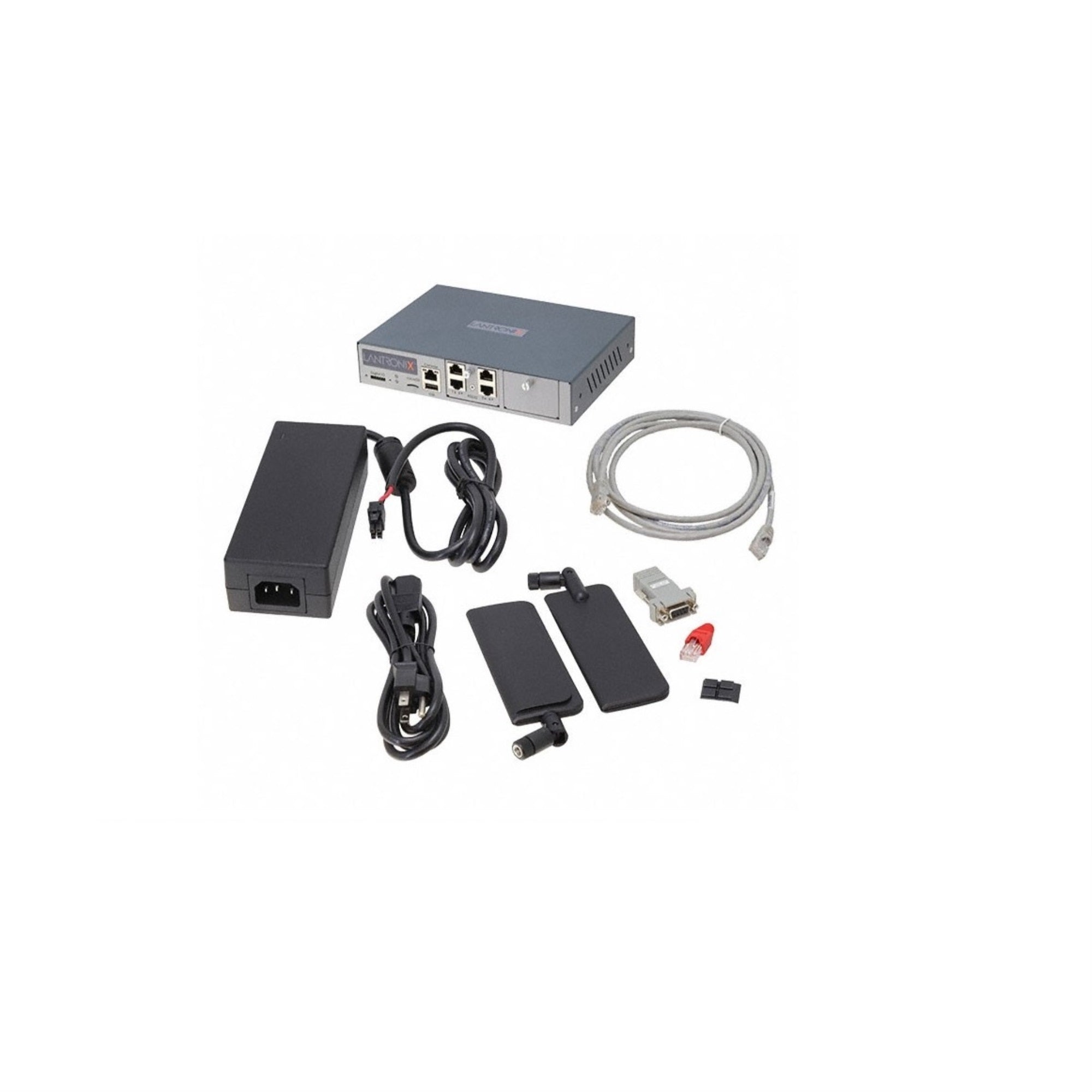

Product InformationPart Number: EMG851010SProduct Name: Lantronix Emg 8500 4Ports Edge LTE Cellular Management Gateway EMG851010SManufacturer: LantronixModel Number: EMG8500Product Type: Infrastructure Management Equipment / Cellular Management GatewaySKU: LAN90FNUPC: 783384239623Product DescriptionThe Lantronix EMG8500 (EMG851010S) is a robust and secure 4port edge LTE cellular management gateway designed for outofband management and remote device access in IT and industrial environments. It provides alwayson connectivity for missioncritical infrastructure, ensuring business continuity even when primary networks fail through an integrated automatic failover/failback mechanism to a cellular 4G/LTE connection. With its modular design, the EMG8500 enables users to place the product alongside critical infrastructure in data centers, branch offices, and remote sites. It offers remote troubleshooting, resilience, and remediation to improve uptime and efficiency, supporting secure administration and management of IT equipment from anywhere, at any time, via Telnet/SSH or a web browserbased console client.Product SpecificationsForm Factor: External, 1U Rack MountConnectivity Technology: Wired & Wireless CellularCellular Technology: LTE Cat 4 (Multiband for global deployment)Ethernet Ports: 2 x Gigabit Ethernet (RJ45) or 2 x Gb fiber SFP ports (back panel)Serial Ports: 4 x RJ45 RS232 serial console ports (via customer replaceable I/O module)USB Ports: 1 x USB Host port (front panel)Memory: 1 GB Internal NAND Flash, 1 GB Internal DRAM, microSD slot for up to 128 GB Flash (external storage)Processor: Dualcore ARM CortexA7 (or similar)Power Input: 9 VDC to 30 VDC (External power adapter included)Operating Temperature: 0C to 50C (32F to 122F)Storage Temperature: 20C to 80C (4F to 176F)Humidity: 30% to 90% RH, noncondensing (Operating), 10% to 90% RH, noncondensing (Storage)Dimensions (H x W x D): 1.7" x 6.6" x 8.4" (43.21 mm x 167.68 mm x 212.6 mm)Weight: 3.0 lbs (1.36 kg) maximum (depending on options)Security Features: Enterprisegrade security, Secure Sockets Layer (TLS v1, v1.1, v1.2), Packet filtering (firewall), Perport user permissions, Configurable user/group rights, Remote authentication (LDAP/AD, RADIUS, Kerberos, TACACS+, NIS), Local username/password, NISTcertified AES encryption, FIPS 1402 compliant cryptographyManagement: Webbased GUI, CLI (SSH, Telnet), SNMP (MIB II v1, v2, v3 compatible), ConsoleFlow (onpremise and cloudbased management platform), RPM (remote power management)Certifications: CB, EU, FCC, IC, RCM, UKCA, UL RoHSCountry of Origin: MalaysiaPackage includes:EMG851010S, 2x Antennas, Network Cable, Serial Adapter, Network Adapter, Foot Pads, Power Adapter, Power Cord, ManualProduct may differ from image shown
