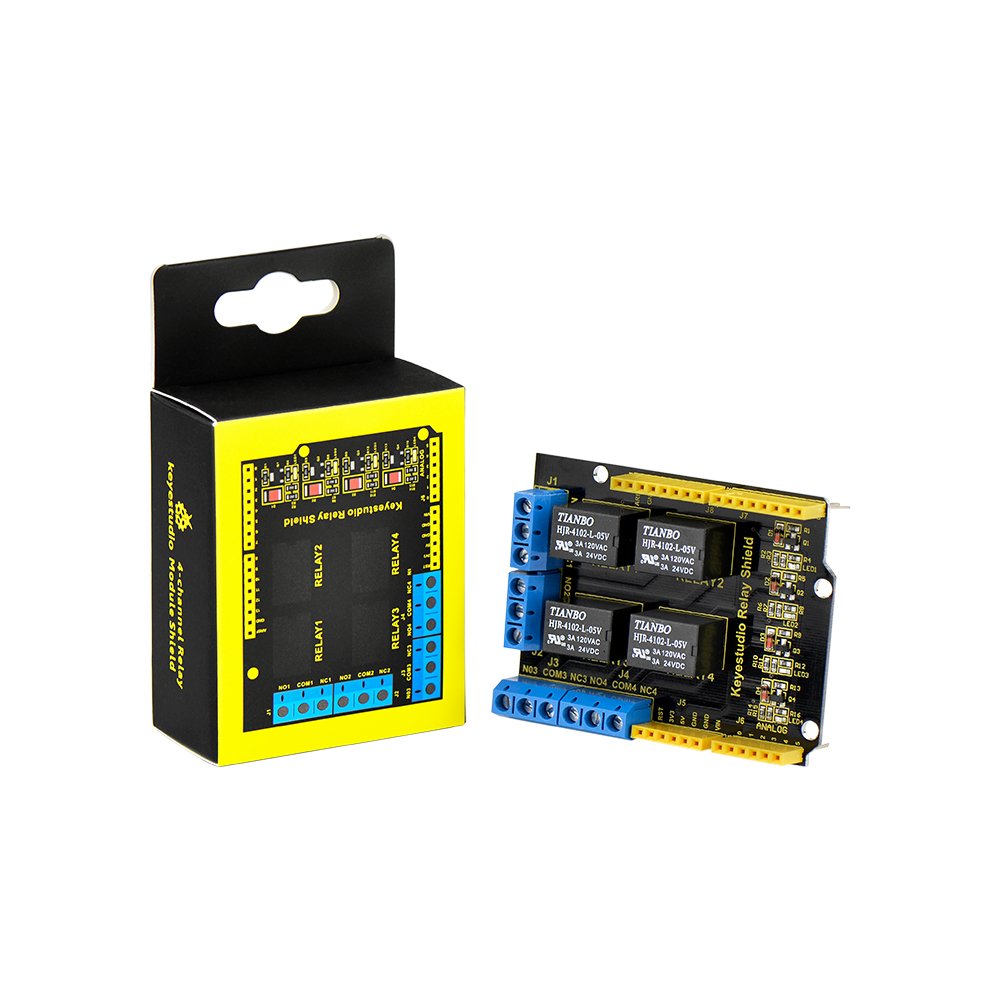

KEYESTUDIO 4 Channel Relay Shield 5V for Arduino Controller R3 ARM PIC AVR STM32 Raspberry Pi HIGH Level Trigger Relay Module Ex
$14.34
Sold Out
WHY CHOOSE KEYESTUDIO! 1.EXCELLENT QUALITY solder is very clean, everything is aligned nicely, all boards are well packed after function,voltage, current testing 2.COOL YELLOW BLACK DESIGN The yellow trim is definitely a departure from the standard, dull, black boards, and the yellow silk screen on black mask really pops, making it easy to read the pin labels 3. REALLY SAFE This board is made from environmental-friendly components and materials, as well as environmental-friendly production technology Features: Channel: 4 channel The relay shield is 5V active HIGH Contact capacity: AC120V / 3A ; DC24V/3A Onboard LED indicator for relay output status Indicator: 4 LEDs are red when the relay is driven high, the corresponding indicator will light up. Standard interface can be directly plugged into microcontrollers. Fully compatible with controller R3 board Power Interface: 5V DC power interface Indicator LED onboard for Relay output status Relay 1 (I/O pin 4) is connected to a terminal J4; Relay 2 (I/O pin 5) is connected to J3; Relay 4 is connected to J1. Be able to control various appliances and other equipment with large current. 3 M3 screw positioning holes for easy installation
