Keeyees L298N Motor Drive Controller Board Stepper Motor Control Module Dual H Bridge With Dc Motor And Smart Car Wheel Compatible With Arduino
$24.68
Regular price
$35.26
-30%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.
Specification: Motor Drive Module Operating Mode: H-Bridge Driver (Dual) Chip: L298N Logic Voltage: 5V Logic Current 0Ma-36Ma Drive Voltage: 5V-35V Drive Current: 2A (Max Single Bridge) Maximum Power: 25W Dimensions: 43X43X27Mm

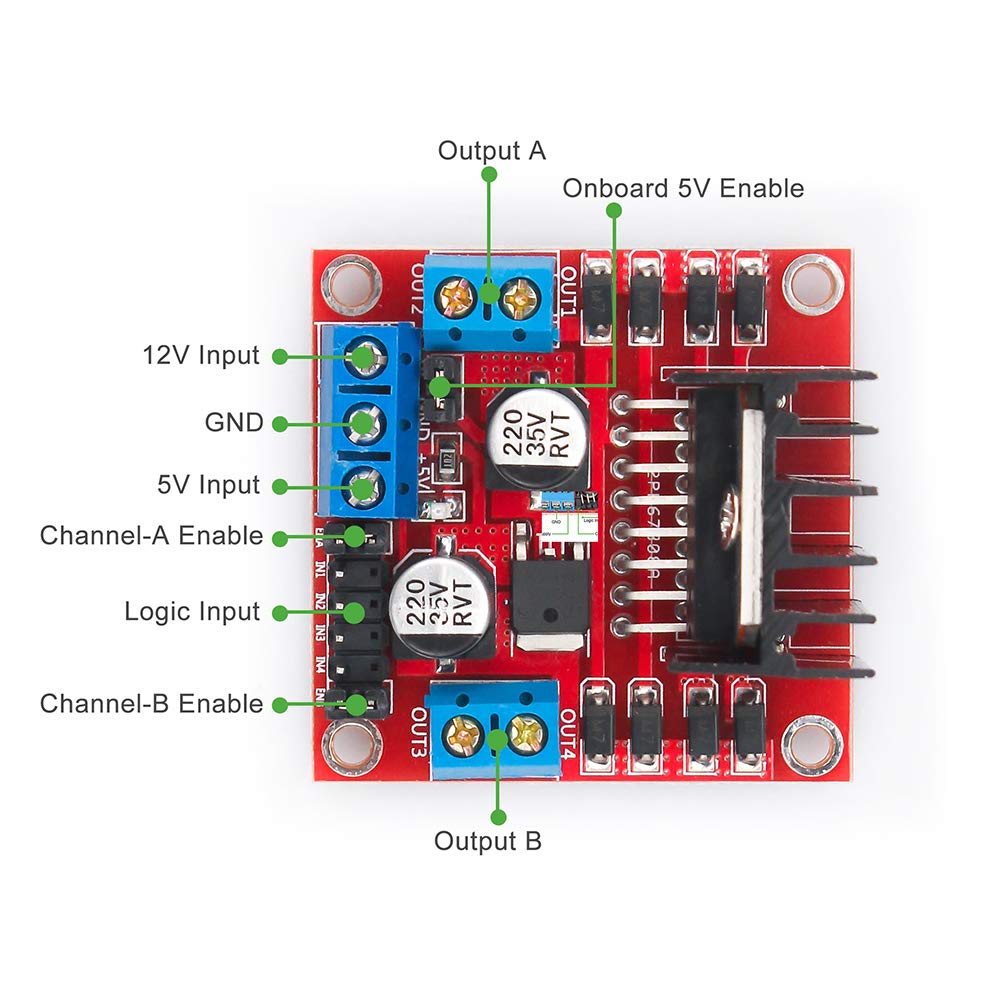

Note: General Application: When Your Driver Is 7V-12V (Marked As 12V Input), You Can Use The On-Board 5V Logic Supply. When Using The On-Board 5V Power Supply, Do Not Input Voltage At Interface 5V Input, But It Can Draw 5V Voltage For External Use. Unconventional Application Of High-Voltage Drive: When The Driving Voltage Is Higher Than 12V, Less Than Or Equal To 24V. First, The Onboard 5V Output Enabled Jumper Cap Must Be Removed, And Then Connect The 5V External Voltage To The 5V Input Interface To Power The L298N Internal Logic Circuit.

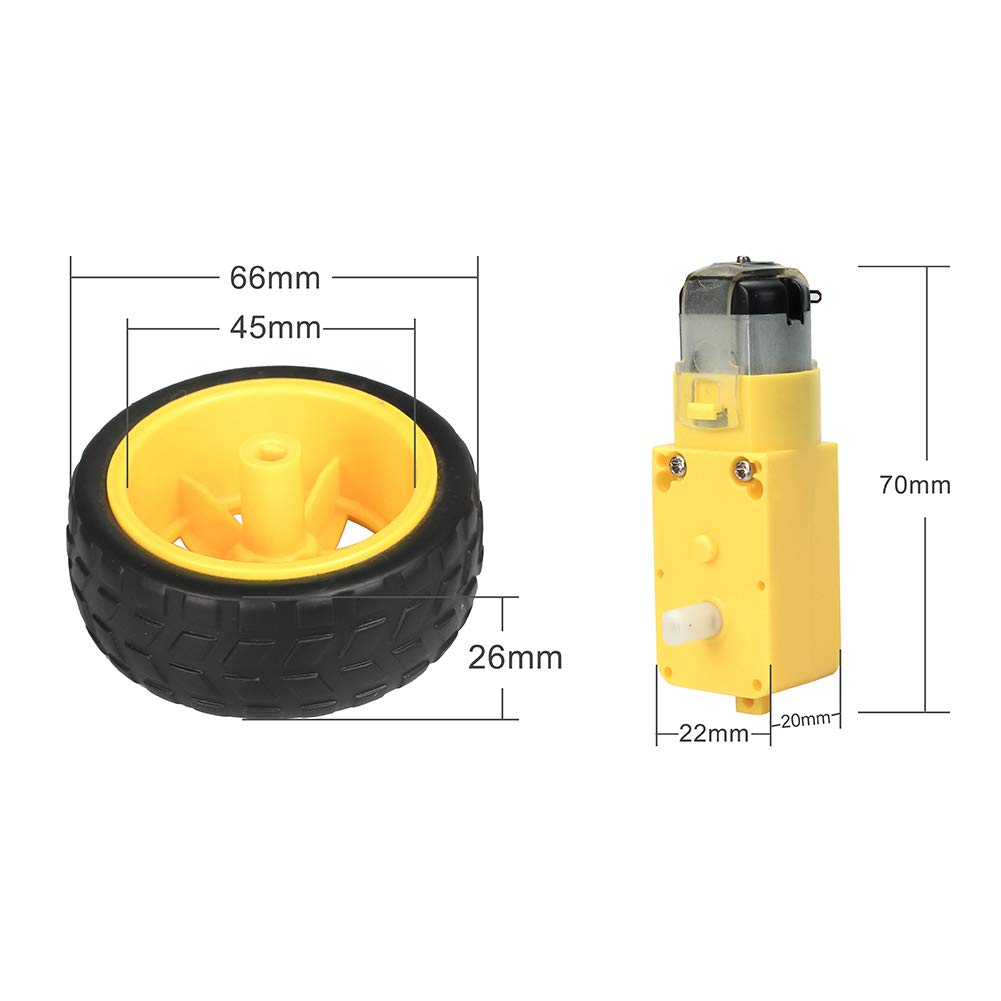

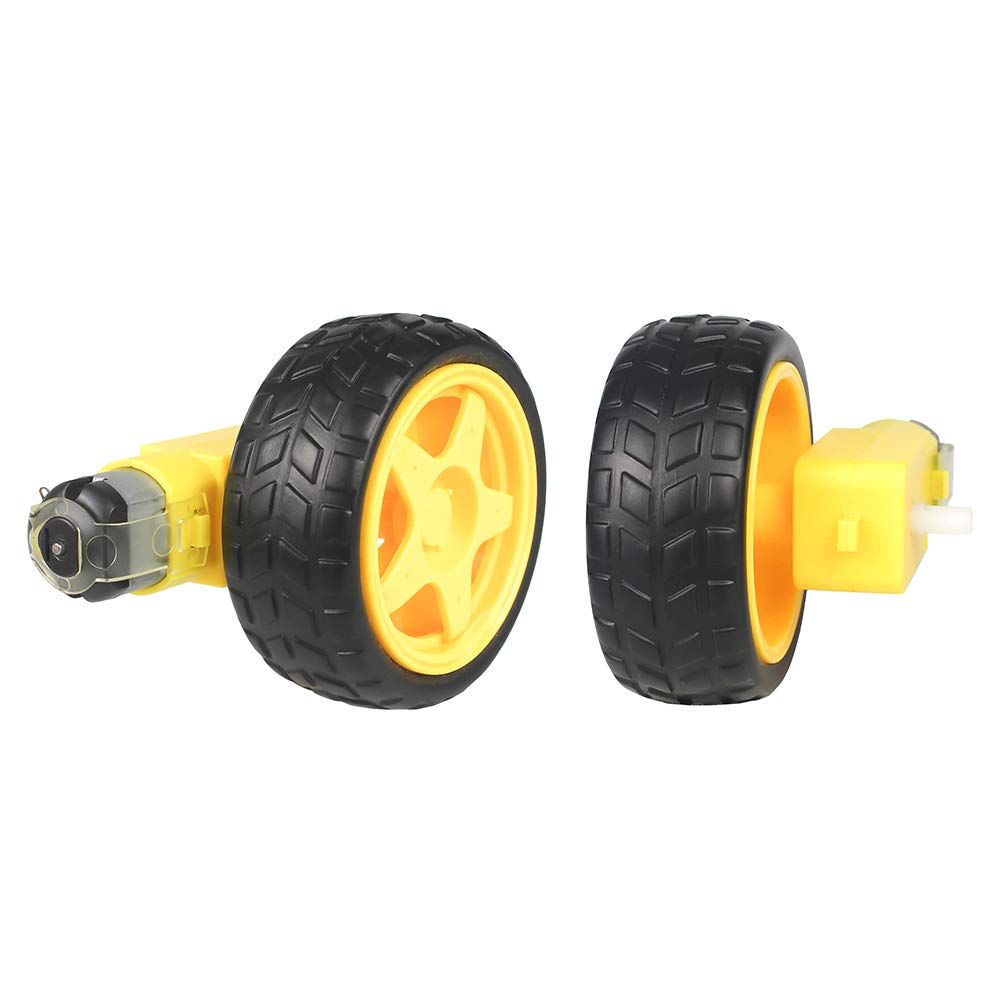

Dc Motor Operating Voltage: 3V ~ 6V Dc Reduction Ratio: 1:48 When The Voltage Is 6V: No-Load Current: =200Ma No-Load Speed: 200�10%Rpm When The Voltage 3V: No-Load Current: =150Ma No-Load Speed: 90�10%Rpm

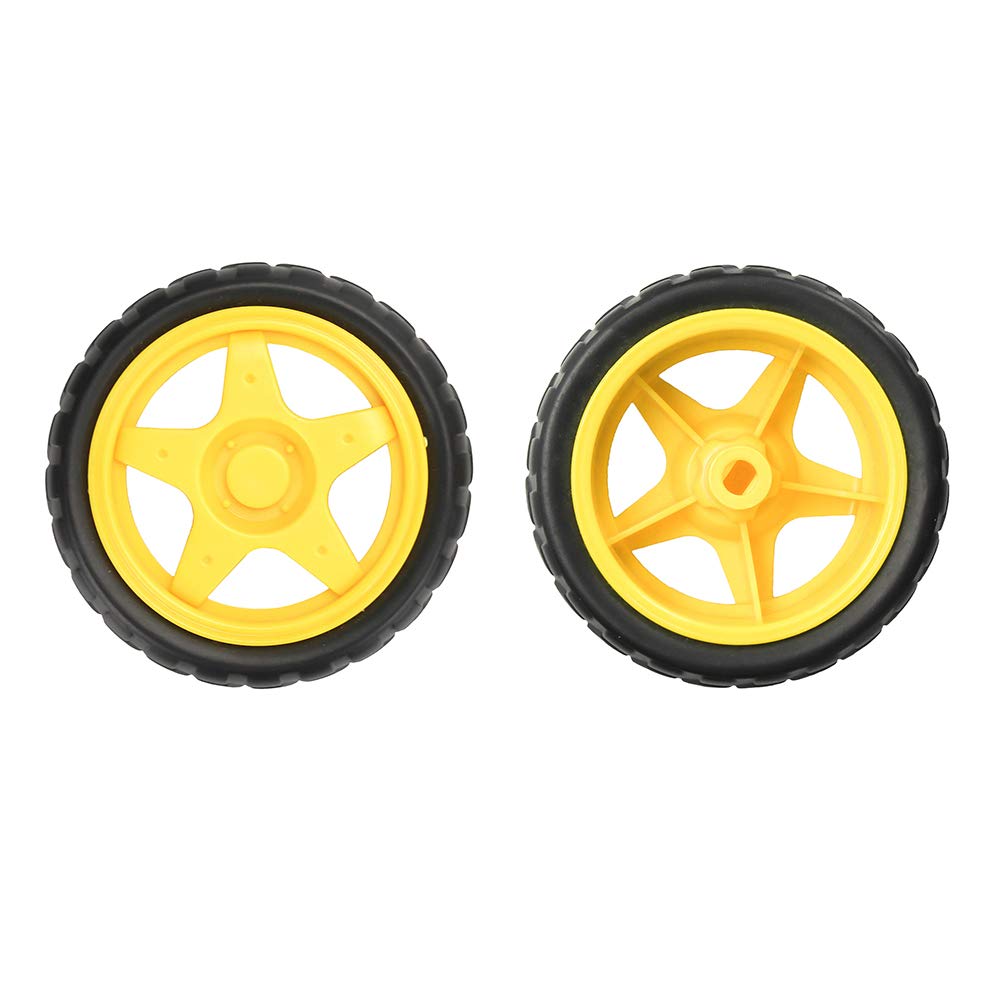

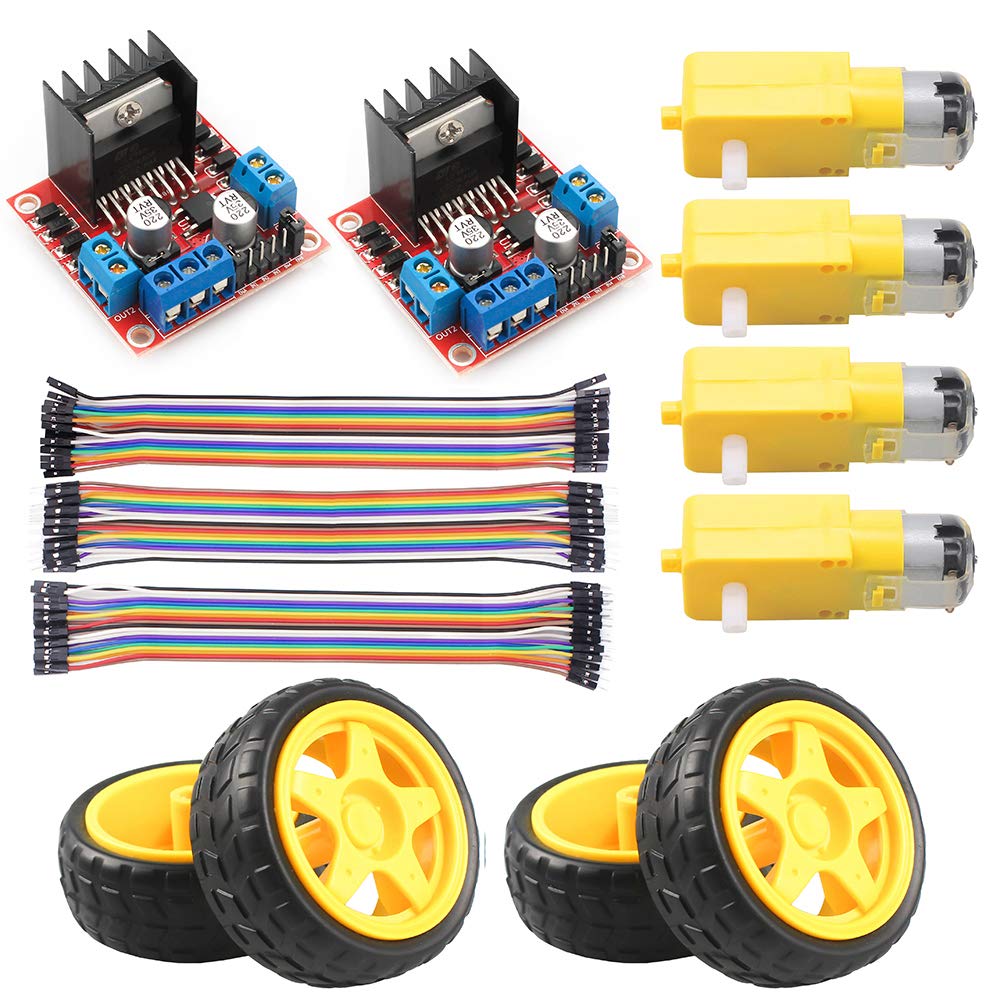

Product List: 4 X Smart Car Wheel 4 X Dc Motor 2 X L298N Motor Drive Controller Board 20 X 20Cm Jumer Wire Female To Female 20 X 20Cm Jumer Wire Male To Male 20 X 20Cm Jumer Wire Male To Female
Keeyees: Best Choice In Various Electronic Modules & Components, Diy Parts And Tools To Support Your Work And Design Challenges From Home, School To Industrial Applications!
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
