This Semi-Automatic Sealing Machine Operates With Constant Heat And Features A Versatile Dual-Fit System For Seal Head Orientation (Vertical And Horizontal). Capable Of Sealing Most Heat-Sealable Bags, Including Those Made Of Bopp, Pvc, Pe, Pu, Bopet, Cello, And Laminated Materials, It Offers A 10 Mm (3/8 Inch) Seal Width And Compatibility With Various Bag Formats Such As Pillow, Pouch, Sack, Open Mouth, Stand-Up, Doypack, Gusseted, Multi-Ply, And Flat Bottom. Recommended For Light-Duty Use, The Machine Requires Necessary Warm-Up And Has A Temperature Range Of 0 - 300�C With A Cooling Feature. The Seal Head Is Height Adjustable, And The Product Flow Is From Right To Left. Additional Features Include Easy Access Panels, An E-Stop, Analog Temperature Controller, Master On Indicator, And Optional Continuous Alphanumeric Character Embossing. The Sealing Machine Utilizes A Ptfe Seal Belt With 2 Heating And Cooling Bars. It Operates On A Motorized Belt With Adjustable Speed (Up To 12 Mt/Min) And Has A Conveyor Width Of 13.5 Cm (5.3 Inches). The Construction Is Metal With Electrostatic Coating, And It Can Be Placed On A Tabletop Or Optional Rolling Base. The Machine Dimensions Are 88 X 38 X 55 Cm (34.65 X 14.96 X 21.65 Inches), Weighing 27 Kg (59.6 Lbs). When Shipped, It Has Dimensions Of 96.5 X 52.1 X 41.9 Cm (37.99 X 20.51 X 16.5 Inches) And A Shipping Weight Of 36 Kg (79.4 Lbs). Certification Details Are Not Specified. It Operates On A Voltage Of 110V At 50-60Hz, With A Power Consumption Of 650W/5.9A, And Uses A Nema 5-15P Plug. Compressed Air And Chiller Are Not Required For Operation.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the JORESTECH Industrial Continuous Band Sealer?A: The dimensions are eighty-eight centimeters long, thirty-eight centimeters wide, and fifty-five centimeters high.
Q: What is the weight of the sealing machine?A: The machine weighs twenty-seven kilograms.
Q: What materials can the band sealer seal?A: It can seal various thermoplastic materials, including polyethylene, polypropylene, BOPP, PVC, and laminated materials.
Q: What is the maximum seal width of this machine?A: The maximum seal width is ten millimeters.
Q: What is the temperature range for the JORESTECH Band Sealer?A: The machine operates within a temperature range of zero to three hundred degrees Celsius.
Q: How do I operate the JORESTECH Band Sealer?A: To operate, select the desired temperature, adjust the height of the seal head, and feed the bag into the sealing area.

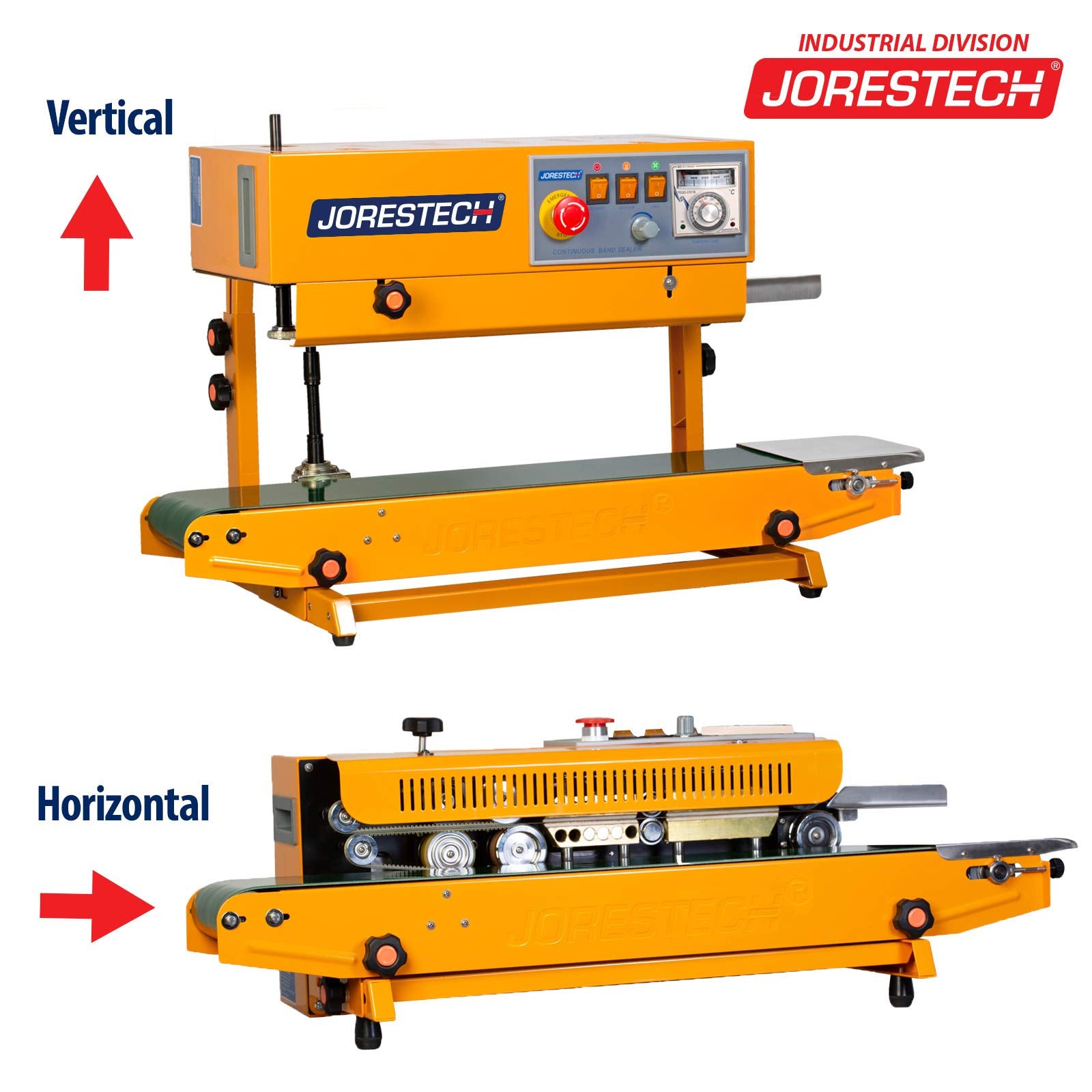

Q: Is this band sealer suitable for both horizontal and vertical sealing?A: Yes, it features a dual-fit system allowing for both horizontal and vertical bag sealing.
Q: What is the maximum sealing speed of the machine?A: The maximum sealing speed is twelve meters per minute.
Q: Can I use this band sealer for heavy-duty applications?A: No, this model is recommended for light-duty use.
Q: How do I clean the JORESTECH Band Sealer?A: To clean, turn off the machine, unplug it, and wipe down the surfaces with a damp cloth.
Q: What is the shipping weight of the JORESTECH Band Sealer?A: The shipping weight is thirty-six kilograms.
Q: Does the band sealer require compressed air for operation?A: No, compressed air is not required for this machine's operation.
Q: What type of plug is used with this band sealer?A: It uses a NEMA five-fifteen P plug.
Q: What if my band sealer arrives damaged?A: If it arrives damaged, contact customer support for assistance with returns or replacements.
Q: Is there a warranty available for the JORESTECH Band Sealer?A: Warranty details are not specified, so please check with the manufacturer for coverage.
