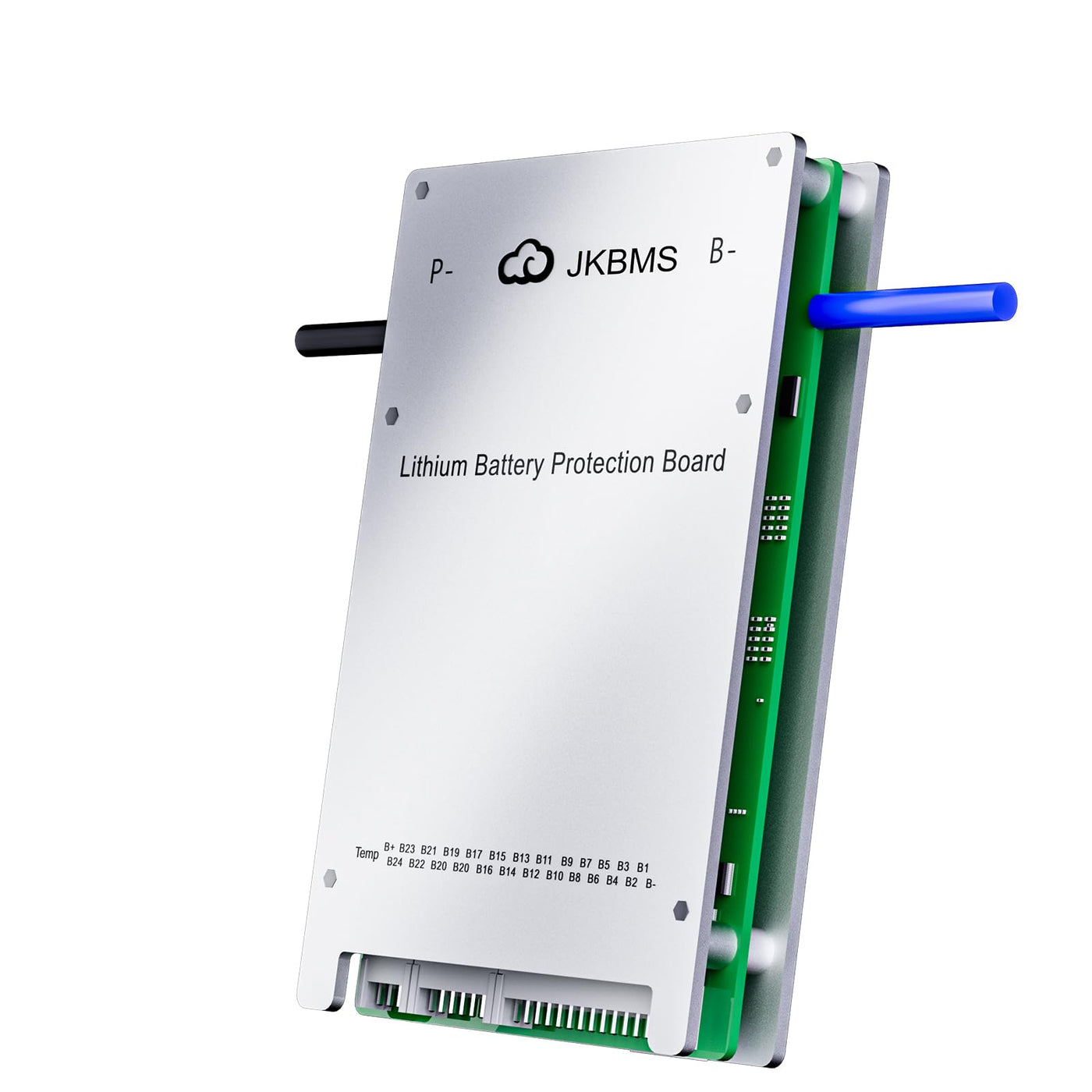

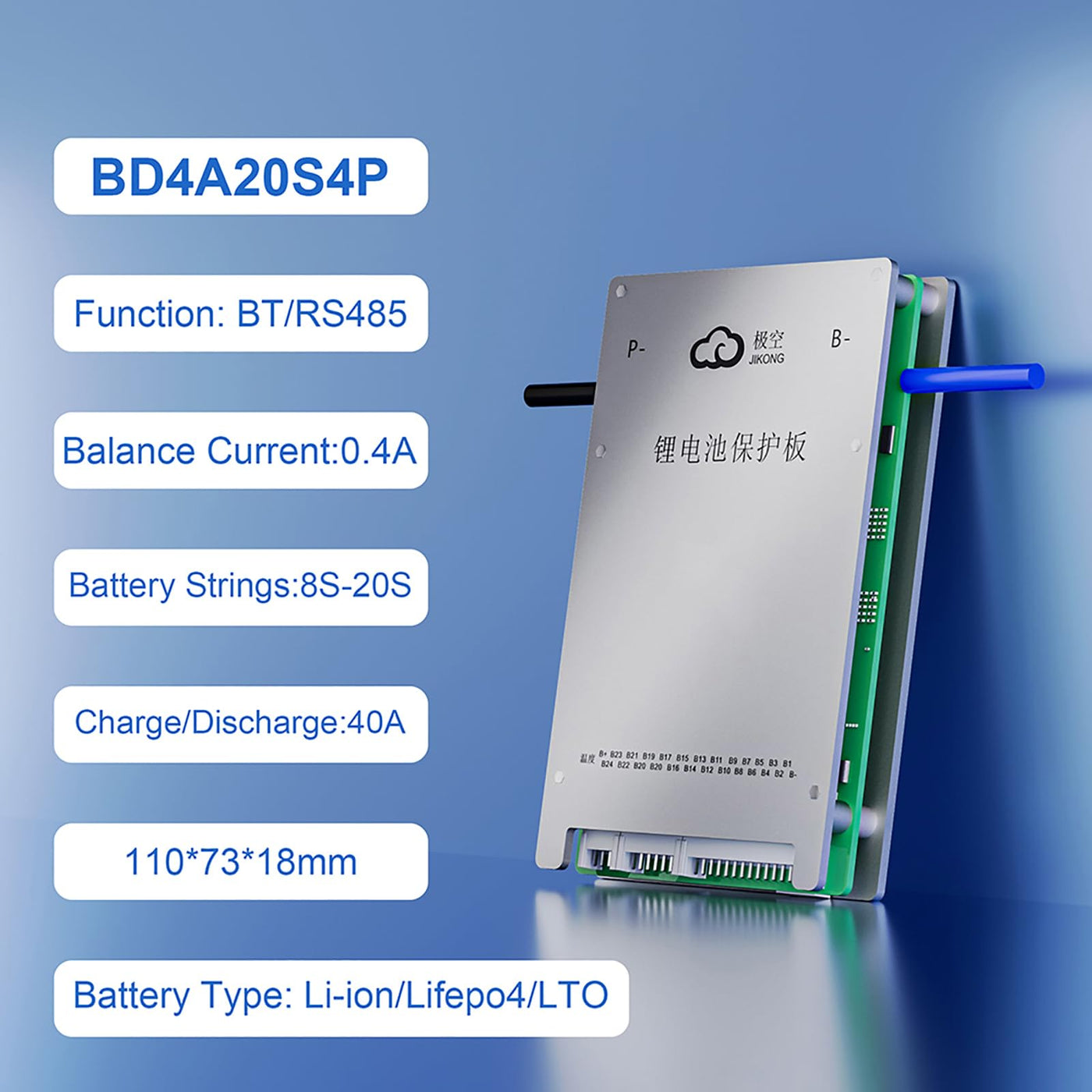

Description: Accessory Type : Battery Accessories Brand Name : Jkbms Origin : Mainland China Battery String : 8S-24S Continuous Current : 40A Battery Type : Li-Ion,Lifepo4,Lto Balance Method : Active Balacnce Balance Current : 0.4A Applications : 3.2V Lifepo4,3.7V Li-Ion Voltage : Bms 24V - Bms 72V Temp Sensor : Yes Bluetooth : Built-In Certification : Iso/ Fcc/ Rohs/ Pse/ Ce Overcurrent Protection : Yes Over Charge Protection : Yes Over Discharge Voltage : Yes Short Circuit Protection : Yes Temperature Protection : Yes Balance Function : Yes Gps Function : According To Cusotmer Need Can Communication : According To Cusotmer Need Rs485 Function : According To Cusotmer Need Jkbms Brand Promise: Non-Human Damage?1 Year Manufacturer,Provide After-Sales Technical Support. Package: Bms?Bluetooth Built-In?*1 Wires (70Cm)*1 Switch(50Cm)*1 Ntc(40Cm)*1 Operate Manual*1 Note: Strictly Forbidden To Reversely Connect The B- And C- Cables Of The Bms, Forbidden To Confuse Wiring. Wiring Must Start From B- To B+ And Be Connected In Sequence. Measure The Voltage Of Each Battery String With A Multimeter To Ensure The Correct Line Sequence. Connect B- Of Bms To The Total Negative Of Battery Before Pluging The Sampling Cable Into The Bms, Otherwise, The Board Will Be Burnt. Please Operate In Strict Accordance With The Instruction Manual And The Guidance Of Customer Service Personnel When Installing The Bms.&Nbsp; If The Bms Does Not Work Or Is Damaged Due To Misoperation Without Following The Instructions And Customer Service Instructions, Customer Need To Pay For Repair Or Replacement.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the JKBMS Smart BMS?A: The dimensions are four point five seven inches in length, four point zero six inches in width, and zero point six nine inches in height.
Q: What type of batteries does the JKBMS Smart BMS support?A: It supports Li-ion, LiFePO4, and LTO battery types.
Q: What is the continuous current rating of the JKBMS Smart BMS?A: The continuous current rating is forty amperes.

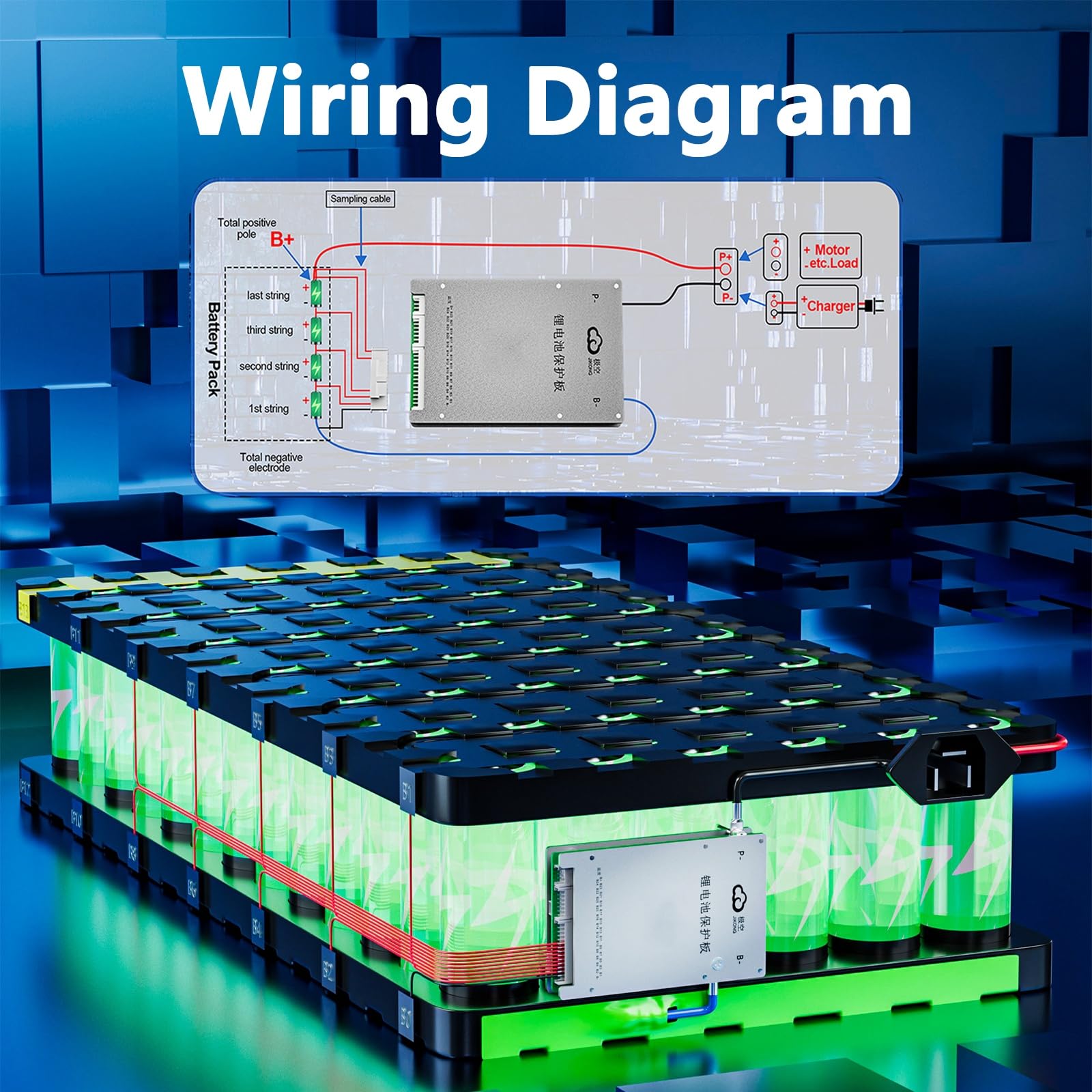

Q: How do I install the JKBMS Smart BMS?A: To install, connect the B- and B+ cables in sequence, starting from B- to B+, following the instruction manual.
Q: Is the JKBMS Smart BMS suitable for my electric scooter?A: Yes, it is suitable for electric scooters, electric motorbikes, and other applications.
Q: Can I use the JKBMS Smart BMS with a twelve volt battery?A: No, it is designed for battery strings ranging from twenty four volts to sixty volts.
Q: How do I maintain the JKBMS Smart BMS?A: Keep it in a dry environment, avoid reverse connections, and follow the installation guidelines in the manual.

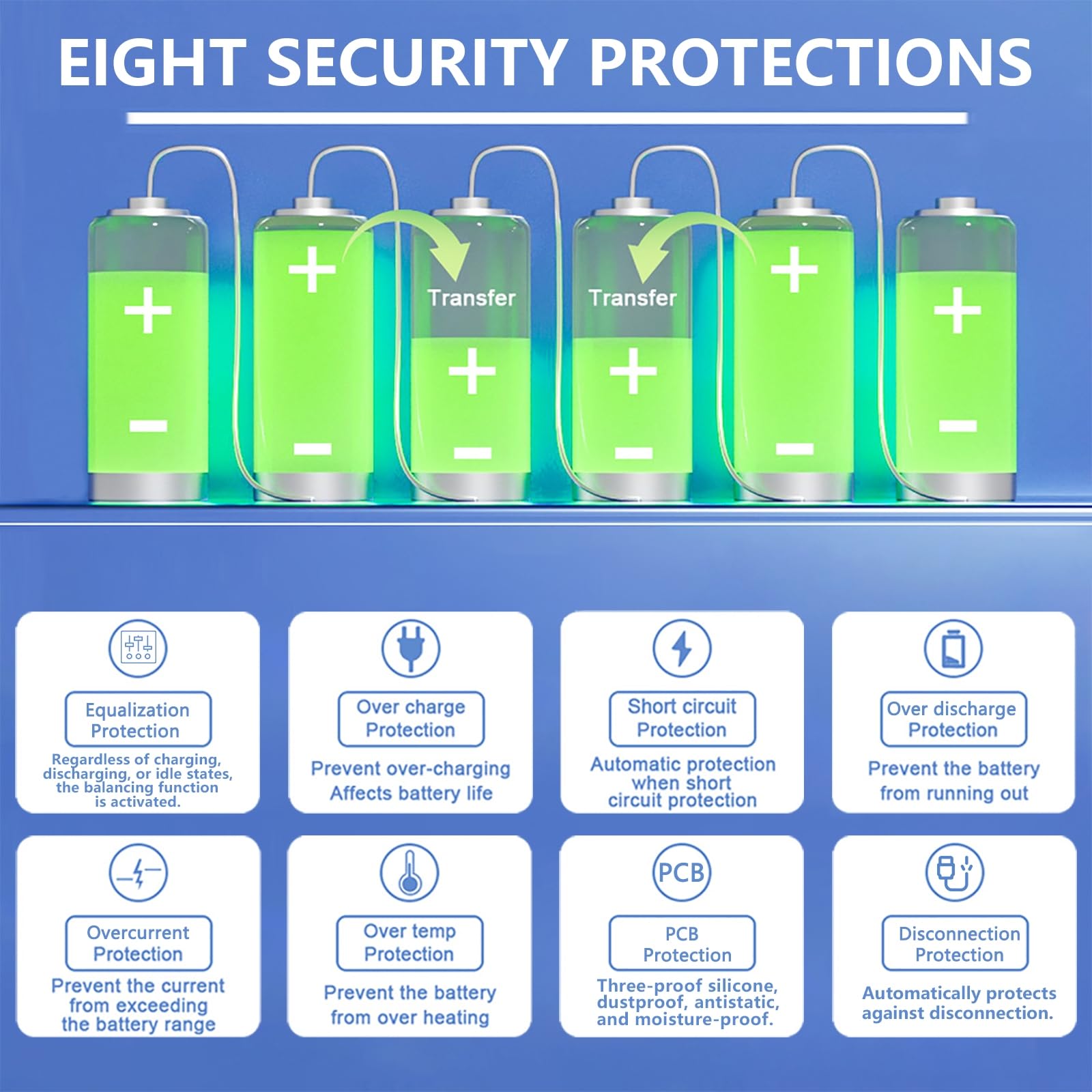

Q: What protections does the JKBMS Smart BMS feature?A: It features overcurrent protection, overcharge protection, over discharge voltage protection, short circuit protection, and temperature protection.

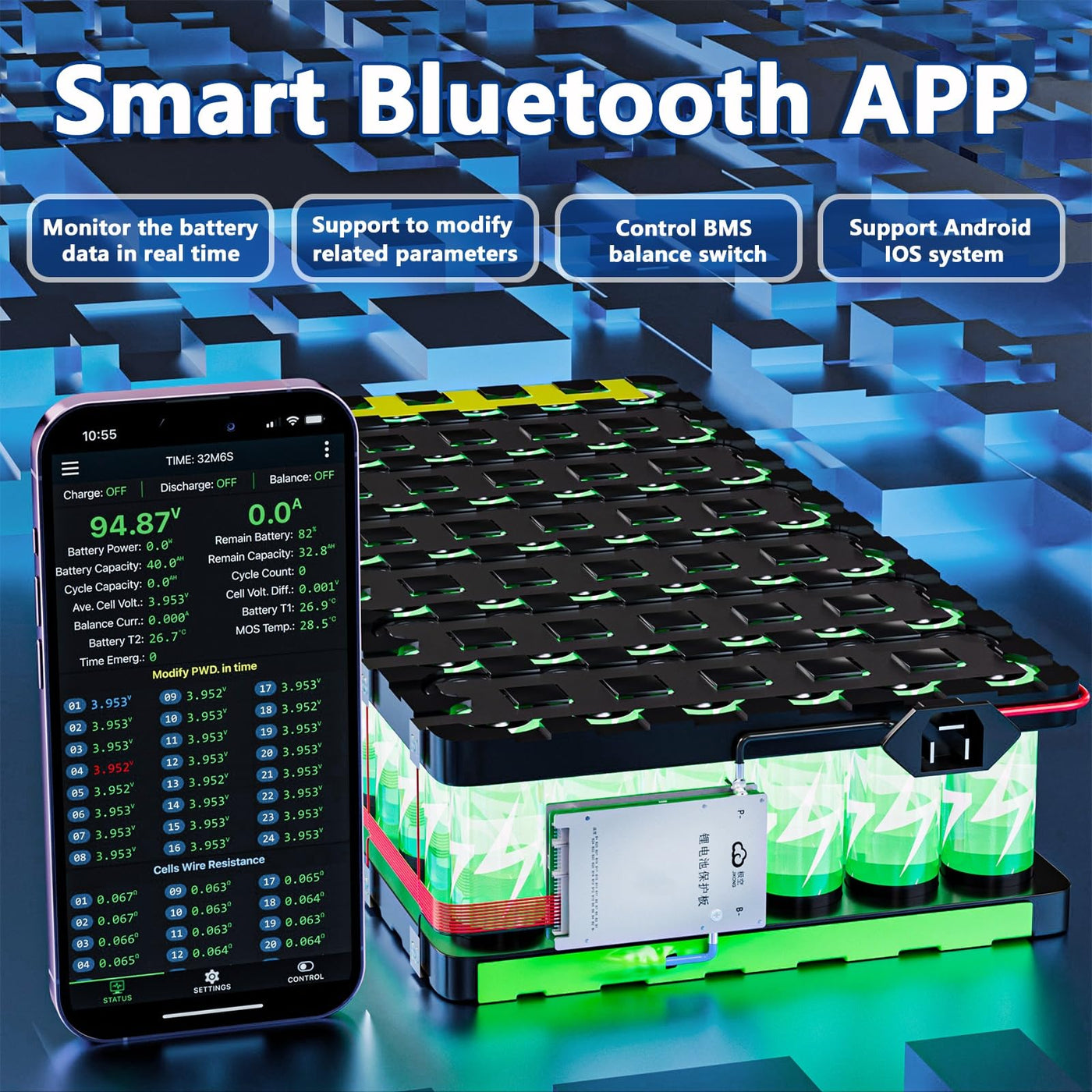

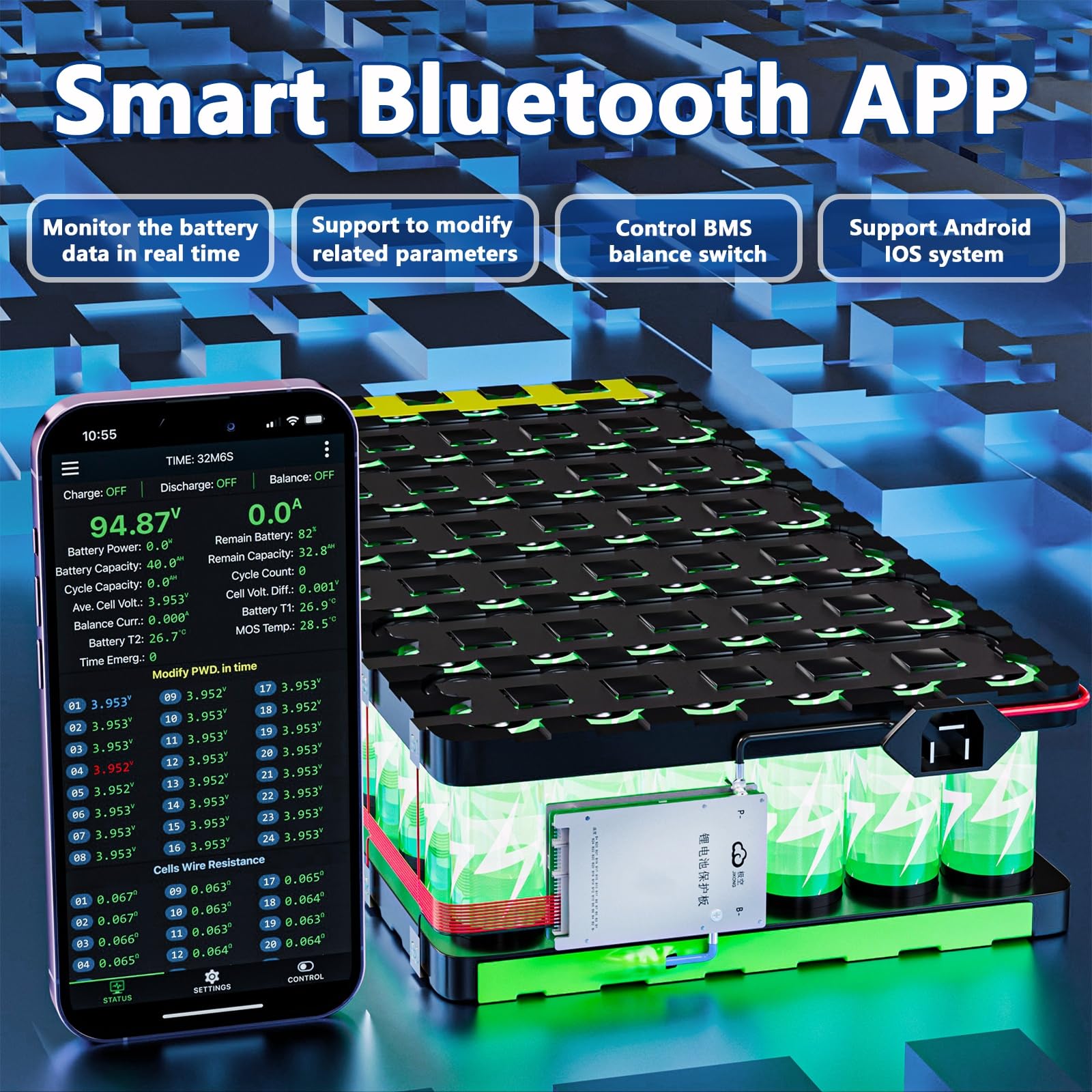

Q: How do I monitor the JKBMS Smart BMS?A: You can monitor it via the JK BMS mobile app for Android and iOS, utilizing Bluetooth connectivity.
Q: What if my JKBMS Smart BMS arrives damaged?A: If it arrives damaged, please contact customer support through your order page for assistance.
Q: Does the JKBMS Smart BMS come with a warranty?A: Yes, it comes with a one year manufacturer warranty for non-human damage.
Q: Is technical support available for the JKBMS Smart BMS?A: Yes, after-sales technical support is provided for any questions or concerns.
Q: Can I use the JKBMS Smart BMS for home energy storage?A: Yes, it can be used for home energy storage systems that require battery management.
Q: Is it safe to connect the JKBMS Smart BMS incorrectly?A: No, incorrectly connecting the B- and C- cables can cause damage to the board.
Q: What is the balance method used in the JKBMS Smart BMS?A: It uses an active balance method with a balance current of zero point four amperes.
Q: Does the JKBMS Smart BMS include a manual?A: Yes, it includes an operate manual with installation instructions.
