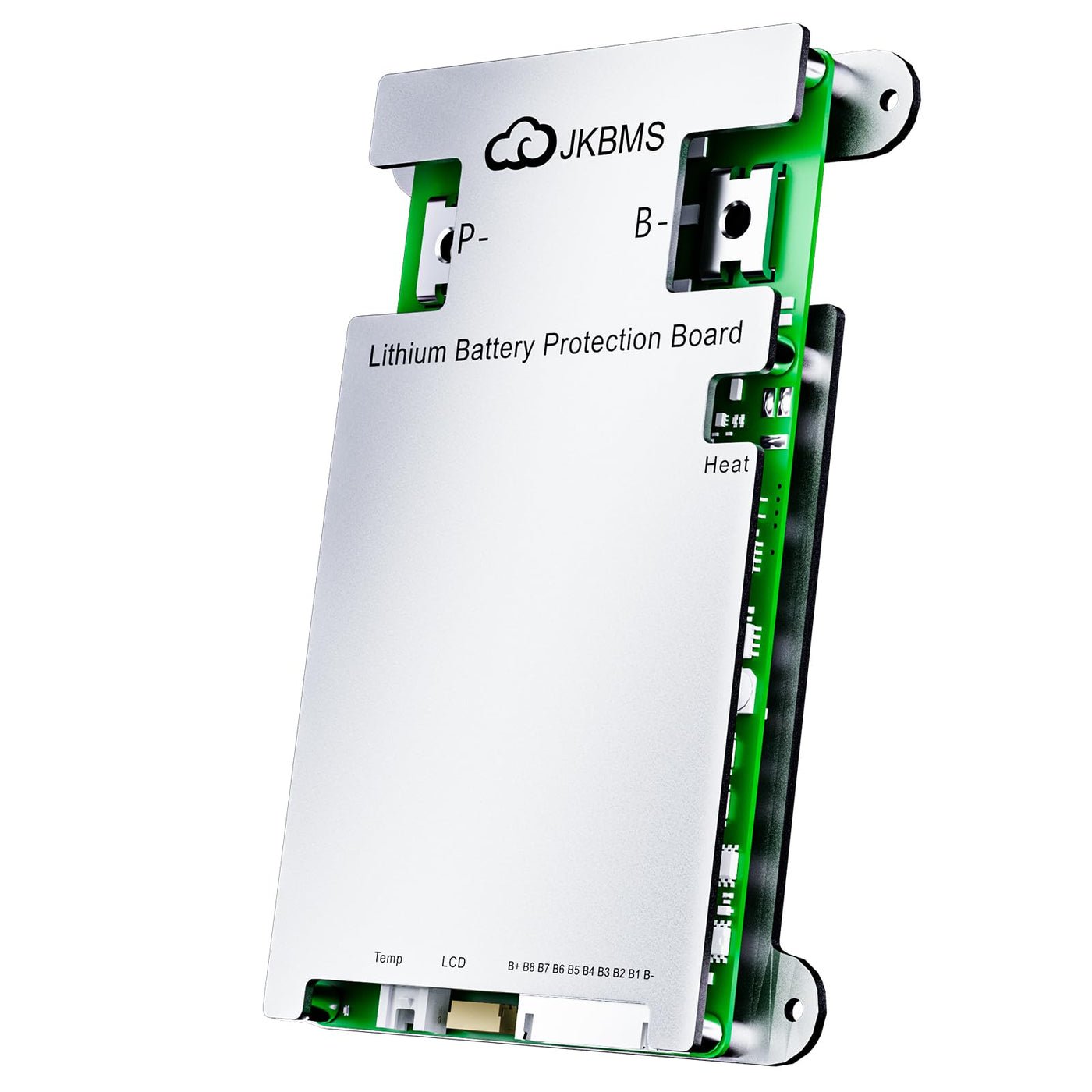

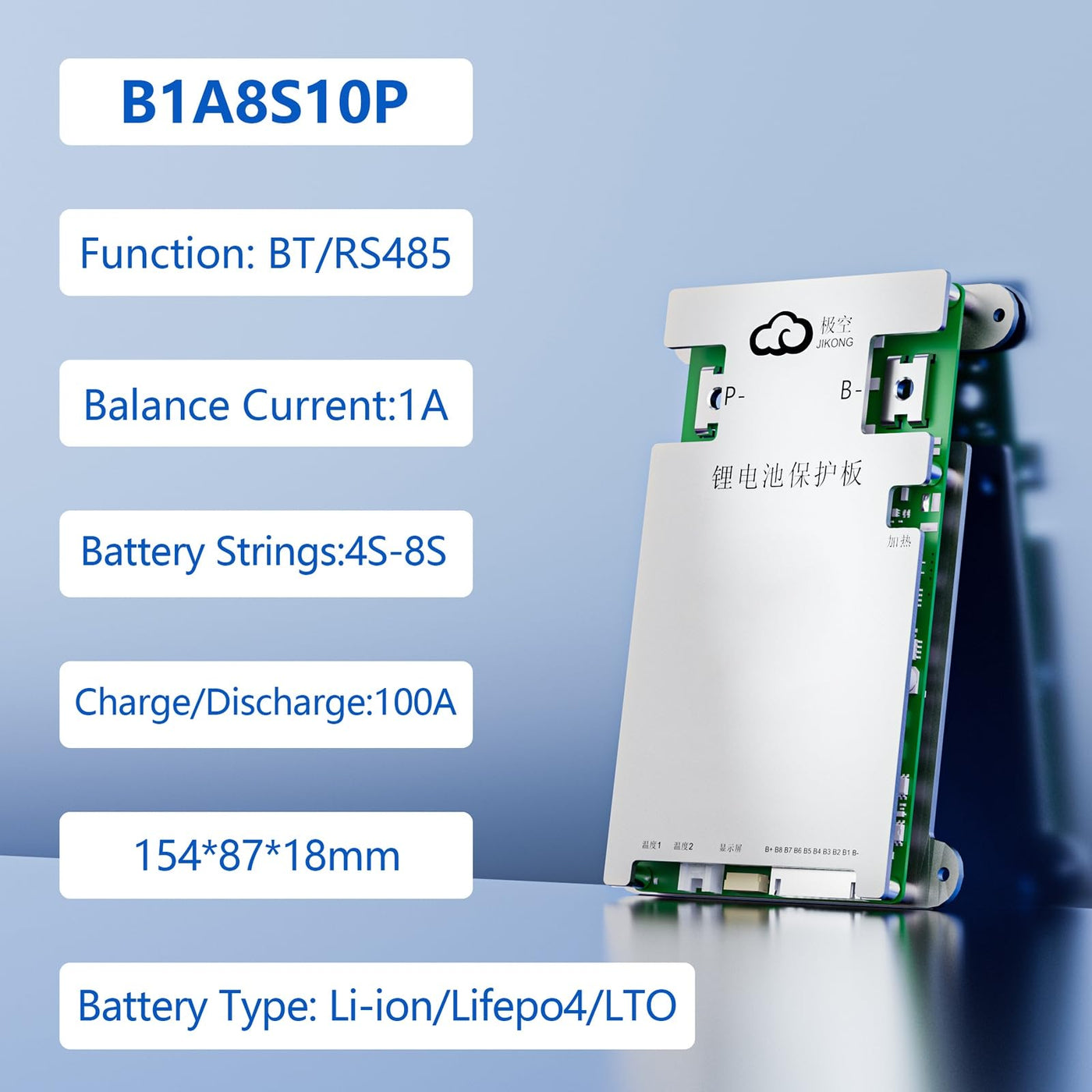

Description: Accessory Type : Battery Accessories Brand Name : Jkbms Origin : Mainland China Model Number : 4-8S 100A Battery Type : Li-Ion,Lifepo4,Lto Equalization Method : Active Balacnce Applications : 3.2V Lifepo4,3.7V Li-Ion Voltage : Bms 12V - Bms 24V Temp Sensor : Yes Bluetooth : Built-In Certification : Iso/ Fcc/ Rohs/ Pse/ Ce Overcurrent Protection : Yes Over Charge Protection : Yes Over Discharge Voltage : Yes Short Circuit Protection : Yes Temperature Protection : Yes Balance Function : Yes Gps Function : According To Cusotmer Need Can Communication : According To Cusotmer Need Rs485 Function : According To Cusotmer Need Jkbms Brand Promise: Non-Human Damage?1 Year Manufacturer,Provide After-Sales Technical Support. Package: Bms?Bluetooth Built-In?*1 Wires (70Cm)*1 Switch(50Cm)*1 Ntc(40Cm)*1 Screw*2 Operate Manual*1 Note: Strictly Forbidden To Reversely Connect The B- And C- Cables Of The Bms, Forbidden To Confuse Wiring. Wiring Must Start From B- To B+ And Be Connected In Sequence. Measure The Voltage Of Each Battery String With A Multimeter To Ensure The Correct Line Sequence. Connect B- Of Bms To The Total Negative Of Battery Before Pluging The Sampling Cable Into The Bms, Otherwise, The Board Will Be Burnt. Please Operate In Strict Accordance With The Instruction Manual And The Guidance Of Customer Service Personnel When Installing The Bms.&Nbsp; If The Bms Does Not Work Or Is Damaged Due To Misoperation Without Following The Instructions And Customer Service Instructions, Customer Need To Pay For Repair Or Replacement.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What is the size of the JKBMS Smart BMS?A: The JKBMS Smart BMS measures six point zero six inches in length, four point two one inches in width, and zero point six nine inches in height.
Q: What types of batteries does this BMS support?A: This BMS supports Li-ion, LiFePO4, and LTO battery types, making it versatile for various battery applications.
Q: What is the continuous current rating of the JKBMS Smart BMS?A: The continuous current rating is one hundred amperes, which allows for robust performance in battery management.

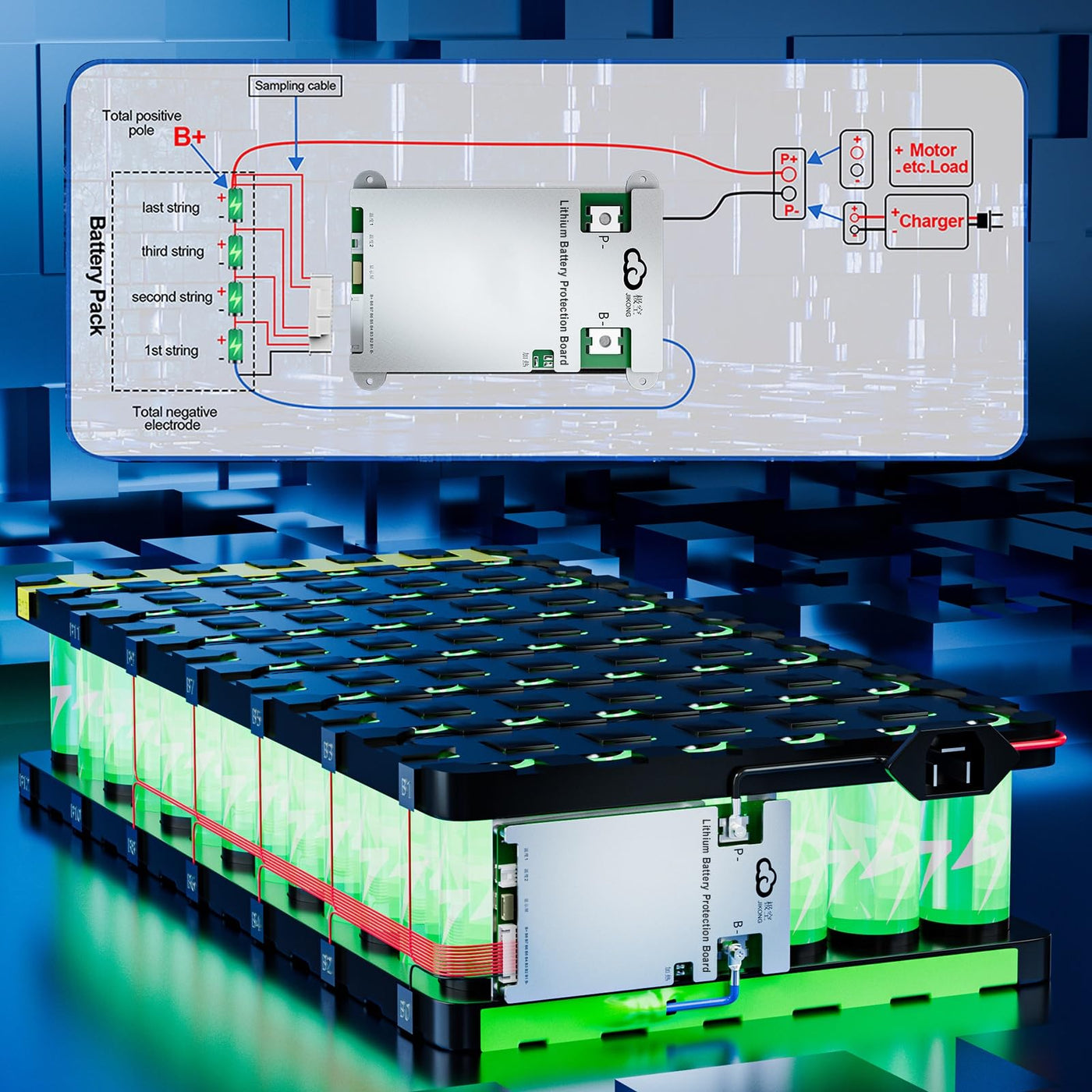

Q: How do I install the JKBMS Smart BMS?A: Connect the B- terminal to the total negative of the battery and follow the wiring sequence from B- to B+ to ensure proper installation.
Q: Is this BMS suitable for solar panel applications?A: Yes, this BMS is ideal for solar panel applications, enabling efficient energy management and battery protection.

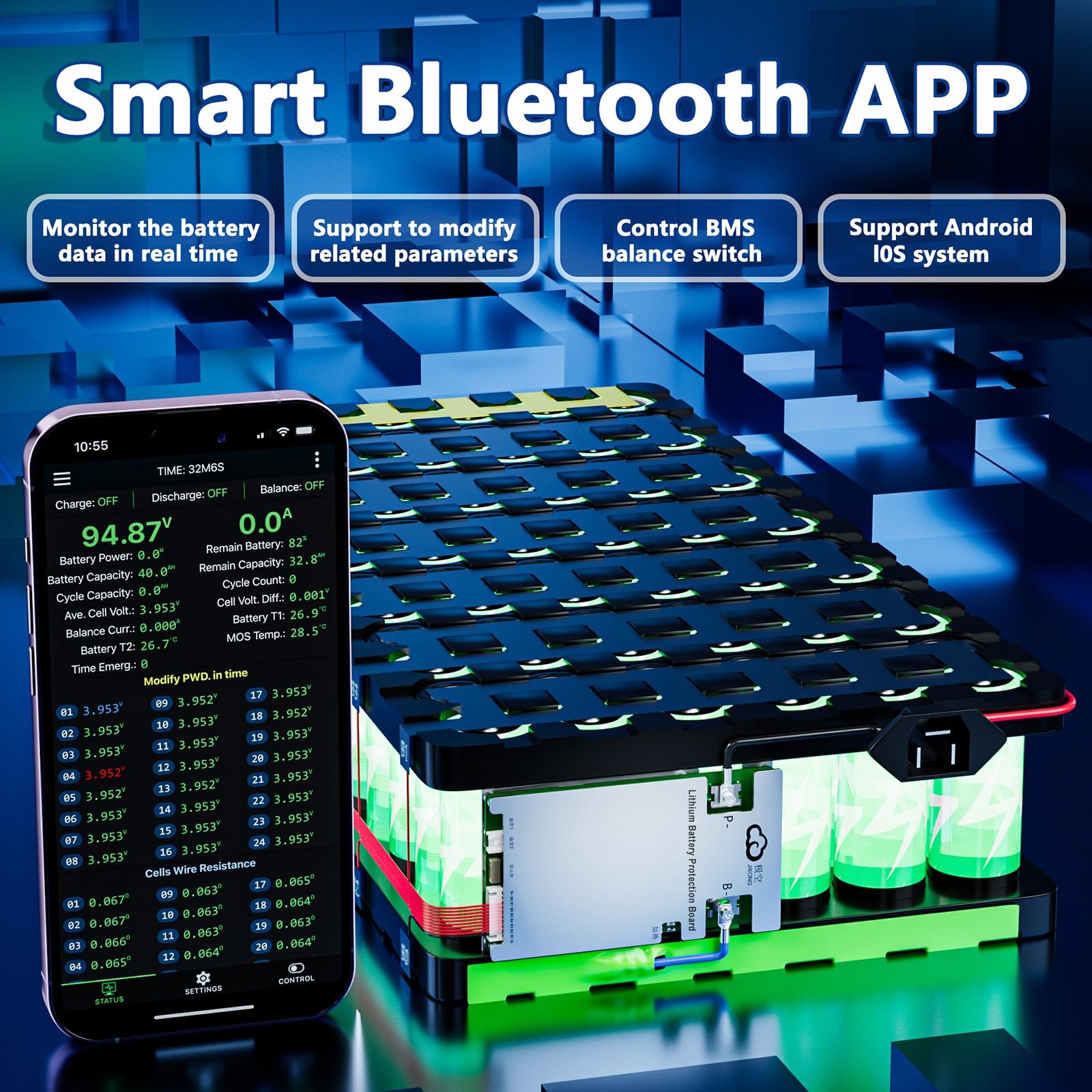

Q: Can I monitor this BMS with a mobile app?A: Yes, you can manage the JKBMS Smart BMS using a mobile app available for both Android and iOS devices.
Q: How should I care for the JKBMS Smart BMS?A: Keep the BMS dry, avoid reverse connections, and follow the operating manual for installation and maintenance.

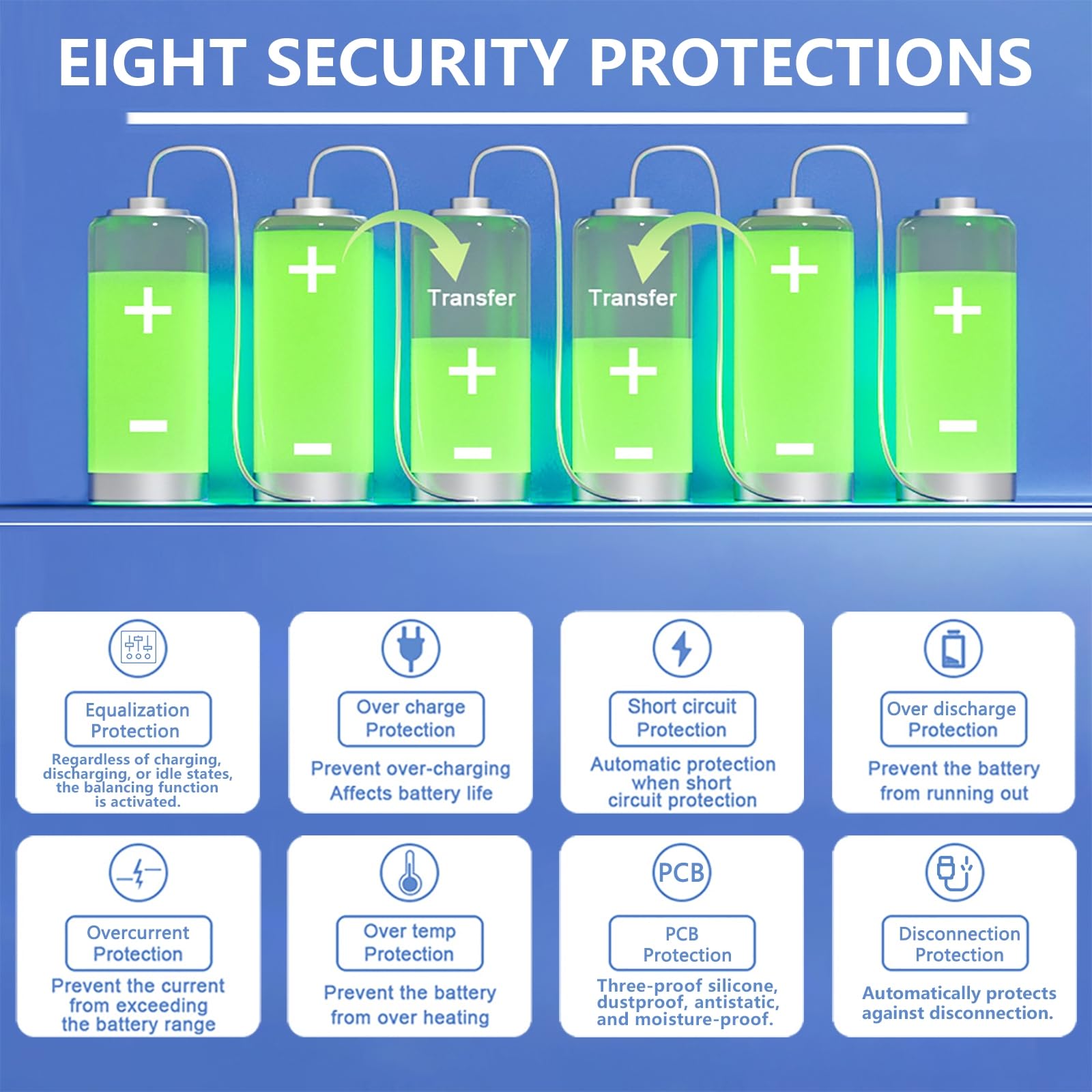

Q: What protections does this BMS offer?A: The BMS includes protections against overcharging, overdischarging, overcurrent, short circuits, and temperature extremes.
Q: How do I ensure the BMS is working correctly?A: Use a multimeter to measure the voltage of each battery string and ensure the correct line sequence before connecting.
Q: What should I do if my BMS arrives damaged?A: Contact customer support through your order page for assistance with repair or replacement options.
Q: Does this BMS come with a warranty?A: Yes, the JKBMS Smart BMS comes with a one-year manufacturer warranty covering non-human damage.
Q: Is there technical support available for this product?A: Yes, JKBMS provides after-sales technical support to assist with any questions or concerns you may have.
Q: Can I use this BMS with an RV?A: Absolutely, this BMS is suitable for RV applications, enhancing battery performance and safety.
Q: What is the voltage range for the JKBMS Smart BMS?A: The voltage range for this BMS is between twelve volts and twenty-four volts, accommodating various battery configurations.
Q: Does the BMS have Bluetooth functionality?A: Yes, the JKBMS Smart BMS has built-in Bluetooth, allowing for convenient monitoring and control from your smartphone.
