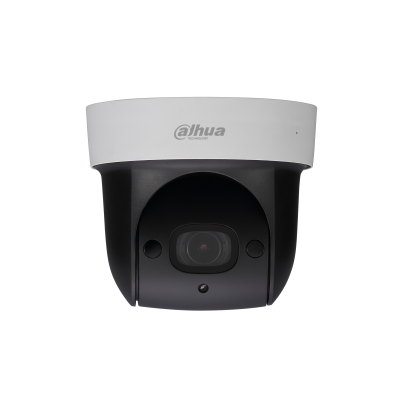

IN STOCK!! Dahua SD29204T-GN-W 2MP 4x IR PTZ Network Camera
$499.00
Add to Cart
1/2.7” 2Megapixel CMOS Powerful 4x optical zoom Support Triple-streams encoding WDR, Day/Night(ICR), Ultra DNR Max. 25/30fps@1080P IVS Support PoE IR distance up to 30m
Camera
Image Sensor
1/2.7” CMOS
Effective Pixels
1920(H) x 1080(V), 2 Megapixels
RAM/ROM
256M/128M
Scanning System
Progressive
Electronic Shutter Speed
1/1s~1/30,000s
Minimum Illumination
Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio
More than 50dB
IR Distance
Distance up to 30m (98ft)
IR On/Off Control
Auto/Manual
IR LEDs
2
Lens
Focal Length
2.7mm~11mm
Max. Aperture
F1.6
Angle of View
H: 112.5° ~ 30°
Optical Zoom
4x
Focus Control
Auto/Manual
Close Focus Distance
100mm~ 1000mm
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect
Observe
Recognize
Identify
120m(394ft)
48m(157ft)
24m(79ft)
12m(39ft)
PTZ
Pan/Tilt Range
Pan: 0° ~ 360° limited; Tilt: 0° ~ 90°
Manual Control Speed
Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
Preset Speed
Pan: 100° /s; Tilt: 60° /s
Presets
300
PTZ Mode
5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup
Human-oriented focal Length/ speed adaptation
Power up Action
Auto restore to previous PTZ and lens status after power failure
Idle Motion
Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol
DH-SD
Intelligence
Event Trigger
Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly
Auto Tracking
N/A
IVS
Tripwire, Intrusion,Abandoned/Missing
Advanced Intelligent Functions
Face Detection
Video
Compression
H.264+/H.264/MJPEG
Streaming Capability
3 Streams
Resolution
1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate
Main stream: 1080P/720P/D1 (1 ~ 25/30fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 720P/D1/CIF (1 ~ 25/30fps)
Bit Rate Control
CBR/VBR
Bit Rate
H.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Day/Night
Auto(ICR) / Color / B/W
Backlight Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Noise Reduction
Ultra DNR (2D/3D)
Motion Detection
Support
Region of Interest
support
Electronic Image Stabilization (EIS)
N/A
Defog
Support
Digital Zoom
16x
Flip
180°
Privacy Masking
Up to 24 areas
Audio
Compression
G.711a/G.711u(32kbps)/PCM(128kbps)
Network
Ethernet
RJ-45 (10XBase-T/100Base-TX)
Wifi
N/A
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Interoperability
ONVIF Profile S&G, API
Streaming Method
Unicast / Multicast
Max. User Access
20 users
Edge Storage
NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB
Web Viewer
IE, Chrome, Firefox, Safari
Management Software
Smart PSS, DSS, DMSS
Smart Phone
IOS, Android
Certifications
Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2 , No.60950-1
Interface
Video Interface
N/A
RS485
N/A
Audio I/O
Built-in Mic
Alarm I/O
N/A
Electrical
Power Supply
DC 12V/1.5A, PoE(802.3af)
Power Consumption
10W,13W (IR on)
Environmental
Operating Conditions
-30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection
N/A
Vandal Resistance
N/A
Construction
Casing
Metal
Dimensions
Φ132.7 (mm) x 117.9 (mm)
Net Weight
0.95kg(2.09lb)
Gross Weight
1kg(2.20lb)
