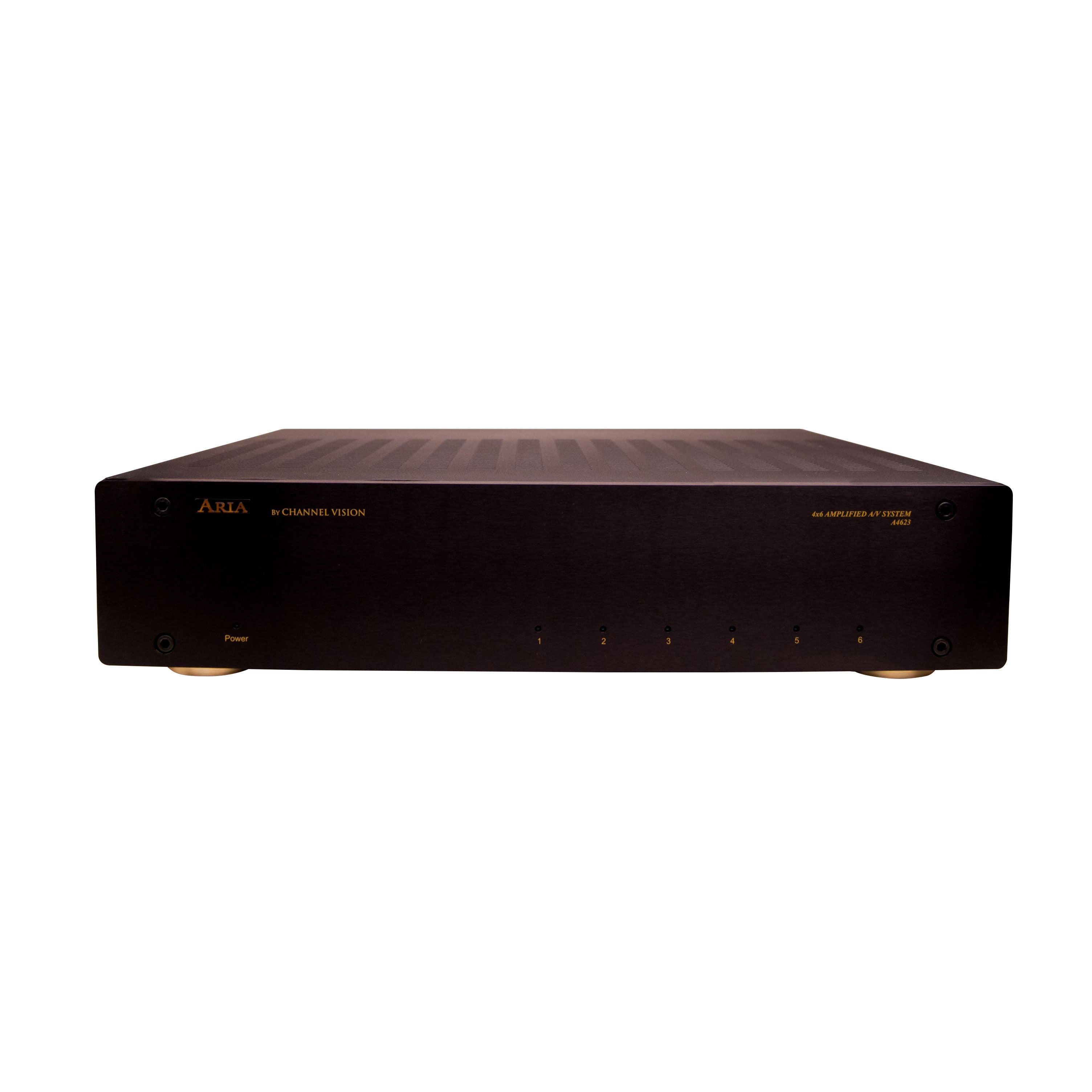

The Channel Vision A4623 4 Input 6 Zone Amplified A/V Controller is designed for whole-house audio/video distribution. The A4623 provides both pre-amp outputs and speaker level outputs for each of the 6 zones making it easy to add a higher power amplifier for more demanding applications. Any of the 4 source inputs can be selected and routed to any of the 6 outputs (or zones) independent of the other zones.
The Channel Vision A4623 4 Input 6 Zone Amplified A/V Controller features a built in amplifier, pre-amp outputs for adding more amplification, and IR/Serial Control options. The A4623 is a cost effective and easy to install solution to manage your whole house audio video systems.
Cabling Plus is an Authorized Stocking Distributor of the entire line of Channel Vision Products.
Includes: A4623 4 Input 6 Zone Amplified A/V Controller
4-input 6-zone amplified AV system
Built-in Amplifiers: 20 Watts per channel
Pre-amp outputs for adding more amplification
Distributes 4 A/V source to 6 different zones
IR and Serial Control options
Cost effective and easy to install
Rack Mount Amplified AV System (A4623R) not included
Part#: A4623
Audio
Bandwidth:20-20kHz ±3dB
Power Output:20W per channel
S/N ratio:>80dB
THD:< 0.5%
Video
Bandwidth:DC-20MHz
Crosstalk:-60 dB
