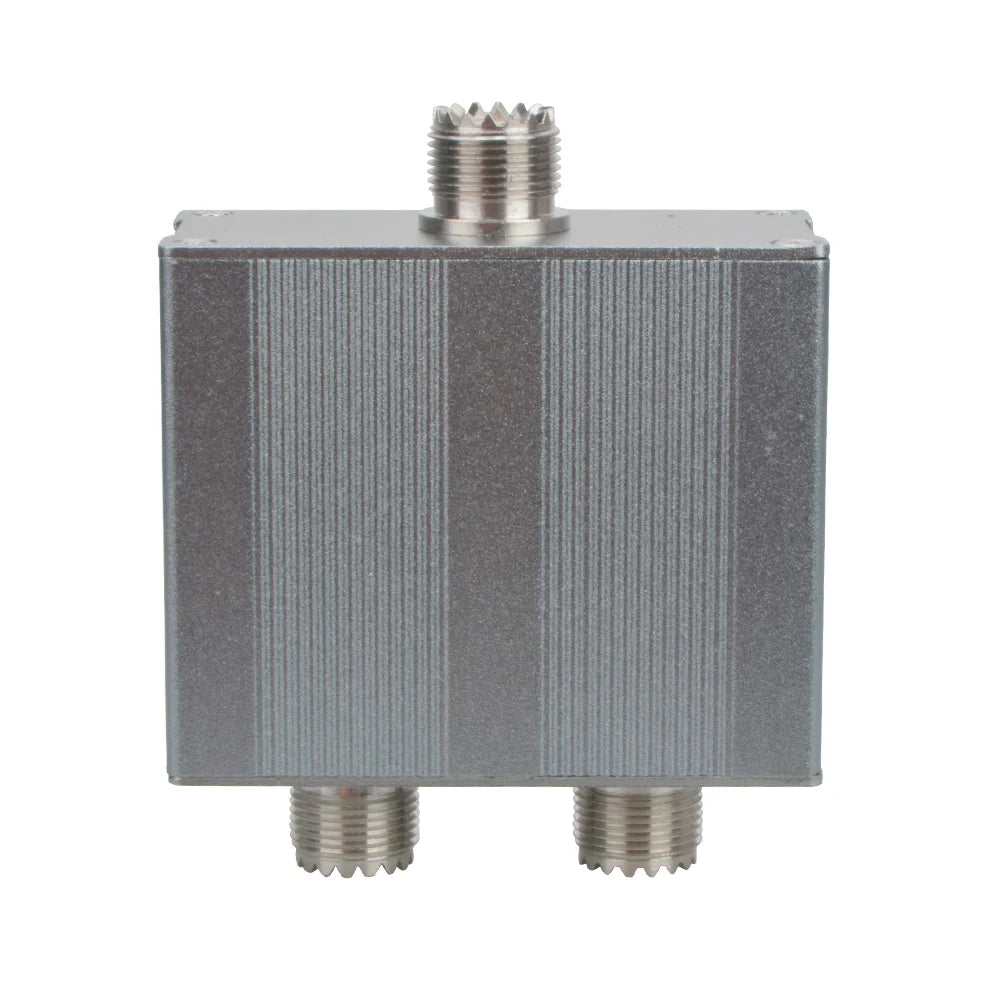

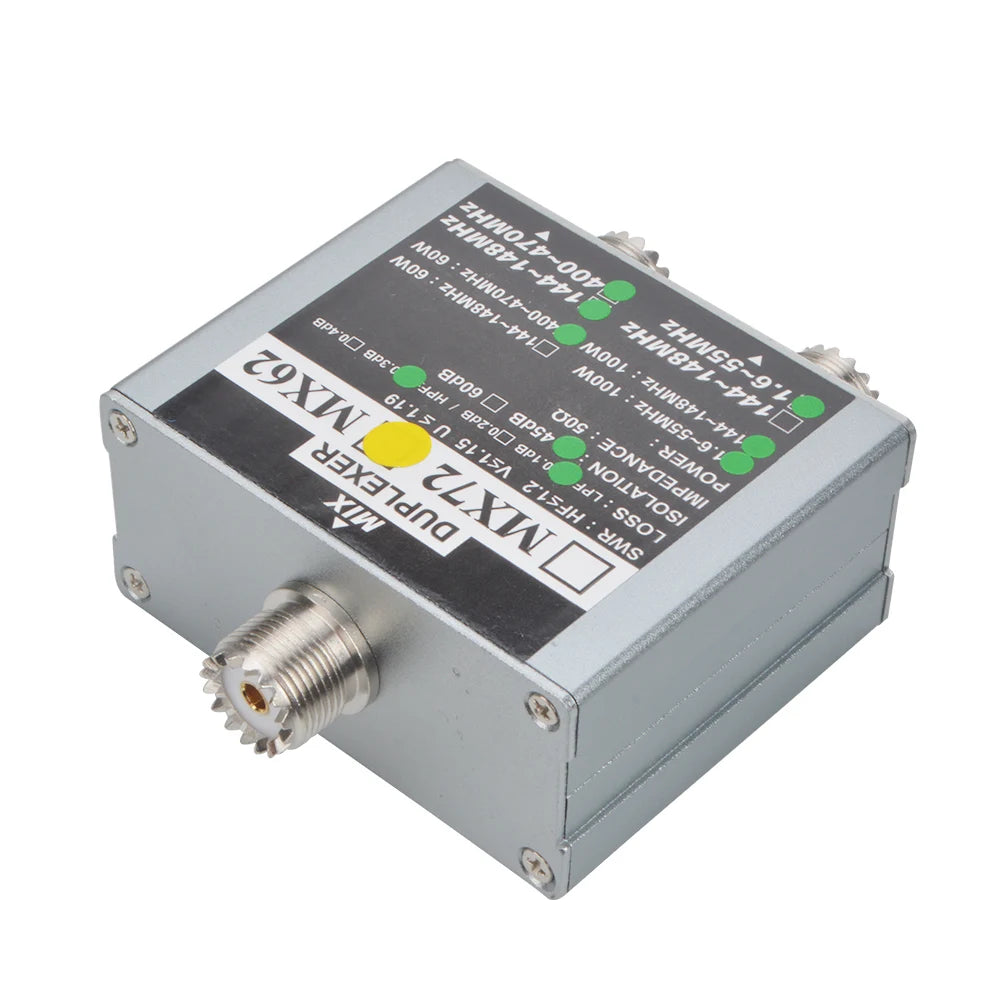

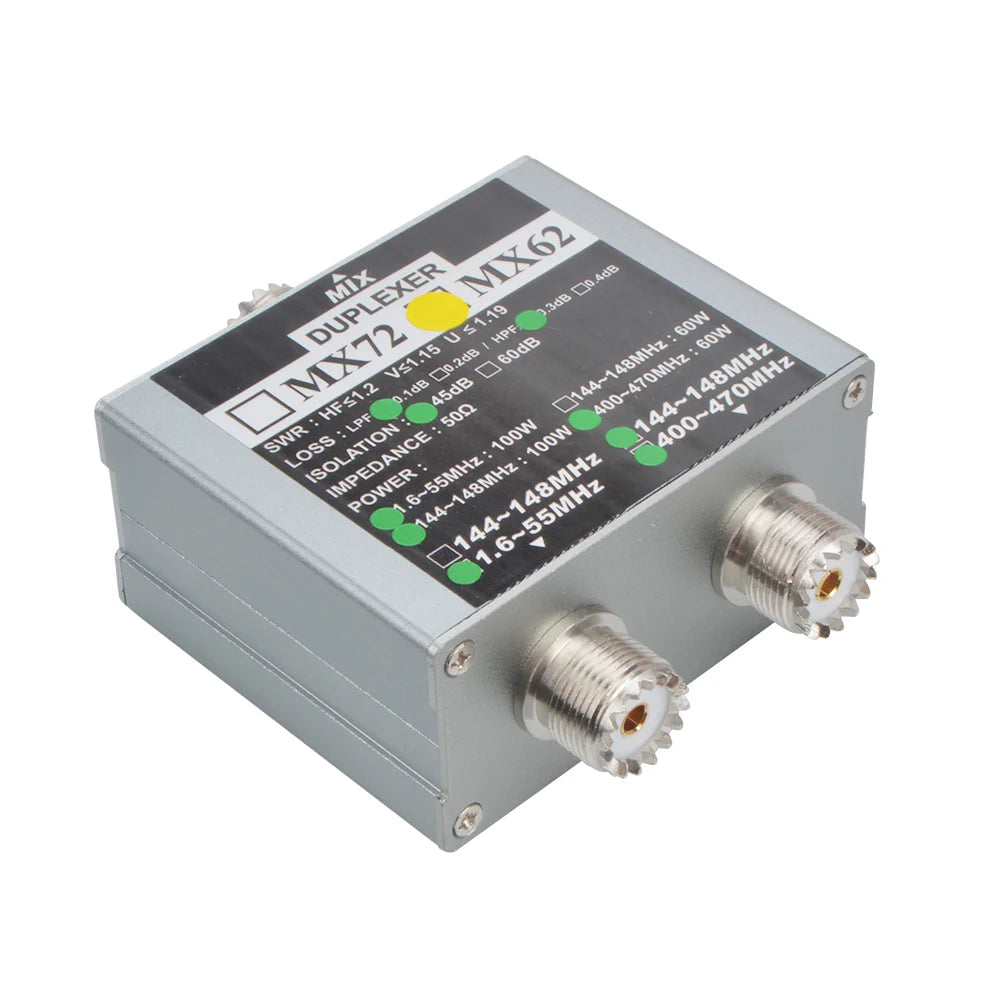

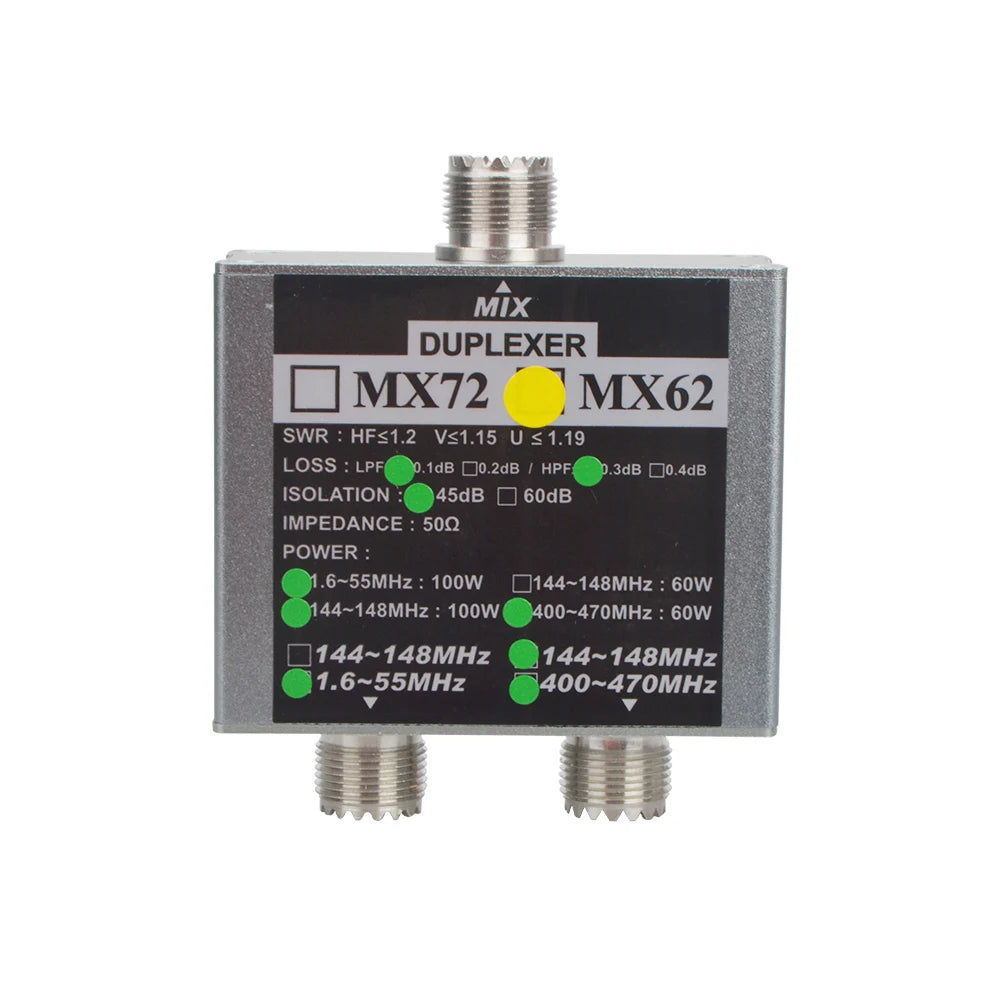

HF Walkie Talkie Ham VHF UHF Tri-band Amateur two way Radio Antenna combiner MX62 50 ohm 60-100W Linear Antenna Duplexer SO239
Free Standard Shipping Across USA
Couldn't load pickup availability
Refresh
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Verified
Shipping Information
Free Standard Shipping — United States only
Processing Time: 3–5 business days
Estimated Delivery: 6–10 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Your Cart
Item(s):
Total: $0.00
HF Walkie Talkie Ham VHF UHF Tri-band Amateur two way Radio Antenna combiner MX62 50 ohm 60-100W Linear Antenna Duplexer SO239 - Default Title
Default Title
Default Title
$45.58
Add to Cart
SPECIFICATIONS Brand Name : NONE
Item Type : Antenna
Model Number : MX62
Origin : Mainland China
HAM 1.6-55MHz HF walkie talkie VHF 144-148MHz UHF 400-470MHz tri-band different band working mode Amateur Antenna Combiner Linear Antenna Duplexer 50ohm 60-100W MX62
Attention:

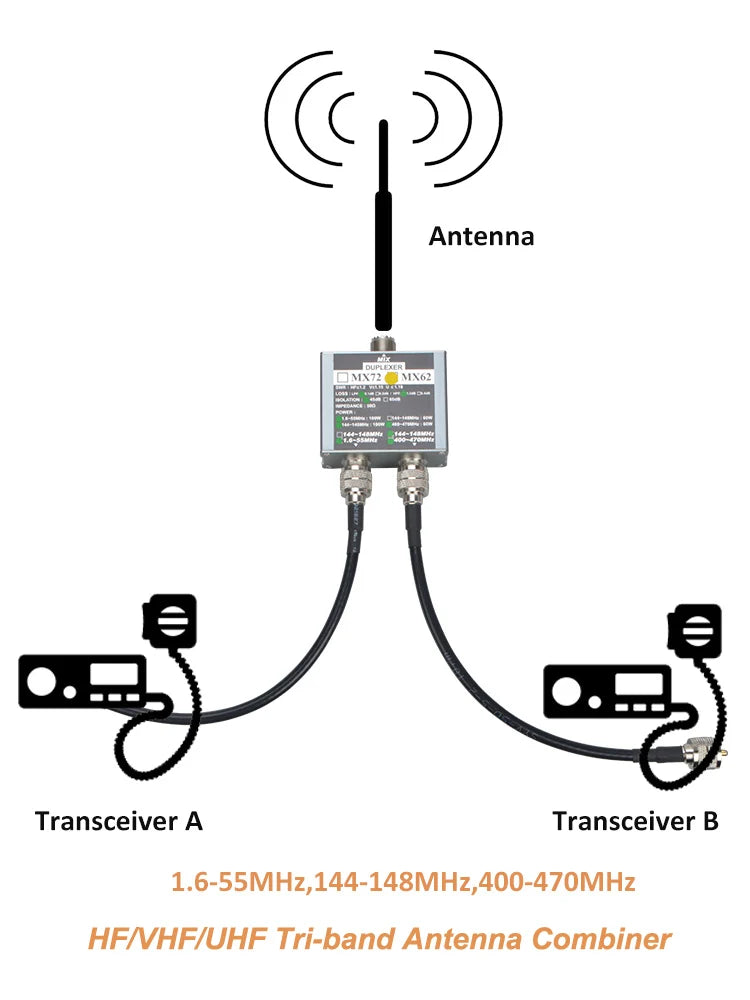

-Available to Work with 2 mobile transceiver and 1 Antenna
-The antenna and transceivers must match to the frequency bands of the MX62 Antenna combiner
-The transmit frequencies band of the 2pieces connected mobile transceiver must be in different frequency band when they are in transmit status simultaneously, otherwise the device MX62 will be invalided.
- Comes with 2 pieces Coaxial Cable (30cm Cable Length) for connecting to the mobile transceiver
Specifications:
Working Frequency Range of the Antenna Combiner: 1.6-55MHz,144-148MHz and 400-470MHz
SWR: HF≤ 1.2,VHF≤1.5, UHF≤1.19
LOSS: LPF:0.1dB, HPF:0.3dB
ISOLATION: 45dB
Impedance: 50 ohm
Power: 1.6-55MHz:100W, 144-148MHz:100W,400-470MHz: 60W
Interface: SO239

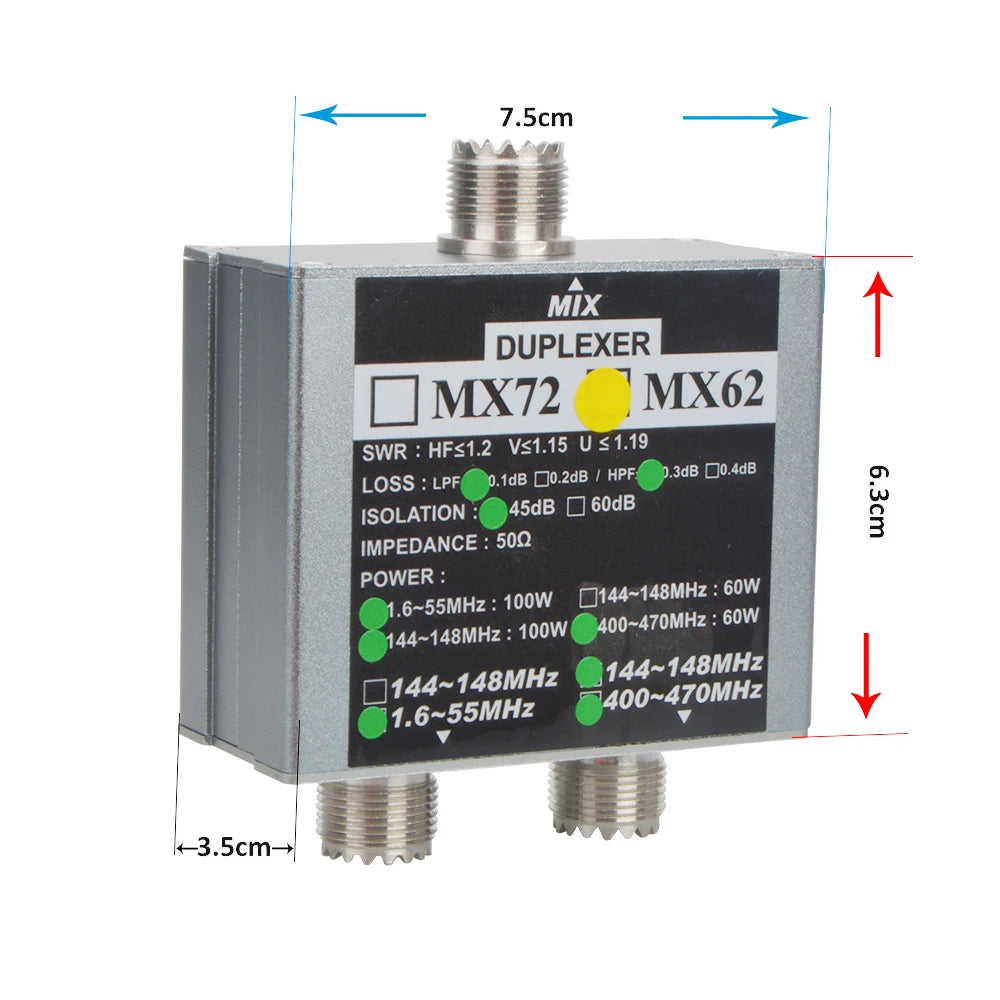

Size:75*63*35mm
Weight:275g
Package Contents:
1×MX62 Antenna Combiner
2×Coaxial Cable (30cm length)
Photos:
