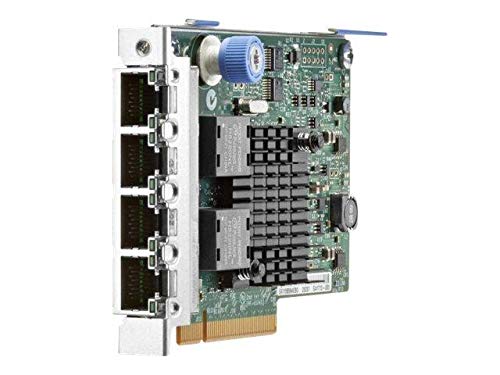

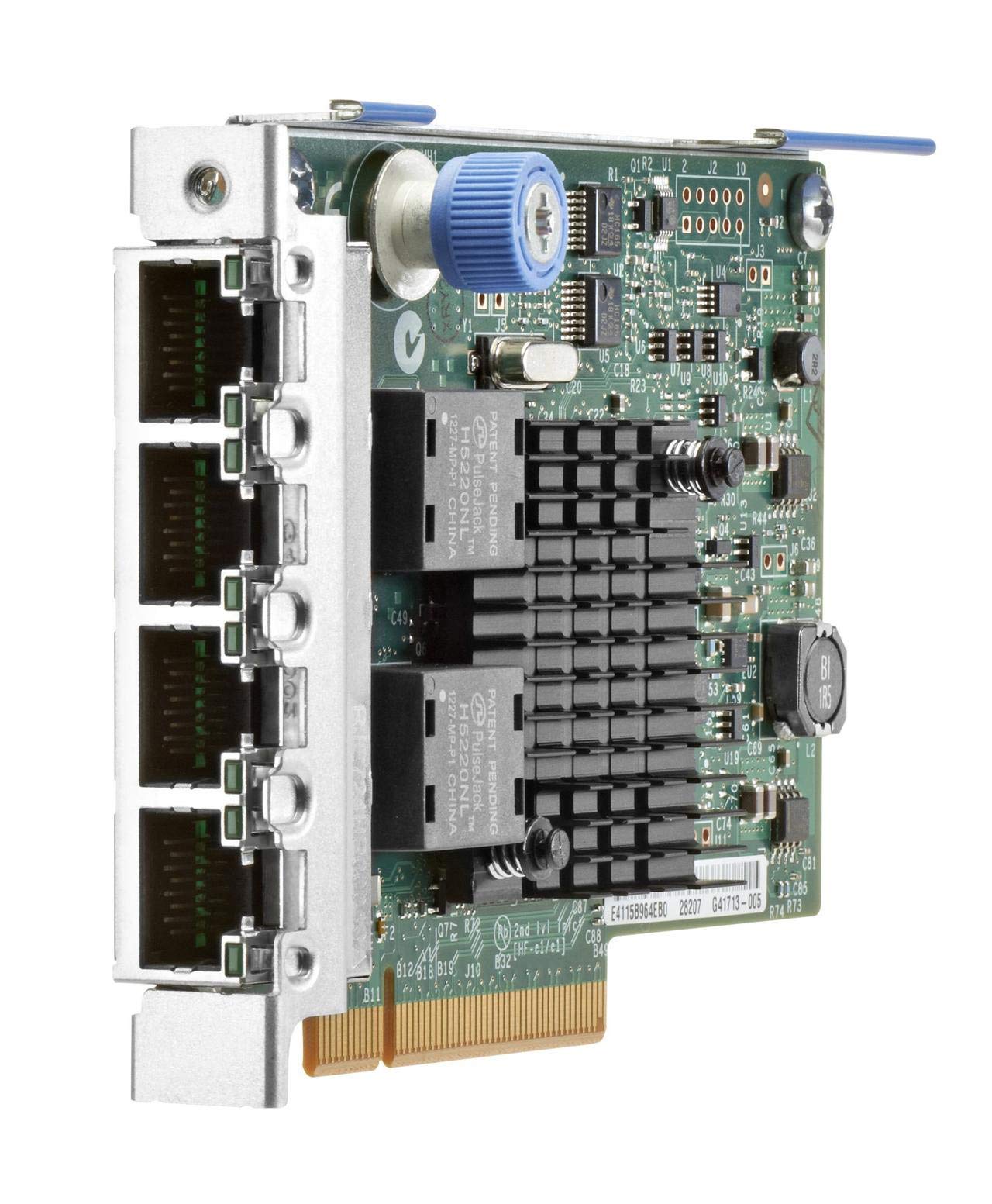

The HPE Ethernet 1Gb 4-Port 366FLR Adapter is a high-performance network integration solution designed for select HP ProLiant Gen8 rack and scalable servers. This FlexibleLOM form factor adapter utilizes a single-chip solution based on the Intel Ethernet Controller I350, reducing power requirements for its four 1Gb Ethernet ports.
Key Features:
- Host Interface: PCI Express 2.1 x4
- Total Number of Ports: 4 x Network (RJ-45)
- Network Technology: 10/100/1000Base-T Gigabit Ethernet
- Media Type Supported: Twisted Pair (Category 5e standard)
- Supports advanced features including Large Send offload, TCP checksum and segmentation, VLAN tagging, MSI-X, Jumbo frames, and IEEE 1588.
- Virtualization features: Intel Virtualization Technology for Connectivity, VMware NetQueue, Microsoft VMQ, and WOL.
- Power management technologies: Energy Efficient Ethernet.
- Quad port 1 GbE provides up to 8 Gbps full duplex throughput per adapter.
- Form Factor: Plug-in Card
- Dimensions: 3.65" (H) x 1.1" (W) x 10.54" (D)
- Environmentally compliant: RoHS, WEEE.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the HPE Ethernet 1Gb 4-Port 366FLR Adapter?A: The dimensions are three point seven inches in height, one point one inches in width, and ten point five inches in depth.
Q: What type of network interface does this adapter use?A: The adapter uses a PCI Express x4 interface for connecting to the motherboard.
Q: How many network ports does the HPE Ethernet 1Gb 4-Port 366FLR Adapter have?A: It has four network ports for Ethernet connectivity.
Q: What is the maximum data transfer speed of the adapter?A: The maximum data transfer speed is one gigabit per second per port.
Q: What type of network cable is supported by this adapter?A: The adapter supports twisted pair cables, specifically Category five E.
Q: How do I install the HPE Ethernet 1Gb 4-Port 366FLR Adapter?A: To install, insert the PCI Express card into an available x4 slot on your motherboard and secure it.
Q: Is this adapter compatible with HP ProLiant Gen8 servers?A: Yes, it is specifically designed for use with select HP ProLiant Gen8 rack and scalable servers.
Q: What operating temperature range does the adapter support?A: The operating temperature range is between thirty-two and one hundred thirty-one degrees Fahrenheit.
Q: Can I use this adapter for virtualization technologies?A: Yes, it supports virtualization features such as Intel Virtualization Technology for Connectivity.
Q: What should I do to keep the adapter in good condition?A: Keep it in a well-ventilated area and avoid exposure to excessive heat or moisture for optimal performance.
Q: Is the HPE Ethernet 1Gb 4-Port 366FLR Adapter environmentally friendly?A: Yes, it is compliant with RoHS and WEEE environmental directives.
Q: How can I troubleshoot if the adapter is not recognized by my PC?A: Check if the card is properly seated in the PCI Express slot and ensure that drivers are installed.
Q: Does this adapter come with a warranty?A: Yes, it comes with a product warranty statement included in the package.
Q: What do I do if the adapter arrives damaged?A: Contact the seller for a return or replacement as per their return policy.
Q: Is this adapter suitable for home office use?A: Yes, it is suitable for home office environments where reliable network connectivity is required.
