Product Features Support 9 Hdmi Input, 1 Hdmi Output. Support 9 Hdmi Signal Screen Segmentation. Support 9 Hdmi Signal Seamless Switching. Switch Between 1080P/60Hz And Backward Compatible. Support Hdmi1.4, Hdcp1.4 And Backward Compatible. Hdmi Input And Output Transmission Distance:High Speed Hdmi Cable Can Reach Up To 15M.(Hdmi Cable 19+1,28Aw). Support Ir Control. Power Supply: Dc5V2A. Specifications Support Hdmi Resolution: 1080P/ 1080I/ 720P/ 576P/ 576I/ 480P/ 480I Support Video Color Format:24Bit/ 30Bit/ 36Bit. Support Audio Input Format:Dts-Hd/ Dolby-Real Hd/ Dolby-Ac3/ Dsd Support Audio Output Format: Lpcm, Pcm2 Max Bandwidth: 330Mhz; Max Bandrate:10.2Gbps Input/Output Tmds Signal:0.5~1.5V P-P (Ttl) Input/Output Ddc Signal:5 Volts P-P (Ttl) Input Cable Distance:=15Mawg24 Hdmi Standard Cable Output Cable Distance:=24Mawg24 Hdmi Standard Cable Max Working Current:5V/ 0.6A Operating Temperature Range:(-15~+55C) Operating Humidity Range: 5~90%Rh (No Condensation)) Dimension (L X W X H):148*63*23Mm Weight:206G Notes Please Use The Product According To The Following Instructions To Ensure A Long Service Life. 1?The Product Should Be Placed At The Spot Far From The Damp, High-Temperature, Dusty, Erosive And Oxidative Environment. 2?All Parts Must Not Be Subject To Strong Shake, Hit Or Fall. 3?Please Do Not Open The Cover Or Touch The Inside Parts. Before Power On, Please Check All The Connection Cables And Make Sure All Interfaces Are Connected Well. Package List Hdmi 9X1 Quad Multiviewer X 1 Ir Remote Control X 1 Dc 5V/2A Power Adapter(Type-C Port) X 1 User Manual X 1
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the HDMI MultiViewer Switch?A: The dimensions are approximately five point nine inches in length, two point five inches in width, and zero point five inches in height.
Q: What is the weight of the HDMI MultiViewer Switch?A: The weight of the HDMI MultiViewer Switch is two hundred six grams.
Q: What HDMI resolutions does the MultiViewer support?A: It supports HDMI resolutions of up to one thousand eighty P at sixty hertz, including various formats like seven hundred twenty P and four hundred eighty P.

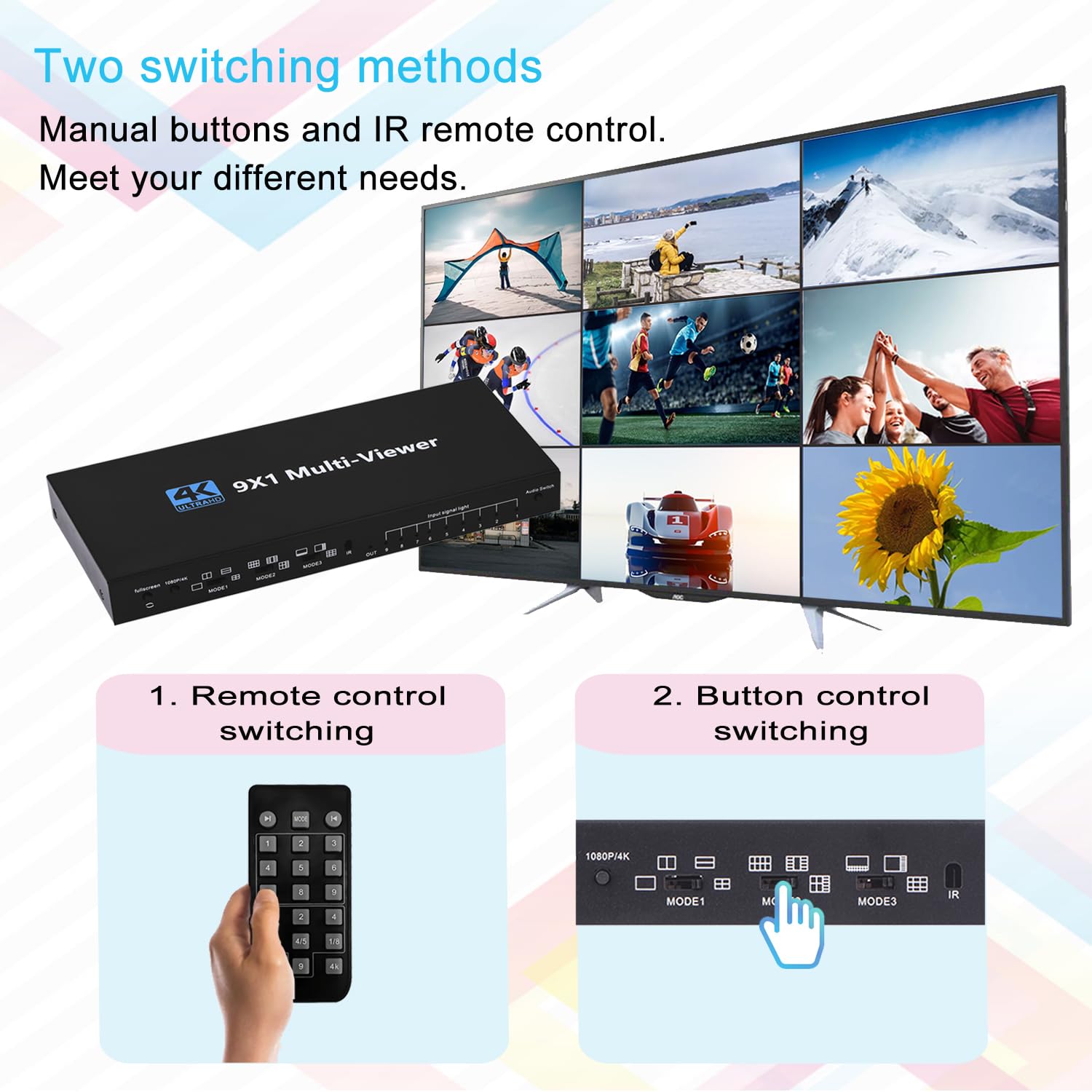

Q: How do I install the HDMI MultiViewer Switch?A: Simply connect the nine HDMI input devices to the switch, then connect the output to your display. Use the IR remote or panel buttons to switch inputs.
Q: Is the HDMI MultiViewer suitable for home entertainment systems?A: Yes, it is ideal for home entertainment, allowing seamless switching between multiple HDMI devices like game consoles and cable TV.
Q: Can I use the HDMI MultiViewer for presentations?A: Yes, it is perfect for presentations as it supports multiple video sources and seamless switching, making it ideal for meeting halls.
Q: How do I maintain the HDMI MultiViewer Switch?A: Keep it in a dry, cool place away from dust and moisture. Ensure connections are secure and avoid opening the device.
Q: What is the operating temperature range for the HDMI MultiViewer Switch?A: The operating temperature range is from minus fifteen to plus fifty-five degrees Celsius.
Q: Does the HDMI MultiViewer come with a warranty?A: Yes, it typically comes with a manufacturer's warranty; check with the retailer for specific details.
Q: What should I do if my HDMI MultiViewer Switch is not working?A: First, check all connections and ensure power is supplied. If issues persist, refer to the user manual or contact customer support.

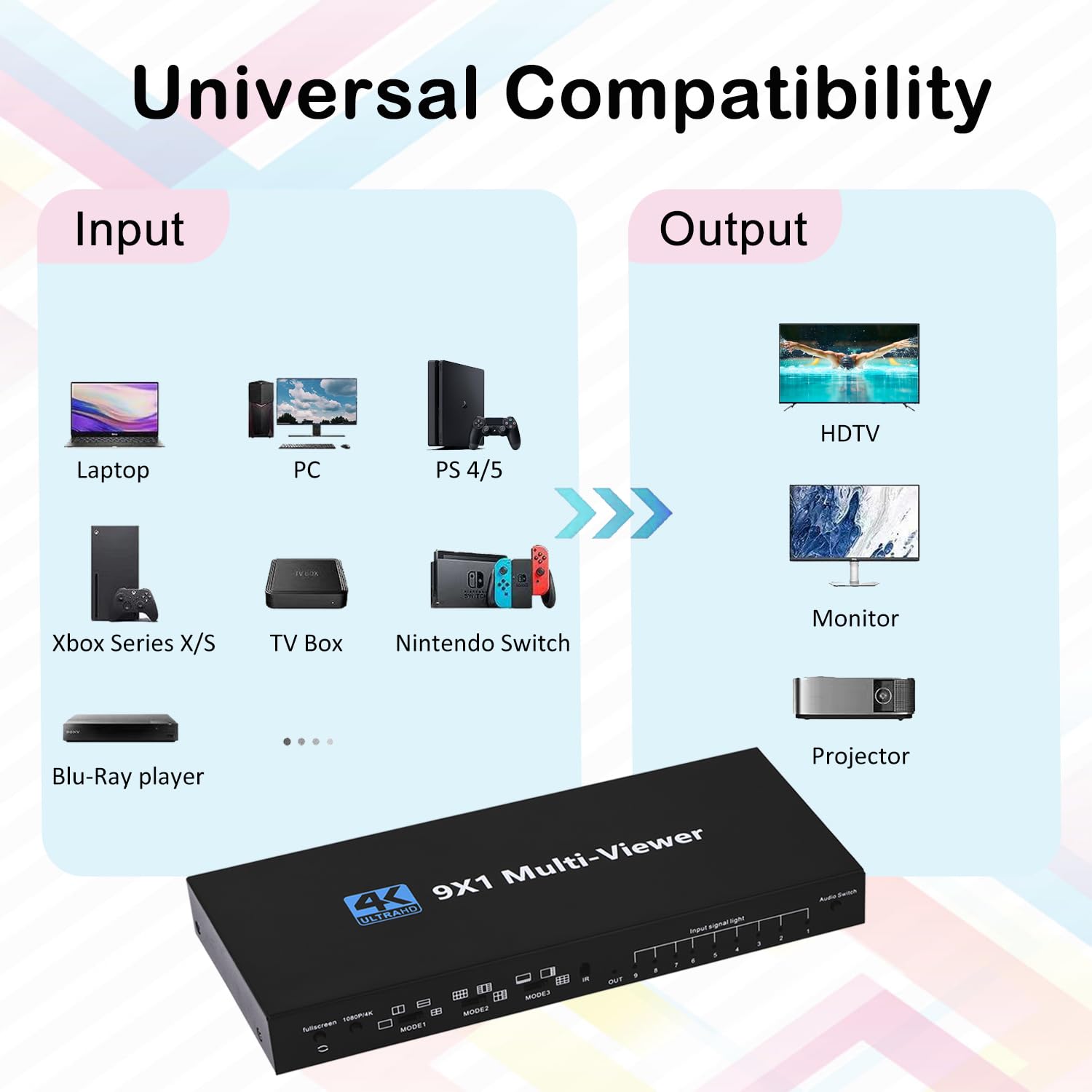

Q: Is the HDMI MultiViewer compatible with all HDMI devices?A: Yes, it is compatible with any HDMI device, including game consoles, Blu-ray players, and projectors.
Q: How far can the HDMI signal be transmitted?A: The HDMI signal can be transmitted up to fifteen meters using a high-speed HDMI cable.

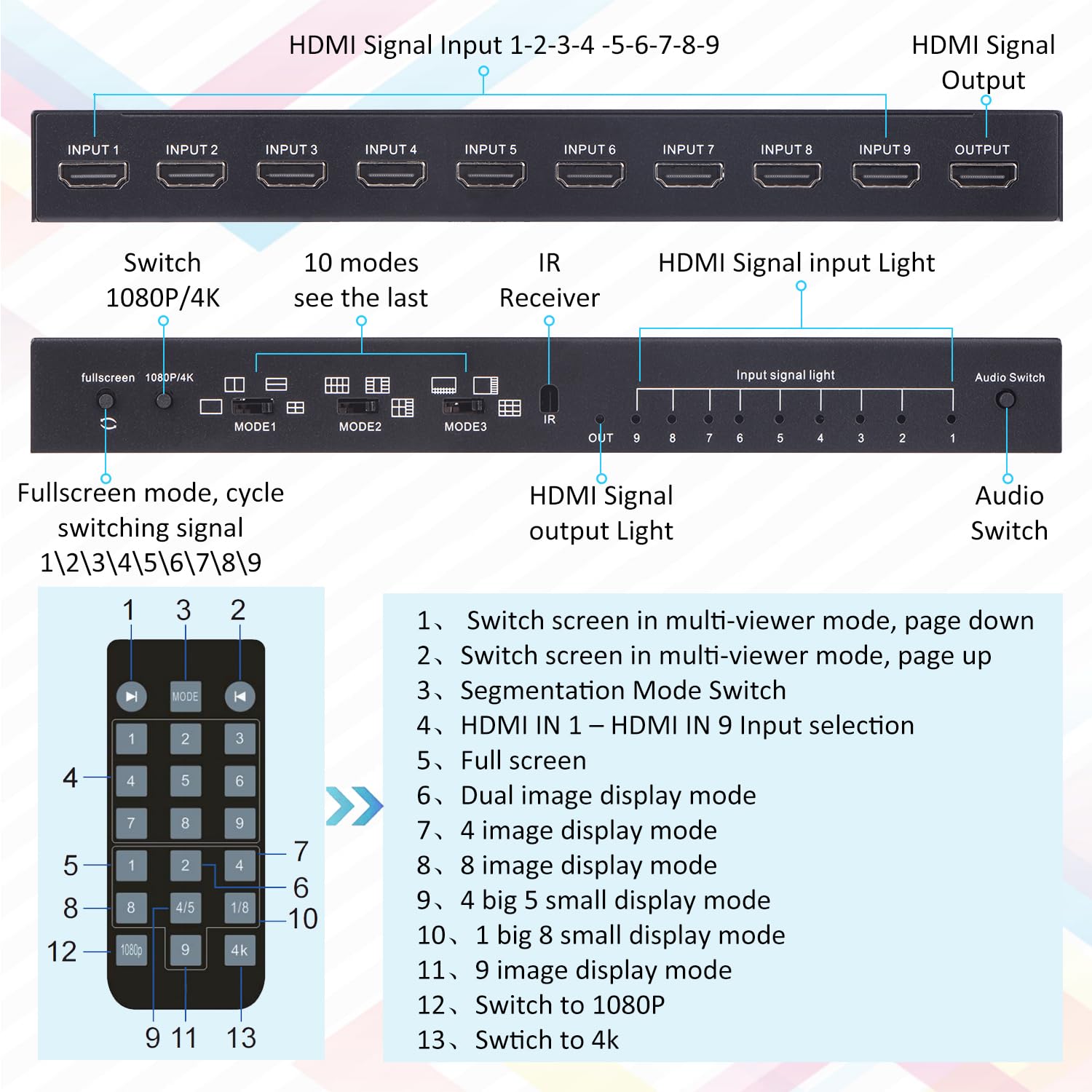

Q: Does the HDMI MultiViewer support remote control?A: Yes, it comes with an IR remote control for easy switching between HDMI inputs without leaving your seat.
Q: What audio formats are supported by the HDMI MultiViewer?A: It supports audio formats like DTS-HD, Dolby-real HD, and LPCM for high-quality sound.
Q: What accessories are included with the HDMI MultiViewer?A: Included are the HDMI MultiViewer Switch, an IR remote control, a DC five volts two amps power adapter, and a user manual.
