H81M Gaming Motherboard TPM GDDR3 i3 4160 CPU 8G*1 ram comboIntel Kit xeon B85 LGA1150 PCIe3.0x16 M.2 SATA3.0 8pin HDMI VGA SOYO
Free Standard Shipping Across USA
Vendor: Electroeshop
Type:
Sku: 200000828:22813972482
Availability: In Stock
Couldn't load pickup availability
Guarantee safe checkout
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Shipping Information
- Free Standard Shipping — United States only
- Processing Time: 3–5 business days
- Estimated Delivery: 6–10 business days after dispatch
- Double-boxed, fully insured & discreetly packaged
- Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
All returns require a Return Authorization (RA) number before sending.
View Full Return & Refund Policy
H81M Gaming Motherboard TPM GDDR3 i3 4160 CPU 8G*1 ram comboIntel Kit xeon B85 LGA1150 PCIe3.0x16 M.2 SATA3.0 8pin HDMI VGA SOYO - Motherboard+CPU+RAM
$91.09
SPECIFICATIONS
Application: Desktop
Back I/O Ports: 1x RJ45,HDMI 1.4
Battery Included: no
Brand Name: SOYO
Chipset: Intel H81
Chipset Manufacturer: Intel
Choice: yes
High-concerned chemical: none
Maximum Ram Capacity: 16 GB
Memory channel: Double
Number Of Memory Slots: 2
Number of PCI: 2
Number of PCIe x 16: 3
Number of SATA Ports: 2
Onboard Connectors & Header: 24-pin Main Power Connector,8-pin +12V Power Connector
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Ports: M.2
Processor compatibility: Intel Pentium,Intel Celeron
RAID Supported: no
Socket Type: LGA1150
Special Features: Support for Overclocking
Storage Interface Type: SATA 2,SATA 3,M.2 (NVMe)
Support Memory Type: DDR3
Support USB Type: USB 2.0,USB 3.0
Usage Scenario: Gaming
With CPU: Yes
High-Performance CPU and RAM Combo
Includes an Intel i3 4160 CPU and 8G RAM, offering a powerful setup for gaming and multitasking.
SOYO Brand Name
Renowned SOYO brand guarantees quality and durability, trusted by professionals and enthusiasts alike.
Versatile Display Connections
Supports HDMI, VGA, and DVI outputs, allowing for flexible display configurations in various setups.
Multiple Storage Options
Features 1*M.2 3.0 and 3*SATA 3.0 slots, providing ample storage for your data and applications.
Intel Chipset Manufacturer
Equipped with Intel chipset, ensuring reliable performance and compatibility with latest technologies.
Differences between packages

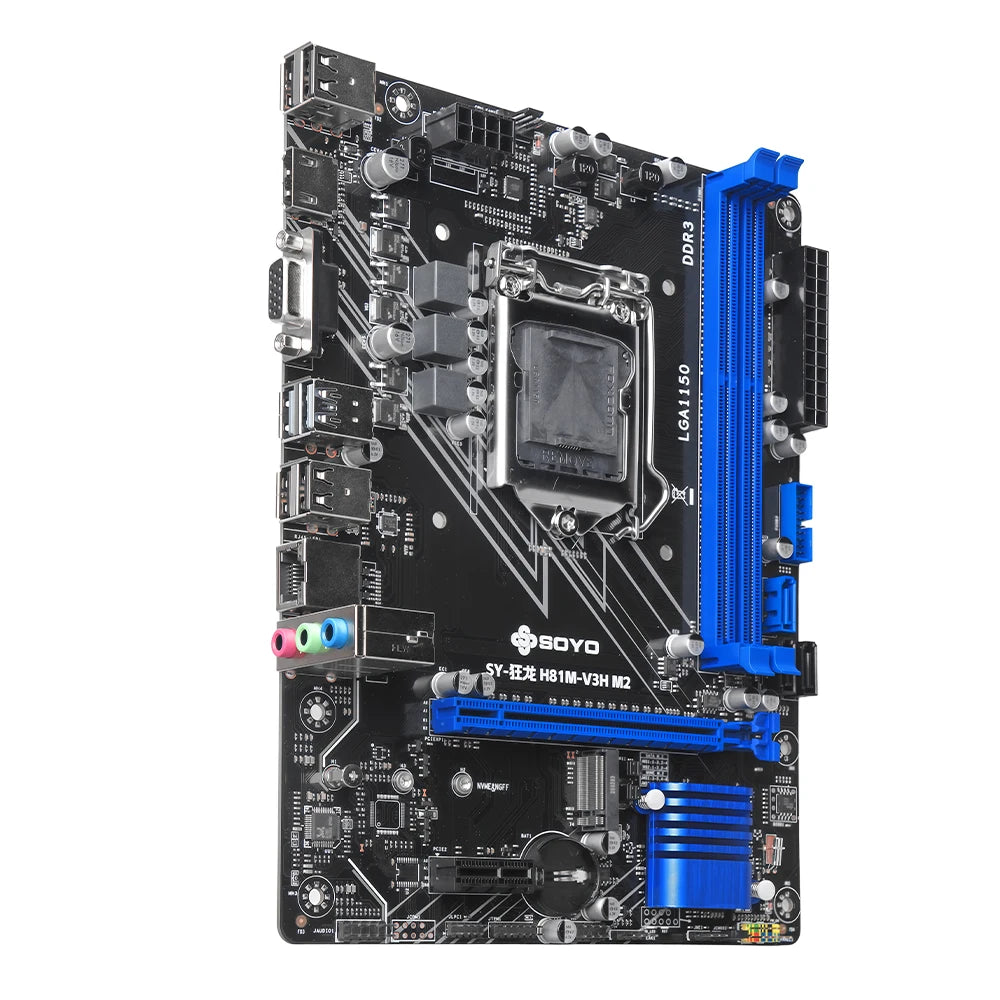

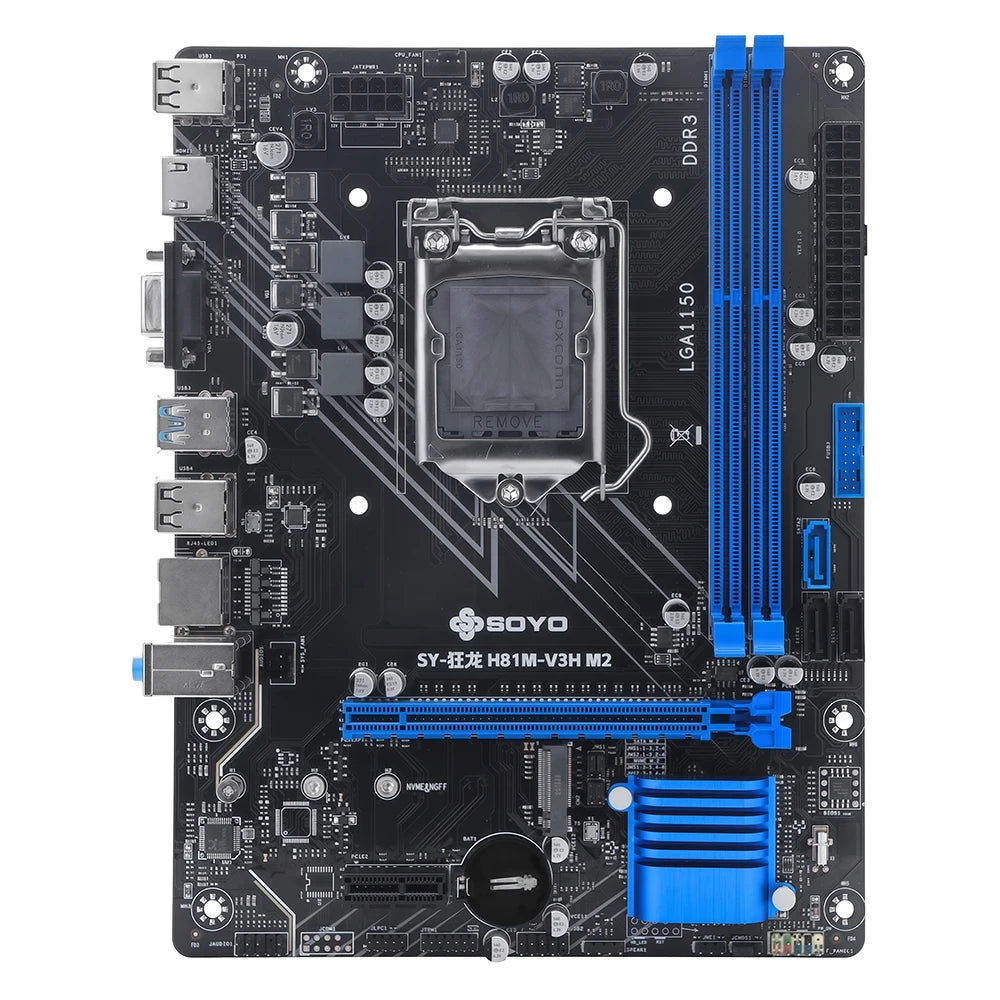

Motherboards: 1*SY-狂龙 H81M-V3H M2 motherboard
Motherboards+CPU: 1*SY-狂龙 H81M-V3H M2+i3 4160 CPU

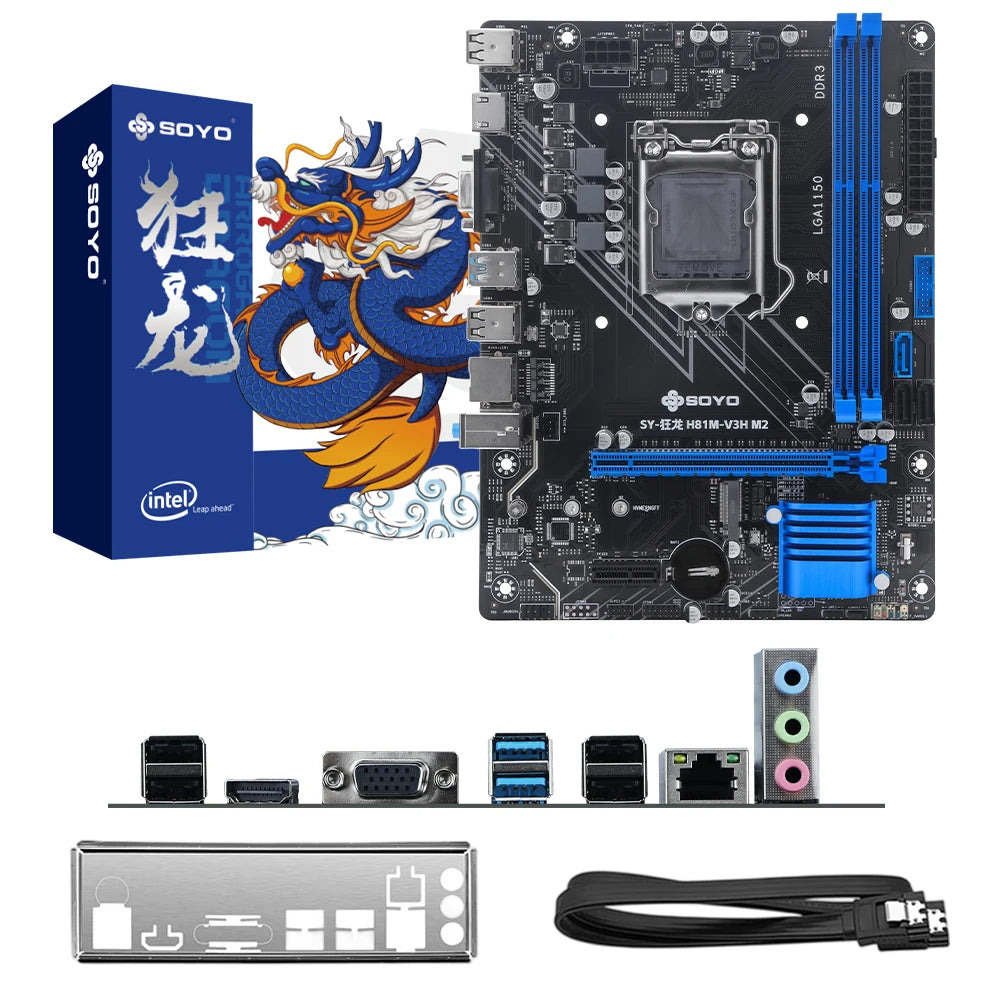

Motherboards+CPU+RAM: 1*SY-狂龙 H81M-V3H M2+i3 4160 CPU+8GB
Please confirm the differences between the packages before purchasing. If you mind, please do not place an order
Motherboard Chipset: H81CPU:
Supported CPUs: Intel Core i7/i5/i3, Celeron/Pentium/EXON LGA1150 socket CPUs
Examples: G1820 / E3-1230V3 / i7-4770 / i5-4590, etc.
Memory: 2 * DDR3 Dual Channel DIMM, 1333/1600MHz (MAX), Max. support 16GB (8GB*2)
Storage:
1 * M.2 slot (supports NVME/NGFF protocol, PCIE2.0 x4 / SATA3.0 protocol, jumper switchable)
2 * SATA2.0 interfaces; 1 * SATA3.0 interface
Video Output: 1 * HDMI 1.4 + 1 * VGA
Network: 1 * RJ45 interface
LAN Chipset: Realtek Gigabit Ethernet chip
TPM: 1 * 14-Pin TPM header (compatible with MSI 14-Pin TPM modules)
Audio Interfaces: 1 * Line out, 1 * MIC In, 1 * Line in; 1 * F_Audio onboard header
Audio Chipset: Realtek High Definition Audio chip
USB Interfaces:

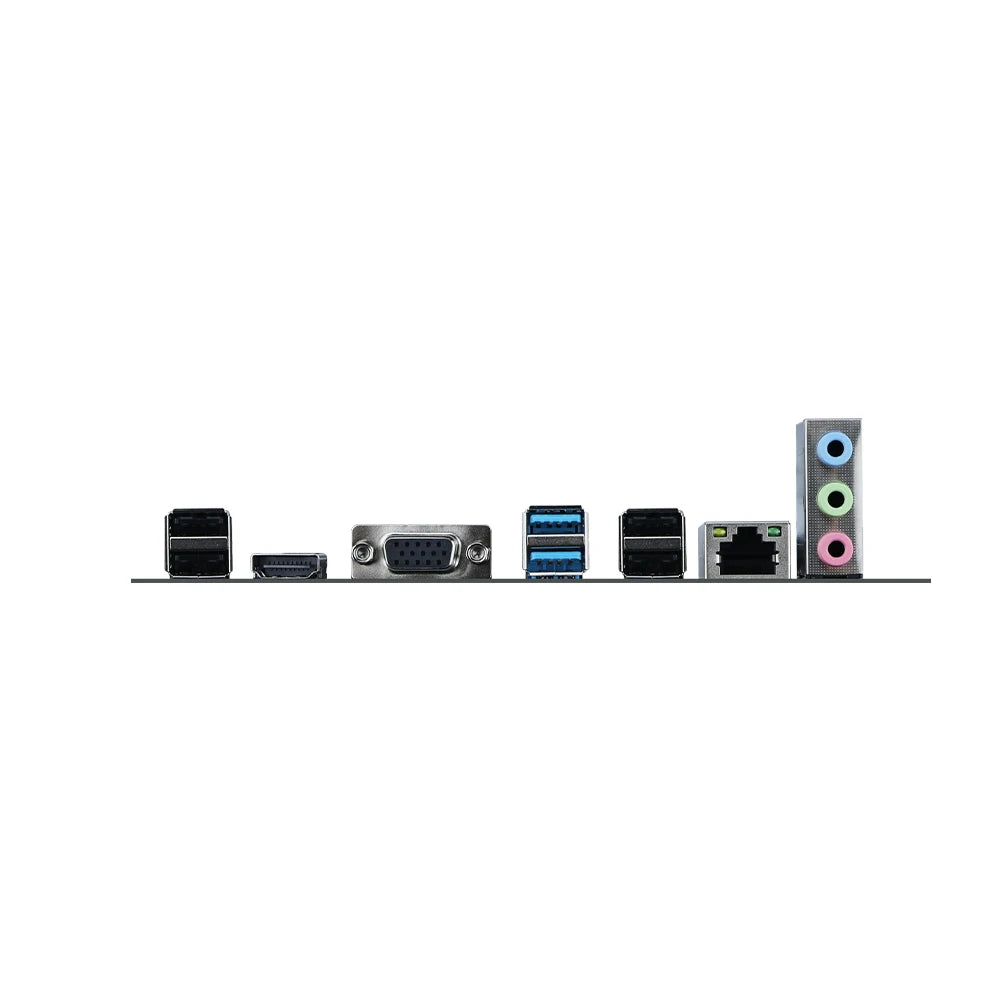

Rear I/O: 2 * USB3.0, 4 * USB2.0
Onboard headers: 2 sets of USB2.0 headers (expandable to 4 additional USB2.0 ports)
PCIe/PCI:
1 * PCIEX16 3.0 slot (from CPU)
1 * PCIEX1 2.0 slot (from PCH)
Function Headers: 1 * FPANEL front panel header; 1 * 4-Pin CPU fan header; 1 * JCMOS header; 1 * SPEAK header; 1 * JLPC header
Power Input: 24Pin + 8Pin ATX power connector

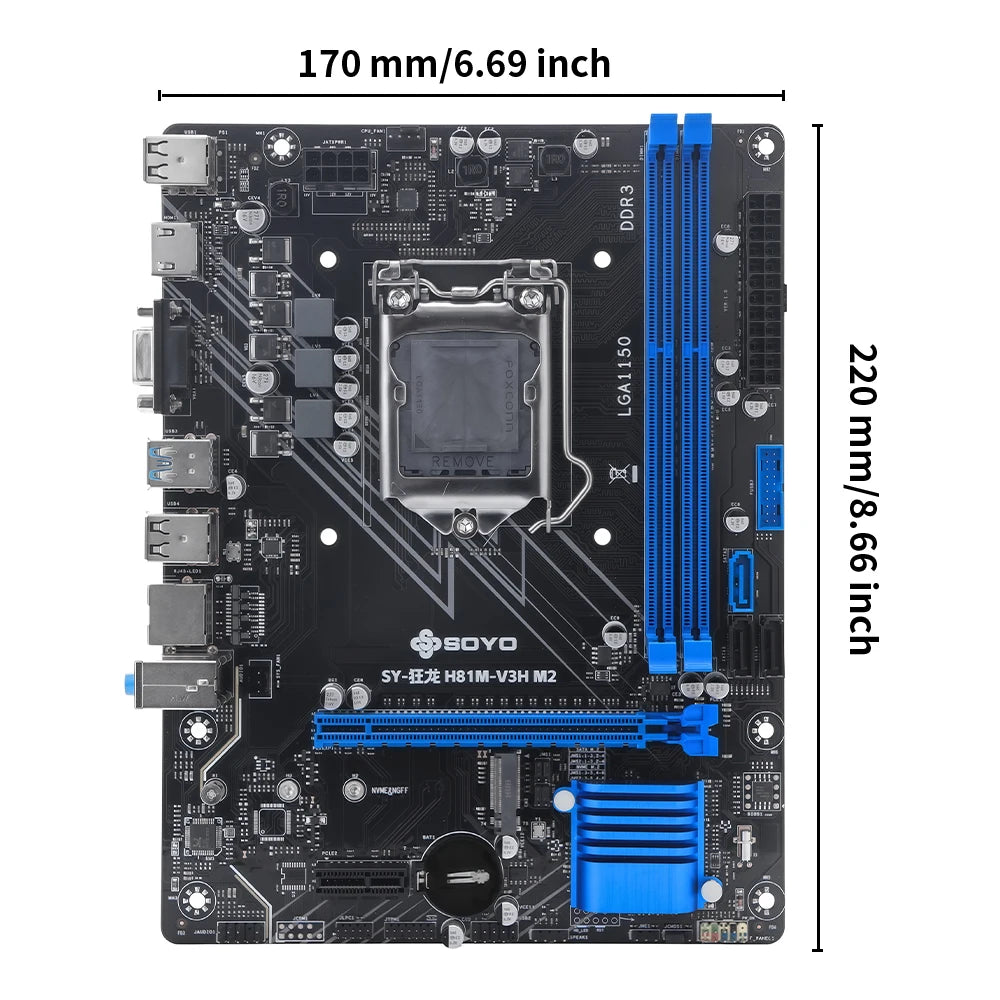

Product Dimensions: 170 x 221mm x 4L
Operating Temperature: -10℃ ~ 60℃
Operating Humidity: 10%~90% non-condensing
Storage Temperature: -25℃ ~ 70℃
Power Consumption:
Standby: 30~40W
Full load: 80~110W (for reference only, excluding discrete graphics card power consumption)
Others: 1 * JME header
Intel Core i3-4160 Desktop Processor
✅ 2 Cores / 4 Threads with 3.6 GHz base frequency for smooth daily use
✅ 3MB L3 cache boosts system responsiveness
✅ 54W low TDP, energy-efficient for office & home builds
✅ LGA1150 socket, compatible with H81/B85/Z87 motherboards
✅ Integrated Intel HD 4400 graphics for basic display needs
✅ Supports DDR3 RAM, ideal for budget office & gaming PCs
Note:
(1) This planform needs powerful power supply. Please make sure your power supply can enough to supports this planform.(at least 500w brand power supply).
(2) The battery in motherboard photos is not included and will be removed before shipping, as this battery is forbidden according to the logistics requirements.
(3) All motherboard memory processors are strictly tested before shipment.
SY-KL H81M-V3H M2 V1.0
Buyer Questions & Answers
1.Does it have TPM 2.0?
Answers：YES,SUPPORT TPM2.0,You should buy14-Pin TPM header (compatible with MSI 14-Pin TPM modules)
2.Does this board work with the E3 Xeon 1270 v3?
Answers：Supports Xeon E3 V3 series (including E3-1270 v3)
Supports: G1820 / E3-1230V3 / i7-4770 / i5-4590, etc.
