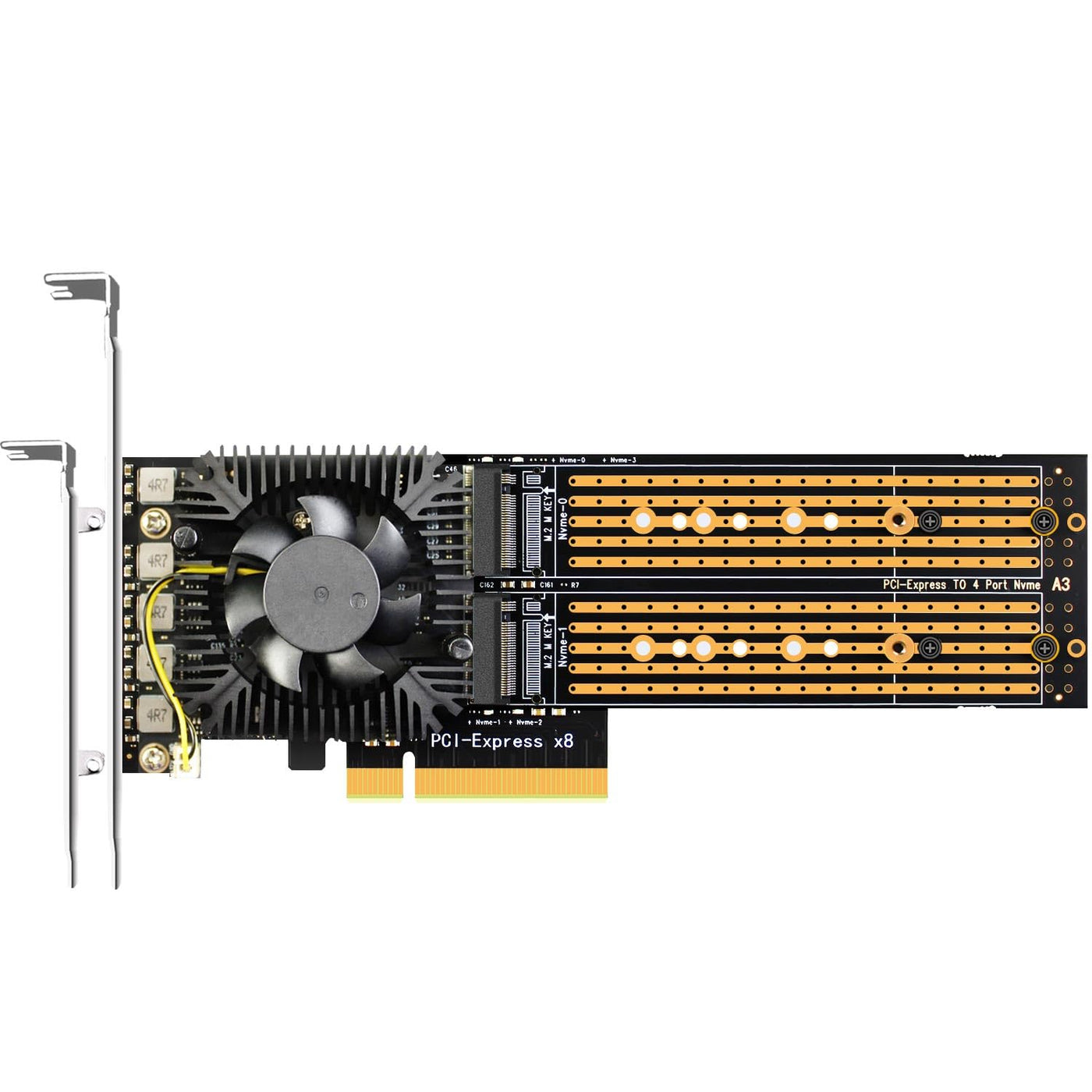

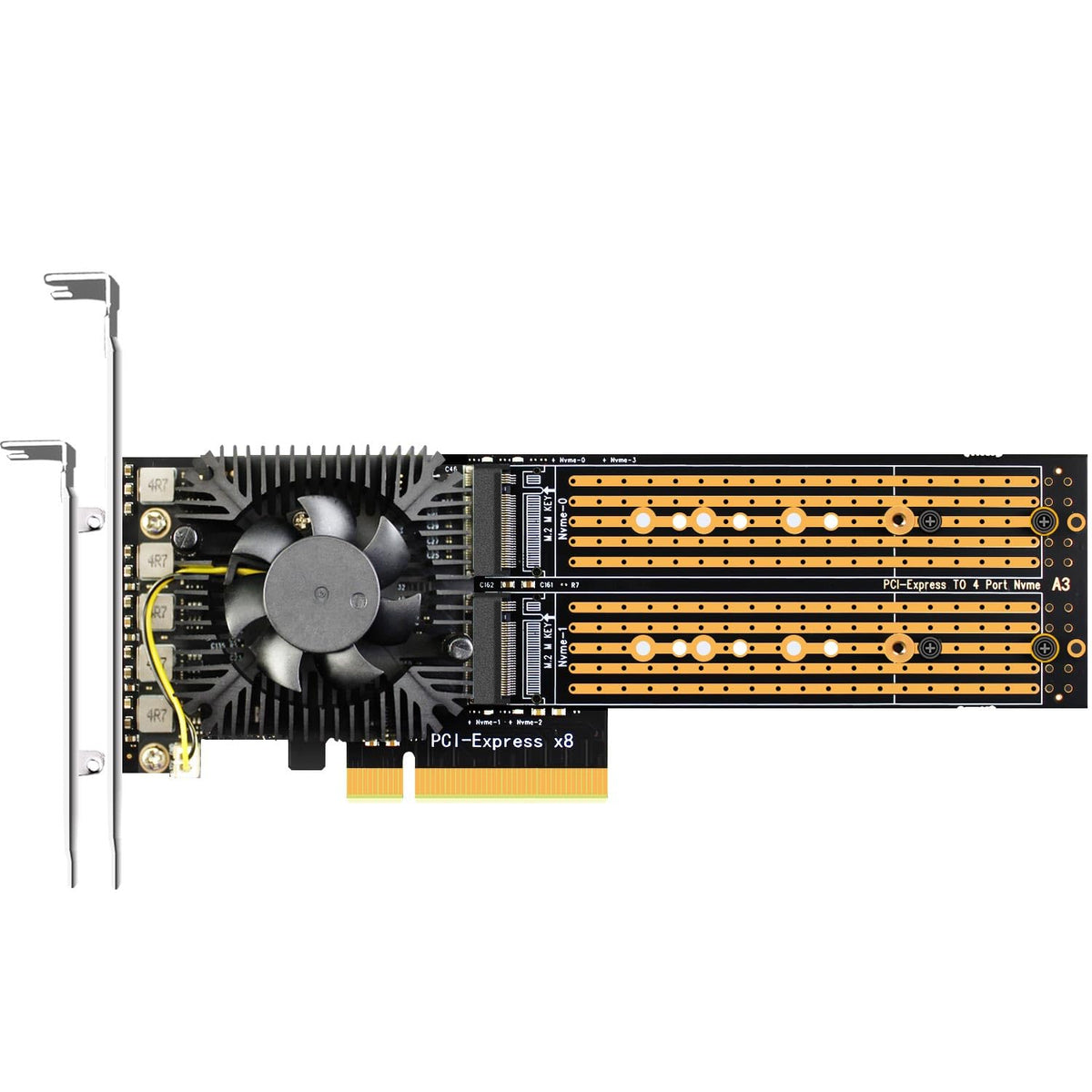

Glotrends Pa40 Quad M.2 Nvme To Pcie 3.0 X8 Adapter With Pcie Bifurcation Function, Support 22110/2280/2260/2242/2230 Size

Frequently Asked Questions

• Q: What is the maximum number of M.2 NVMe SSDs this adapter can support? A: This adapter can support up to four M.2 NVMe SSDs. It is designed to accommodate sizes 22110, 2280, 2260, 2242, and 2230.
• Q: What type of PCIe slot is required for this adapter? A: This adapter requires a PCIe slot that allocates PCIe X8 lane bandwidth. It is compatible with various motherboards that meet this requirement.
• Q: What is the maximum bandwidth for the M.2 NVMe SSDs when using this adapter? A: The maximum bandwidth shared among the four M.2 NVMe SSDs is sixty-four gigabits per second, translating to eight gigabytes per second.
• Q: Is this adapter compatible with both Intel and AMD platforms? A: Yes, this adapter is compatible with both Intel and AMD platforms. However, it does not support Mac Pro five point one models.
• Q: Can I use this adapter for OS booting? A: Yes, you can set up this adapter for OS booting. Some older motherboards may not support this feature, so check compatibility.
• Q: What operating systems are compatible with this adapter? A: This adapter is compatible with Windows eleven, ten, eight, Linux, and Mac OS. It does not support Windows seven.
• Q: What materials are used in the construction of this adapter? A: This adapter is primarily made of copper. The material choice helps in efficient heat dissipation during operation.
• Q: How do I install the M.2 NVMe SSDs in this adapter? A: To install M.2 NVMe SSDs, simply insert them into the designated slots on the adapter. Ensure proper alignment before securing them.
• Q: Is there a specific way to set up RAID with this adapter? A: Yes, you can set up software RAID using an OS tool on Intel or AMD platforms. A license may be required for Intel's RAID-on-CPU.
• Q: What should I do if I experience issues with the adapter? A: If you experience issues, ensure all connections are secure and compatible. Check the motherboard settings to verify PCIe lane allocations.
• Q: Does this adapter come with a heatsink? A: Yes, this adapter features a silent heatsink fan. It helps maintain performance and prevents overheating during prolonged use.
• Q: How do I ensure my M.2 NVMe SSD is recognized by the computer? A: To ensure recognition, initialize and format the new M.2 NVMe SSD before use. This process is essential for proper setup.
• Q: What happens if I install an M.2 SATA SSD? A: This adapter does not support M.2 SATA SSDs. Installing one will not work, as it is specifically designed for M.2 NVMe SSDs only.
• Q: Can I use this adapter for data storage? A: Yes, this adapter can be used for data storage. If OS booting is not supported, M.2 NVMe SSDs can serve as additional storage disks.
• Q: Is there a warranty for this adapter? A: Warranty details may vary by manufacturer. Please check the seller's policy for specific warranty information regarding this adapter.
