Gigabit Ethernet Media Converter, Multimode Dual Lc Fiber To Ethernet Rj45 Converter For 10/100/1000Base Tx To 1000Base Sx(With
$34.56
Regular price
$49.37
-29%
Couldn't load pickup availability
Customer Love Badge
⭐Loved by +2,002 customers
Shipping information
Our Shipping Promise
At Electroeshop, we understand that your pet supplies are important. That's why we take extra care with every package we send. All orders are shipped in double-boxes with full insurance for additional protection, ensuring your items arrive safely.
Processing & Shipping Timeline
Processing Time: Orders are processed within 1-3 business days
Domestic Delivery: Typically 3-5 business days
Please note that delivery times are estimates and may vary based on your location, weather conditions, or other unforeseen circumstances.
Shipping Destinations
Electroeshop currently only ships to the United States.
Shipping Costs
We are pleased to offer free standard shipping on all orders within the United States.
Discreet Packaging
We respect your privacy. All Electroeshop packages are shipped with complete discreet packaging. The product name, description, sender's name, and any information that hints about the contents are encrypted. Your package will arrive without any indication of what's inside, ensuring your purchase remains confidential.
Signature Requirements
Important Note: All orders valued above $250 will require a signature upon delivery for your protection.
Order Tracking
Once your order ships, you'll receive a tracking number via email so you can monitor your shipment's progress every step of the way.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team immediately, and we will assist you in resolving the issue.
Additional Security Measures
For your protection, we may contact you for additional order verification of the payment method on certain orders.
Questions or Concerns?
For details on returns and refunds, please refer to our Return Policy page. For any questions about shipping or delivery, please contact our customer service team at support@Electroeshop.com.

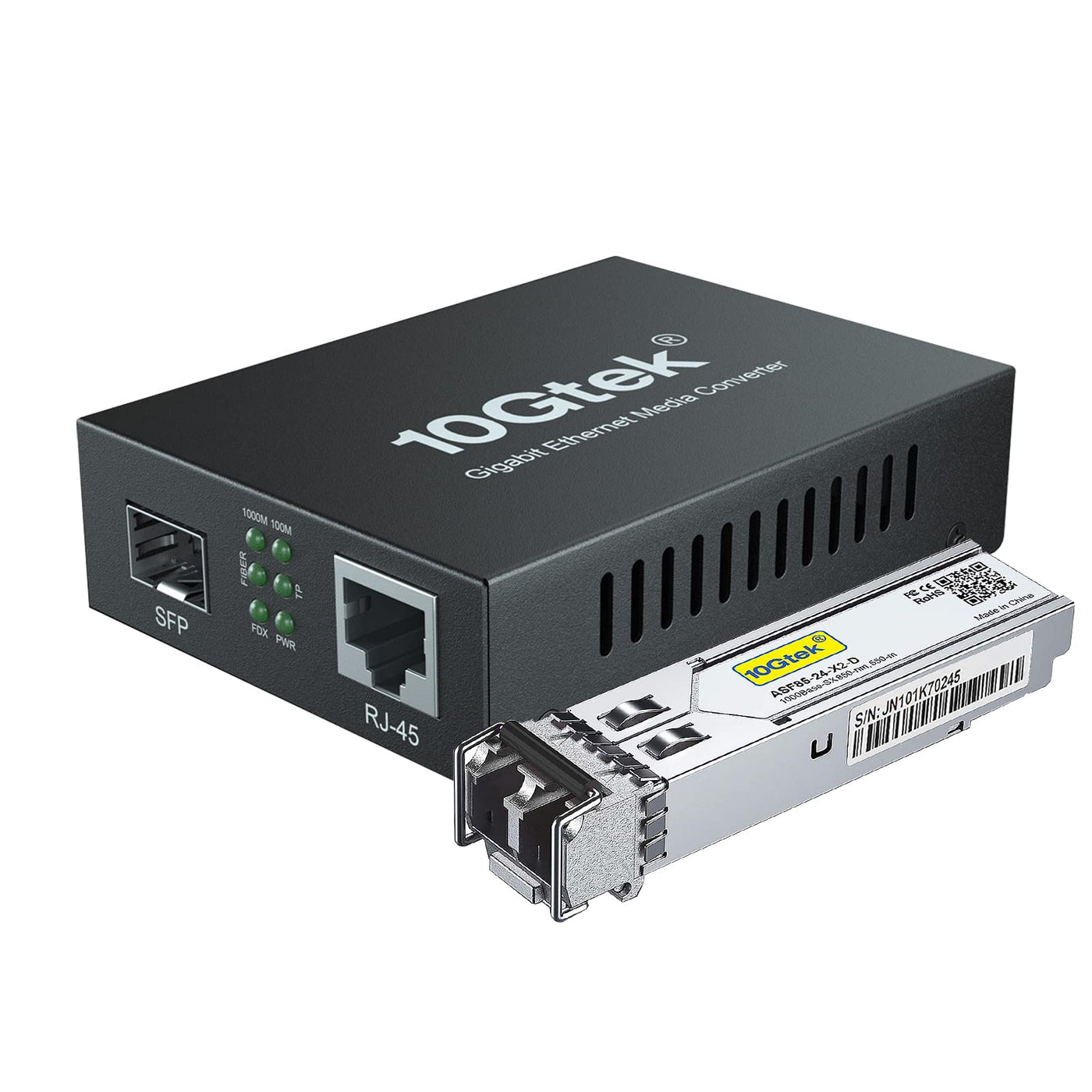

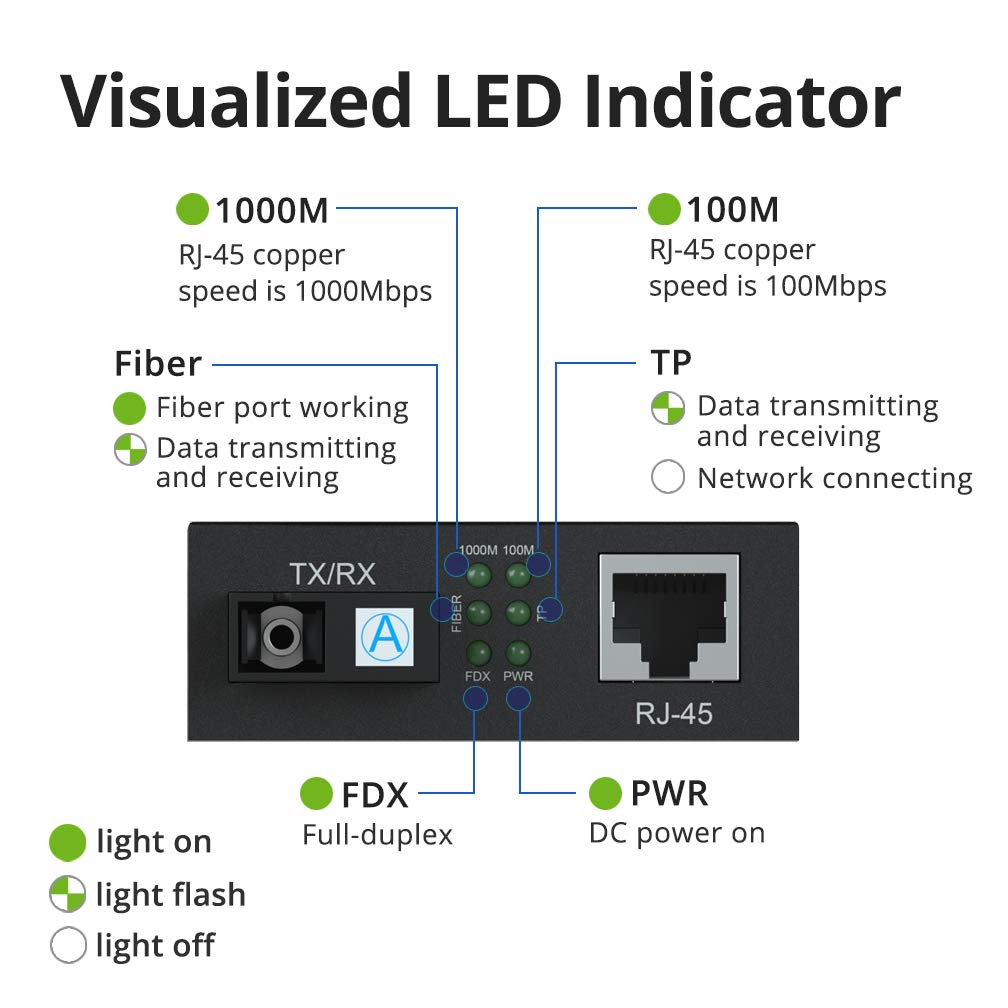

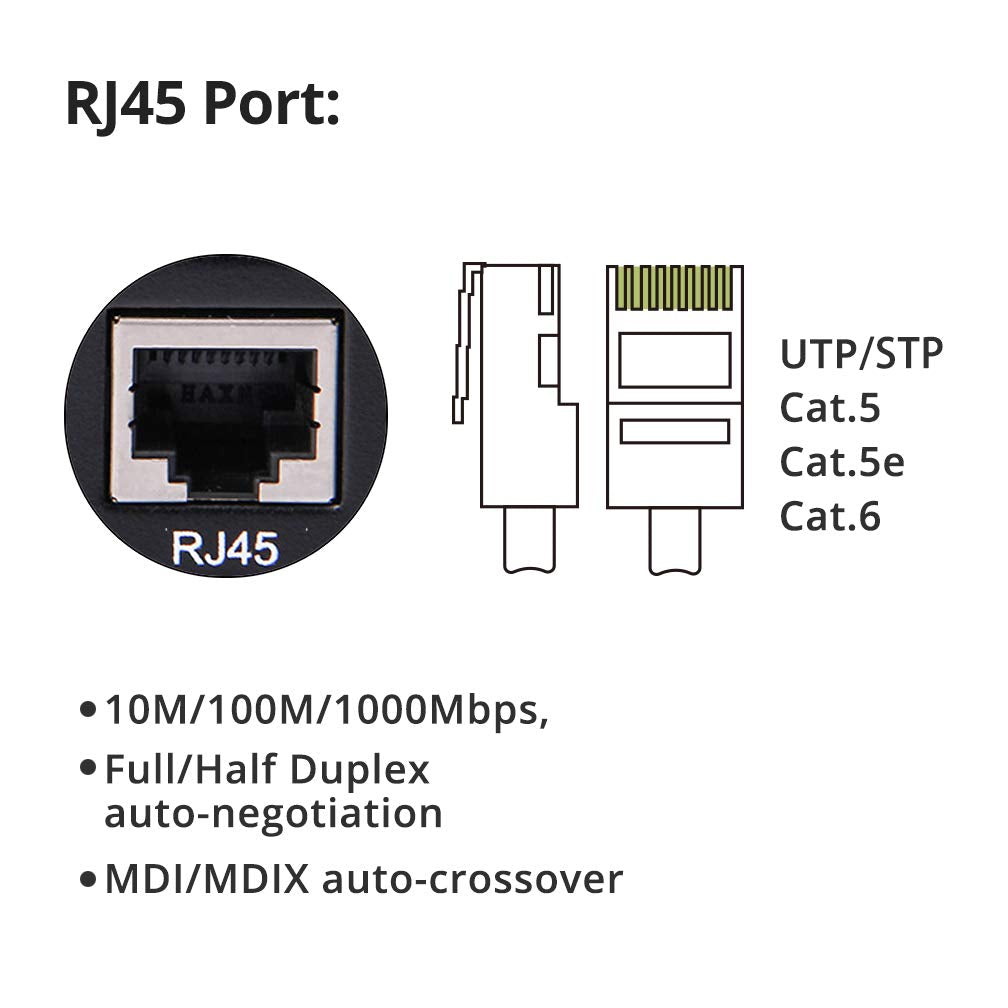

10Gtek'S A7S2 Series Media Converter Is Use To Expanding Existing Gigabit Ethernet Networks. The Easy Implementation And Expansion Of 1000Base-Tx/Fx Networks Can Be Further Assured With This Converter. The Converter Is Completely Transparent When Connected So The Network Performs Exactly The Way It Did Before - Only Now, It Allows The Co-Existence Of Both Copper And Fiber Mediums.Main Features: Complies With Ieee 802.3, Ieee 802.3U, Ieee802.3Z, Ieee802.3Ab, Ieee 802.3X Auto Negotiation Function Allows Utp Port To Auto Select 10M, 100M Or 1000M Ethernet Port Supports Mdi/Mdi-X Auto Crossover Extends Distances Up To 550M (Multi Mode Fiber) Auto Mdi/Mdi-X Support On Rj-45 Port Support Full Duplex And Half Duplex Status Led'S For Tx,Fx Link/Act, Power,Fdx To Easily Monitor Network Status 1Mbit Ram For Data Buffer Supports Jumbo Frame Size 9K Bytes Optical Port: 850Nm Multi Mode Connectors: Lc Connector Ethernet Port: Connectors: Rj-45 Connector Led Indicators: Fx, Tx, Link/Act(Left/Right), Fdx, Pwr Fx: Light On When Fiber Speed Is 1000Mbps, Else Light Off Tx: Light On When Tp Speed Is 1000Mbps, Else Light Off Link/Act: Left Side Is Indicate For Fiber Port Link/Act And Right Side For Tp, Light Flashing When Data Transmitting And Receiving Fdx: Light On When Tp Full-Duplex Mode Is Active, Light Off When Tp Half-Duplex Mode Is Active Pwr: Light On When Dc Power On, Else Light Off Specifications: Output Voltage: 5Vdc 1.0A Power Dissipation: 3 Watts Housing: Metal Enclosure Dimensions: 93 X 71 X 27Mm Weight: 0.5Kg Operating Temperature: 0C To 60C Storage Temperature: -20C To 70C Warranty:2 Years
Related products
Frequently Asked Questions

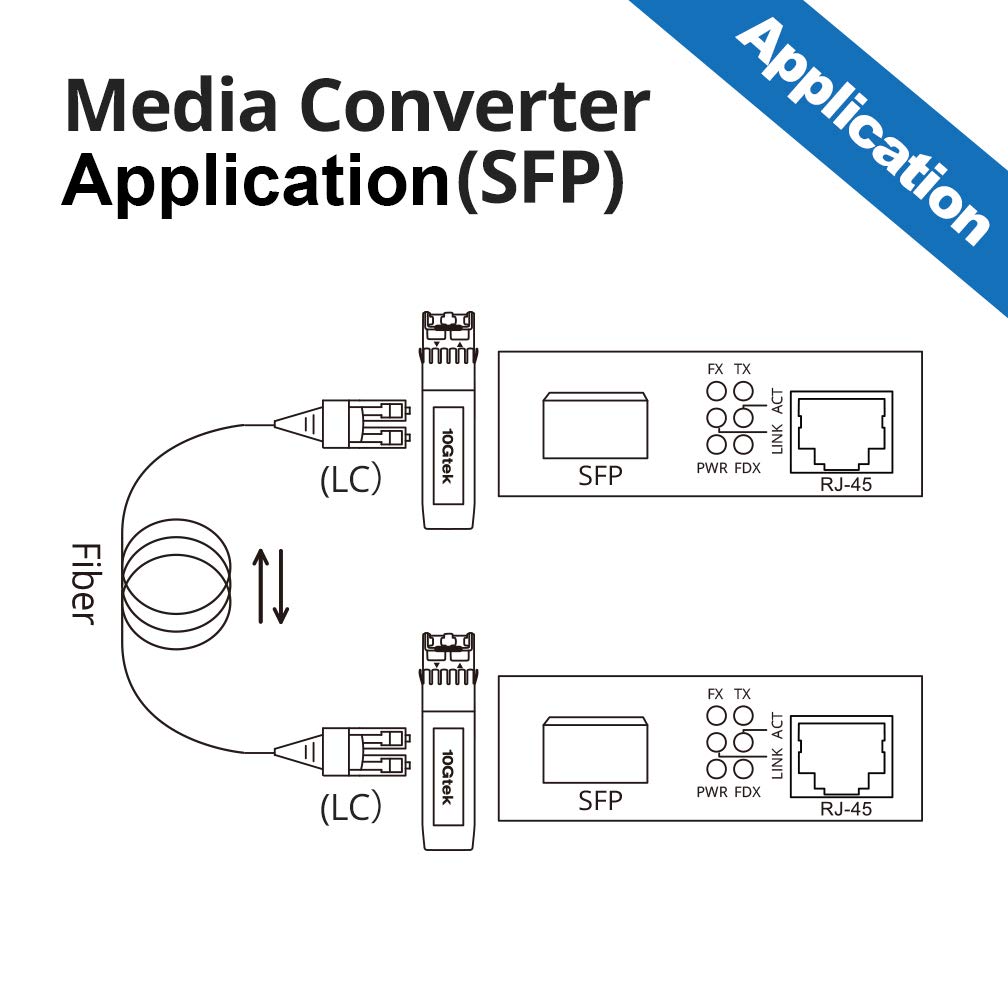

Q: What is a Gigabit Ethernet Media Converter and how does it work?A: A Gigabit Ethernet Media Converter is a device that converts signals between copper and fiber optic cables, allowing for the integration of different media types in a network. Specifically, this converter allows 1000Base-TX copper Ethernet to connect to 1000Base-SX fiber networks, extending the reach of your network up to 550 meters using multimode fiber.
Q: Is this media converter compatible with my existing network equipment?A: Yes, the 10Gtek Gigabit Ethernet Media Converter is compatible with a wide range of devices as it complies with IEEE standards such as 802.3, 802.3u, 802.3z, and 802.3ab. It supports auto-negotiation for 10M, 100M, and 1000M Ethernet speeds and works seamlessly with both full and half-duplex configurations.
Q: What are the key features of this media converter?A: Key features of the Gigabit Ethernet Media Converter include support for distances up to 550m with multimode fiber, auto MDI/MDI-X support, LED indicators for monitoring network status, and a robust design that includes a metal enclosure. It also features plug-and-play functionality for easy installation.
Q: What is the maximum distance this converter can extend fiber connections?A: This media converter can extend fiber connections up to 550 meters when using multimode fiber. This versatility makes it ideal for various network setups in both small and large environments.
Q: Does this product come with any warranty or support?A: Yes, the 10Gtek Gigabit Ethernet Media Converter comes with a 2-year warranty, a 30-day money-back guarantee, and lifetime technical support to assist you with any installation or operational questions you may have.
