GeeekPi 2Pcs OLED Display Module I2C IIC 128X64 Pixel 0.96 Inch Display Module Yellow Blue Two-Color Display Compatible with Ras
$14.46
Sold Out

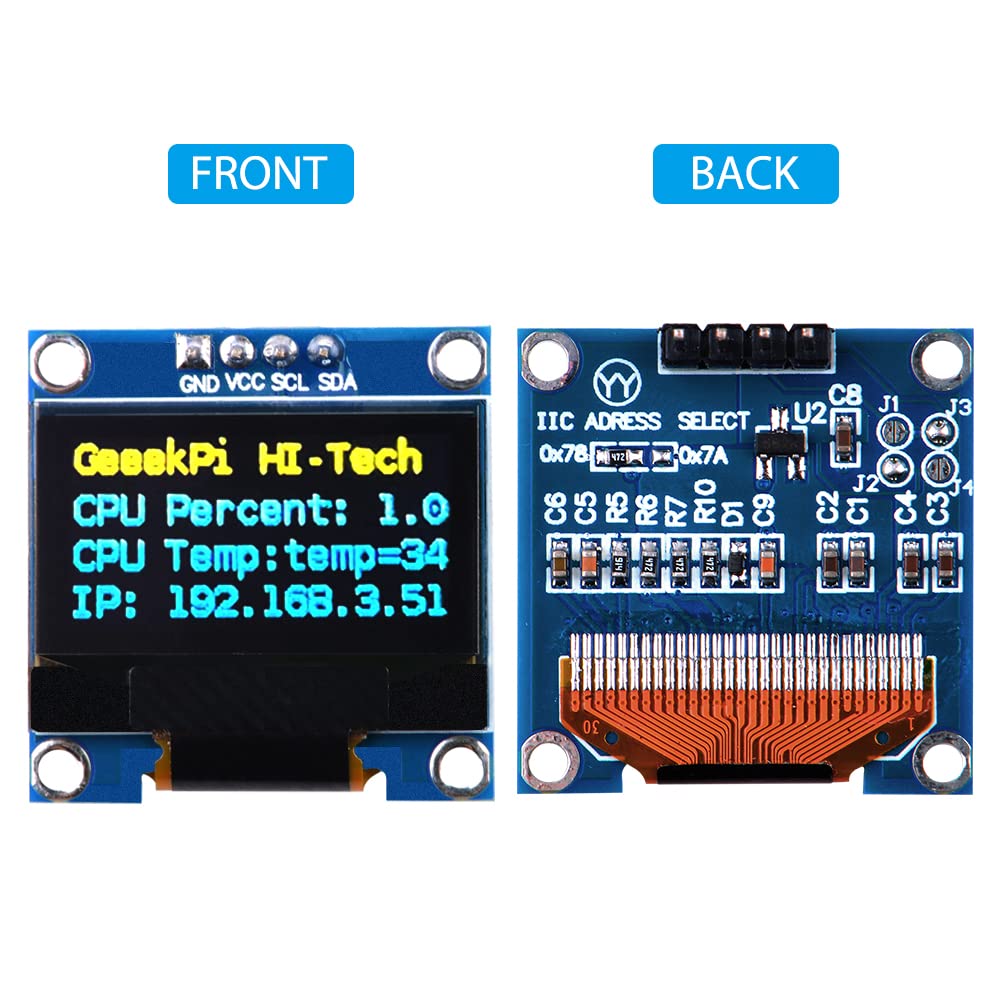

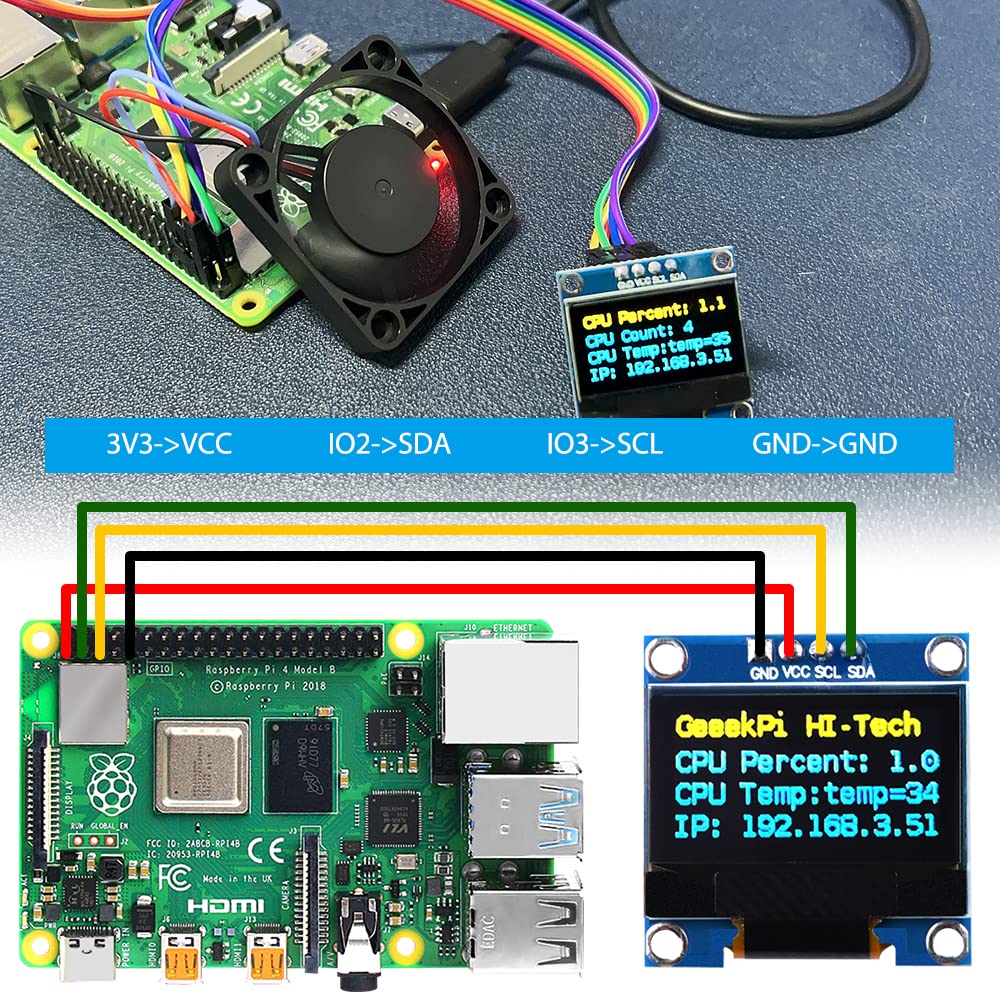

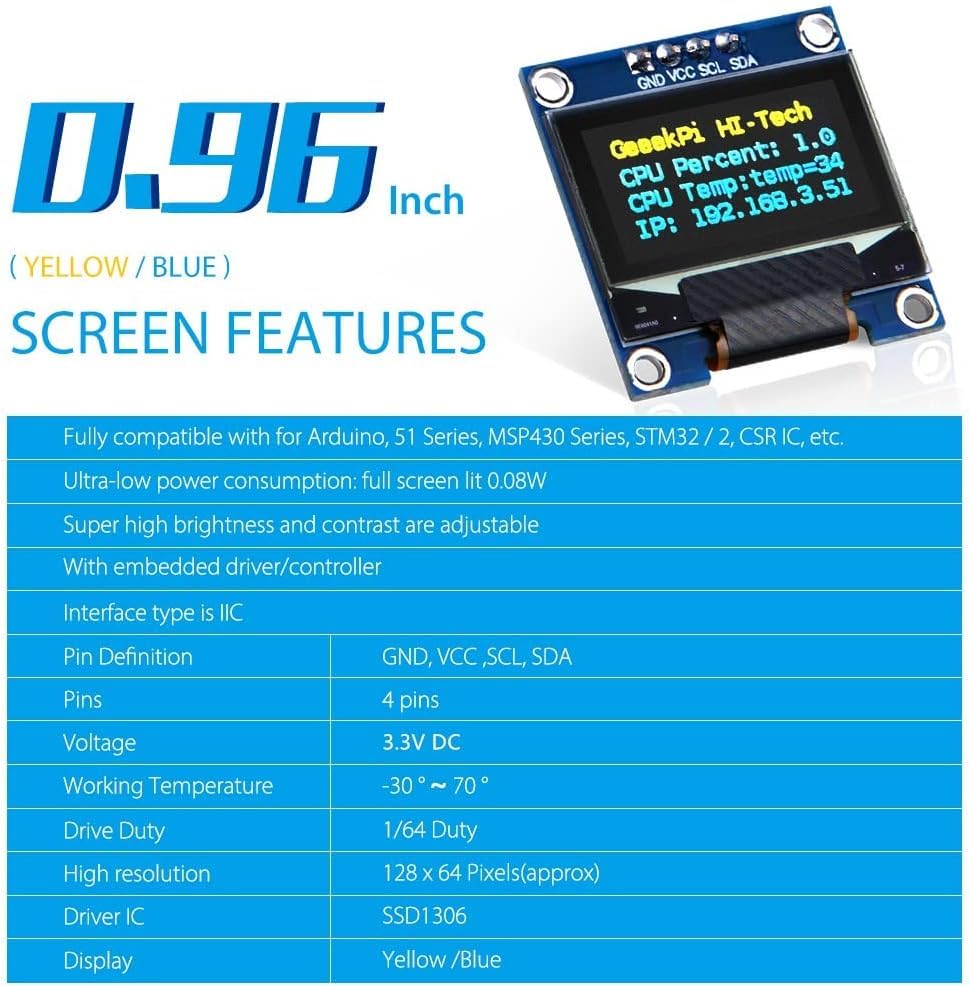

Description:This OLED display module is small, only 0.96 diagonal, it is made of 128x64 individual yellow and blue OLED pixels, each one is turn on or off by the controller chip. It works without backlight, that is, in a dark environment OLED display is higher compared to that of LCD display you will like the miniature for its crispness. That is, except the VCC and GND, 2 wires would be needed when using 4-wires I2C mode. Communication: I2C/IIC Interface, only need two I/O ports. It compatibles with R3 board and Mega, Raspberry Pi, 51 Series MCU, STM32 etc. No backlight is required, and the display unit can be self-luminous. It has ultra-high contrast, bright and clear dots, and it is easy to read even small fonts. There are no fonts embedded in the OLED controller, users can create fonts through font generation software. Features: Fully compatible with for Arduino, 51 series, MSP430 Series, STM32/2, CSR IC, etc. Ultra-low power comsumption: full screen lit 0.08W Super high brightness and contrast are adjustable With embedded driver/controller Interface type is IIC (I2C) Pin Definitions: GND, VCC, SCL, SDA Pins: 4 pins Voltage: 3.3V DC Working Temperature: -30~ 70 Drive Duty: 1/64 Duty High resoluton: 128*64 pixels(approx) Display : Yello/Blue Technology support:wiki.52pi.com/index.php?title=S-0018 Package includes: 2 x 0.96 inch OLED Display kits (Yellow Blue Two-Color)
