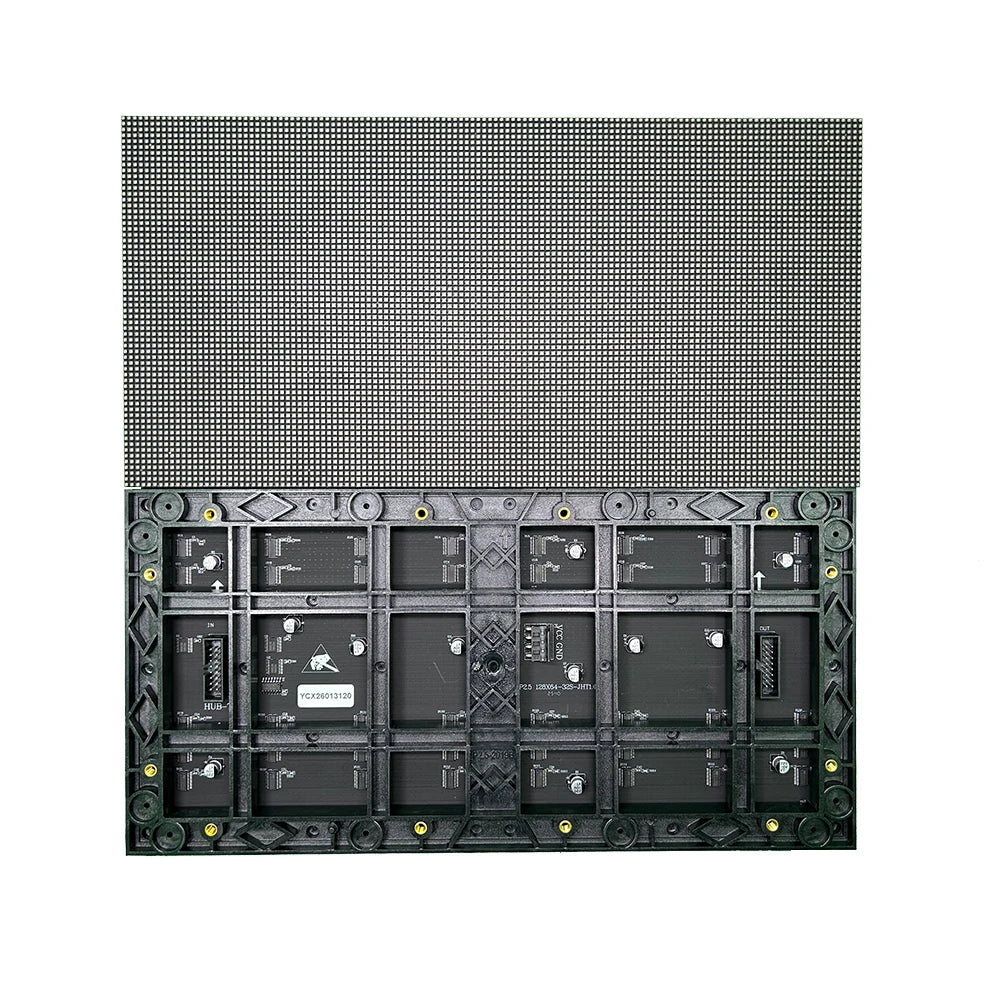

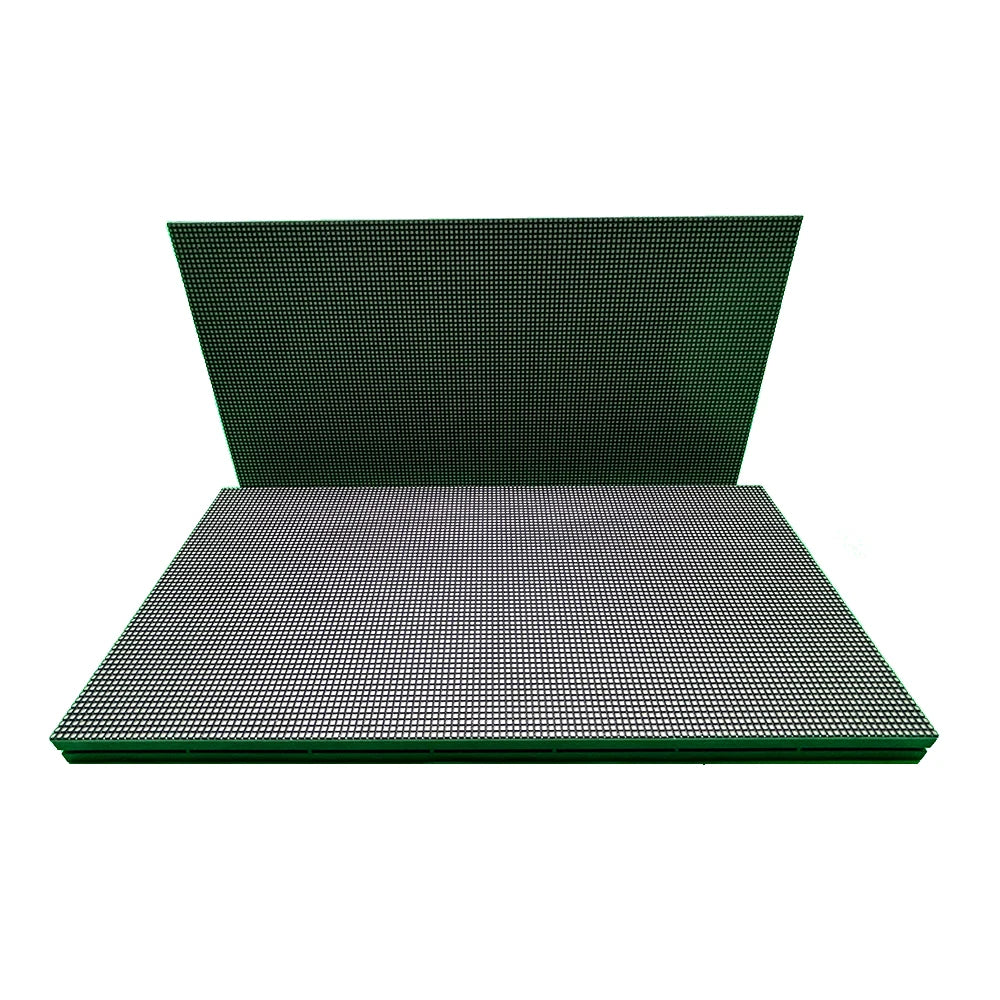

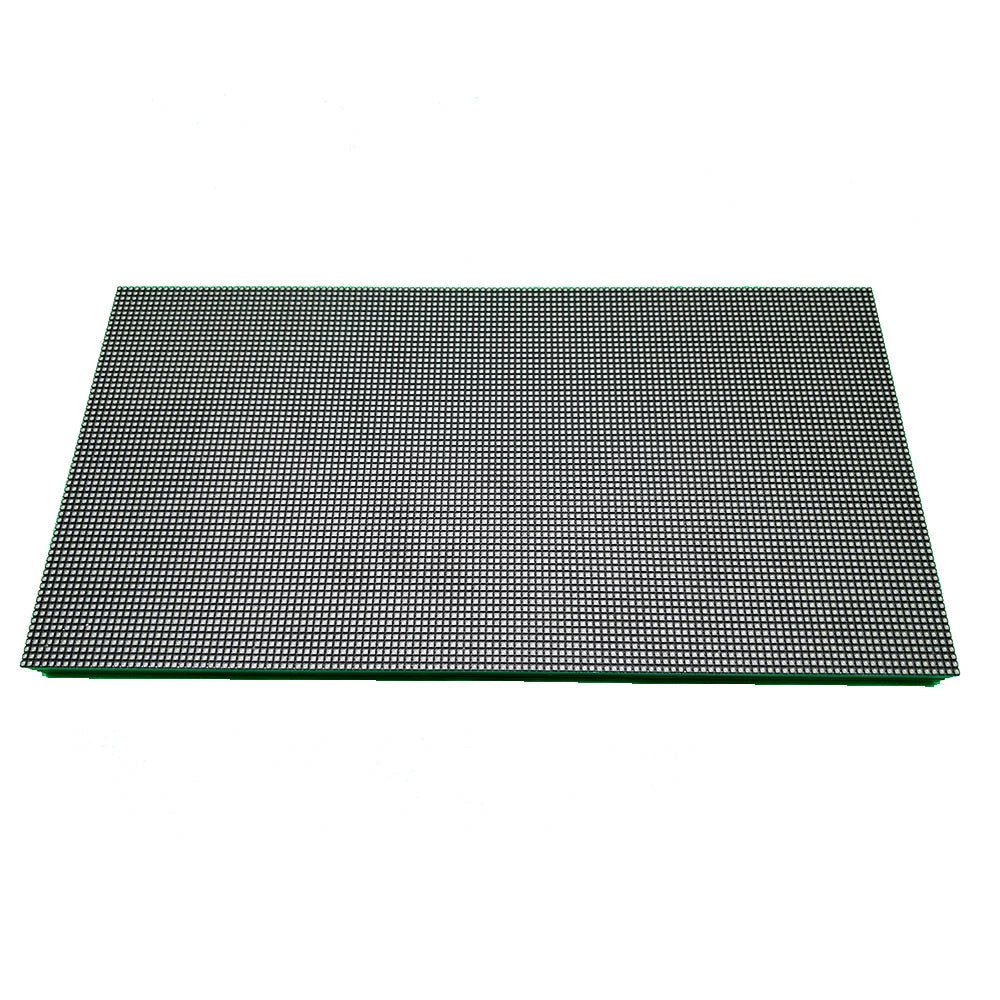

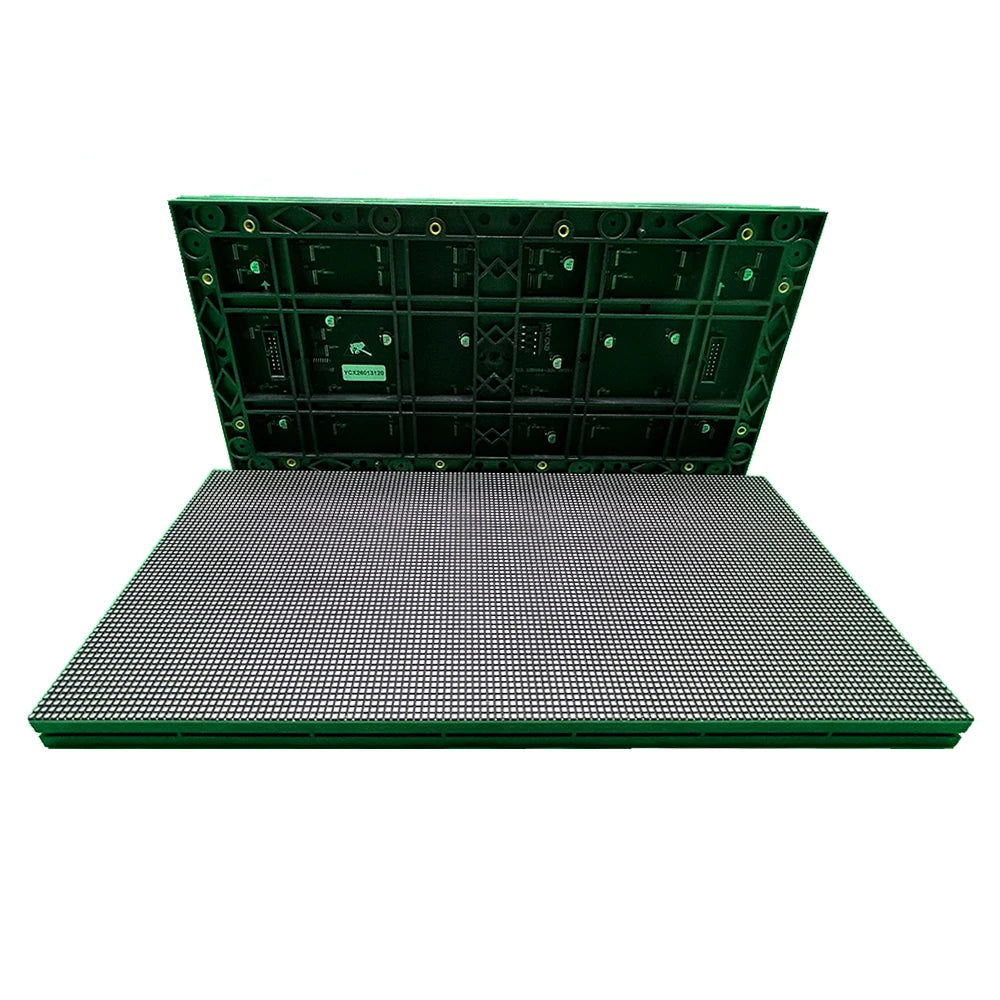

Full Color 320x160mm Small Space Module P2.5 Indoor Dot Matrix HD Unit Board LED SMD Panel
Free Standard Shipping Across USA
Vendor: Electroeshop
Type:
Sku:
Availability: In Stock
Couldn't load pickup availability
Guarantee safe checkout
Sold by Electroeshop, an authorized reseller.
Returns accepted within 30 days | support@electroeshop.com
Shipping Information
- Free Standard Shipping — United States only
- Processing Time: 3–5 business days
- Estimated Delivery: 6–10 business days after dispatch
- Double-boxed, fully insured & discreetly packaged
- Tracking number sent via email once dispatched
Returns & Refund
Returns accepted within 30 days of delivery.
Damaged or Defective Item
Free return shipping + replacement or full refund
Wrong Item Received
Free return shipping + replacement or full refund
Change of Mind
Return shipping at customer's expense · 25% restocking fee applies
All returns require a Return Authorization (RA) number before sending.
View Full Return & Refund Policy
Full Color 320x160mm Small Space Module P2.5 Indoor Dot Matrix HD Unit Board LED SMD Panel - Default Title
$41.10
SPECIFICATIONS
Brand Name: Yao Cai Xing
Choice: yes
Display Function: VIDEO
High-concerned chemical: none
Input Voltage: 5v
Interface Way: HUB-75
Is Waterproof: No
Lamps: SMD 2121
Mdoule Weight: 0.42kg/pcs
Model Number: P2.5
Module Power: 30w
Module Resolution: 128*64
Module Size: 320mmx160mm
Origin: Mainland China
Pixels: 2.5mm
Scan Method: 32scan
Tube Chip Color: Full Color
Use: Indoor
Warranty: 3years
is_customized: Yes
semi_Choice: yes
Welcome to Yao Caixing Electronic company!
www.ledycx.com
Hope we will be the best business partners
Our Advantage
1.CCC,CE&Rohs,FC,UKCA,PSU certificates
2.Life span:more than 100000h
3.Excellent after-sales services with free repaire whole life
Specification
Module Parameter | |
Size |
160mm(H)×320mm(H) |
Module Resolution |
64(H)×128(V) |
Pitch |
2.5mm |
Density |
160.000 pixels/m² |
LED Lamps |
SMD2121(Customizable Nationstar lamp) |
Driver IC |
FM6124/Chipone2037 |
Module Refresh |
1920hz |
Mask |
No |
Electricity Parameter | |
Optical Ratings | |
Brightness Of White Balance |
≥600cd/m² |
View Angle |
140 degree ( horizontal) 140degree(vertical) |
View Distance |
2m-200m |
Gray Scale |
16384 |
Display Color |
3-in-1 RGB |
Brightness Adjustment |
100 levels |
Power Supply | |
Operation Power |
AC100-240V 50-60HZ Switch-able |
Maxim Power Consumption |
700w/m² |
Average Power Consumption |
300 w/m² |
Control System | |
Correction Scale Level |
16bits |
Screen Refresh Frequency |
1920Hz |
Gamma Correction |
-5.0—5.0 |
Support Input |
HDMI,DVI,VGA,RJ45,USB,Serial Port |
Control Distance |
Ethernet cable 100m, optical fiber 5km |
Support VGA Mode |
1920×1080 |
Color Temperature |
5000-9300 adjustable |
Brightness Correction |
dot by dot, module by module |
Reliability | |
Temperature |
Storage:-35℃-+80℃ ; Operation :-25℃-+45℃ |
Humidity |
Storage:10-70% RH ; Opeartinon:10--60% RH |
Operating Life |
≥100,000 hours |
MTBF |
≥5000 hours |
Continuous Working Time |
≥48 hours |
Protection Level |
IP20 |
Out of Control Pixel Rate |
0.03% |
Pictures
- Smaller pitch(under P3) module without mask
- SMD2020 black lamps
- You can use screws fix the modules , magnets also available
- Modules not waterproof ,keep it dry
- Modules materials are plastic , keep far away from water

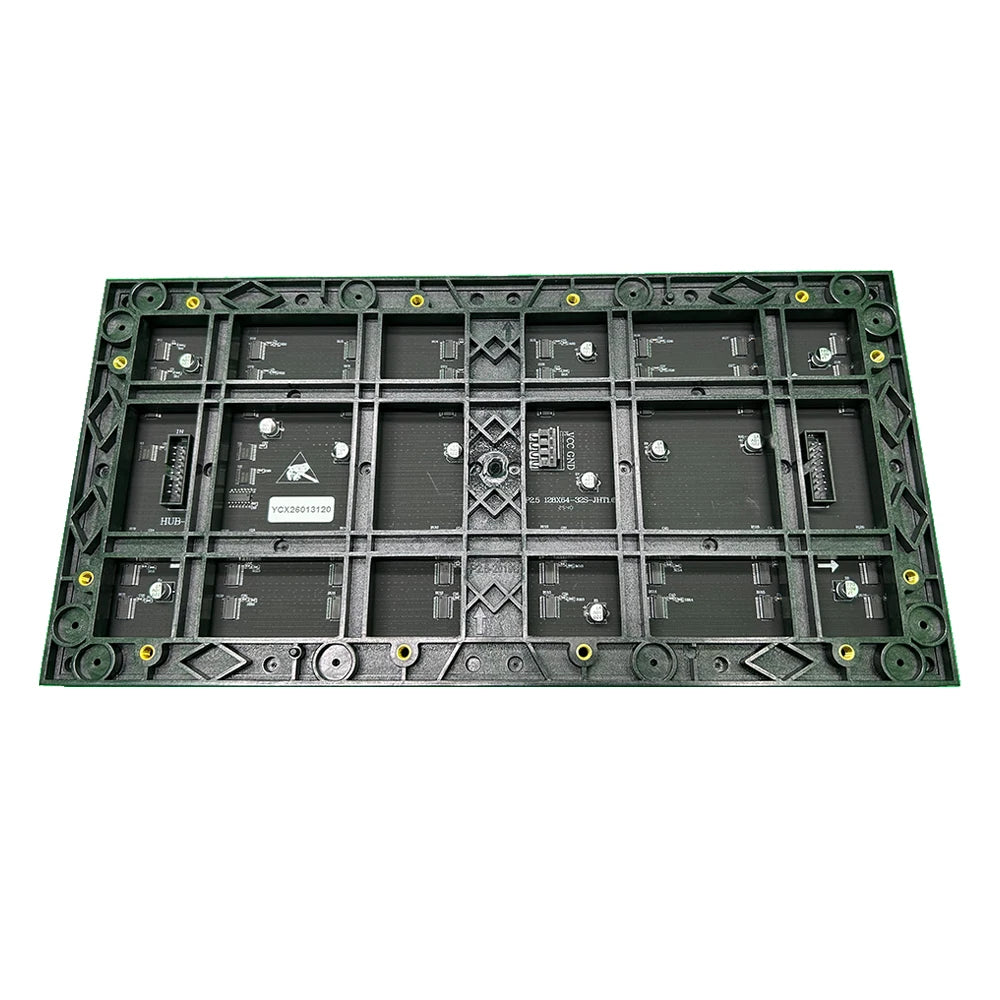

- The data interface uses the conventional 16pin interface(usual modules are 16pin,you
must need attention your control card suitable)
-Convenient power outlet, safety and quickly

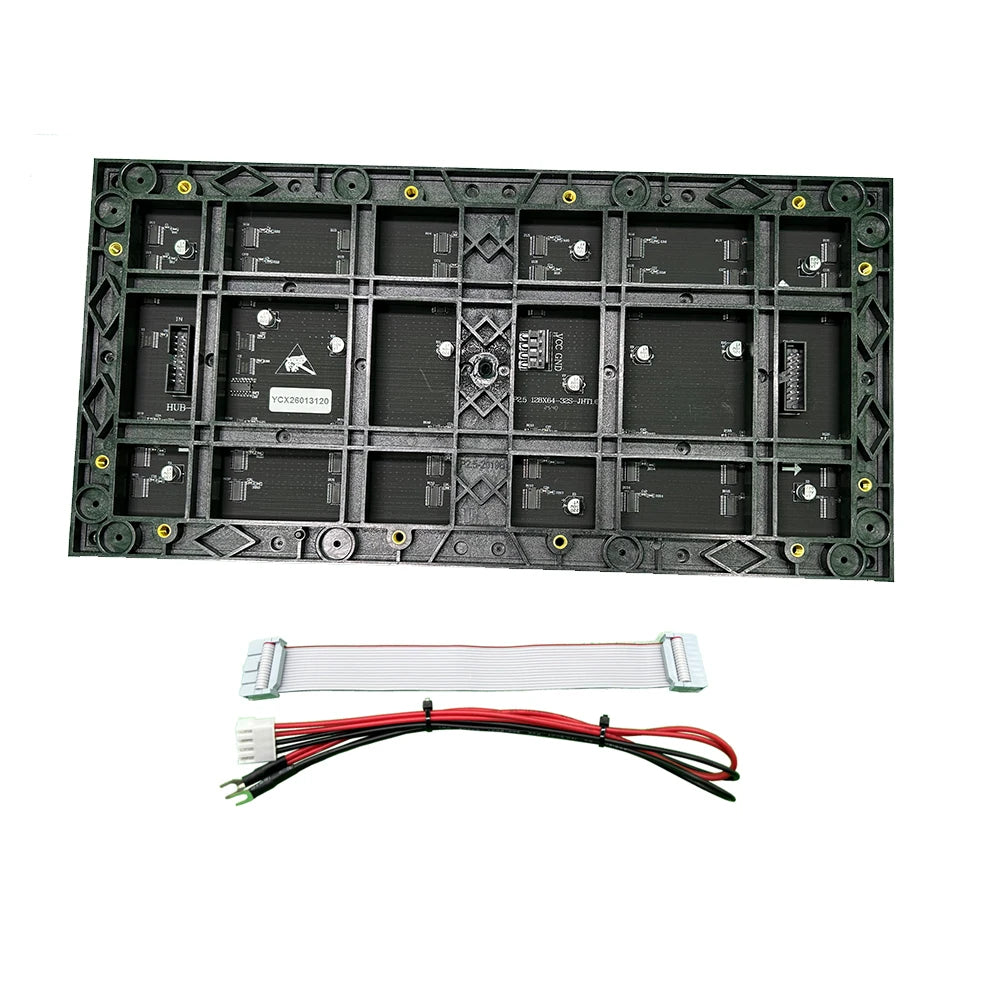

- 1 pcs date cable send free
- 1 pcs power cable send free
- We can use magnets fix installation directly
- We also can use aluminum cabinet for rental business(640x640mm/480x480mm)
ATTENTION!!!
- Different batch or different company's led module , they can't be used together because the color ,brightness,signal direction of PCB board are different
(Different batch screw holes position on the housing might be diferent with the picture, pls confirm with us before order.)
- As thest products easy to broken, we suggest you choose express(DHL,Fedex, UPS, TNT) shipping ensure folwless and prefect
- All the series modules are 5V power ,make sure your switch power supply suitalbe
Hope you love and choose us ,thanks for your support
We'll try to do better and better in the future
Have a nice day !!!
