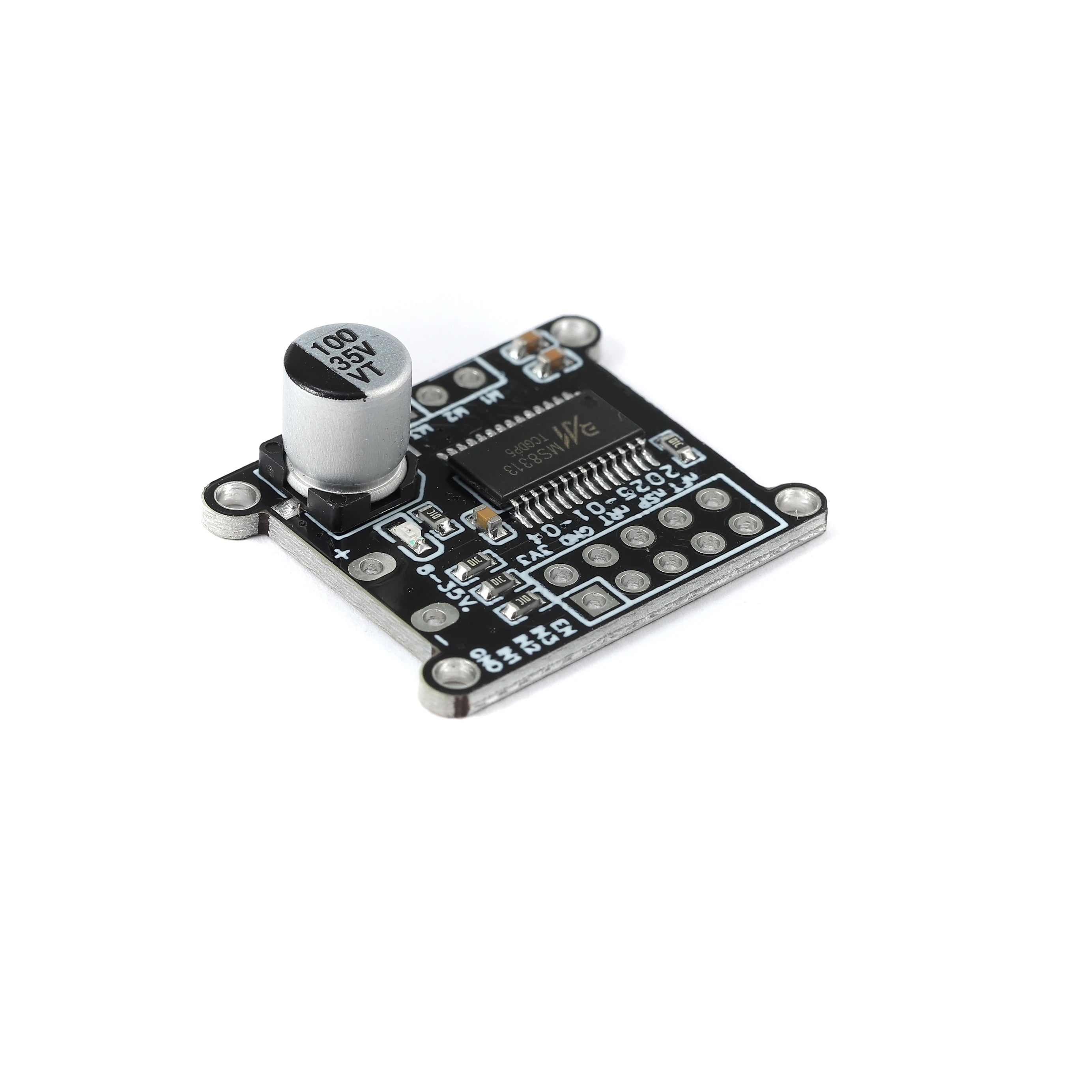

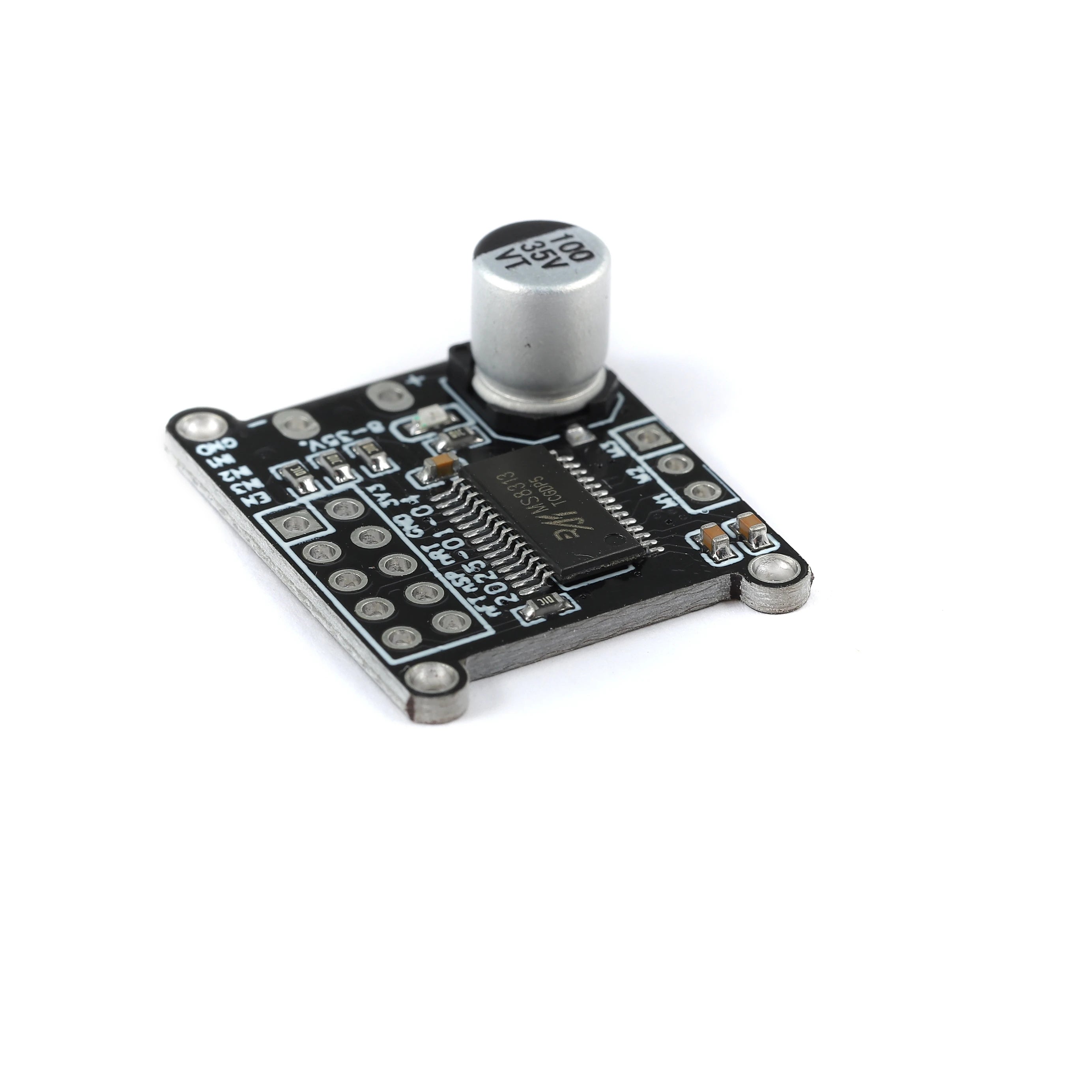

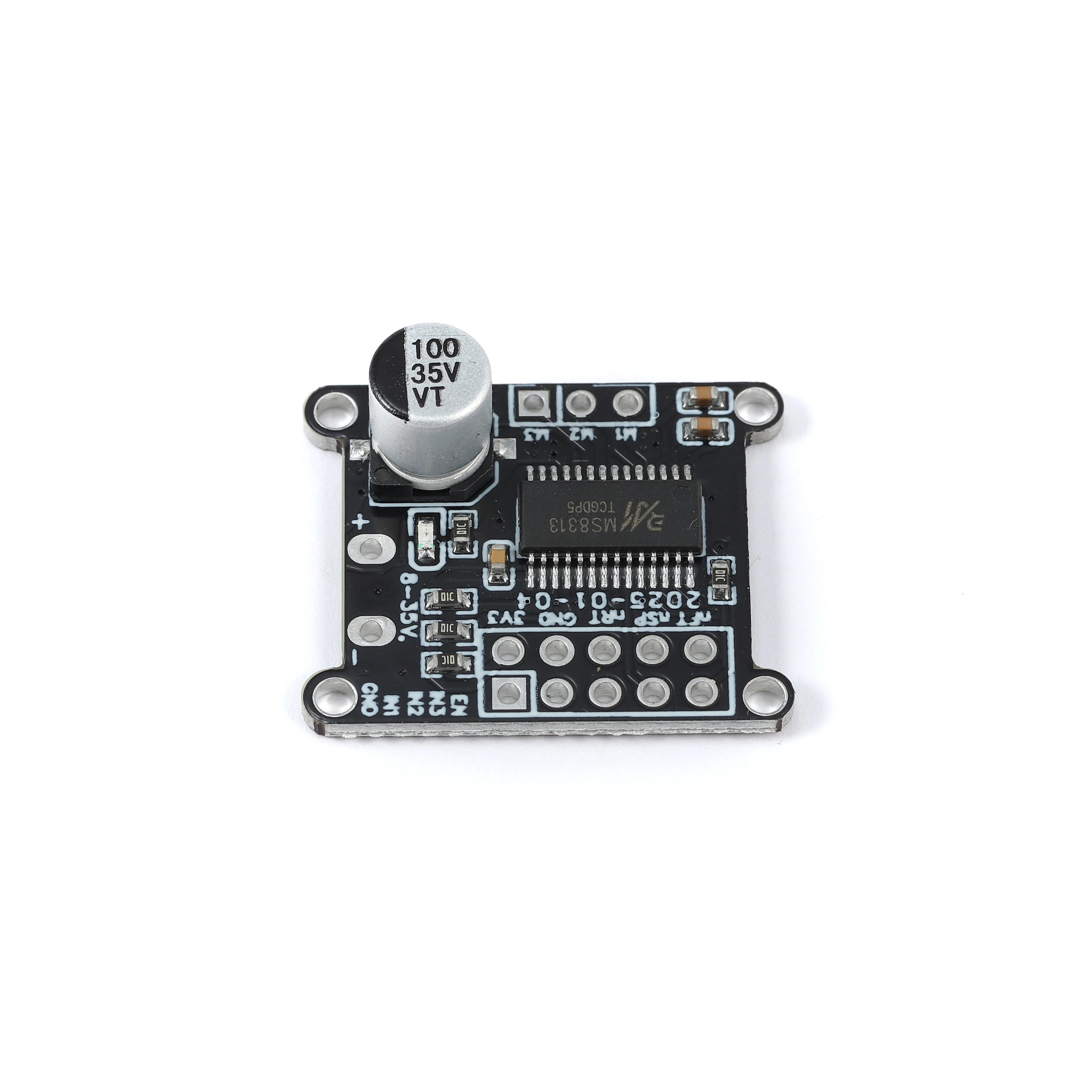

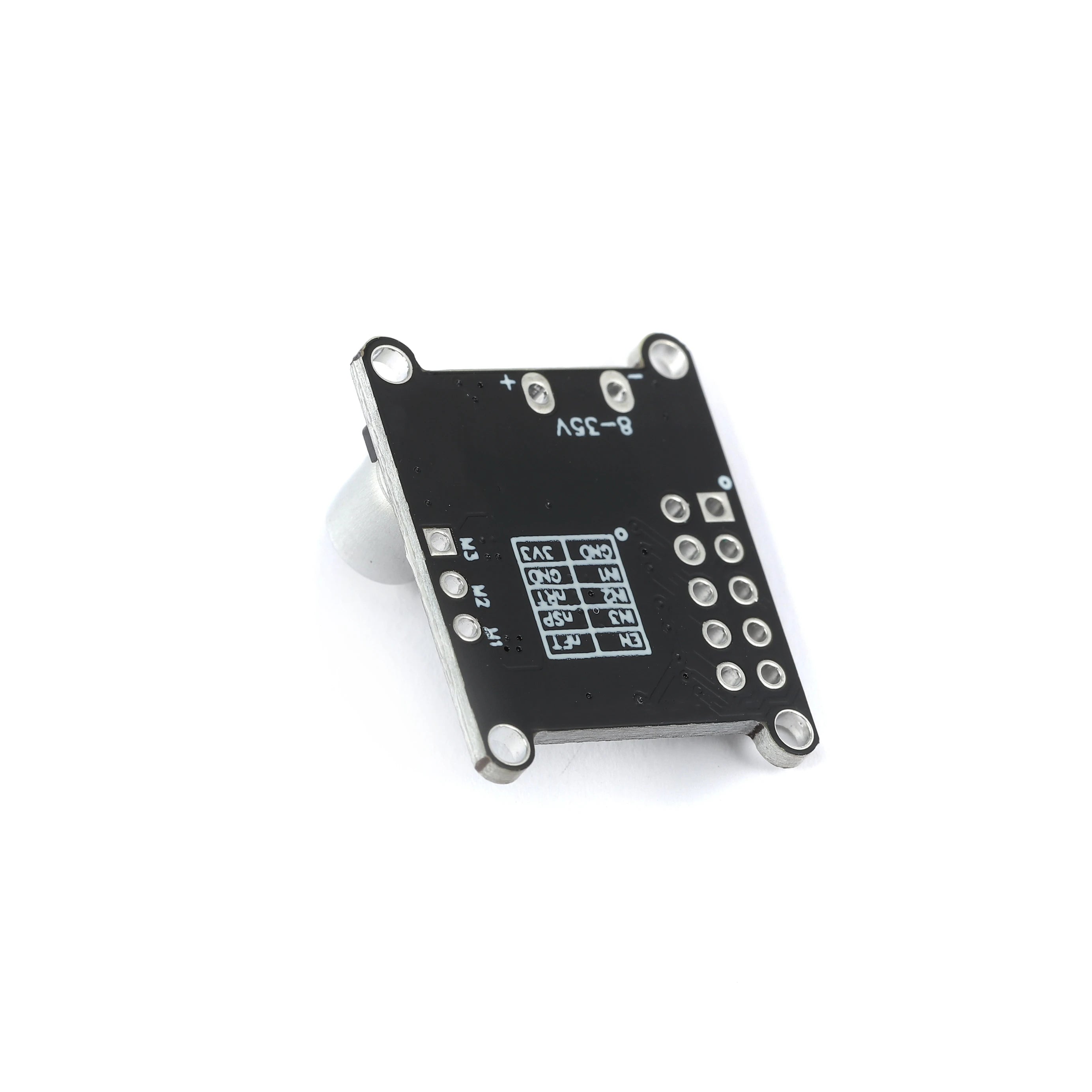

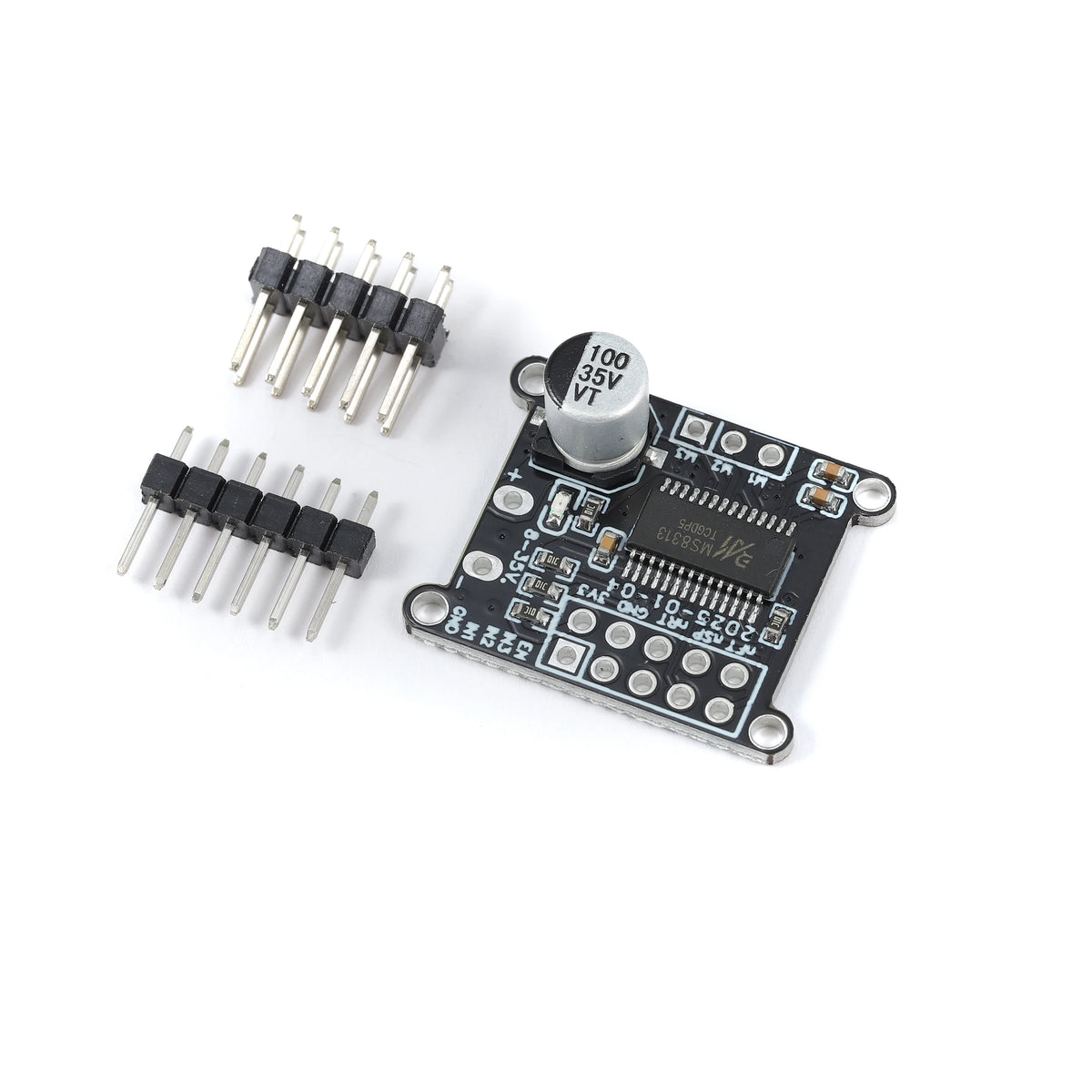

FOC Motor Driver Board Motor Controller DC 8-35V, 2.5A Low-Power BLDC Brushless Compatible DRV8313 - black
$3.80
Add to Cart
SPECIFICATIONS Brand Name : NONE
Choice : yes
Condition : New
High-concerned chemical : none
Origin : Mainland China
Type : Voltage Regulator
semi_Choice : yes
[Introduction]
The DC brushless motor driver board adopts the domestic chip MS8313, which provides three independently controllable half H-bridge drivers, mainly used to drive the DC brushless motor.
The MS8313 provides three independently controllable half H-bridge drivers, which are mainly used to drive brushless DC motors. Only need to access the control signal and motor UVW three-phase line, can control the motor rotation. SPWM and SPVMW control algorithms are supported.
SPWM and SPVMW control algorithms are supported, but not the traditional 6-step commutation control algorithm.
Features]
1. Input power supply voltage: 8~30V
2. Maximum output current per channel is 2.5A.
3.On-board 3.3VLDO output, maximum current 10mA
4. Input control signal compatible with 3.3V and 5V
5. Support SPWM and SPVMW control algorithms 6. Powerful open source libraries, quick to get started.
