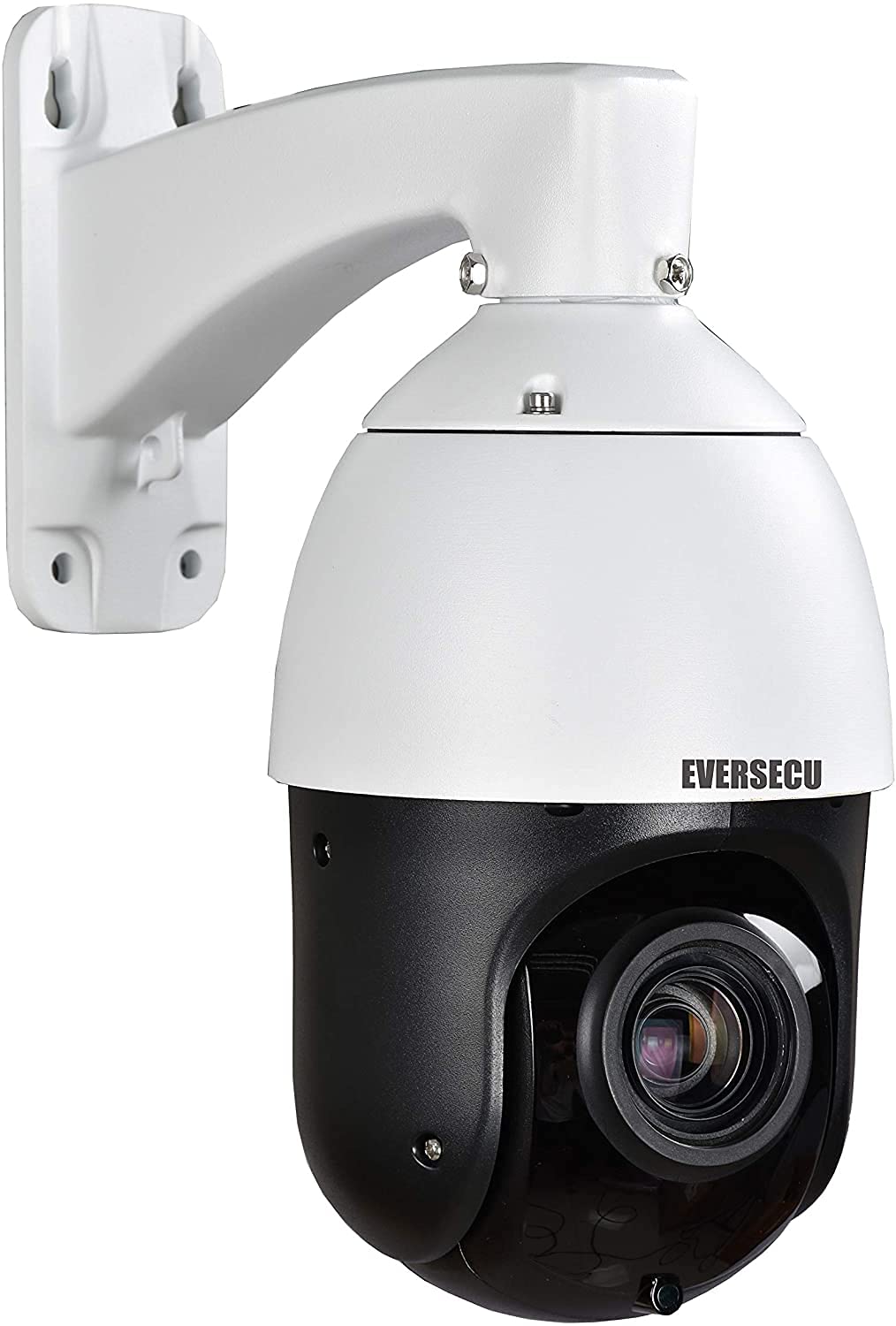

Eversecu Video Surveillance Security Camera 4-In-1 Tvi/Ahd/Cvi/Cvbs Hd 5Mp 20X Optical Zoom Waterproof Medium Speed Dome Camera Ir Night Vison & Sony Sensor Specification Camera Sensor: 1/3'' Cmos 5Mp Sony355 Output Pixel: 2592(H)X1944(V)/15Fps Lens: 20X 4.7Mm~96.3Mm Blc: Support Agc: Auto/Manual Wb: Indoor/Outdoor/Auto/Manual S/N Ratio≥50Db Wdr: Dwdr Dome Rotation Range: Pan: 0~360 , Tilt: 0~90 Medium Rotation: Pan: 0~60/S , Tilt:0~45/S Auto Flip: Horizontal 180, Vertical 90 Preset Points: 220Pcs Preset( Dwell Time 01-60S Interval Available) A-B Scan: User Programmable (Scan Speed 1-64 Levels Setting Available ) Guard Tours: 3 Groups (Max.16 Points, Dwell Time User Selectable) Pwr On Action: Memory/Pattern 1/Tour 1/360 Scan/A-B Scan/Park 1/None Video Interface Output: Ahd/Tvi/Cvi/Cvbs Selectable Communication Mode: Rs485 (+/-) / Coaxial Cable Operating Temperature: -40℃~+60℃ Power: Dc12V 3A Power Consumption≤ 25W Lightning Protection: Transient Voltage 6000V Ir Pamameters Auto Control Ir Led: Pwm Ir Distance: Up To 263Ft Leds: 6Pcs Array 42Mil Ir Led Support Ambient Light Detection: Ir Illumination On 1-9 Grades Selectable Packing List: 1 X 4.5 Inch Waterproof Ahd Ptz Dome Camera With Camera Bracket(Standard Wall) 1 X User Manual 1 X Power Adapter Notice: Default Video Signal Is 5Mp Ahd, It Can Be Adjust To Tvi, Cvi Or Cvbs (Analog) Manually, Compatible With All 5Mp Or Above Analog Dvrs. Do Not Work With 1080P, 720P Or 960H Dvr And Any Nvr System
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What is the resolution of the EVERSECU security camera?A: The resolution is five megapixels, offering clear video output at two thousand five hundred ninety-two by one thousand nine hundred forty-four pixels.
Q: What types of video outputs does this camera support?A: This camera supports four types of video outputs: AHD, TVI, CVI, and CVBS.

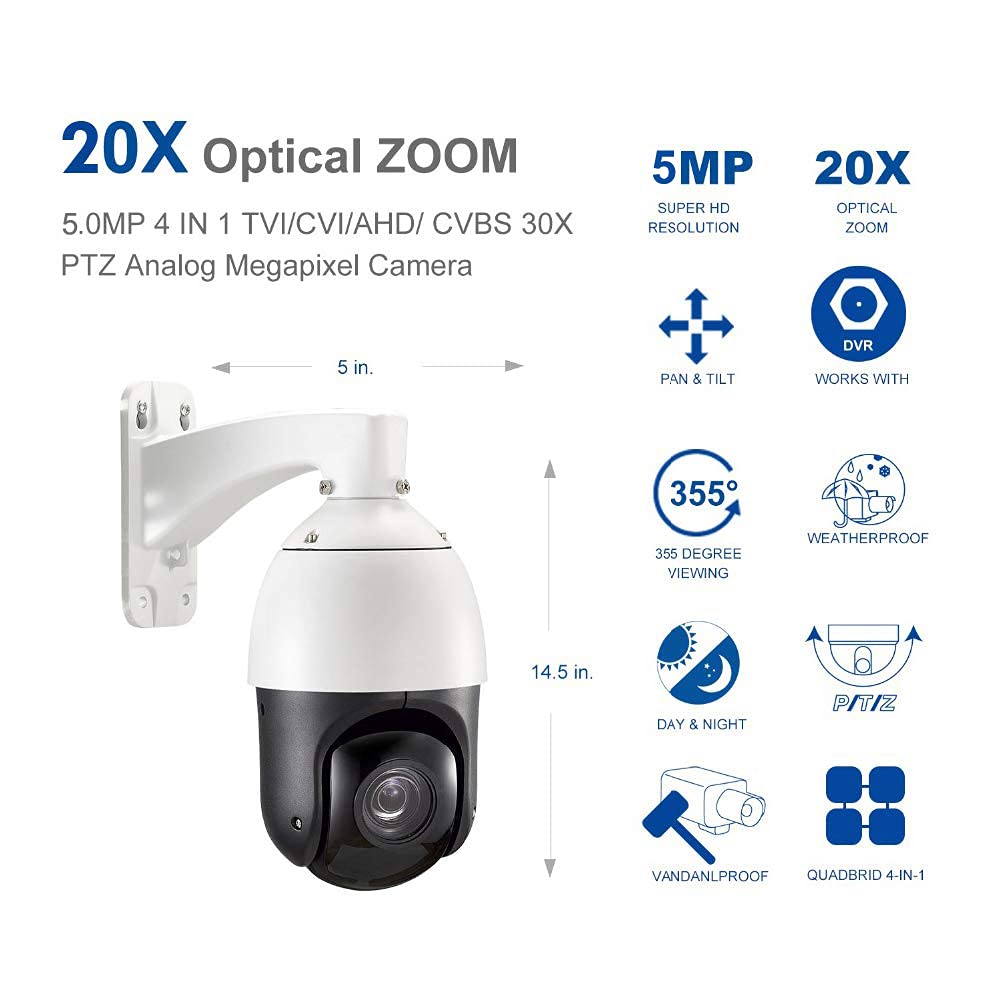

Q: What is the optical zoom capability of the camera?A: The camera features a twenty times optical zoom, allowing for detailed close-ups and wide coverage.
Q: What is the operating temperature range of this camera?A: The operating temperature range is from negative forty degrees Celsius to positive sixty degrees Celsius.
Q: How do I install the EVERSECU security camera?A: To install, mount the camera securely using the included bracket and connect it to a compatible DVR or PTZ controller.
Q: Is this camera suitable for outdoor use?A: Yes, this camera is designed for both indoor and outdoor use, with an IP66 waterproof rating.
Q: How do I control the camera's movement?A: You can control the camera's movement via RS485 communication or coaxial cable, using a compatible PTZ controller.
Q: Can I use this camera without a DVR?A: No, this camera requires a DVR that supports five megapixel AHD, TVI, or CVI video format for operation.
Q: What is the best way to clean the camera?A: To clean the camera, use a soft, dry cloth and avoid using any abrasive materials or liquids.
Q: Does the camera come with a warranty?A: Yes, the camera typically comes with a standard warranty, but be sure to check the specific warranty details upon purchase.
Q: What should I do if the camera doesn't power on?A: If the camera does not power on, check the power adapter and connections to ensure they are secure and functioning.
Q: How far can the IR night vision reach?A: The infrared night vision can reach up to two hundred sixty-three feet, providing visibility in low-light conditions.
Q: Is this camera compatible with all DVR systems?A: No, this camera is only compatible with DVRs that support five megapixel or higher video formats; it does not work with lower resolution systems.
Q: What kind of power supply does the camera require?A: The camera requires a direct current power supply of twelve volts and three amps.
Q: Can I adjust the camera's field of view?A: Yes, the camera's pan and tilt features allow you to adjust its field of view, covering a wide area.
