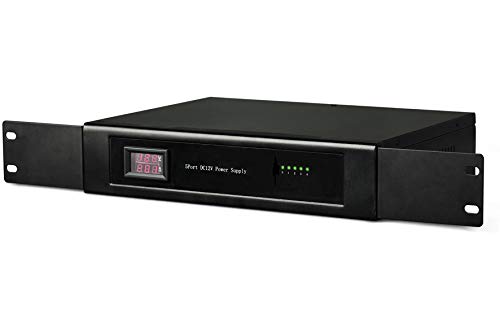

Specification: Input Voltage:Ac 100~240V, 50-60Hz Output Voltage:Dc11V-15V Total Output Current:10A Total Output Channel:9Ch Fuse Type: Ptc Resettable Fuse Rating:1-8Th Ports Fused At 2A,9Th Port Fused At 4A Ripple And Noise: Less Than 120Mv Efficiency:>=80% Storage Temperature:-40-85? Operating Temperature:-20-60? Product Net Weight:2.86Kg Product Dimension:485.4*230*65.6Mm(1.5U/19) Package Dimension:440*285*105Mm Certificate:Ul,Ce,Fcc Warranty:2 Year
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the EVERSECU power supply?A: The dimensions are four hundred eighty-five point four millimeters by two hundred thirty millimeters by sixty-five point six millimeters.
Q: What is the weight of the EVERSECU power supply?A: The product net weight is two point eight six kilograms.
Q: What voltage does the EVERSECU power supply operate on?A: It operates on an input voltage of one hundred to two hundred forty volts AC.

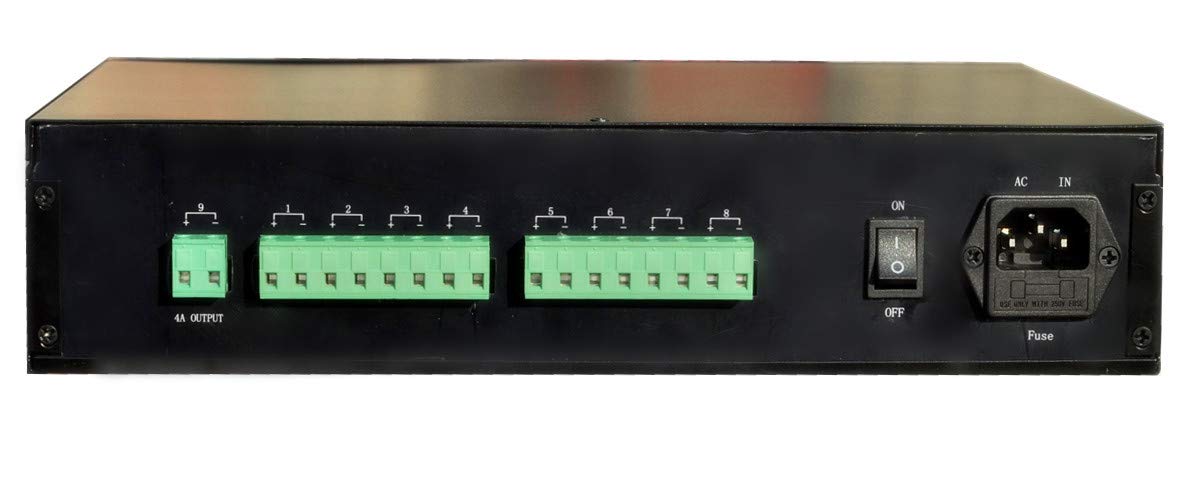

Q: How many channels does the EVERSECU power supply have?A: The power supply has nine output channels.
Q: What is the total output current of the EVERSECU power supply?A: The total output current is ten amps.
Q: What type of fuse does the EVERSECU power supply use?A: It uses a PTC resettable fuse.
Q: How do I install the EVERSECU power supply?A: To install, mount it in a standard nineteen inch rack and connect to a power source using the AC plug provided.
Q: Is the EVERSECU power supply suitable for outdoor use?A: No, it is designed for indoor use only, with an operating temperature range of negative twenty to sixty degrees Celsius.
Q: How can I ensure the safety of the EVERSECU power supply?A: The power supply features independent PTC fuses, lightning protection, and short-circuit protection to enhance safety.
Q: What is the warranty period for the EVERSECU power supply?A: The warranty period is two years.
Q: Can I use the EVERSECU power supply for other devices?A: Yes, it can power various devices needing twelve volts DC, such as security cameras and DVRs.
Q: How do I clean the EVERSECU power supply?A: Clean it with a soft, dry cloth. Avoid using water or liquid cleaners.
Q: What should I do if the EVERSECU power supply is damaged upon arrival?A: Contact customer support immediately to report the issue and inquire about replacement options.
Q: Is there overcurrent protection in the EVERSECU power supply?A: Yes, it has overcurrent protection that activates if the current exceeds safe levels.
Q: How do I store the EVERSECU power supply?A: Store it in a cool, dry place away from direct sunlight and moisture.
