ESP32-S3 7inch Display Development Board Type B, ESP32 With Display, 1024×600, Optional For Touch Function, 32-bit LX7 Dual-core Processor, Up to 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna
The B version is the upgraded version with higher resolution, supports backlight adjustment and Lithium battery voltage monitoring

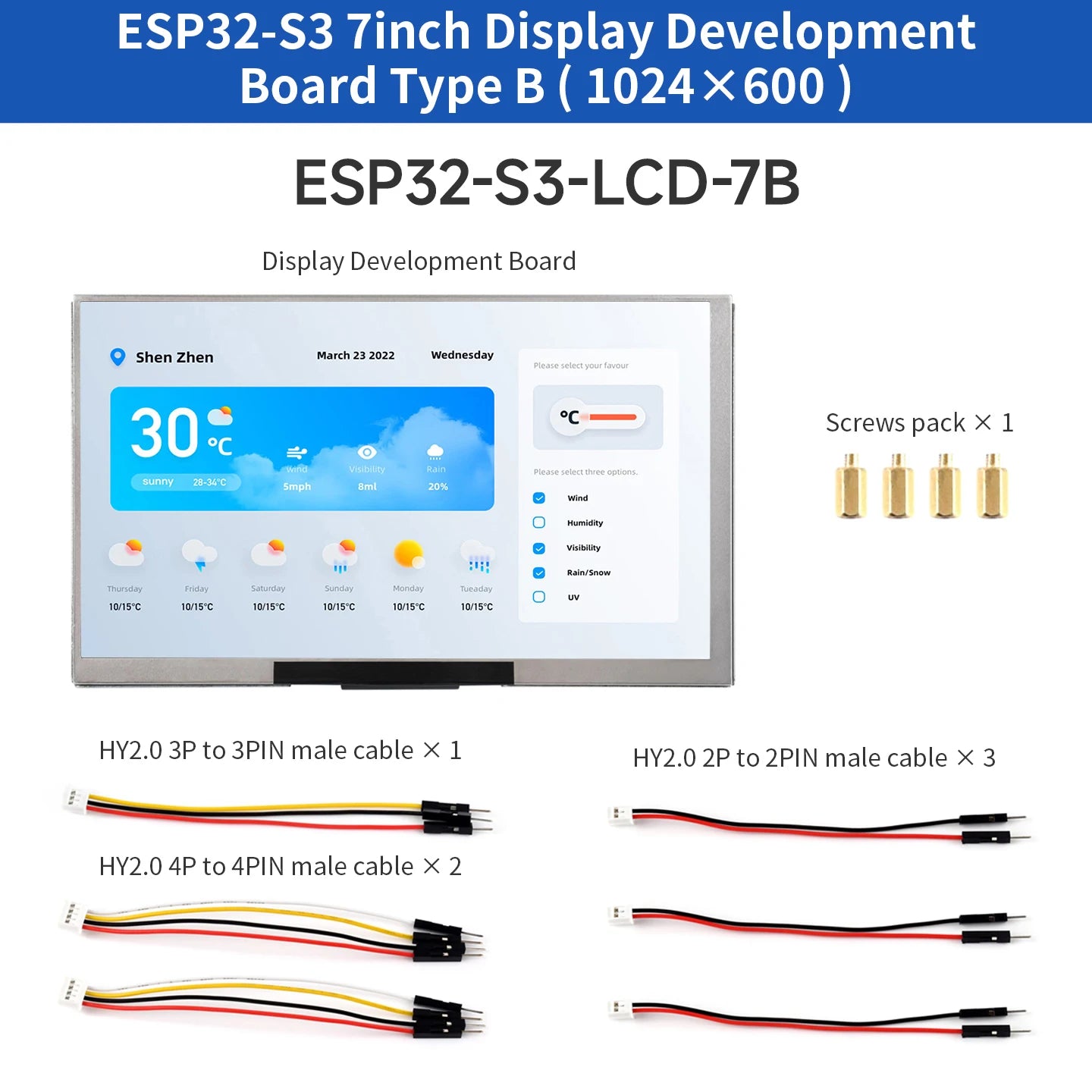

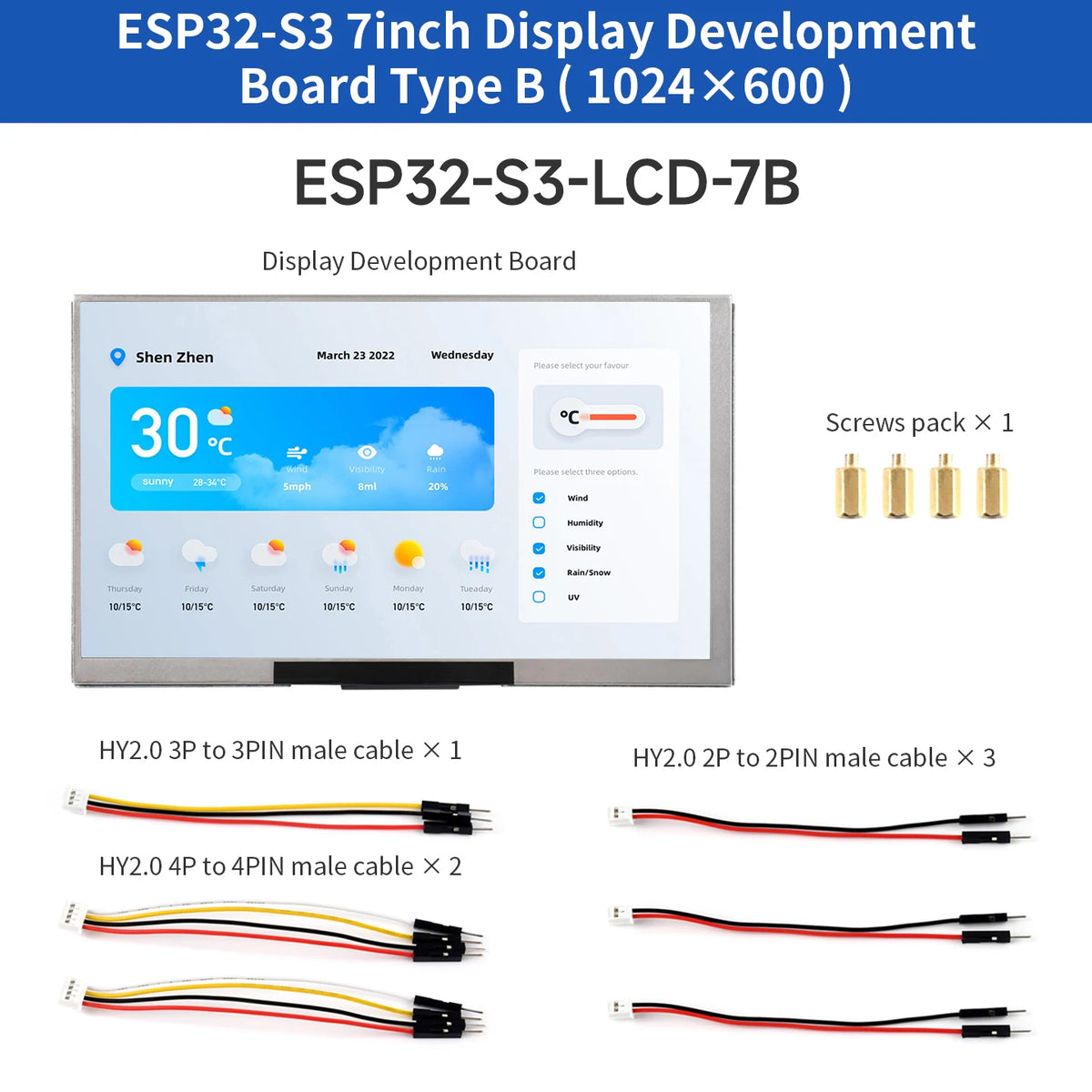

ESP32-S3-LCD-7B Upgraded version, without touch control 1024 × 600 resolution

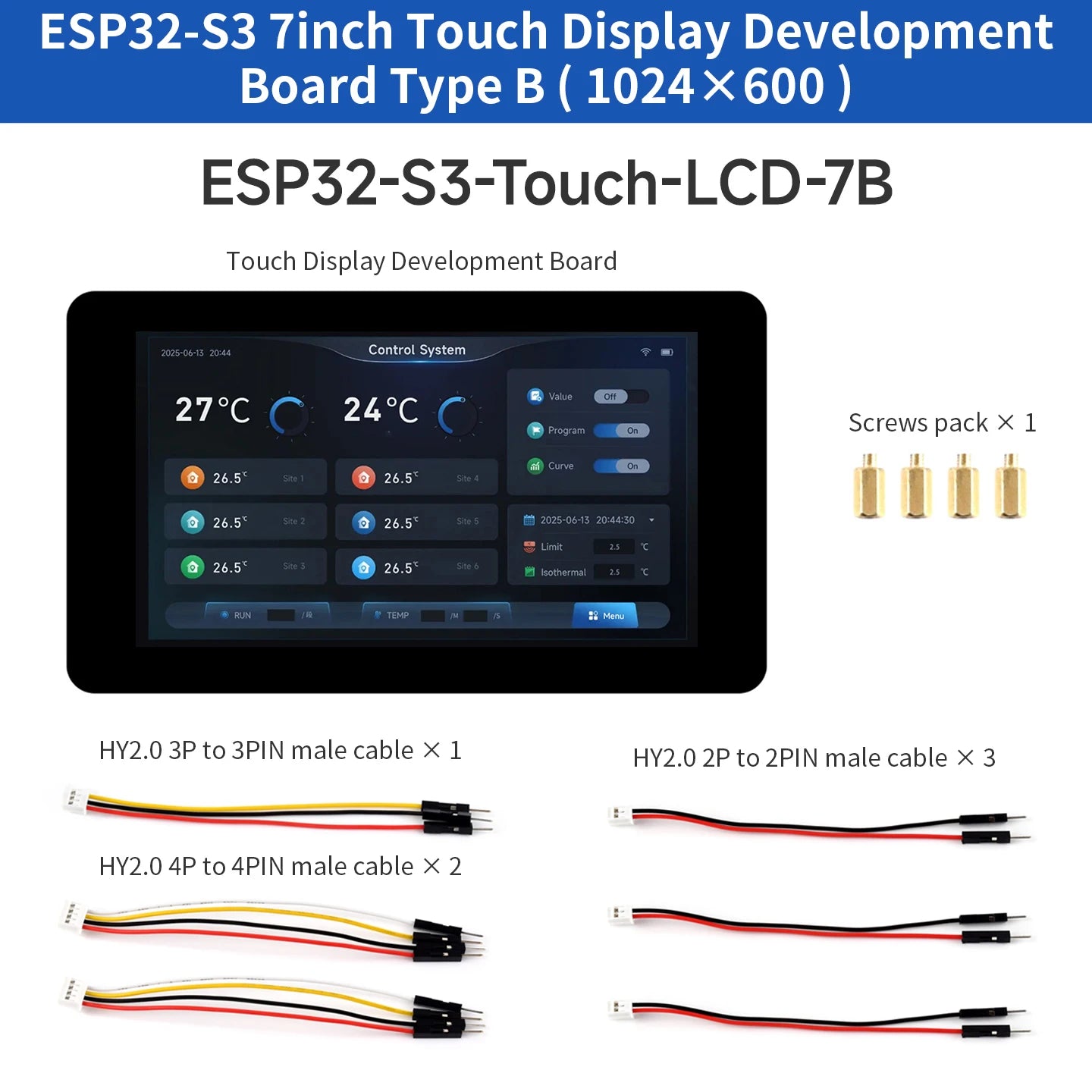

ESP32-S3-Touch-LCD-7B Upgraded version, with touch control 1024 × 600 resolution
Features
This product is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.
Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
Onboard 7inch LCD display, 1024 × 600 resolution, 65K color
Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
LED indicators for easy monitoring of power status and battery charging status
Supports backlight adjustment and real-time battery voltage monitoring
Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
Application scenarios
IPS Display Panel
Excellent display performance, 170° viewing angle

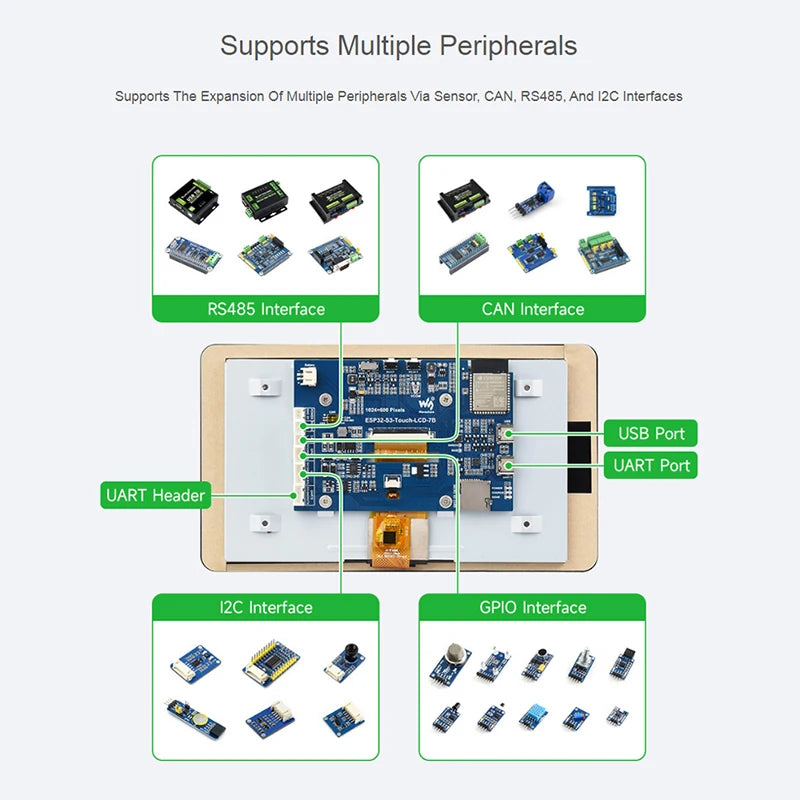

Supports multiple peripherals
Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces

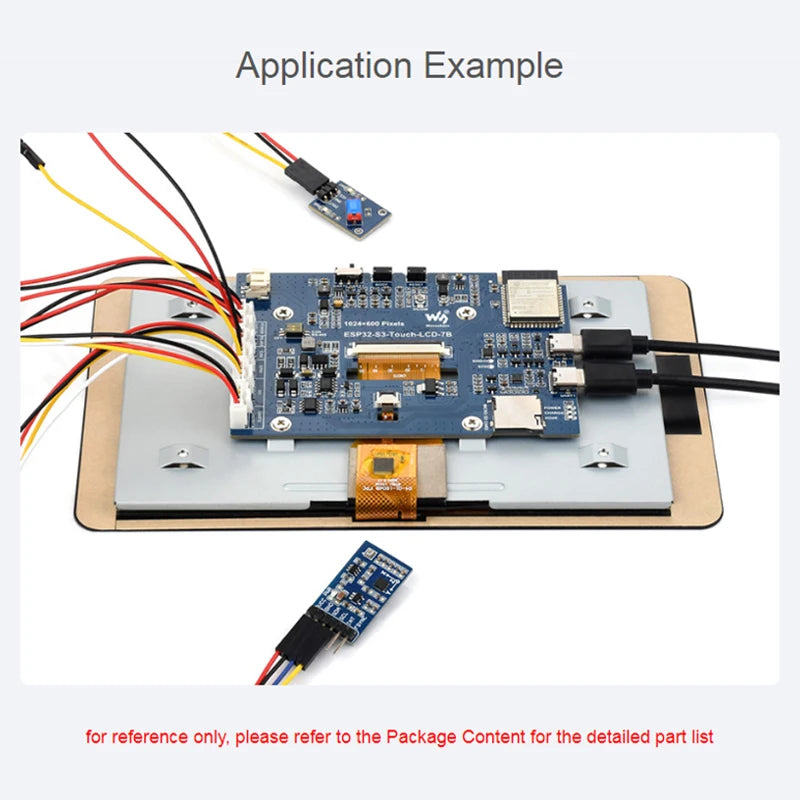

Application Example
for reference only, please refer to the Package Content for the detailed part list

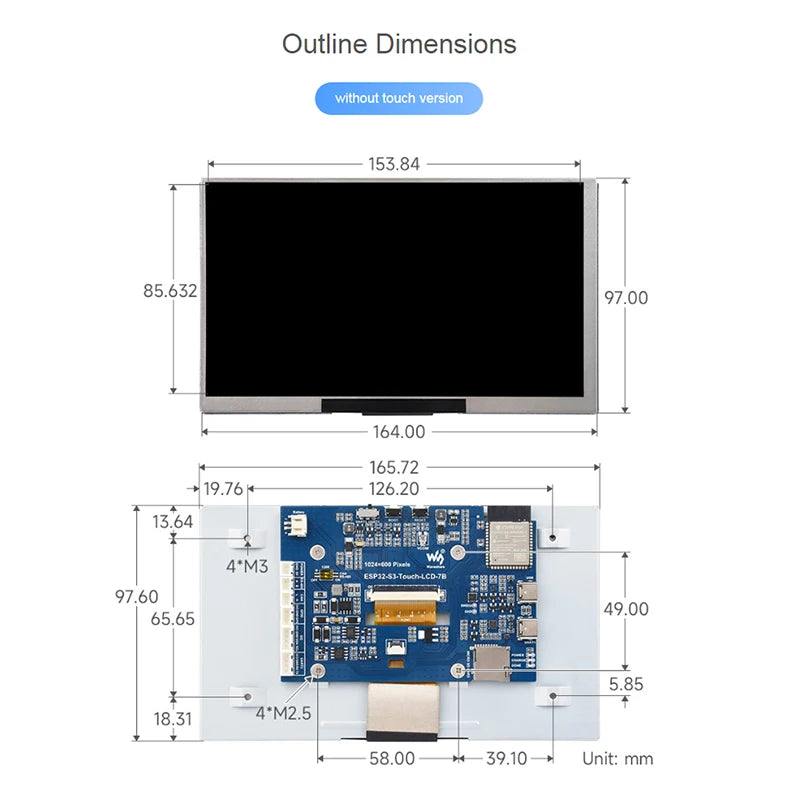

What's On Board
ESP32-S3-WROOM-1-N16R8 module The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash
Display panel connector
Touch panel connector
TF card slot
USB Type-C port
UART1 Port USB TO UART Type-C port
UART2 header UART1 and UART2 are the same UART, selected by switch
I2C header
Sensor header
CAN header
RS485 header
5V output
13. 3.7V Lithium battery PH2.0 header
14. CAN terminal resistor selection
15. RS485 terminal resistor selection
16. UART selection select UART1 or UART2
17. BOOT button Press and hold while powering on for program burning
