ESP32 LCD Display 3.5 inch WT32-SC01 Plus TFT LCD Touch Screen Display 480 x 320 16MB Flash Memory with ESP32 Development Board - WT32-SC01 Plus
Color
WT32-SC01 Plus

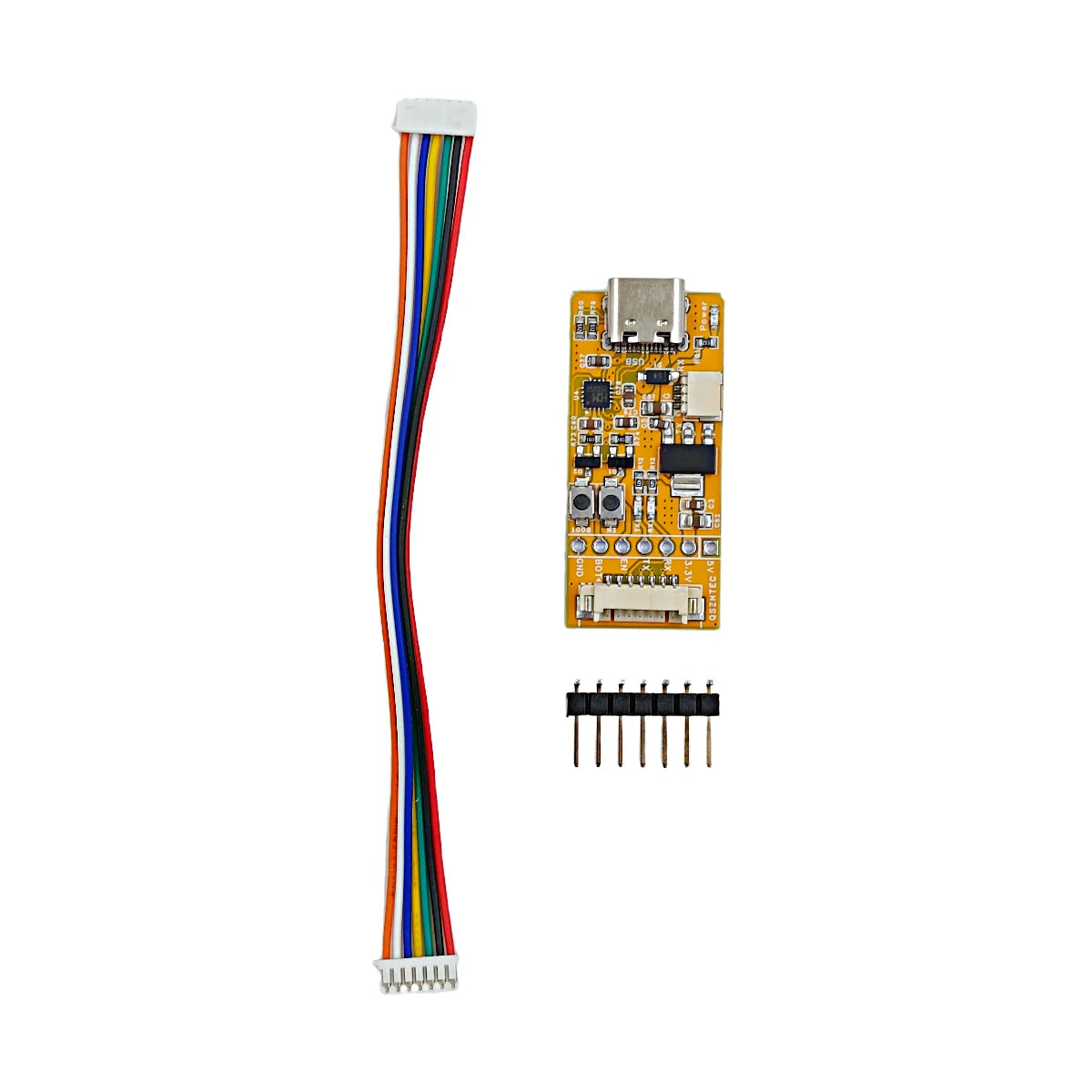

Only Debugging Tools
$46.48
Add to Cart
SPECIFICATIONS Brand Name : QSZNTEC
Choice : yes
Display Mode : 400:1
High-concerned chemical : none
Model Number : WT32-SC01 Plus
Origin : Mainland China
Resolution : 320*240
semi_Choice : yes
ESP32 development board WT32-SC01Plus with 3.5-inch multi-touch IPS screen, with GUI firmware 8MB PSRAM, WiFi, BT, BLE MCU module

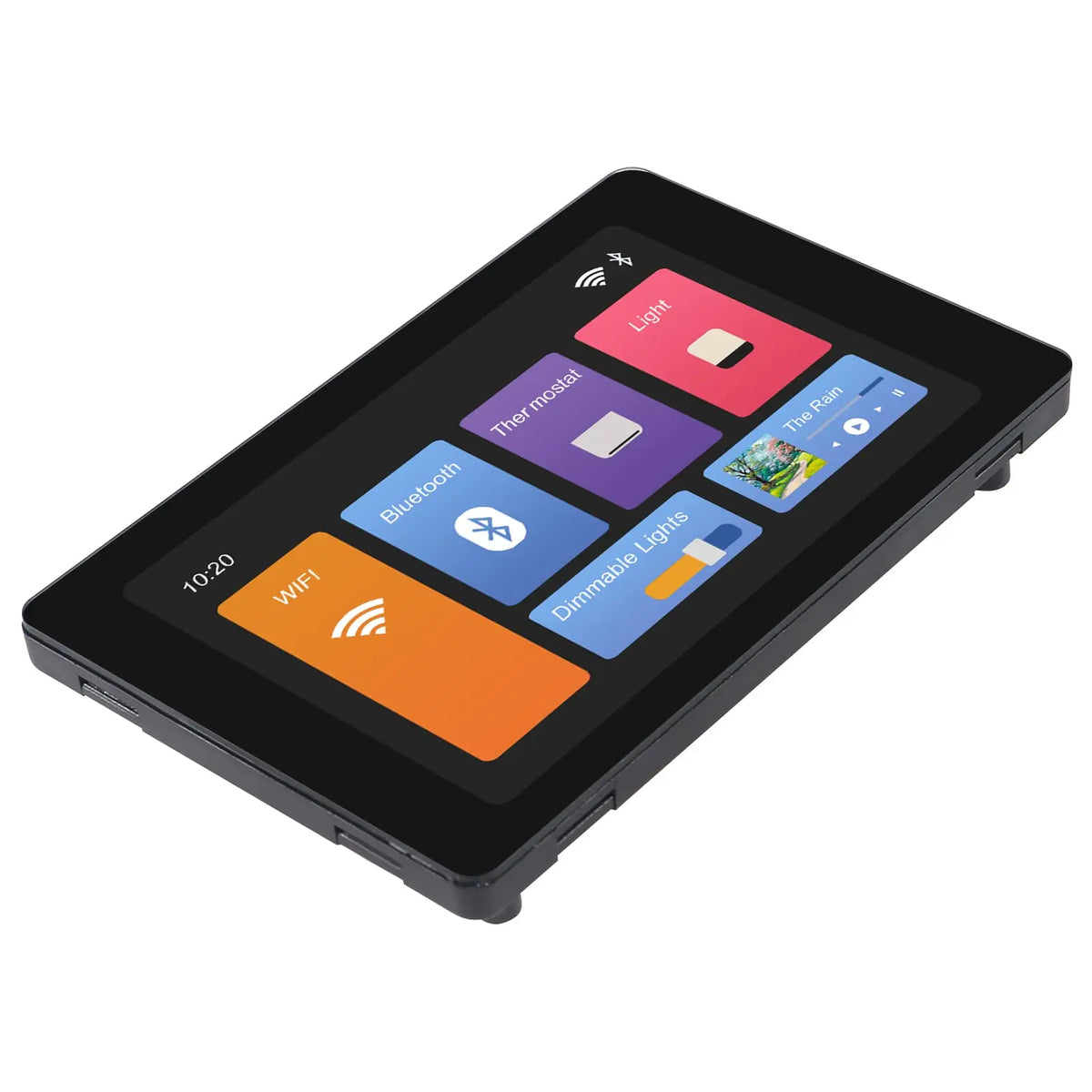

WT32-SC01 is an ESP32 development board with a 3.5-inch (approximately 8.9 cm) color touch screen. The touch screen gives the ESP32 a whole new look. The board comes with Graphical User Interface (GUI) firmware that supports graphical drag-and-drop programming and helps users develop custom control platforms

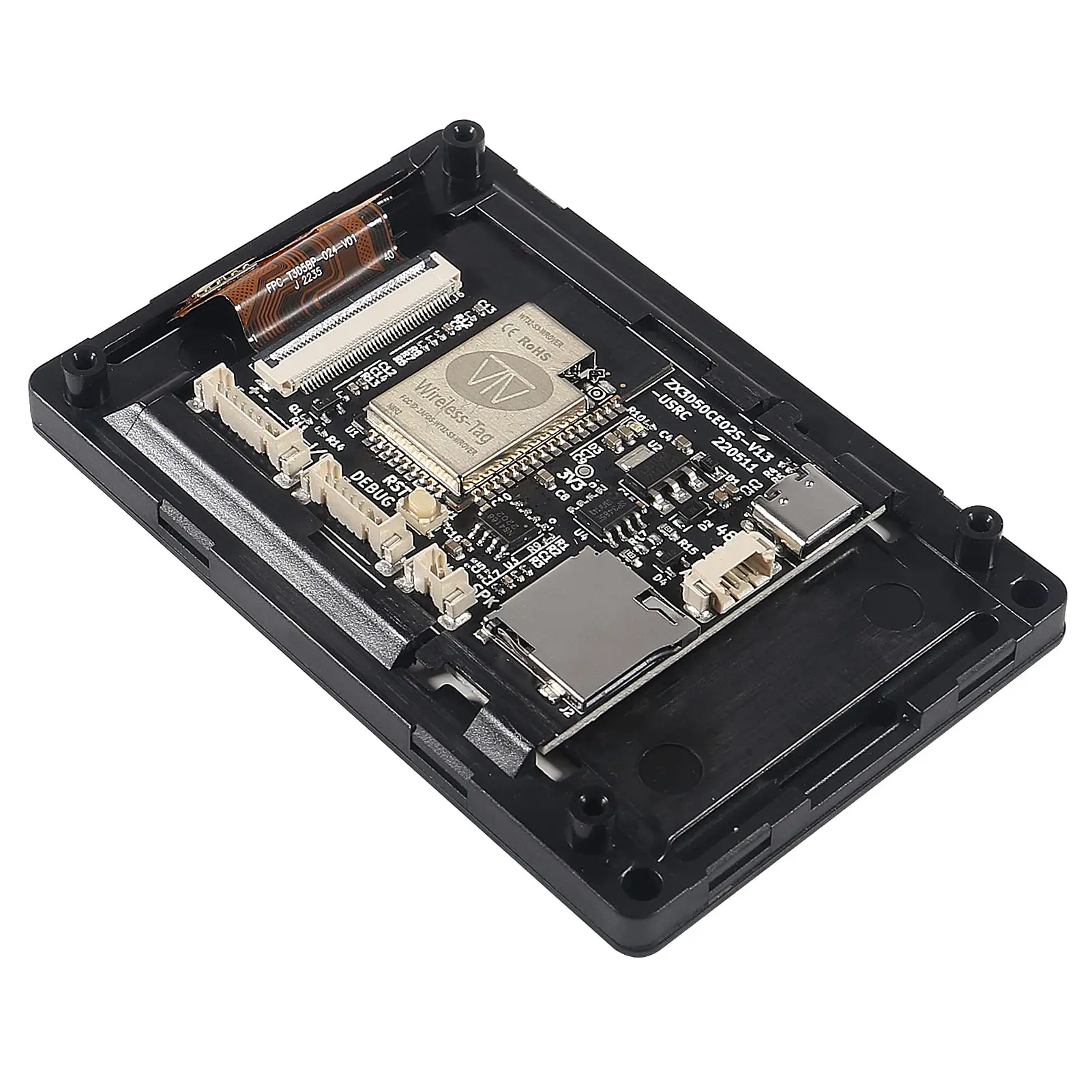

The WT32-SC01 development board uses the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI flash memory and 8MB PSRAM.
CPU: Dual-core Xtensa 32-bit LX6 MCU; 2-point touch, capacitive touch screen: size 3.5 inches; resolution -320*480; power supply: DC 5V/2A; operating temperature: -20~85°C
Applications: Home automation, smart home control panels, 86 boxes, wearable electronic devices, gateways with screens

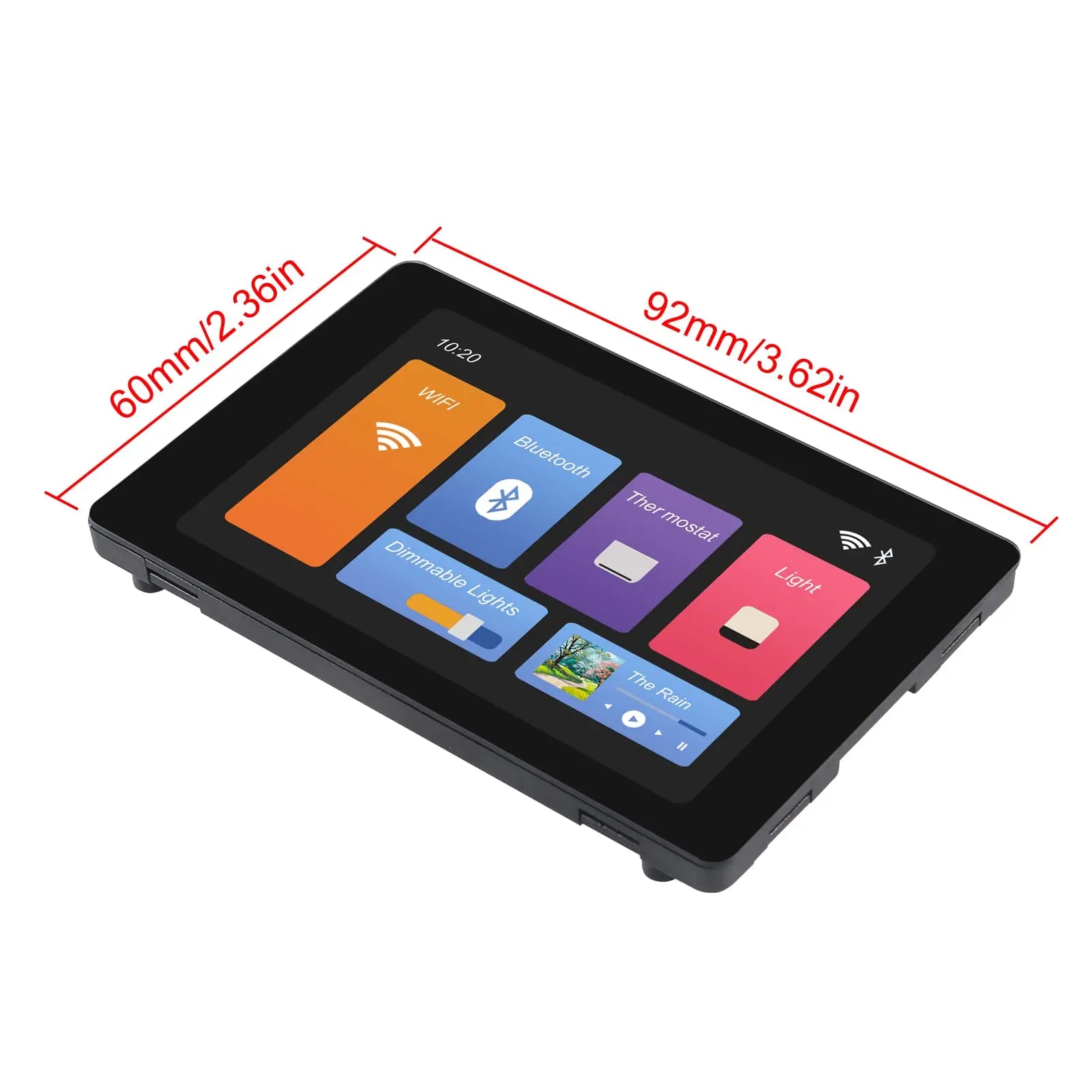

Product Size

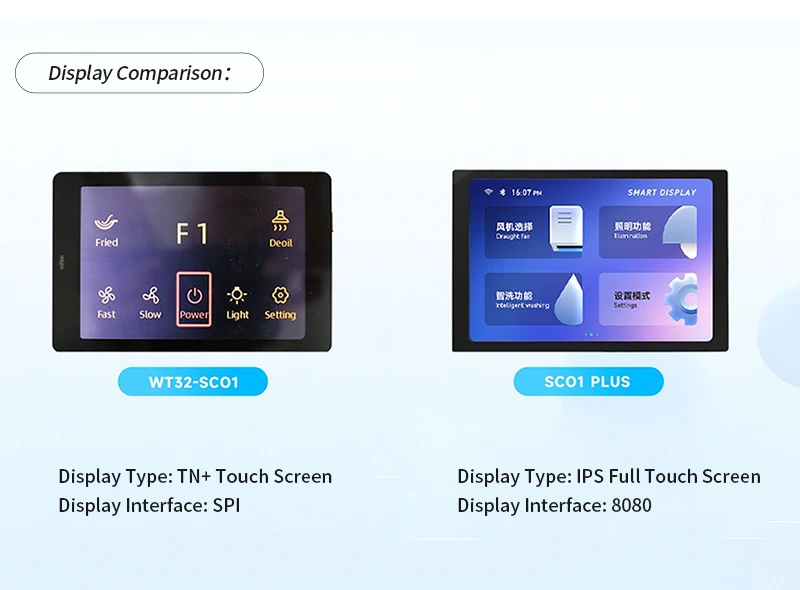

Product Display
