ESP32-C3 Development Board ESP32 Supermini Development Board ESP32 Development Board WiFi Bluetooth

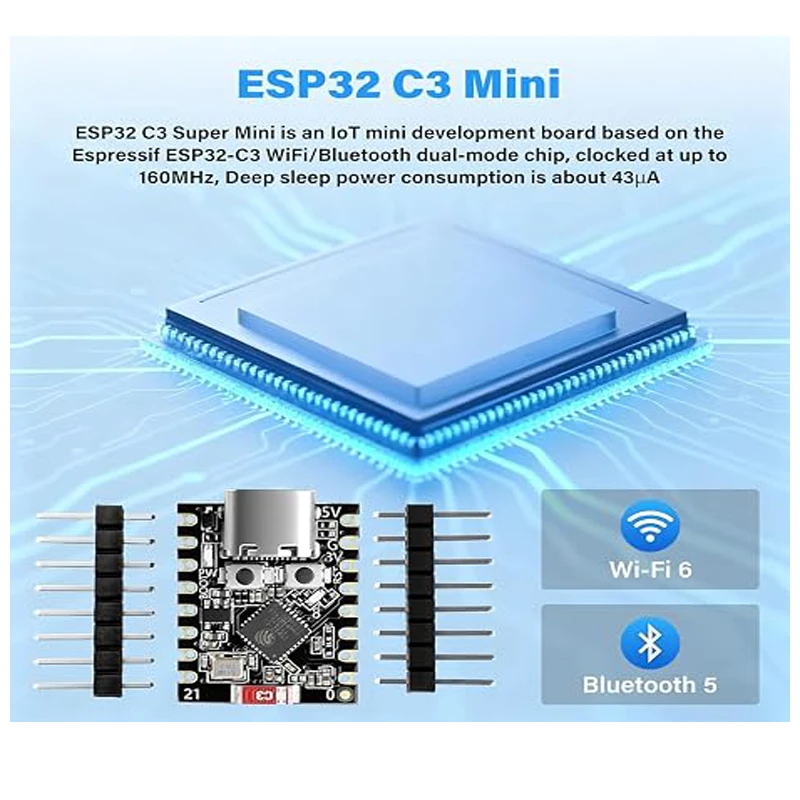

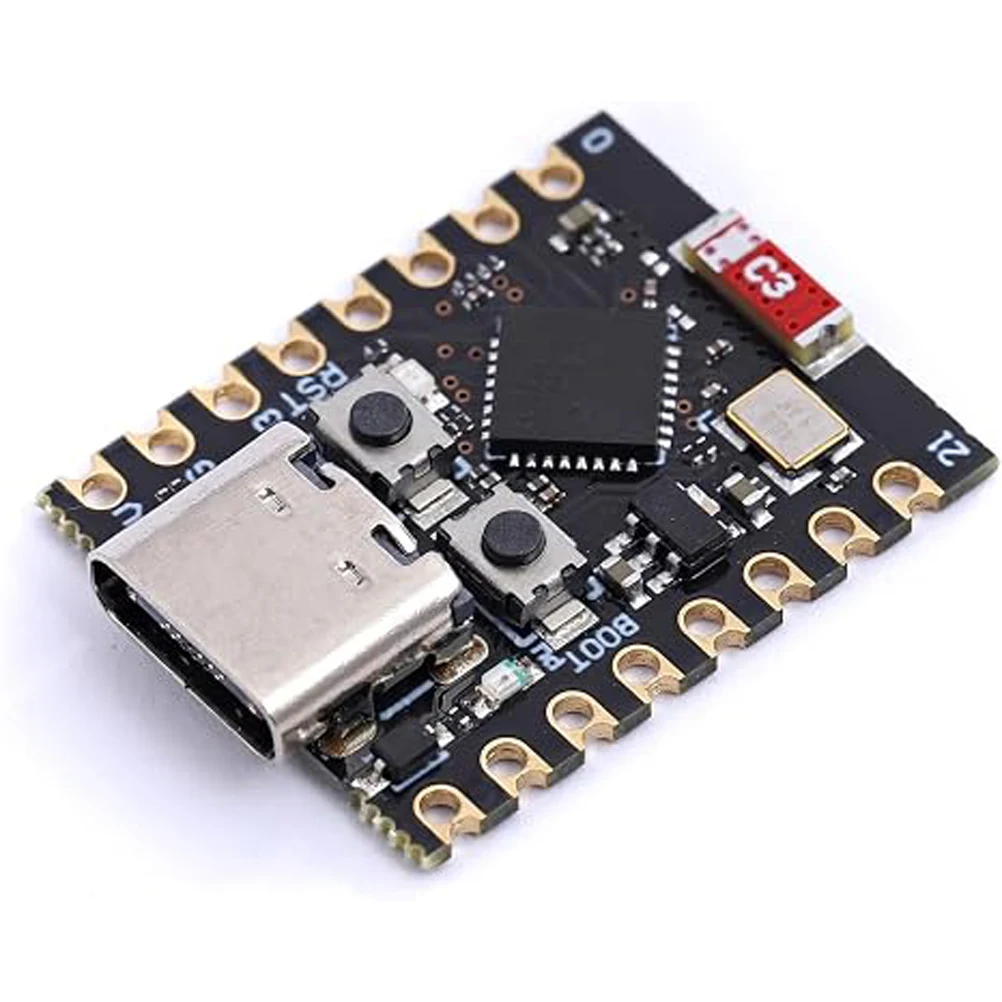

Product Description: ESP32C3SuperMini is an IoT mini development board based on the Espressif ESP32-C3 WiFi/Bluetooth dual-mode chip. ESP32-C3 is a 32-bit RISC-V CPU that includes an FPU (Floating Point Unit) that can perform 32-bit single precision operations and has powerful computing capabilities. It has excellent RF performance and supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols. It is equipped with rich interfaces, with 11 digital I/O available as PWM pins and 4 analog I/O available as ADC pins. It supports four serial interfaces: UART, I2C, and SPI. There is also a small reset button and a bootloader mode button on the board.
Product Parameters:
Powerful CPU: ESP32-C3, 32-bit RISC-V single core processor, running at a frequency of up to 160 MHz
WiFi: 802.11b/g/n protocol, 2.4GHz, supports Station mode, SoftAP mode, SoftAP+Station mode, hybrid mode
Bluetooth: Bluetooth 5.0
Ultra low power consumption: Deep sleep power consumption of about 43 μ A
Rich board resources: 400KB SRAM, 384KB ROM with built-in 4Mflash.
Chip model: ESP32C3FN4
Ultra small size: as small as the thumb (22.52x18mm) with a classic appearance, suitable for wearable devices and small projects
Reliable security features: support AES-128/256, hash RSA、HMAC、 Digital signature and secure boot encryption hardware accelerator

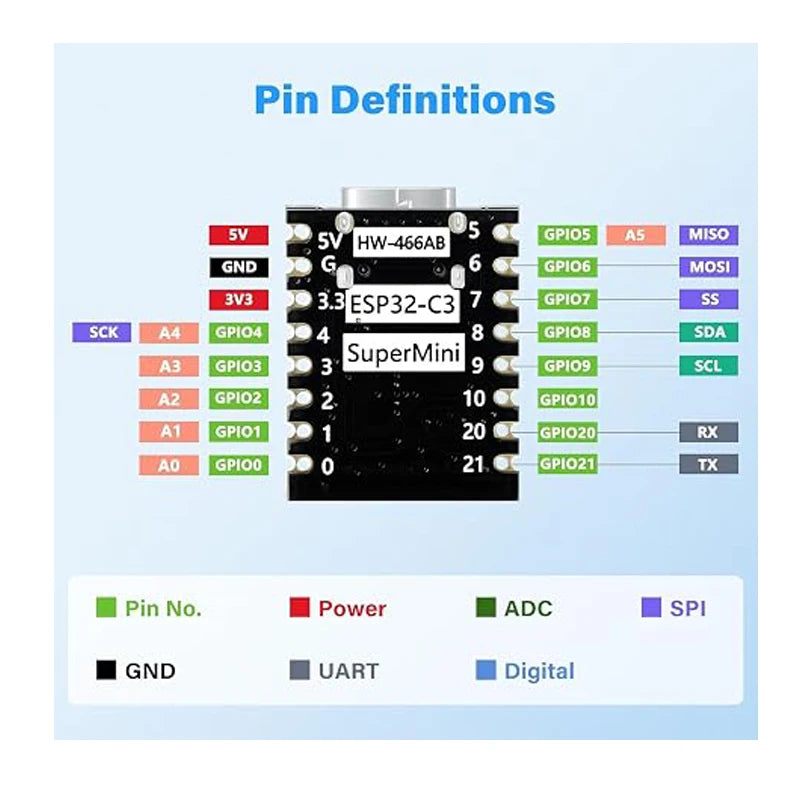

Rich interfaces: 1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC
Single sided components, surface mount design
Onboard LED blue light: GPO8 pin
