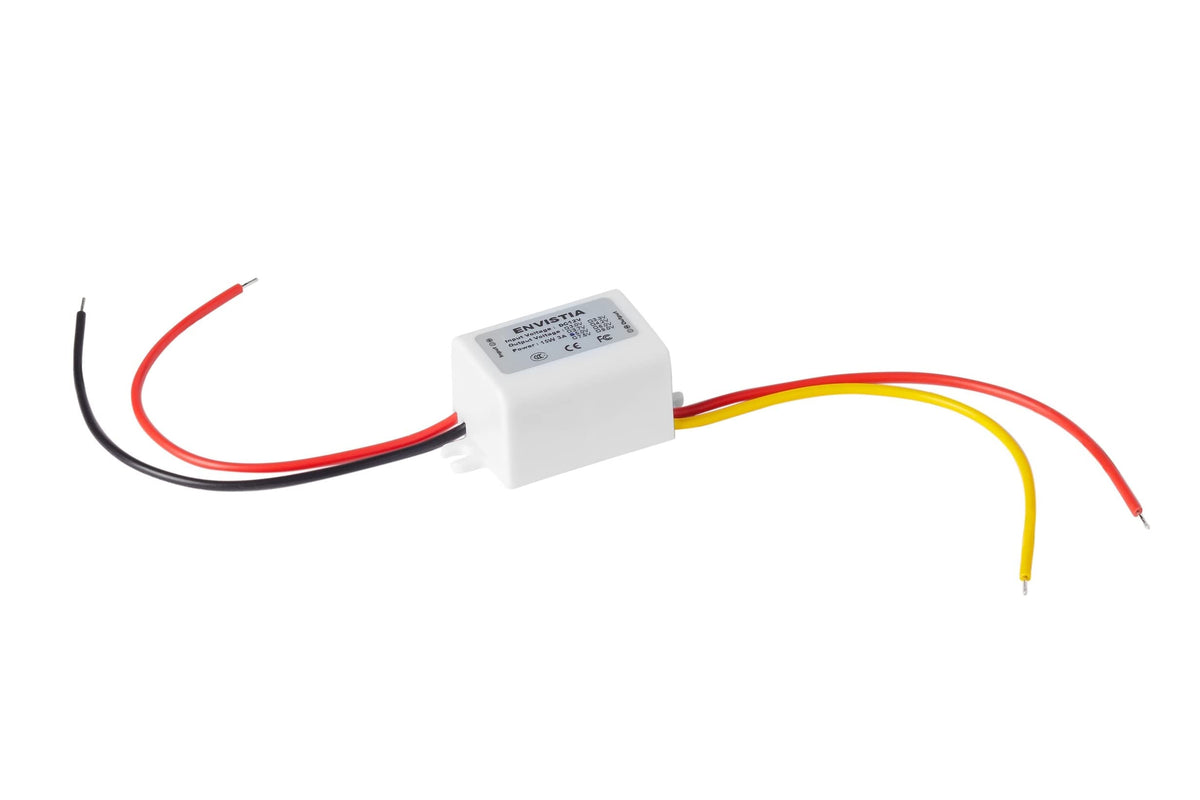

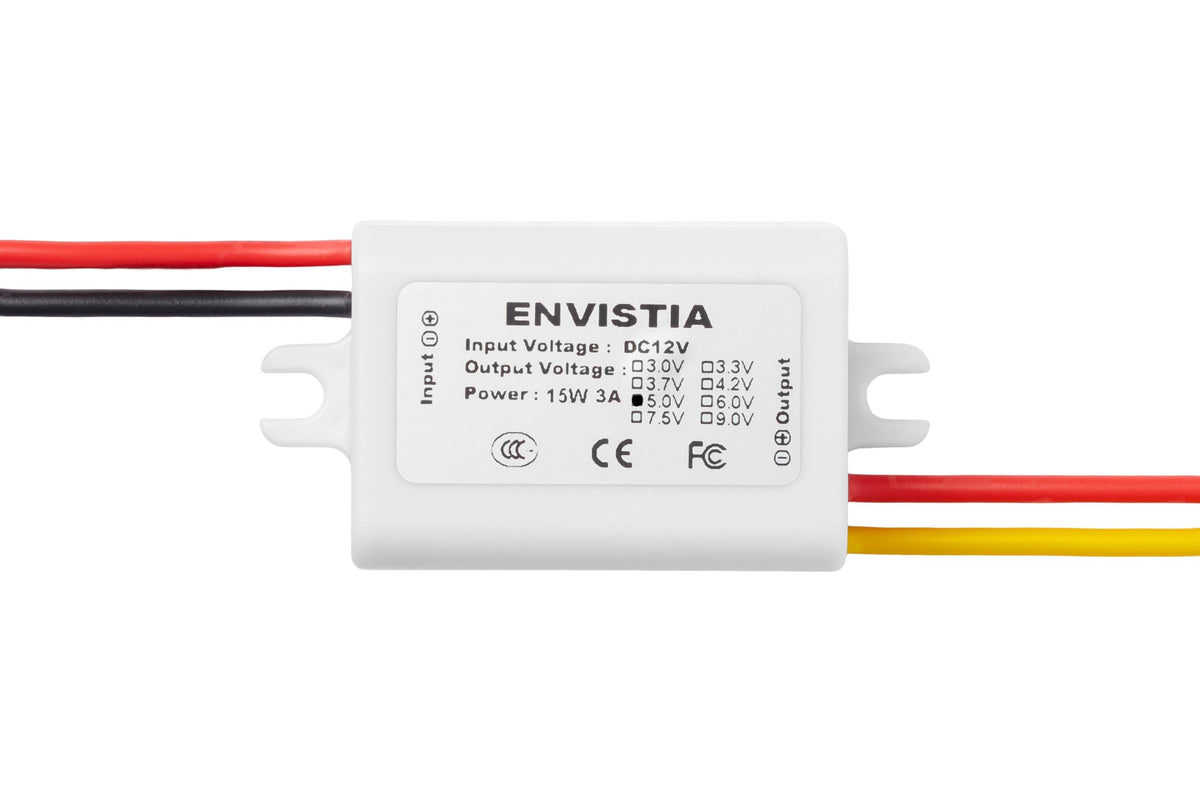

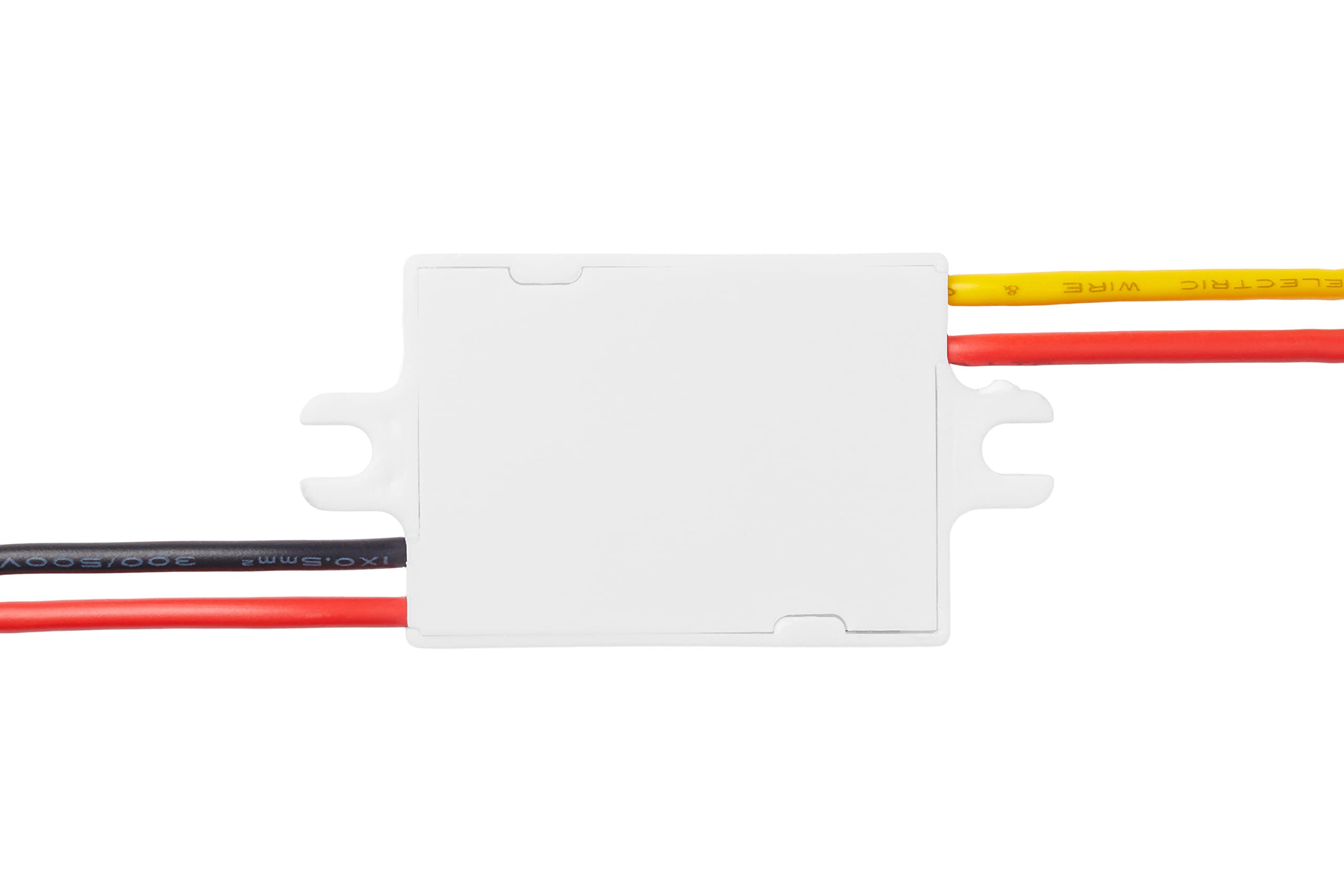

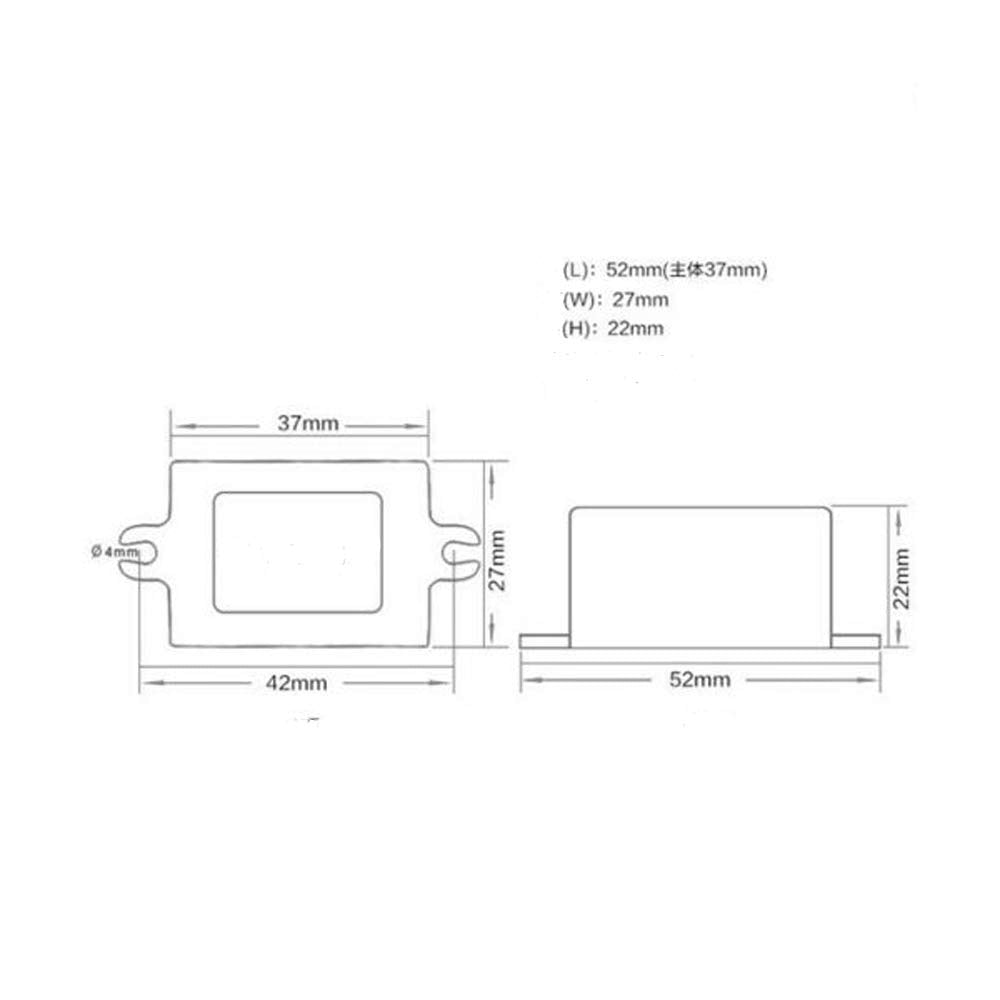

This Miniature Dc-Dc Step-Down Converter Module Converts A 12V Dc Input To 5V Dc Output At Up To 3A Current (15W Maximum). Specifications: Epoxy Sealed Waterproof Housing Lightweight, Compact, Convenient To Use And Transport Non-Isolated With Overload / Over-Current / Over / Low Voltage Protection, Stable Performance Auto Recovery Input Voltage: Dc 12V Nominal, Will Operate On Any Input Voltage From 8V To 24V Dc Quiescent Input Current (No Load Attached): < 10Ma Maximum Input Current At 3A Output: Approximately 1.25A At 12V Input, 1A At 15V Input Output Voltage: 5V Maximum Output Current: 3A Maximum Output Power: 15W Efficiency: > 96% Operating Temperature: -40C - +70C Size (L X W X H): 38 * 27 * 23 Mm (Length Including Mounting Tabs Is 52Mm) Weight: 30G Case Color: White Cable Length: 12Cm (Approx) Operating Notes: As With Any Dc-Dc Converter, The Input Dc Power Supply Powering This Converter Must Be Capable Of Providing The Maximum Power Drawn By Your Load. If The Input Supply Is Not Capable Of Providing The Power, The Converter Will Fold Back The Output Voltage As Necessary. Example: If Your Load Draws 3A At 5V (15W), And The Input Supply Is Only Capable Of Providing 12V At 1A (12W), The Maximum Output Voltage The Converter Will Deliver Is 4V (12W/3A).
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the Envistia Miniature DC to DC Voltage Converter?A: The dimensions are thirty-eight millimeters by twenty-seven millimeters by twenty-three millimeters.
Q: What is the maximum output power of this voltage converter?A: The maximum output power is fifteen watts.
Q: What is the input voltage range for this converter?A: The input voltage range is from eight volts to twenty-four volts.
Q: How much does the Envistia voltage converter weigh?A: It weighs thirty grams.
Q: What type of housing does this converter have?A: The converter has an epoxy sealed waterproof housing.
Q: How do I connect the Envistia DC to DC converter?A: Connect the red and black wires to the twelve volt input and the red and yellow wires to the five volt output.
Q: Is the Envistia converter suitable for outdoor use?A: Yes, it is waterproof and suitable for outdoor applications.
Q: Can I use this converter in my car?A: Yes, it is versatile and ideal for automotive applications.
Q: What precautions should I take when using this converter?A: Ensure that your input power supply can provide the maximum power required by your load.
Q: How do I protect the converter from overload?A: The converter includes built-in overload and voltage protection features.
Q: What should I do if the output voltage is lower than expected?A: Check if the input supply can provide sufficient power; if not, the converter may reduce the output voltage.
Q: Is there a warranty for this voltage converter?A: Warranty details may vary by retailer; please check with the seller for specific warranty information.
Q: How do I store the Envistia voltage converter when not in use?A: Store it in a dry place, away from extreme temperatures and moisture.
Q: What is the efficiency rating of the Envistia converter?A: The efficiency rating is greater than ninety-six percent.
Q: Can I use this converter with a load that requires three amps?A: Yes, it can handle a maximum output current of three amps.
