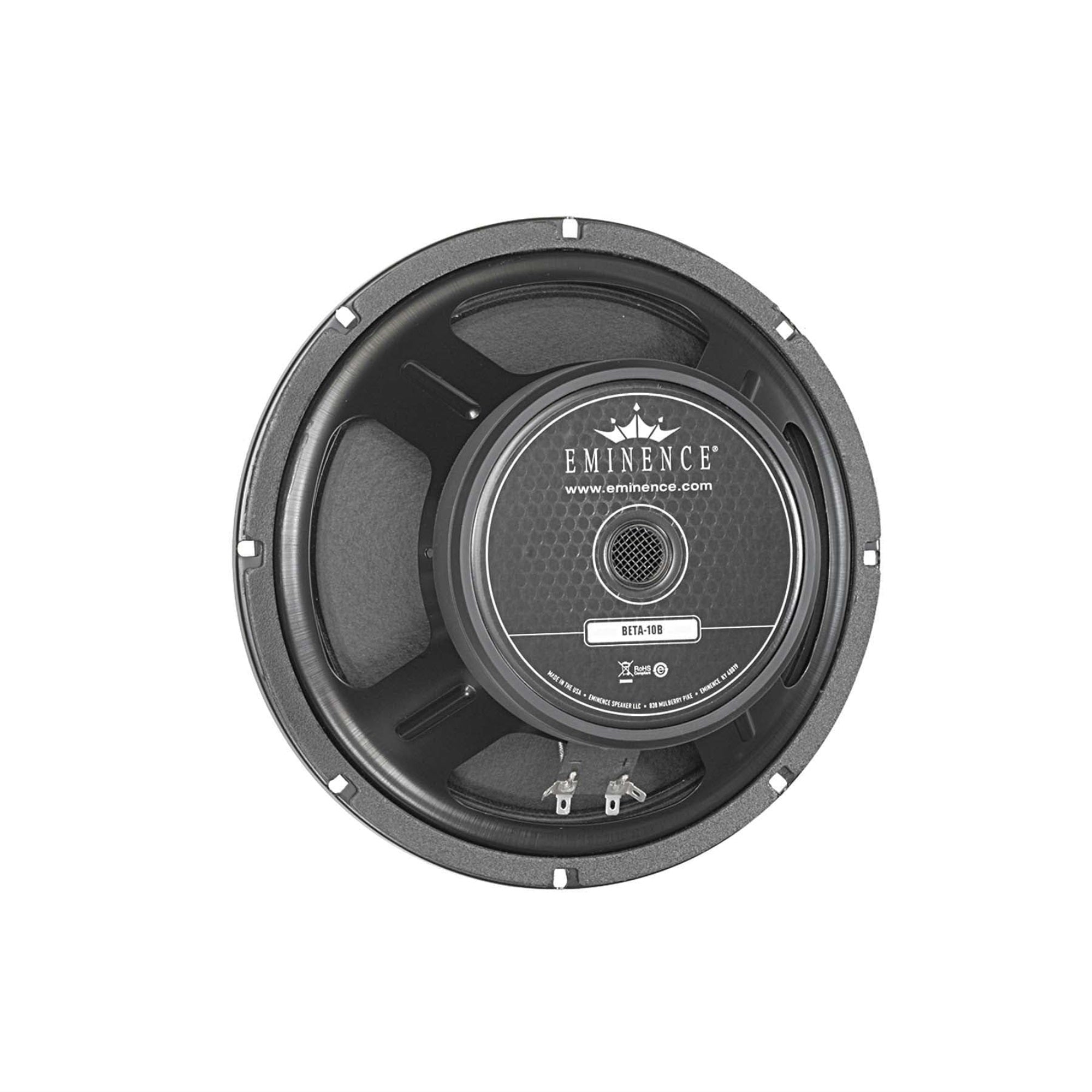

EMINENCE 10 inch 16OHM WOOFER
$157.97
Add to Cart
Eminence Speaker BETA10B 16Ohm 10inch Woofer Midbass Pro Audio Bass Guitar Series Speaker .SPECIFICATION | Nominal Basket Diameter : 10 inch, 254 mm | Nominal Impedance* : 16 | Power Rating* : | Program Power : 500 W | Watts : 250 W | Resonance : 51.6 Hz | Usable Frequency Range : 50 Hz 3.5 kHz | Sensitivity* : 94.1 dB | Magnet Weight : 34 oz. | Gap Height : 0.312 inch, 7.9 mm | Voice Coil Diameter : 2 inch, 51 mm | .PARAMETERS : | Resonant Frequency (fs) : 51.6 Hz | DC Resistance (Re) : 15.1 | Coil Inductance (Le) : 1.33 m H | Mechanical Q (Qms) : 4.33 | Electromagnetic Q (Qes) : 0.58 | Total Q (Qts) : 0.51 | .PARAMETERS : | Compliance Equivalent Volume (Vas) : 61.37 liters / 2.17 cu.ft. | Peak Diaphragm Displacement Volume (Vd) : 106.6 cc | Mechanical Compliance of Suspension (Cms) : 0.35 mm/N | BL Product (BL) : 15.14 TM | Diaphragm Mass Inc. Airload (MMs) : 25 grams | Efficiency Bandwidth Product (EBP) : 89.26 | Maximum Excursion (Xmax) : 3 mm | Surface Area of Cone (Sd) : 344.9 cm2 | Maximum Mechanical Limit (Xlim) : 8.6 mm | .MOUNTING INFORMATION : Sealed : 14.7242.8 liters / 0.521.5 cu.ft. | Vented : 28.3284.95 liters / 13 cu.ft. | Driver Volume Displaced : 0.04 cu.ft. / 1.13 liters | Overall Diameter : 10.11 inch inch, 256.8 mm | Baffle Hole Diameter : 9.13 inch inch, 231.9 mm | Front Sealing Gasket : Yes | Rear Sealing Gasket : Yes | Mounting Holes Diameter : 0.23 inch inch, 5.8mm | Mounting Holes B.C.D. : 9.6 inch inch, 243.8mm | Depth : 3.98 inch inch, 101.1 mm | Net Weight : 6.8 lbs, 3.08 kg | Shipping Weight : 7.8 lbs, 3.54 kgs | .MATERIALS OF CONSTRUCTION : | Coil Construction : Aluminum voice coil | Coil Former : Polyimide former | Magnet Composition : Ferrite magnet | Core Details : Vented core | Basket Materials : Pressed steel basket | Cone Composition : Paper cone | Cone Edge Composition : Cloth cone edge | Dust Cap Composition : Solid composition paper dust cap |
