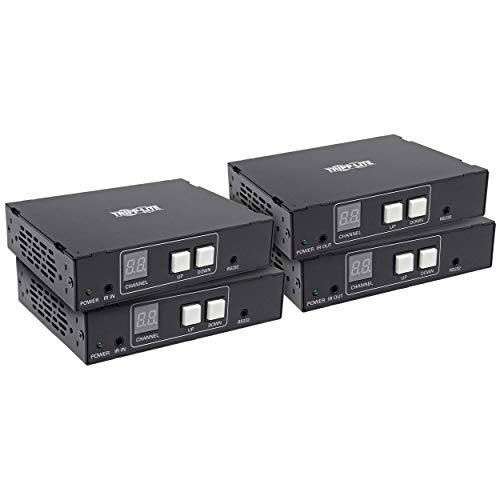

DVI/HDMI Matrix Kit for Digital Signage or Extending Video in Schools or Trade Show Booths This matrix/extender kit comes with two Tripp Lite B160001HDSI transmitters and two B160100HDSI receivers. It extends and distributes DVI or HDMI audio/video, RS232 serial and IR (infrared) remote signals from two source devices, such as Bluray players and media servers, to two HDMI displays via Cat5e/6 cabling. The maximum distance between a transmitter and receiver is 328 feet. However, by connecting a dedicated network switch (sold separately) in between, you can extend the audio/video as far as 656 feet (200 meters). Scale Up to a MultiIn, MultiOut Installation to Take You Beyond 656 Feet You can create an installation featuring multiple sources and displays by connecting a dedicated managed Ethernet network switch with Internet Group Management Protocol (IGMP), such as Tripp Lights NSSG16D2. By adding multiple managed switches, you can create a multiin, multiout installation with as many as 64 transmitters and 255 receivers. The IGMPenabled switch will let you manage all connections for centralized control over which sources show on which displays. Note: Unmanaged switch installations are limited to two transmitter units. The number of receivers is limited to the number of ports remaining on the unmanaged switch. This transmitter/receiver extender kit is designed for use with a dedicated network switch. Connecting a switch used with other networking equipment will result in degraded or nonfunctional performance. Transmits CrystalClear 1080p Video with Stereo Audio The B160202HDSI supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz with 24bit True Color in a managed switch installation. It extends IR signals that control a DVI or HDMI source to the remote displays, as well as RS232 signals at serial baud rates up to 57600 bps. This allows you to operate the source devices remote controls (play, rewind, pause, etc. ), while standing near a receiver located up to 656 feet away. Adapter cables are included for converting DVI signals to HDMI and vice versa. PlugandPlay Operation for Quick Setup and Immediate Use The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19inch racks. Cat6 patch cable (such as Tripp Lights N202Series) can be used to connect the transmitters to a receiver or network switch. Connect an additional display to a transmitters local output with HDMI cable (such as Tripp Lights P568 or P569Series) to monitor the image being transmitted to a remote display. TAACompliant for GSA Schedule Purchases The B160202HDSI is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
