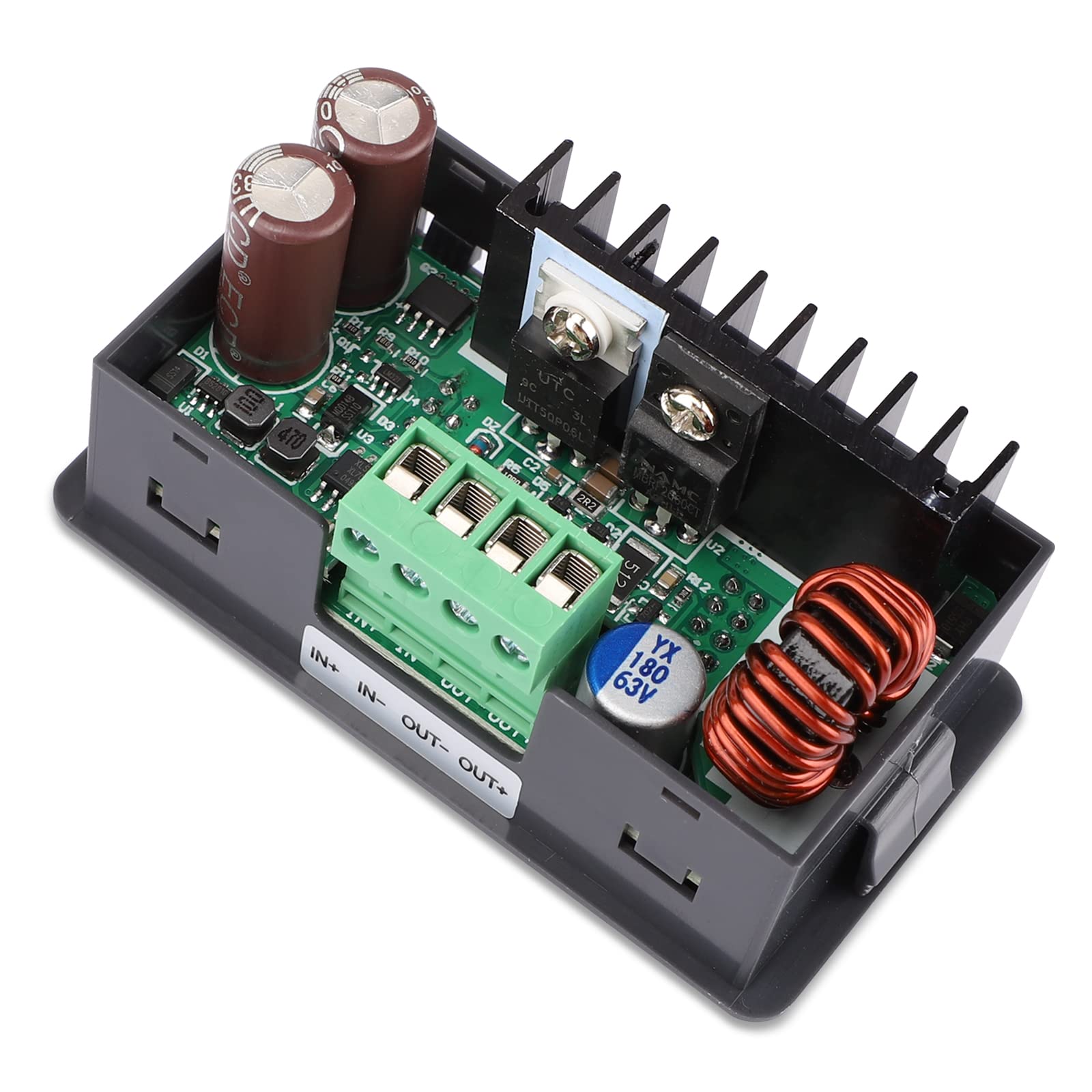

Parameters: Input Voltage Range: Dc 6-55V Output Voltage Range: Dc 0-50V Output Current Range: 0-5A Output Power Range: 0-250W Output Voltage Resolution: 0.01V Output Current Resolution: 0.001A Output Voltage Measurement Accuracy: (0.5% + 1 Digit) Output Current Measurement Accuracy: (0.5% + 2 Digits) Product Dimension: 79Mm X 43Mm X 48Mm Open Size: 71Mm X 39Mm Note: You Must Make Sure That Power Supply Input Voltage Must Be 1.1 Times More Than The Output. Wiring Instruction: In+: Input Positive Out+: Output Positive In-: Input Negative Out-: Output Negative Warm Tips: 1. The Input Voltage Range Is Dc 6-55V And 55V Is The Maximum Voltage, So Please Leave Room For Usage, Or The Module Will Be Burnt. 2. The Input Must Be Dc-Dc, Unable To Use Ac 220V To Directly Supply Electricity, Or Else The Module Will Also Be Burnt. 3. Although Electric Converter Has Input Reverse Polarity Protection And Output Short-Circuit Protection, You Must Be In Strict Accordance With Connection Description To Connect. If You Connect Power Supply To The Output Terminal,This Module May Be Burnt.
⚠️ WARNING (California Proposition 65): This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.
Frequently Asked Questions
Q: What are the dimensions of the DROK voltage regulator?A: The DROK voltage regulator measures seventy-nine millimeters by forty-three millimeters by forty-eight millimeters. It is compact, making it suitable for various applications.
Q: What is the input voltage range for the DROK voltage regulator?A: The input voltage range is direct current six to fifty-five volts. Ensure the input voltage is at least one point one times the output voltage to avoid damage.
Q: What is the output current range of the DROK voltage regulator?A: The output current range is zero to five amperes. This allows for flexibility in powering different devices.
Q: How do I use the DROK voltage regulator?A: Connect the input positive terminal to your power source and the output positive terminal to your device. Follow the wiring instructions carefully to avoid damage.
Q: Can I use this regulator with alternating current?A: No, the DROK voltage regulator cannot be used with alternating current. It is designed for direct current only to prevent damage.

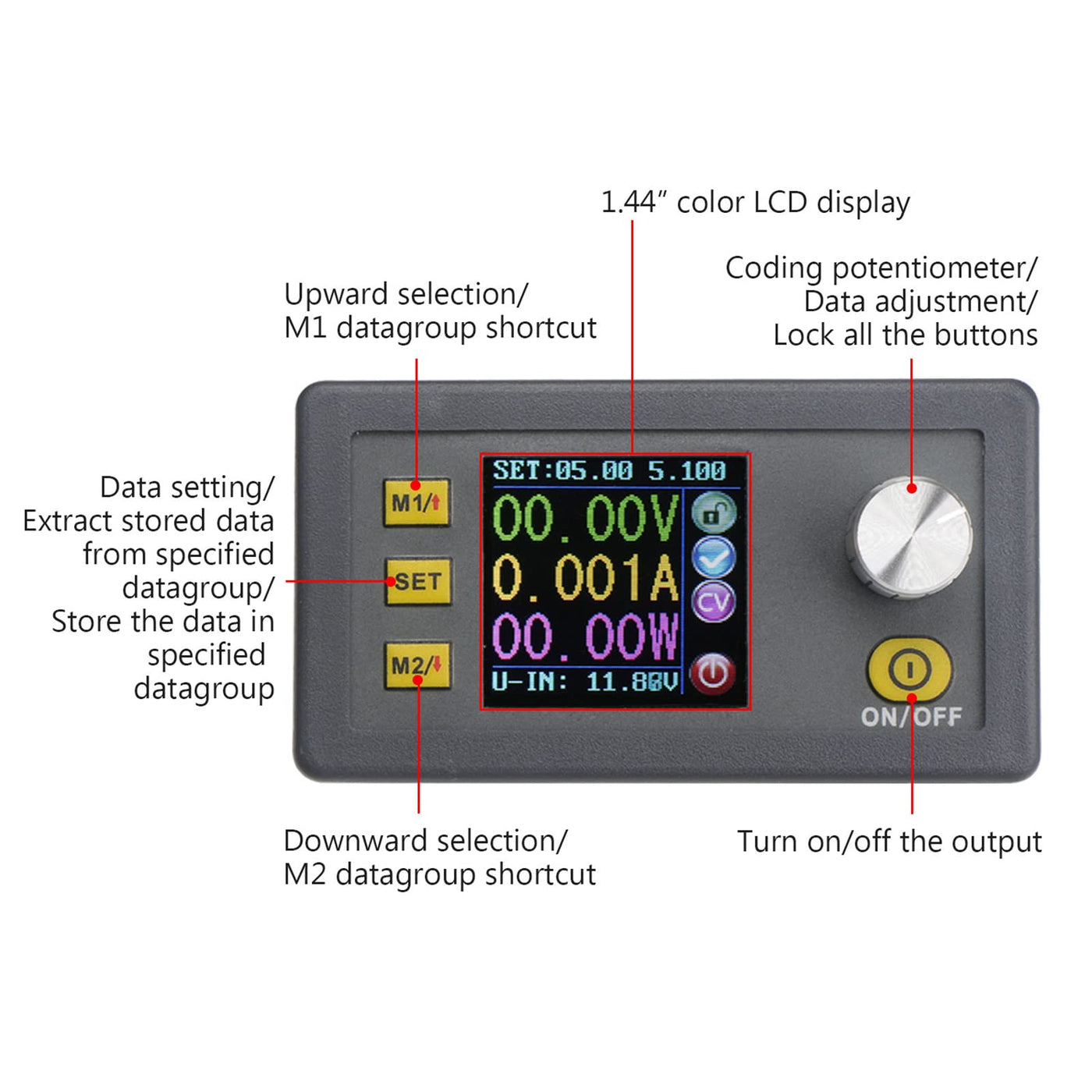

Q: How can I set the output voltage on the DROK voltage regulator?A: You can adjust the output voltage using the controls on the device. The output voltage can be set to any value between zero and fifty volts, in increments of zero point zero one volts.
Q: What precautions should I take when using this voltage regulator?A: Ensure that the input voltage does not exceed fifty-five volts and that you connect the device according to the wiring instructions to prevent damage.
Q: Is the DROK voltage regulator safe to use?A: Yes, it features reverse polarity protection and short-circuit protection. However, it must be connected according to the instructions to ensure safety.
Q: How do I store the DROK voltage regulator?A: Store the DROK voltage regulator in a dry, cool place away from direct sunlight. Ensure it is unplugged when not in use.
Q: What happens if I connect the power supply incorrectly?A: If you connect the power supply incorrectly, the module may be damaged. Always follow the wiring instructions carefully.
Q: Can I preset values on the DROK voltage regulator?A: Yes, you can store up to ten preset values. This feature allows for quick retrieval of frequently used settings.

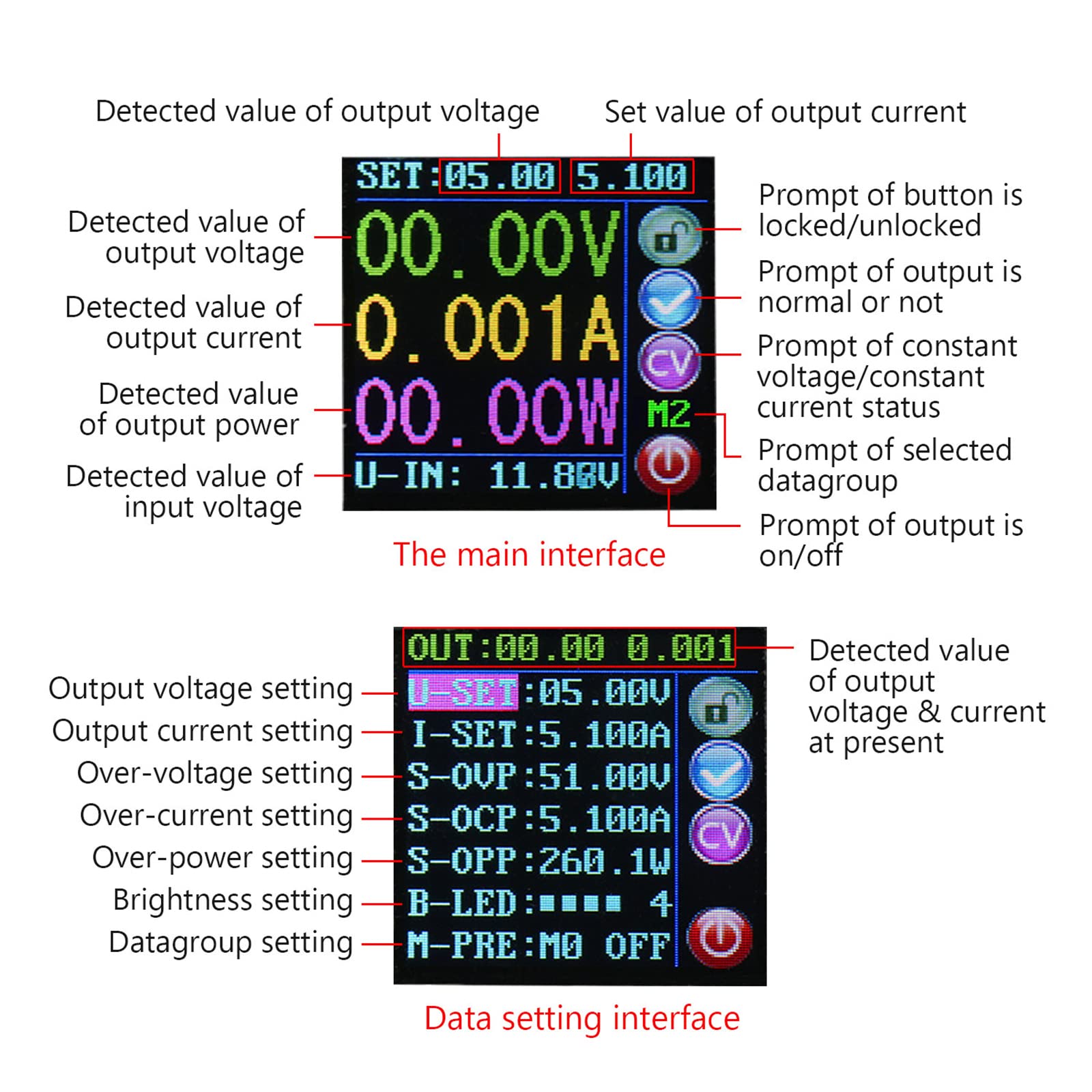

Q: What type of display does the DROK voltage regulator have?A: The DROK voltage regulator is equipped with a high-quality LCD monitor. It displays input voltage, output voltage, preset voltage, output current, and output power.
Q: Is the DROK voltage regulator suitable for beginners?A: Yes, it is user-friendly and suitable for beginners. Just follow the instructions for setup and operation.
Q: What if the DROK voltage regulator arrives damaged?A: If the product arrives damaged, you should contact customer support for assistance with returns or replacements.
Q: Does the DROK voltage regulator have a warranty?A: Yes, it typically comes with a manufacturer's warranty. Check the product documentation for specific details.
Q: How does the cooling system work in the DROK voltage regulator?A: The regulator features an intelligent long-life ball bearing fan that activates automatically when the output current exceeds zero point five amperes, helping to dissipate heat.
